Optimized algorithm for k-step reachability queries on directed acyclic graphs

doi:10.11772/j.issn.1001-9081.2019081605

Journal of Computer Applications ›› 2020, Vol. 40 ›› Issue (2): 426-433.DOI: 10.11772/j.issn.1001-9081.2019081605

• CCF NDBC 2019 • Previous Articles Next Articles

Optimized algorithm for k-step reachability queries on directed acyclic graphs

Ming DU¹, Anping YANG¹, Junfeng ZHOU¹(), Ziyang CHEN², Yun YANG¹

^1.School of Computer Science and Technology，Donghua University，Shanghai 201620，China
^2.School of Information Management，Shanghai Lixin University of Accounting and Finance，Shanghai 201620，China

Received:2019-08-16 Revised:2019-09-23 Accepted:2019-10-24 Online:2019-10-31 Published:2020-02-10
Contact: Junfeng ZHOU
About author:DU Ming， born in 1975， Ph. D.， associate professor. His research interests include information retrieval， data analysis and mining， natural language processing.
YANG Anping， born in 1994， M. S. candidate. His research interests include query processing and optimization of graph data.
CHEN Ziyang， born in 1973， Ph. D.， professor. His research interests include computation theory， query processing， optimization of graph data.
YANG Yun， born in 1995， M. S. candidate. Her research interests include query processing and optimization of graph data.

有向无环图上k步可达查询优化算法

杜明¹, 杨安平¹, 周军锋¹(), 陈子阳², 杨云¹

^1.东华大学计算机科学与技术学院，上海 201620
^2.上海立信会计金融学院信息管理学院，上海 201620

通讯作者: 周军锋
作者简介:杜明（1975—），男，黑龙江虎林人，副教授，博士，主要研究方向：信息检索、数据分析和挖掘、自然语言处理
杨安平（1994—），男，安徽马鞍山人，硕士研究生，主要研究方向：图形数据的查询处理和优化
陈子阳（1973—），男，黑龙江五常人，教授，博士，CCF会员，主要研究方向：计算理论、查询处理、图数据优化
杨云（1995—），女，安徽芜湖人，硕士研究生，主要研究方向：图形数据的查询处理和优化。

Abstract

Abstract:

The k-step reachability query is used to answer whether there exists a path between two nodes with length no longer than k in a Directed Acyclic Graph （DAG）. Concerning the problems of large index size and low query processing efficiency of existing approaches， a bi-directional shortest path index based on partial nodes was proposed to improve the coverage of reachable queries， and a set of optimization rules was proposed to reduce the index size. Then， a bi-directional reversed topological index was proposed to accelerate the unreachable queries answering based on the simplified graph. Finally， the farthest-node-first-visiting bi-traversal strategy was proposed to improve the efficiency of query processing. Experimental results on 21 real datasets， such as citation networks and social networks， show that compared with existing efficient approaches including PLL （Pruned Landmark Labeling） and BFSI-B （Breadth First Search Index-Bilateral）， the proposed algorithm has smaller index size and higher query response speed.

Key words: Directed Acyclic Graph (DAG), k-step reachability query, hop point shortest path index, bi-directional reversed topological index, bi-traversal

摘要：

k步可达查询用于在给定的有向无环图（DAG）中回答两点之间是否存在长度不超过k的路径。针对现有方法的索引规模大、查询处理效率低的问题，提出一种基于部分点的双向最短路径索引来提升索引的可达信息覆盖率，并提出一组优化规则来减小索引规模；然后提出基于简化图的正反互逆拓扑索引来加速回答不可达查询；最后提出远距离优先的双向遍历策略来提高查询处理的效率。基于21个真实数据集（如引用网络、社交网络等）的实验结果表明，相比已有的高效方法PLL及BFSI-B，所提出的算法具有更小的索引规模和更快的查询响应速度。

关键词: 有向无环图, k步可达性查询, hop点最短路径索引, 双向互逆拓扑索引, 双向遍历

CLC Number:

TP311

Ming DU, Anping YANG, Junfeng ZHOU, Ziyang CHEN, Yun YANG. Optimized algorithm for k-step reachability queries on directed acyclic graphs[J]. Journal of Computer Applications, 2020, 40(2): 426-433.

杜明, 杨安平, 周军锋, 陈子阳, 杨云. 有向无环图上k步可达查询优化算法[J]. 《计算机应用》唯一官方网站, 2020, 40(2): 426-433.

Figures/Tables 12

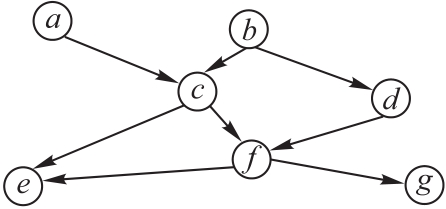

Fig. 1 Example of DAG G

Tab. 1 Shortest path index based on all points

顶点	L_IN	L_OUT
a	${a, 0}$	${a, 0} {c, 1} {f, 2} {e, 2} {g, 3}$
b	${b, 0}$	$b, 0 c, 1 d, 1 e, 2 f, 2 g, 3$
c	$a, 1 b, 1 c, 0$	$c, 0 e, 1 f, 1 g, 2$
d	$b, 1 d, 0$	$d, 0 f, 1 g, 2 e, 2$
e	$a, 2 b, 2 c, 1 d, 2 f, 1 e, 0$	$e, 0$
f	$a, 2 b, 2 c, 1 d, 1 f, 0$	$f, 0 g, 1 e, 1$
g	$a, 3 b, 3 c, 2 d, 2 f, 1 g, 0$	$g, 0$

Tab. 1 Shortest path index based on all points

顶点	L_IN	L_OUT
a	${a, 0}$	${a, 0} {c, 1} {f, 2} {e, 2} {g, 3}$
b	${b, 0}$	$b, 0 c, 1 d, 1 e, 2 f, 2 g, 3$
c	$a, 1 b, 1 c, 0$	$c, 0 e, 1 f, 1 g, 2$
d	$b, 1 d, 0$	$d, 0 f, 1 g, 2 e, 2$
e	$a, 2 b, 2 c, 1 d, 2 f, 1 e, 0$	$e, 0$
f	$a, 2 b, 2 c, 1 d, 1 f, 0$	$f, 0 g, 1 e, 1$
g	$a, 3 b, 3 c, 2 d, 2 f, 1 g, 0$	$g, 0$

Fig. 2 Coverage of reachability for k hop nodes

Tab. 2 Shortest path index based on c and f

顶点	$L I N$	$L O U T$
a	$∅$	${c, 1} {f, 2}$
b	$∅$	$c, 1 f, 2$
c	$c, 0$	$c, 0 f, 1$
d	$∅$	$f, 1$
e	$c, 1 f, 1$	$∅$
f	$c, 1 {f, 0}$	$f, 0$
g	$c, 2 {f, 1}$	$∅$

Tab. 2 Shortest path index based on c and f

顶点	$L I N$	$L O U T$
a	$∅$	${c, 1} {f, 2}$
b	$∅$	$c, 1 f, 2$
c	$c, 0$	$c, 0 f, 1$
d	$∅$	$f, 1$
e	$c, 1 f, 1$	$∅$
f	$c, 1 {f, 0}$	$f, 0$
g	$c, 2 {f, 1}$	$∅$

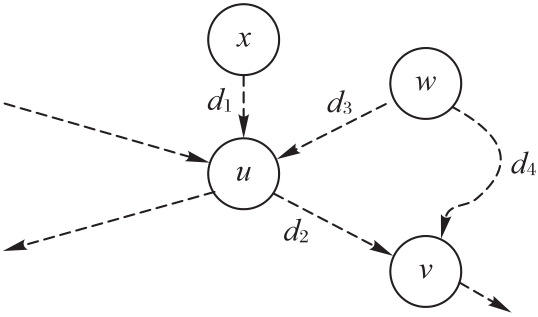

Fig. 3 Schematic diagram of hop nodes intension

Tab. 3 Optimized shortest path index based on c and f

顶点	$L I N$	$L O U T$
a	$∅$	${c, 1}$
b	$∅$	$c, 1$
c	$c, 0$	$c, 0$
d	$∅$	$f, 1$
e	$c, 1 f, 1$	$∅$
f	$c, 1 {f, 0}$	$f, 0$
g	$c, 2 {f, 1}$	$∅$

Tab. 3 Optimized shortest path index based on c and f

顶点	$L I N$	$L O U T$
a	$∅$	${c, 1}$
b	$∅$	$c, 1$
c	$c, 0$	$c, 0$
d	$∅$	$f, 1$
e	$c, 1 f, 1$	$∅$
f	$c, 1 {f, 0}$	$f, 0$
g	$c, 2 {f, 1}$	$∅$

Tab. 4 Statistics of experimental datasets

数据集	$\| V \|$	$\| E \|$	$\| d \|$
human	38 811	39 576	1.01
citeseer	10 720	44 258	4.13
pubmed	9 000	40 028	4.44
yago	6 642	42 392	6.38
arxiv	6 000	66 707	11.12
Email-EuAll	231 000	223 004	0.97
uniprot100m	16 087 295	16 087 293	1.00
uniprot150m	25 037 600	25 037 598	1.00
WikiTalk	2 281 879	2 311 570	1.01
soc-LJ	971 232	1 024 140	1.05
web-Google	371 764	517 805	1.39
10cit-Patent	1 097 775	1 651 894	1.51
10citeseerx	770 539	1 501 126	1.95
citeseerx	6 540 401	15 011 260	2.30
dbpedia	3 365 623	7 989 191	2.37
govwild	8 022 880	23 652 610	2.95
cit-Patents	3 774 768	16 518 947	4.38
go_uniprot	6 967 956	34 769 339	4.99
10go-unipr	469 526	3 476 397	7.40
twitter	18 121 168	18 359 487	1.01
web-uk	22 753 644	38 184 039	1.68

Tab. 4 Statistics of experimental datasets

数据集	$\| V \|$	$\| E \|$	$\| d \|$
human	38 811	39 576	1.01
citeseer	10 720	44 258	4.13
pubmed	9 000	40 028	4.44
yago	6 642	42 392	6.38
arxiv	6 000	66 707	11.12
Email-EuAll	231 000	223 004	0.97
uniprot100m	16 087 295	16 087 293	1.00
uniprot150m	25 037 600	25 037 598	1.00
WikiTalk	2 281 879	2 311 570	1.01
soc-LJ	971 232	1 024 140	1.05
web-Google	371 764	517 805	1.39
10cit-Patent	1 097 775	1 651 894	1.51
10citeseerx	770 539	1 501 126	1.95
citeseerx	6 540 401	15 011 260	2.30
dbpedia	3 365 623	7 989 191	2.37
govwild	8 022 880	23 652 610	2.95
cit-Patents	3 774 768	16 518 947	4.38
go_uniprot	6 967 956	34 769 339	4.99
10go-unipr	469 526	3 476 397	7.40
twitter	18 121 168	18 359 487	1.01
web-uk	22 753 644	38 184 039	1.68

Tab. 5 Index size on different datasets

数据集	PLL	BFSI-B	kRH
human	0.91	1.18	0.39
citeseer	0.77	0.33	0.12
pubmed	0.70	0.27	0.11
yago	0.51	0.20	0.08
arxiv	2.68	0.18	0.07
Email-EuAll	5.22	7.05	3.25
uniprot100m	393.76	490.95	240.47
uniprot150m	635.14	764.09	342.04
WikiTalk	52.54	69.67	30.82
soc-LJ	22.73	29.64	11.82
web-Google	10.12	11.35	4.67
10cit-Patent	30.22	33.50	13.75
10citeseerx	39.28	23.52	8.76
citeseerx	276.14	199.60	90.80
dbpedia	121.90	102.71	46.36
govwild	398.22	244.84	116.42
cit-Patents	1 748.75	115.20	53.60
go_uniprot	532.72	212.64	197.32
10go-unipr	46.63	14.33	6.17
twitter	416.68	553.01	236.51
web-uk	967.76	694.39	307.19

Tab. 6 Index time on different datasets

数据集	PLL	BFSI-B	kRH
human	10.60	5.89	5.24
citeseer	22.24	3.09	2.96
pubmed	24.35	2.99	3.20
yago	7.45	2.61	2.55
arxiv	232.31	2.58	11.45
Email-EuAll	78.03	38.41	41.55
unprot100m	6 642.67	4 299.18	3 817.71
unprot150m	12 033.31	6 776.78	6 725.61
WikiTalk	617.26	369.50	318.81
soc-LJ	360.48	172.819	185.40
web-Google	223.31	99.04	101.70
10cit-Patent	964.10	614.03	420.48
10citeseerx	1 690.31	314.29	254.37
citeseerx	14 563.31	5 012.91	4 166.43
dbpedia	3 989.27	1 777.21	1 835.07
govwild	12 069.51	3 347.31	3 769.61
cit-Patents	476 502	8 040.33	6 065.75
go_uniprot	15 748.51	4 079.98	7 624.27
10go-unipr	1 453.04	328.76	584.98
twitter	6 727.98	3 712.88	3 664.62
web-uk	47 093.21	3 703.31	4 686.35

Tab. 7 Query time on different datasets when k=3

数据集	PLL	BFSI-B	kRH
human	54.04	42.36	22.49
citeseer	94.97	84.81	46.68
pubmed	63.44	61.99	38.49
yago	51.48	35.67	17.67
arxiv	371.15	336.50	145.22
Email-EuAll	86.57	57.71	37.03
unprot100m	71.09	60.83	11.49
unprot150m	65.43	62.15	11.45
WikiTalk	105.08	77.17	48.57
soc-LJ	153.13	124.11	76.81
web-Google	141.81	132.59	69.11
10cit-Patent	88.39	39.58	15.16
10citeseerx	143.41	74.84	54.21
citeseerx	174.43	126.10	97.17
dbpedia	149.32	131.11	72.29
govwild	172.26	127.73	97.14
cit-Patents	539.40	158.39	96.79
go_uniprot	184.28	54.32	36.62
10go-unipr	154.07	58.70	54.03
twitter	214.22	155.51	120.57
web-uk	248.95	242.83	207.51

Tab. 8 Query answers can be determined in constant time when k=3

数据集	BFSI-B	kRH
human	799 564	999 956
citeseer	794 836	911 257
pubmed	760 636	926 193
yago	711 253	984 771
arxiv	603 701	771 523
Email-EuAll	698 539	999 939
uniprot100m	808 389	999 995
uniprot150m	785 811	999 994
WikiTalk	882 736	999 853
soc-LJ	753 982	998 973
web-Google	754 241	986 717
10cit-Patent	847 771	998 752
10citeseerx	710 964	977 381
citeseerx	646 989	977 857
dbpedia	888 168	986 482
govwild	891 929	980 872
cit-Patents	717 408	998 286
go_uniprot	877 038	965 690
10go-unipr	846 093	932 241
twitter	854 191	999 701
web-uk	745 658	972 058

Fig. 4 Query time comparison of three algorithms on different datasets
