Image reconstruction based on gradient projection for sparse representation and complex wavelet

doi:10.11772/j.issn.1001-9081.2019101719

Journal of Computer Applications ›› 2020, Vol. 40 ›› Issue (2): 486-490.DOI: 10.11772/j.issn.1001-9081.2019101719

• CCF NDBC 2019 • Previous Articles Next Articles

Image reconstruction based on gradient projection for sparse representation and complex wavelet

Yanyan GAO(), Li LI, Jing ZHANG, Yingqian JIA

College of Mechanical and Electrical Engineering，Shijiazhuang University，Shijiazhuang Hebei 050035，China

Received:2019-09-18 Revised:2019-10-14 Accepted:2019-10-24 Online:2019-10-31 Published:2020-02-10
Contact: Yanyan GAO
About author:LI Li， born in 1979， Ph. D.， associate professor. Her research interests include signal processing， intelligent information processing.
ZHANG Jing， born in 1981， M. S.， lecturer. Her research interests include image processing， signal processing.
JIA Yingqian， born in 1976， Ph. D.， associate professor. Her research interests include signal processing， microelectronics.
Supported by:
the Science and Technology Research Project of Hebei Higher Education(QN2017411);the Self-financing Project of Key Research and Development Plan in Hebei Province(18210910)

结合梯度投影稀疏重构和复数小波的图像重构

高彦彦(), 李莉, 张晶, 贾英茜

石家庄学院机电学院，石家庄 050035

通讯作者: 高彦彦
作者简介:李莉（1979—），女，河北石家庄人，副教授，博士，主要研究方向：信号处理、智能信息处理
张晶（1981—），女，河北沧州人，讲师，硕士，主要研究方向：图像处理、信号处理
贾英茜（1976—），女，河北衡水人，副教授，博士，主要研究方向：信号处理、微电子技术。
基金资助:
河北省高等学校科学技术研究项目(QN2017411);河北省重点研发计划自筹项目(18210910)

Abstract

Abstract:

Compressed sensing mainly contains random projection and reconstruction. Because of lower convergence speed of iterative shrinkage algorithm and the lacking of direction of traditional 2-dimensional wavelet transform， random projection was implemented by using Permute Discrete Cosine Transform （PDCT）， and the gradient projection was used for reconstruction. Based on the simplification of computation complexity， the transformation coefficients in the dual-tree complex wavelet domain were improved by iteration. Finally， the reconstructed image was obtained by the inverse transform. In the experiments， the reconstruction results of DT CWT （Dual-Tree Complex Wavelet Transform） and bi-orthogonal wavelet were compared with the same reconstruction algorithm， and the former is better than the latter in image detail and smoothness with higher Peak Signal-to-Noise Ratio （PSNR） of 1.5 dB. In the same sparse domain， gradient projection converges faster than iterative shrinkage algorithm. And in the same sparse domain and random projection， PDCT has a slightly higher PSNR than the structural random matrix.

Key words: compressed sensing, image reconstruction, random projection, sparse representation, dual-tree complex wavelet, Permute Discrete Cosine Transform (PDCT), gradient projection

摘要：

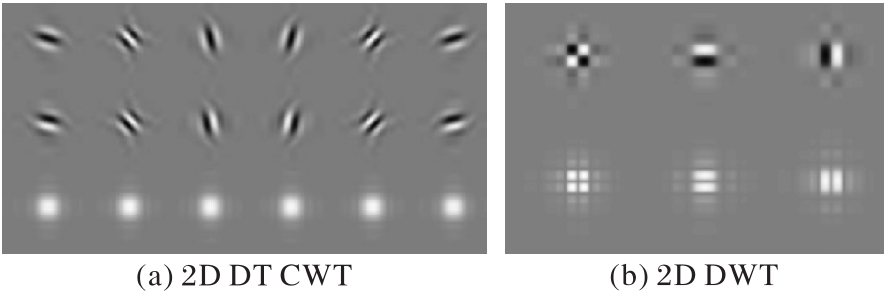

压缩感知主要包括随机投影和重构两部分。针对迭代收缩算法收敛速度较慢，普通二维小波变换缺少方向性表示的缺点，利用置乱离散余弦变换（PDCT）实现随机投影，重构时采用梯度投影算法，在简化计算的基础上，通过迭代的方式完善图像在双树复数小波域的变换系数，最后经反变换后得到重构图像。在同一重构算法下，比较了利用双树复数小波变换和双正交小波变换的重构结果，结果表明前者重构后的图像在细节和平滑度上优于后者，在峰值信噪比（PSNR）上平均高出约1.5 dB；同一稀疏域中，梯度投影算法的收敛速度优于迭代收缩算法；相同稀疏域和重构算法下，PDCT与结构随机矩阵相比在PSNR上略高。

关键词: 压缩感知, 图像重构, 随机投影, 稀疏表示, 双树复数小波, 置乱离散余弦变换, 梯度投影

CLC Number:

TP391.4

Yanyan GAO, Li LI, Jing ZHANG, Yingqian JIA. Image reconstruction based on gradient projection for sparse representation and complex wavelet[J]. Journal of Computer Applications, 2020, 40(2): 486-490.

高彦彦, 李莉, 张晶, 贾英茜. 结合梯度投影稀疏重构和复数小波的图像重构[J]. 《计算机应用》唯一官方网站, 2020, 40(2): 486-490.

Figures/Tables 6

References 18

1	DONOHO D L. Compressed sensing［J］. IEEE Transactions on Information Theory， 2006， 52（4）： 1289-1306. 10.1109/tit.2006.871582
2	彭向东，张华，刘继忠.基于过完备字典的体域网压缩感知心电重构［J］.自动化学报，2014，40（7）：1421-1432. 10.3724/SP.J.1004.2014.01421
	PENG X D， ZHANG H， LIU J Z. ECG reconstruction of body sensor network using compressed sensing based on overcomplete dictionary［J］. Acta Automatica Sinica， 2014， 40（7）： 1421-1432. 10.3724/SP.J.1004.2014.01421
3	WEI J， HUANG Y， LU K， et al. Nonlocal low-rank-based compressed sensing for remote sensing image reconstruction［J］. IEEE Geoscience and Remote Sensing Letters， 2016， 13（10）：1557-1561. 10.1109/lgrs.2016.2595863
4	杨学峰，程耀瑜，王高.基于小波域压缩感知的遥感图像超分辨算法［J］.计算机应用，2017，37（5）：1430-1433，1444. 10.11772/j.issn.1001-9081.2017.05.1430
	YANG X F， CHNEG Y Y， WANG G. Super-resolution algorithm for remote sensing images based on compressive sensing in wavelet domain［J］. Journal of Computer Applications， 2017， 37（5）： 1430-1433， 1444. 10.11772/j.issn.1001-9081.2017.05.1430
5	宋子晖，李卓，陈昕. 基于压缩感知的移动群智感知任务分发机制［J］. 计算机应用， 2019， 39（1）：21-27. 10.11772/j.issn.1001-9081.2018071595
	SONG Z H， LI Z， CHEN X. Mobile crowdsensing task distribution mechanism based on compressed sensing［J］. Journal of Computer Applications， 2019， 39（1）： 15-21. 10.11772/j.issn.1001-9081.2018071595
6	和志杰，杨春玲，汤瑞东. 视频压缩感知中基于结构相似的帧间组稀疏表示重构算法研究［J］. 电子学报， 2018， 46（3）：544-553. 10.3969/j.issn.0372-2112.2018.03.005
	HE Z J， YANG C L， TANG R D. Research on structural similarity based inter-frame group sparse representation for compressed video sensing［J］. Acta Electronica Sinica， 2018， 46（3）：544-553. 10.3969/j.issn.0372-2112.2018.03.005
7	沈燕飞，李锦涛，朱珍民，等.基于非局部相似模型的压缩感知图像恢复算法［J］.自动化学报，2015，41（2）：261-272. 10.16383/j.aas.2015.c140210
	SHEN Y F， LI J T， ZHU Z M， et al. Image reconstruction algorithm of compressed sensing based on nonlocal similarity model［J］. Acta Automatica Sinica， 2015， 41（2）： 261-272. 10.16383/j.aas.2015.c140210
8	任越美，张艳宁，李映. 压缩感知及其图像处理应用研究进展与展望［J］. 自动化学报， 2014， 40（8）： 1563-1575. 10.3724/SP.J.1004.2014.01563
	REN Y M， ZHANG Y N， LI Y. Advances and perspective on compressed sensing and application on image processing［J］. Acta Automatica Sinica， 2014， 40（8）： 1563-1575. 10.3724/SP.J.1004.2014.01563
9	刘芳，武娇，杨淑媛，等. 结构化压缩感知研究进展［J］. 自动化学报， 2013， 39（12）： 1980-1995. 10.3724/SP.J.1004.2013.01980
	LIU F， WU J， YANG S Y， et al. Research advances on structured compressive sensing［J］. Acta Automatica Sinica， 2013， 39（12）： 1980-1995. 10.3724/SP.J.1004.2013.01980
10	CHEN S S， DONOHO D L， SAUNDERS M A. Atomic decomposition by basis pursuit［J］. SIAM Review， 2001， 43（1）：129-159. 10.1137/s003614450037906x
11	DAUBECHIES I， DEFRISE M， MOL C D. An iterative thresholding algorithm for linear inverse problems with a sparsity constraint［J］. Communications on Pure and Applied Mathematics， 2004， 57（11）： 1413-1457. 10.1002/cpa.20042
12	TROPP J A. Greed is good： algorithmic results for sparse approximation［J］. IEEE Transactions on Information Theory， 2004， 50（10）： 2231-2242. 10.1109/tit.2004.834793
13	CANDÈS E J， ROMBERG J K， TAO T. Stable signal recovery from incomplete and inaccurate measurements［J］. Communications on Pure and Application Mathematics， 2006， 59（8）：1207-1223. 10.1002/cpa.20124
14	FIGUEIREDO M A T， NOWAK R D， WRIGHT S J. Gradient projection for sparse reconstruction： application to compressed sensing and other inverse problems［J］. IEEE Selected Topics in Signal Processing， 2007， 1（4）：586-597. 10.1109/jstsp.2007.910281
15	KINGSBURY N. The dual-tree complex wavelet transform： a new efficient tool for image restoration and enhancement［C］// Proceedings of the 9th European Signal Processing Conference. Piscataway： IEEE， 1998： 1-4. 10.1109/icassp.1999.756198
16	CANDÈS E J， ROMBERG J， TAO T. Robust uncertainty principles： exact signal reconstruction from highly incomplete frequency information［J］. IEEE Transactions on Information Theory， 2006， 52（2）： 489-509. 10.1109/tit.2005.862083
17	CANDÈS E J， TAO T. Decoding by linear programming［J］. IEEE Transactions on Information Theory， 2005， 51（12）：4203-4215. 10.1109/tit.2005.858979
18	DO T T， GAN L， NGUYEN N H， et al. Fast and efficient compressive sensing using structurally random matrices［J］. IEEE Transactions on Signal Processing， 2012， 60（1）：139-154. 10.1109/tsp.2011.2170977

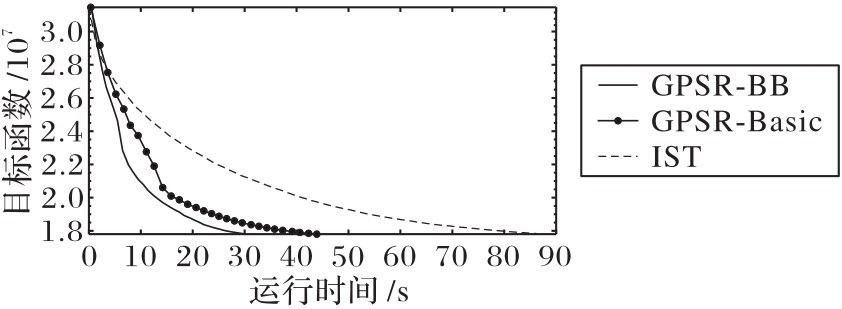

M/N	Lena（512×512）				Barbara（512×512）				Boat（512×512）
M/N	9/7+Basic	9/7+BB	CWT+ Basic	CWT+BB	9/7+Basic	9/7+BB	CWT+ Basic	CWT+BB	9/7+Basic	9/7+BB	CWT+ Basic	CWT+BB
0.1	24.11	23.96	26.02	25.79	20.34	19.66	21.60	21.49	21.60	21.28	23.83	23.26
0.2	28.06	27.81	29.78	29.57	22.64	22.42	24.17	24.18	25.72	24.83	26.84	26.68
0.3	30.82	30.76	32.45	32.35	25.09	24.65	27.08	26.93	27.84	27.87	29.39	29.44
0.4	33.00	33.04	34.26	34.33	26.85	26.80	29.55	29.58	30.41	30.15	31.78	31.74
0.5	35.20	35.11	36.01	35.87	29.59	29.46	32.34	32.17	32.62	32.71	33.94	33.90

M/N	Lena（512×512）				Barbara（512×512）				Boat（512×512）
M/N	9/7+Basic	9/7+BB	CWT+ Basic	CWT+BB	9/7+Basic	9/7+BB	CWT+ Basic	CWT+BB	9/7+Basic	9/7+BB	CWT+ Basic	CWT+BB
0.1	24.11	23.96	26.02	25.79	20.34	19.66	21.60	21.49	21.60	21.28	23.83	23.26
0.2	28.06	27.81	29.78	29.57	22.64	22.42	24.17	24.18	25.72	24.83	26.84	26.68
0.3	30.82	30.76	32.45	32.35	25.09	24.65	27.08	26.93	27.84	27.87	29.39	29.44
0.4	33.00	33.04	34.26	34.33	26.85	26.80	29.55	29.58	30.41	30.15	31.78	31.74
0.5	35.20	35.11	36.01	35.87	29.59	29.46	32.34	32.17	32.62	32.71	33.94	33.90

采样率	CWT+SRM	CWT+PDCT	CDF+SRM	CDF+PDCT
0.1	25.80	25.79	23.39	23.96
0.2	29.00	29.57	27.16	27.81
0.3	31.35	32.35	29.82	30.76
0.4	33.34	34.33	32.00	33.04
0.5	35.05	35.87	33.88	35.11

采样率	CWT+SRM	CWT+PDCT	CDF+SRM	CDF+PDCT
0.1	25.80	25.79	23.39	23.96
0.2	29.00	29.57	27.16	27.81
0.3	31.35	32.35	29.82	30.76
0.4	33.34	34.33	32.00	33.04
0.5	35.05	35.87	33.88	35.11
