Service composition optimization based on improved krill herd algorithm

doi:10.11772/j.issn.1001-9081.2021040699

Abstract

Abstract:

In the Service Oriented Architecture （SOA）， an improved Krill Herd algorithm PRKH with adaptive crossover and random perturbation operator was proposed to solve the problem of easily falling into local optimum and high time cost in the process of service composition optimization. Firstly， a service composition optimization model was established based on Quality of Service （QoS）， and the QoS calculation formulas and normalization methods under different structures were given. Then， based on the Krill Herd （KH） algorithm， the adaptive crossover probability and the random disturbance based on the actual offset were added to achieve a good balance between the global search ability and the local search ability of krill herd. Finally， through simulation， the proposed algorithm was compared with KH algorithm， Particle Swarm Optimization （PSO） algorithm， Artificial Bee Colony （ABC） algorithm and Flower Pollination Algorithm （FPA）. Experimental results show that the PRKH algorithm can find better QoS composite services faster.

Key words: Service Oriented Architecture (SOA), service composition, Quality of Service (QoS), service composition optimization, Krill Herd (KH) algorithm

摘要：

面向服务的架构（SOA）下，针对服务组合优化过程中易陷入局部最优、时间开销大的问题，提出一种加入自适应交叉算子和随机扰动算子的改进磷虾群算法PRKH。首先基于服务质量（QoS）建立了服务组合优化模型，并给出不同结构下QoS的计算公式和归一化处理方法。然后在磷虾群（KH）算法的基础上加入自适应的交叉概率和基于实际偏移量的随机扰动，从而在磷虾群的全局搜索能力和局部搜索能力之间达到良好平衡。最后通过仿真，把所提算法与KH算法、粒子群优化（PSO）算法、人工蜂群（ABC）算法和花朵授粉算法（FPA）进行对比，实验结果表明，PRKH算法能够更快找到QoS更优的复合服务。

关键词: 面向服务的架构, 服务组合, 服务质量, 服务组合优化, 磷虾群算法

CLC Number:

TP391.3

Shuicong LIAO, Peng SUN, Xingchen LIU, Yun ZHONG. Service composition optimization based on improved krill herd algorithm[J]. Journal of Computer Applications, 2021, 41(12): 3652-3657.

廖水聪, 孙鹏, 刘星辰, 钟贇. 基于改进磷虾群算法的服务组合优化[J]. 《计算机应用》唯一官方网站, 2021, 41(12): 3652-3657.

Figures/Tables 14

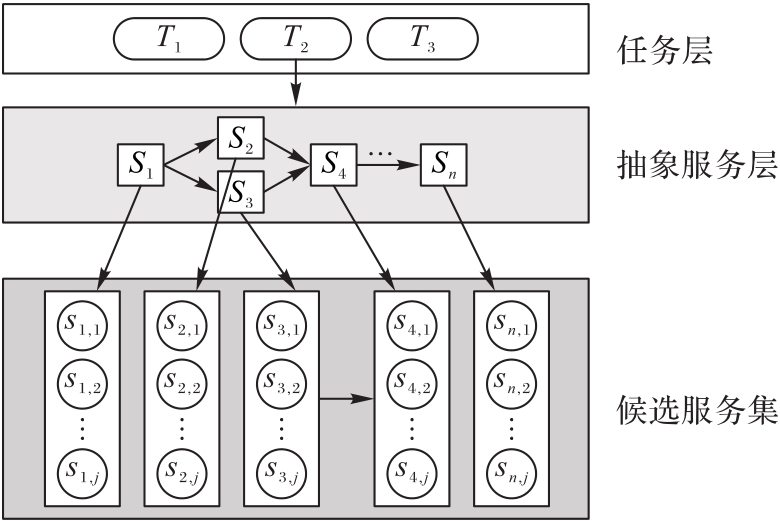

Fig. 1 Schematic diagram of service composition optimization

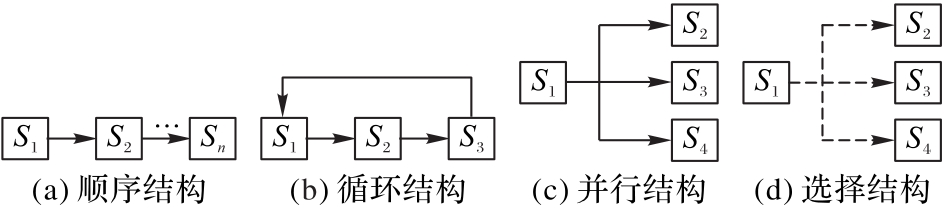

Fig. 2 Service composition structures

Tab. 1 Calculation formulas of composite service QoS under different structures

QoS属性	顺序	并行	选择	循环
响应时间t	$∑ j = 1 n t j$	$m a x (t j)$	$∑ j = 1 n p j t j$	$k ⋅ t j$
服务费用c	$∑ j = 1 n c j$	$∑ j = 1 n c j$	$∑ j = 1 n p j c j$	$k ⋅ c j$
可用性ava	$∏ j = 1 n a j$	$∏ j = 1 n a j$	$∑ j = 1 n p j a j$	$(a j) k$
可靠性rel	$∏ j = 1 n r j$	$∏ j = 1 n r j$	$∑ j = 1 n p j r j$	$(r j) k$

Tab. 1 Calculation formulas of composite service QoS under different structures

QoS属性	顺序	并行	选择	循环
响应时间t	$∑ j = 1 n t j$	$m a x (t j)$	$∑ j = 1 n p j t j$	$k ⋅ t j$
服务费用c	$∑ j = 1 n c j$	$∑ j = 1 n c j$	$∑ j = 1 n p j c j$	$k ⋅ c j$
可用性ava	$∏ j = 1 n a j$	$∏ j = 1 n a j$	$∑ j = 1 n p j a j$	$(a j) k$
可靠性rel	$∏ j = 1 n r j$	$∏ j = 1 n r j$	$∑ j = 1 n p j r j$	$(r j) k$

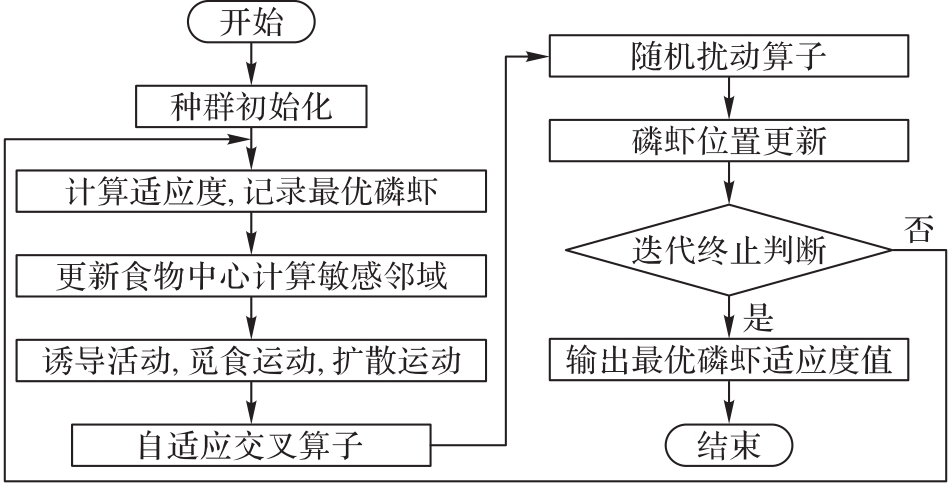

Fig. 3 PRKH algorithm flowchart

Tab. 2 Parameter setting of each algorithm

算法	参数设置
PRKH	磷虾数=25， $I m a x = 500$ ， $V f o o d = 0.02$ ， $D m a x = 0.005, N m a x = 0.01$
KH
RKH
PKH
PSO	粒子规模 $N = 500$ ， $I m a x = 500$ ，惯性权重 $w = 0.72$ ，自学习因子 $c 1 = 2.05$ ，全局学习因子 $c 2 = 2.05$
ABC	种群规模 $N = 500$ ， $I m a x = 500$ ，蜜源停留次数限制 $L 1 = 10$ ，加速系数上限 $L 2 = 1$
FPA	种群规模 $N = 500$ ，最大迭代次数 $I = 500$ ，转换概率 $p = 0.8$

Tab. 2 Parameter setting of each algorithm

算法	参数设置
PRKH	磷虾数=25， $I m a x = 500$ ， $V f o o d = 0.02$ ， $D m a x = 0.005, N m a x = 0.01$
KH
RKH
PKH
PSO	粒子规模 $N = 500$ ， $I m a x = 500$ ，惯性权重 $w = 0.72$ ，自学习因子 $c 1 = 2.05$ ，全局学习因子 $c 2 = 2.05$
ABC	种群规模 $N = 500$ ， $I m a x = 500$ ，蜜源停留次数限制 $L 1 = 10$ ，加速系数上限 $L 2 = 1$
FPA	种群规模 $N = 500$ ，最大迭代次数 $I = 500$ ，转换概率 $p = 0.8$

Fig. 4 Results of the sixth iteration

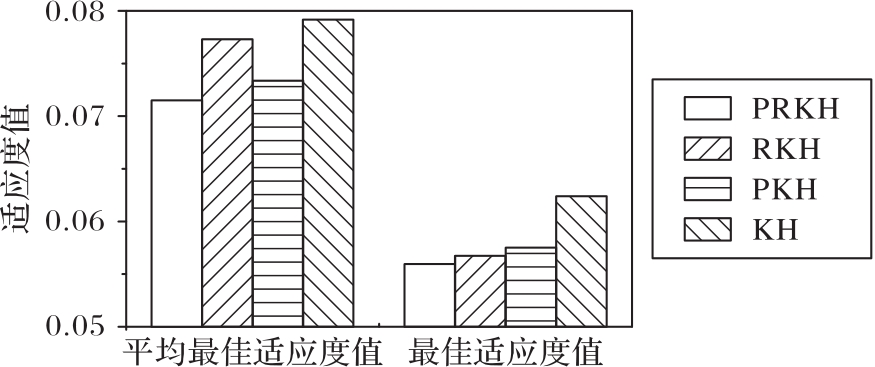

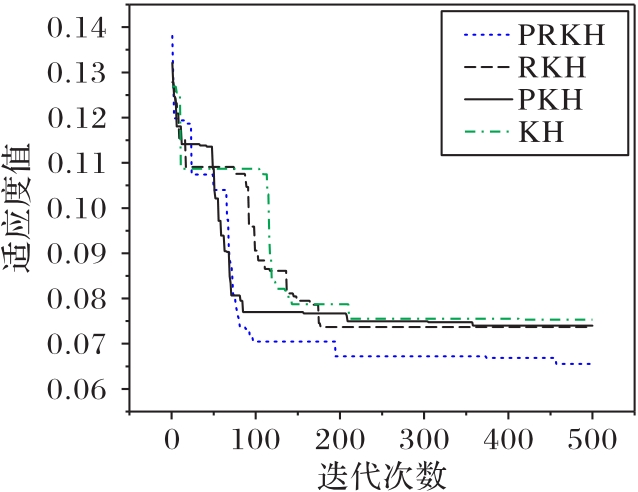

Fig. 5 Best fitness comparison of PRKH， RKH， PKH and KH

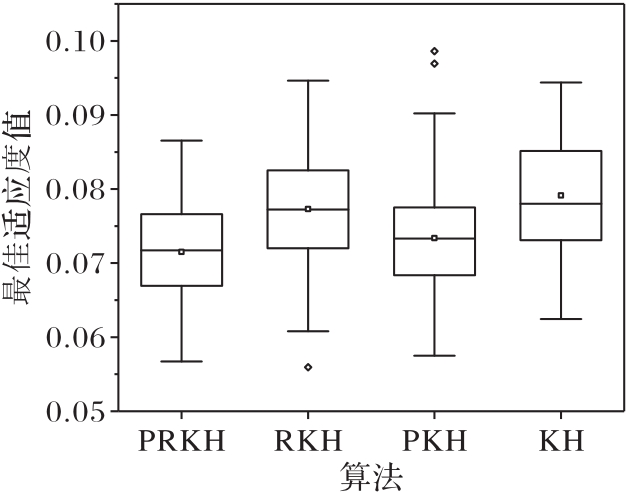

Fig. 6 Best fitness data box plot of PRKH， RKH， PKH and KH algorithms

Tab. 3 Standard deviations of best fitness values of PRKH， RKH， PKH and KH

算法	标准差	算法	标准差
PRKH	0.006 74	PKH	0.007 85
RKH	0.008 11	KH	0.007 70

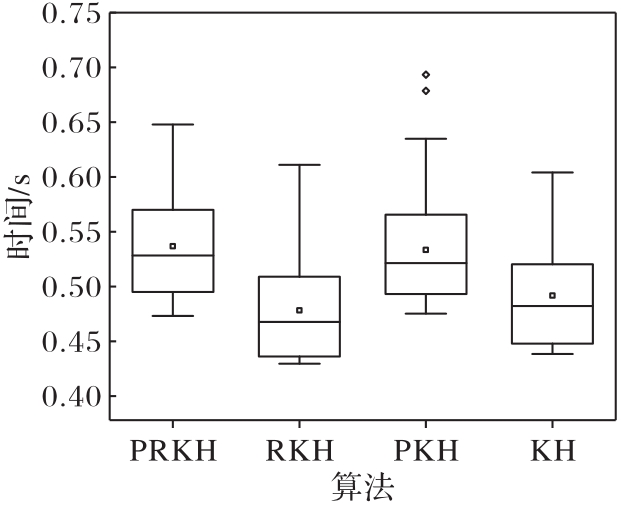

Fig. 7 Time cost box plot of PRKH， RKH， PKH and KH algorithms

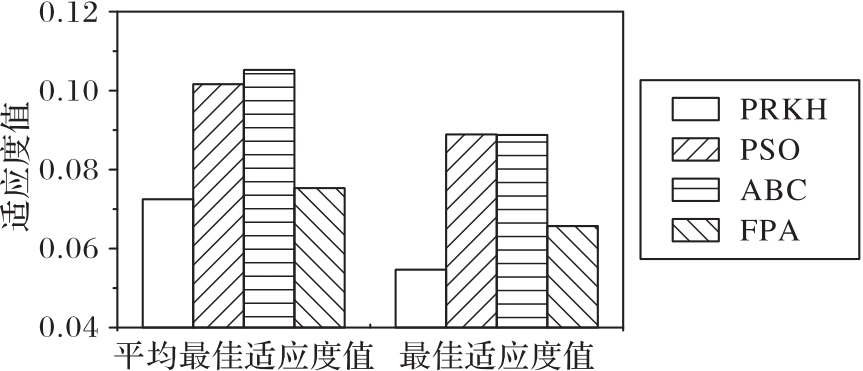

Fig. 8 Best fitness comparison of PRKH， PSO， ABC and FPA

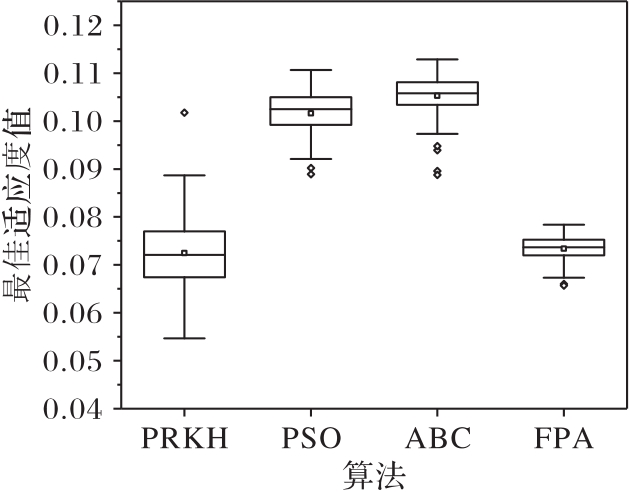

Fig. 9 Best fitness data box plot of PRKH， PSO， ABC and FPA

Tab. 4 Standard deviation of best fitness values of PRKH， PSO， ABC and FPA

算法	标准差	算法	标准差
PRKH	0.007 38	ABC	0.004 37
PSO	0.004 54	FPA	0.002 78

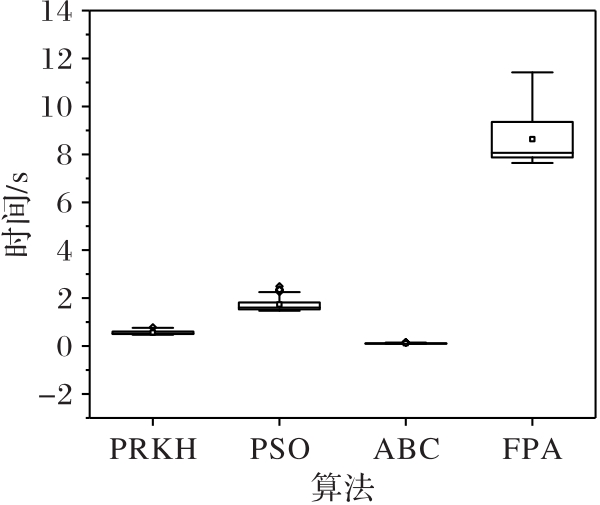

Fig. 10 Time cost comparison of PRKH， PSO， ABC and FPA
