Blockchain-based vehicle-to-infrastructure fast handover authentication scheme in VANET

doi:10.11772/j.issn.1001-9081.2023010068

Abstract

Abstract:

Aiming at the problems of security risk in vehicle communication and complex identity re-authentication when vehicles enter new infrastructure coverage in Vehicular Ad hoc NETwork （VANET）， a blockchain-based V2I （Vehicle-to-Infrastructure） fast handover authentication scheme in VANET was proposed. The decentralized， distributed and tamper-proof characteristics of blockchain were utilized to realize the storage and query of vehicle authentication information. Token mechanism was used to reduce the number of queries of blockchain， and simplify handover authentication process between Road Side Units （RSUs）. Because only the validity of token needed to be checked in subsequent authentication， rapid handover authentication of RSU was realized. Batch authentication was adopted to reduce the computation overhead and improve the efficiency of message authentication. In addition， the traceability and revocation of malicious vehicles was realized， and the anonymous identities of vehicles were updated in time to ensure the anonymity of vehicles. Compared with anonymous batch authentication scheme， authentication scheme with full aggregation， certificateless aggregate signature scheme， blockchain-based authentication scheme， the proposed scheme reduced the time consumption for message authentication by 51.1%， 77.45%， 77.56% and 76.01%. The experimental results show that proposed scheme can effectively reduce the computation overhead and communication overhead in VANET.

Key words: Vehicular Ad hoc NETwork (VANET), blockchain, rapid handover, anonymous authentication, secure communication

摘要：

针对车载自组网（VANET）中车辆通信面临的安全风险挑战以及车辆进入新的基础设施覆盖范围时需要进行复杂的身份重新认证问题，提出基于区块链的车载自组网V2I（Vehicle-to-Infrastructure）快速切换认证方案。该方案利用区块链去中心化、分布式和防篡改的特性，实现车辆认证信息的存储与查询；使用令牌机制，减少区块链查询次数，简化路边单元（RSU）切换认证阶段的认证过程，在后续的认证过程中只需检查令牌的有效性，实现了RSU的快速切换认证；采用了批量认证方法，能有效减少认证过程中的计算开销，提高消息认证效率；另外，可以实现对恶意车辆的追溯与撤销，并及时更新车辆的匿名身份，保证车辆的匿名性。相较于匿名批量认证方案、全聚合认证方案、无证书聚合签名方案、基于区块链的认证方案，所提方案在消息认证耗时上缩短了约51.1%、77.45%、77.56%和76.01%。实验结果表明，该方案能够有效降低车载自组网中的计算开销和通信开销。

关键词: 车载自组网, 区块链, 快速切换, 匿名认证, 安全通信

CLC Number:

TP309.2

Juangui NING, Guofang DONG. Blockchain-based vehicle-to-infrastructure fast handover authentication scheme in VANET[J]. Journal of Computer Applications, 2024, 44(1): 252-260.

宁娟桂, 董国芳. 基于区块链的车载自组网车与基础设施快速切换认证方案[J]. 《计算机应用》唯一官方网站, 2024, 44(1): 252-260.

Figures/Tables 14

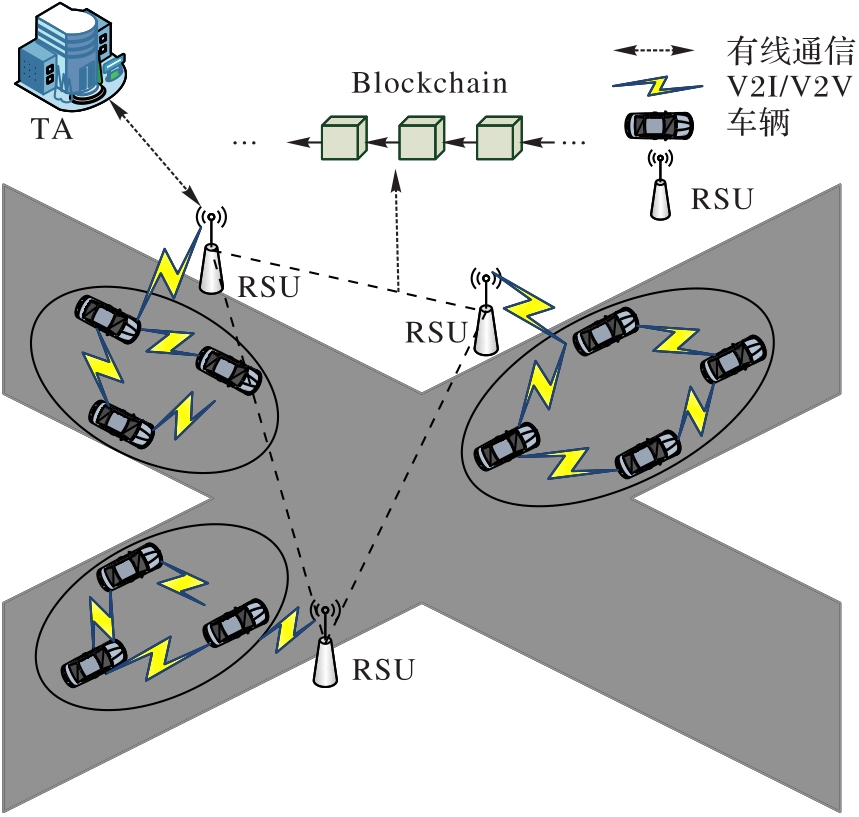

Fig. 1 System model

Tab. 1 Parameters and their definitions

参数	含义	参数	含义
$G 1, G 2, G T$	乘法循环群	$s k R i$	$R S U i$ 的私钥
$P$	$G 1$ 的生成元	$p k V i$	$R S U i$ 的公钥
$s$	TA的私钥	$s k V i$	$V i$ 的私钥
$p p u b$	TA的公钥	$p k V i$	$V i$ 的公钥
$R S U i$	第 $i$ 个路边单元	$δ V i$	$V i$ 的签名
$V i$	第 $i$ 个车辆节点	$δ R i$	$R S U i$ 的签名
$R I D i$	$R S U i$ 的真实身份	$E T P I D V i$	$V i$ 的假名有效期
$V I D i$	$V i$ 的真实身份	$E T t o k e n$	$t o k e n$ 的有效期
$P I D V i$	$V i$ 的假名

Tab. 1 Parameters and their definitions

参数	含义	参数	含义
$G 1, G 2, G T$	乘法循环群	$s k R i$	$R S U i$ 的私钥
$P$	$G 1$ 的生成元	$p k V i$	$R S U i$ 的公钥
$s$	TA的私钥	$s k V i$	$V i$ 的私钥
$p p u b$	TA的公钥	$p k V i$	$V i$ 的公钥
$R S U i$	第 $i$ 个路边单元	$δ V i$	$V i$ 的签名
$V i$	第 $i$ 个车辆节点	$δ R i$	$R S U i$ 的签名
$R I D i$	$R S U i$ 的真实身份	$E T P I D V i$	$V i$ 的假名有效期
$V I D i$	$V i$ 的真实身份	$E T t o k e n$	$t o k e n$ 的有效期
$P I D V i$	$V i$ 的假名

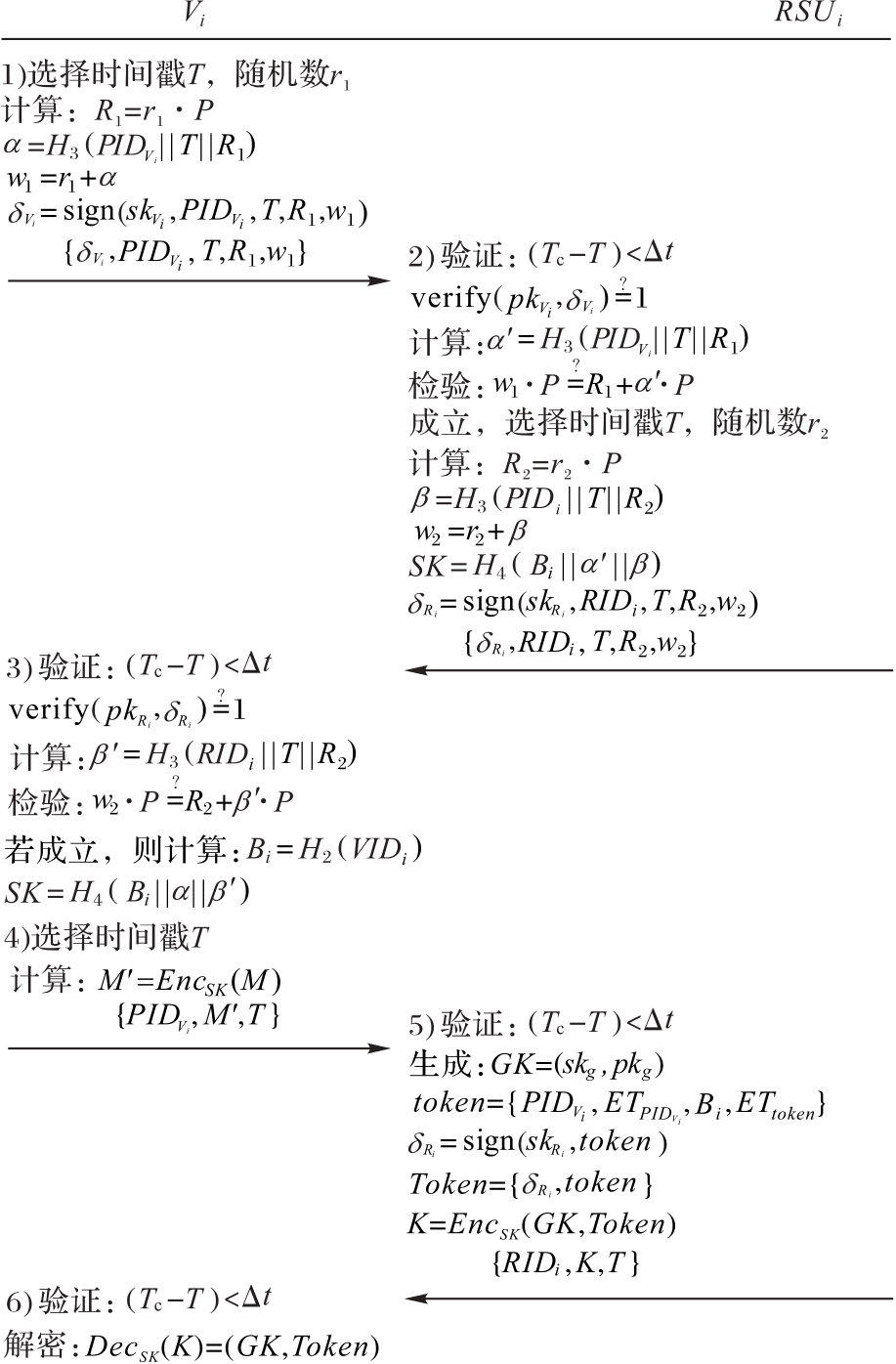

Fig. 2 Authentication and session key negotiation

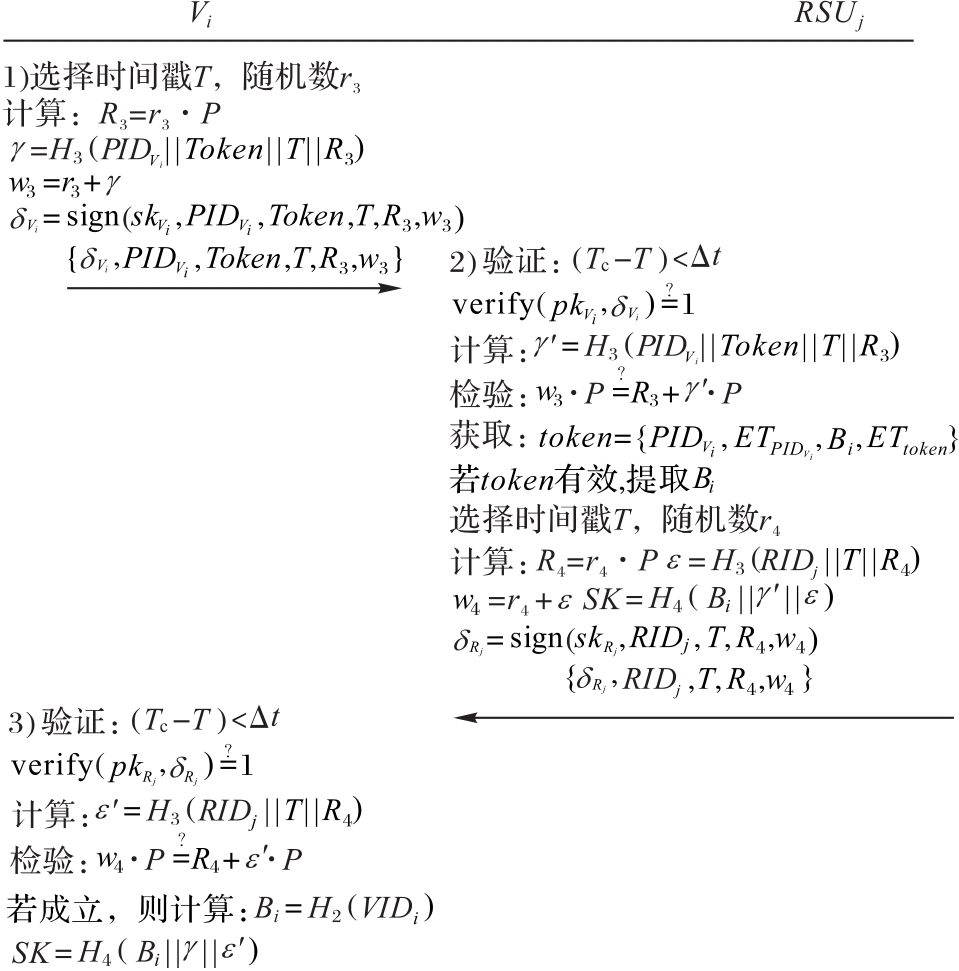

Fig. 3 Handover phase of RSU

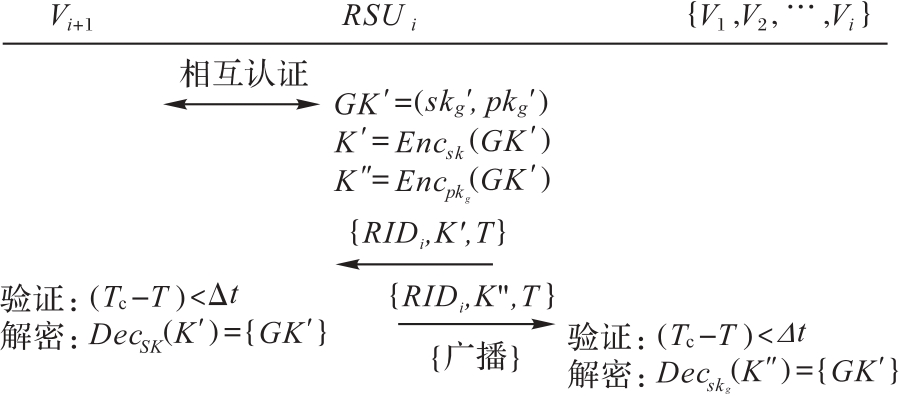

Fig. 4 Update of group key

Tab. 2 Average execution time of cryptographic operations

密码学运算	含义	平均执行时间
$T b p$	双线性配对运算	10.309 2
$T m t p$	基于双线性配对的Map To Point哈希运算	3.581 9
$T b p m$	基于双线性配对的乘法运算	1.420 2
$T b p a$	基于双线性配对的点加运算	0.017 2
$T e$	取幂运算	1.624 1
$T h$	哈希运算	0.001 0

Tab. 2 Average execution time of cryptographic operations

密码学运算	含义	平均执行时间
$T b p$	双线性配对运算	10.309 2
$T m t p$	基于双线性配对的Map To Point哈希运算	3.581 9
$T b p m$	基于双线性配对的乘法运算	1.420 2
$T b p a$	基于双线性配对的点加运算	0.017 2
$T e$	取幂运算	1.624 1
$T h$	哈希运算	0.001 0

Tab. 3 Theoretic computation costs of various schemes in authentication phase

认证方案	生成签名	单一认证	批量认证
匿名批量认证方案	$2 T b p m + 2 T b p a + T h = 2.875 8$	$3 T b p + T b p m + T b p a + T h = 32.366 0$	$3 T b p + 2 n T b p m + 4 n - 3 T b p a + 2 n T h = 2.911 2 n + 30.876 0$
全聚合认证方案	$3 T b p m + T b p a + 2 T h = 4.279 8$	$3 T b p + 2 T b p m + T b p a + T m t p + T h = 37.368 1$	$3 T b p + 2 n T b p m + 2 n - 1 T b p a + n T m t p + n T h = 6.457 7 n + 30.910 4$
无证书聚合签名方案	$3 T b p m + T b p a + T m t p = 7.859 7$	$3 T b p + 2 T b p m + T b p a + 2 T m t p = 40.949 0$	$3 T b p + 2 n T b p m + 3 n - 2 T b p a + n + 1 T m t p = 6.473 9 n + 34.475 1$
基于区块链认证方案	$6 T b p m + 2 T b p a + 3 T h = 8.558 6$	$2 T b p + 4 T b p m + 2 T e + 5 T h = 29.552 4$	$2 T b p + 2 n + 2 T b p m + 2 n T e + 2 n + 3 T h = 6.090 6 n + 23.461 8$
本文方案	$T b p m + T h = 1.421 2$	$2 T b p m + T b p a + T h = 2.858 6$	$n + 2 T b p m + 3 n - 2 T b p a + n T h = 1.472 8 n + 2.806 0$

Tab. 3 Theoretic computation costs of various schemes in authentication phase

认证方案	生成签名	单一认证	批量认证
匿名批量认证方案	$2 T b p m + 2 T b p a + T h = 2.875 8$	$3 T b p + T b p m + T b p a + T h = 32.366 0$	$3 T b p + 2 n T b p m + 4 n - 3 T b p a + 2 n T h = 2.911 2 n + 30.876 0$
全聚合认证方案	$3 T b p m + T b p a + 2 T h = 4.279 8$	$3 T b p + 2 T b p m + T b p a + T m t p + T h = 37.368 1$	$3 T b p + 2 n T b p m + 2 n - 1 T b p a + n T m t p + n T h = 6.457 7 n + 30.910 4$
无证书聚合签名方案	$3 T b p m + T b p a + T m t p = 7.859 7$	$3 T b p + 2 T b p m + T b p a + 2 T m t p = 40.949 0$	$3 T b p + 2 n T b p m + 3 n - 2 T b p a + n + 1 T m t p = 6.473 9 n + 34.475 1$
基于区块链认证方案	$6 T b p m + 2 T b p a + 3 T h = 8.558 6$	$2 T b p + 4 T b p m + 2 T e + 5 T h = 29.552 4$	$2 T b p + 2 n + 2 T b p m + 2 n T e + 2 n + 3 T h = 6.090 6 n + 23.461 8$
本文方案	$T b p m + T h = 1.421 2$	$2 T b p m + T b p a + T h = 2.858 6$	$n + 2 T b p m + 3 n - 2 T b p a + n T h = 1.472 8 n + 2.806 0$

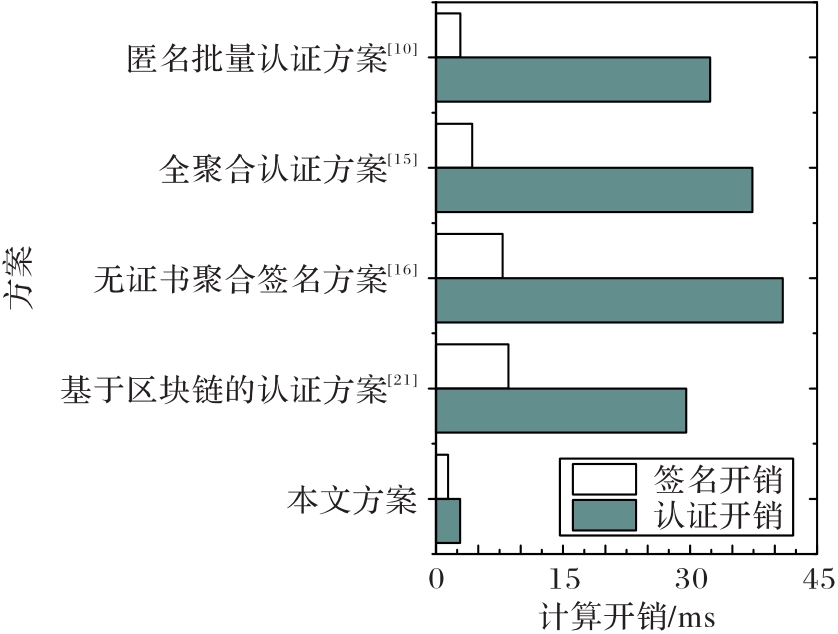

Fig. 5 Computation overhead of generating signature and individual authentication

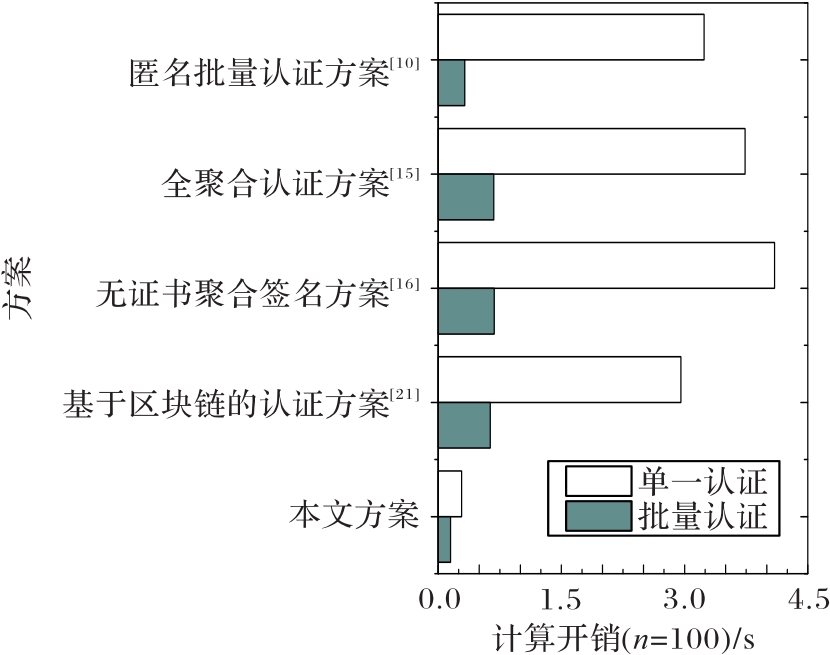

Fig. 6 Computation overhead of individual authentication and batch authentication

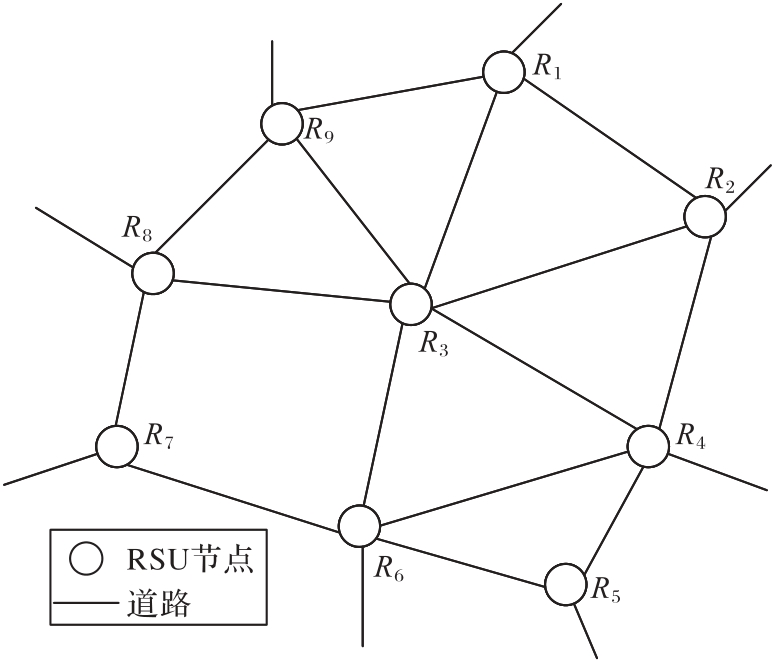

Fig. 7 Urban road network model

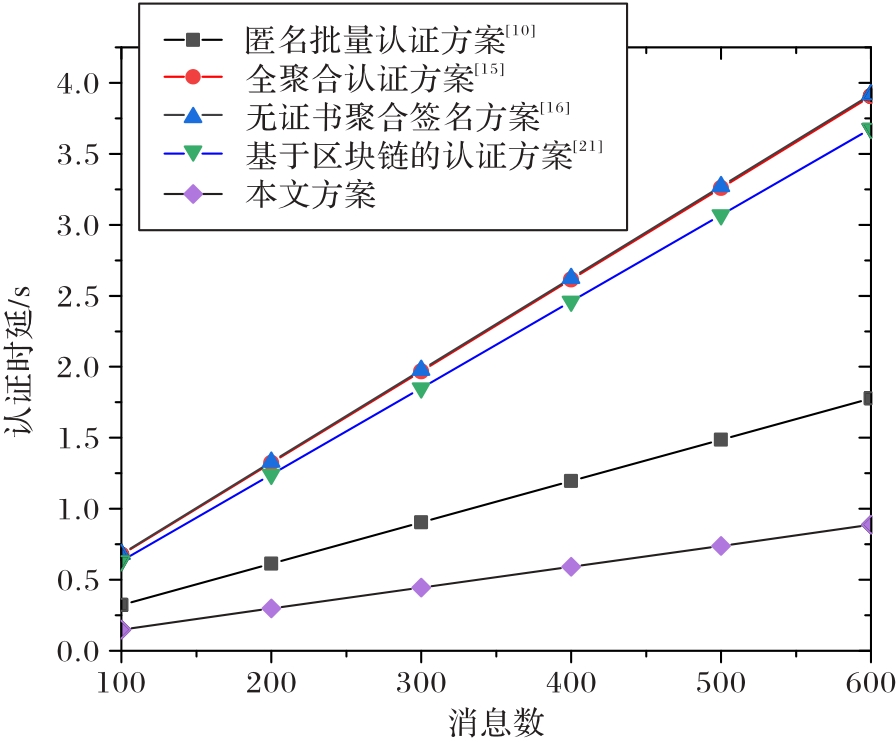

Fig. 8 Authentication computation overhead with different message numbers

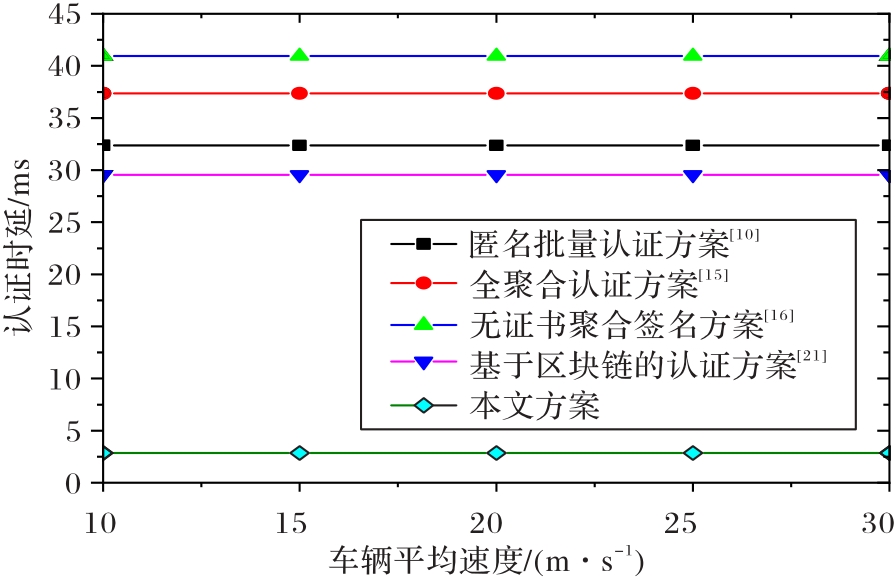

Fig. 9 Relationship between authentication delay and vehicle speed

Tab. 4 Communication costs of various schemes in authentication phase

认证方案	通信开销
匿名批量认证方案	$4 G 1 + T = 516 B$
全聚合认证方案	$4 G 1 + Z p + T = 536 B$
无证书聚合签名方案	$2 G 1 = 256 B$
基于区块链认证方案	$2 G 1 + 2 Z p + T = 300 B$
本文方案	$G 1 + 3 Z p + T = 192 B$

Tab. 4 Communication costs of various schemes in authentication phase

认证方案	通信开销
匿名批量认证方案	$4 G 1 + T = 516 B$
全聚合认证方案	$4 G 1 + Z p + T = 536 B$
无证书聚合签名方案	$2 G 1 = 256 B$
基于区块链认证方案	$2 G 1 + 2 Z p + T = 300 B$
本文方案	$G 1 + 3 Z p + T = 192 B$

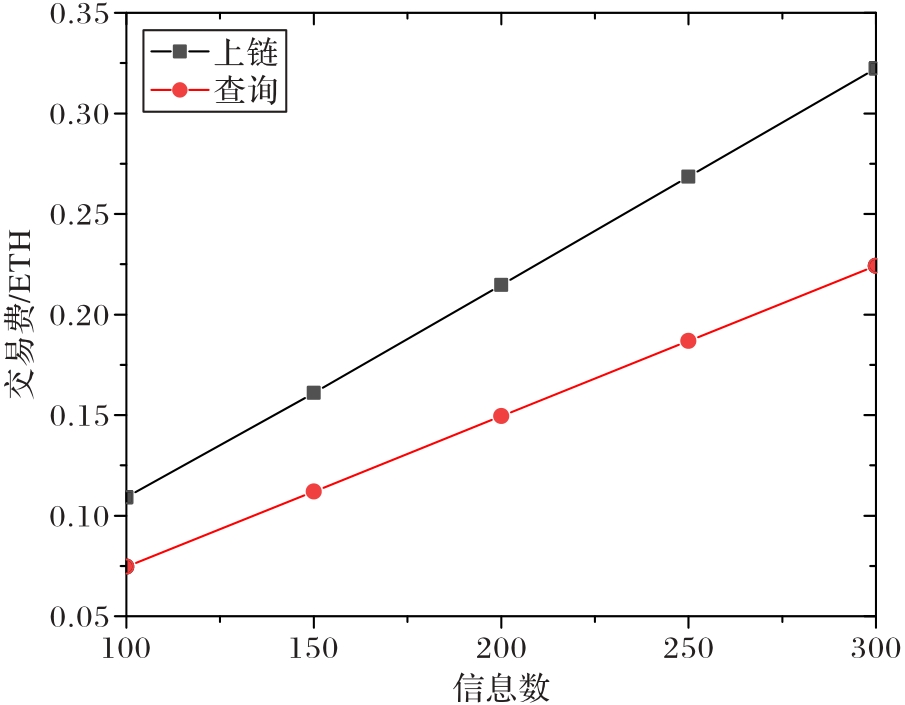

Fig. 10 Message upload and query transaction costs
