Recurrence formula for initial value problems of fractional-order autonomous dynamics system and its application

doi:10.11772/j.issn.1001-9081.2024030289

Abstract

Abstract:

When calculating fractional-order differential dynamics systems numerically， there are difficulties of long-time memory storage by discretizing differential equation directly. In order to solve this problem， firstly， the differential equation was integrated once and then discretized. At the same time， a recurrence formula was given and its applicable conditions were discussed. Some common non-linear problems were calculated by this formula. The results of the above were consistent with those of other numerical methods. As whether there is chaotic motion in two-dimensional fraction-order continuous dynamics system is not concluded， this recurrence formula was used to study the two-dimensional continuous coupled Logistic model. It is found that there is only the limit cycle generated by the equilibrium point through Hopf bifurcation in this system without chaotic motion. Finally， the Lyapunov exponent criterion for the motion of two-dimensional fractional-order continuous Logistic system was given.

Key words: fractional-order, autonomous dynamics system, initial value problem, recurrence formula, two-dimensional continuous Logistic system

摘要：

对分数阶微分动力学系统进行数值计算时，直接离散微分方程存在长时程储存困难。为解决这一问题，首先，将微分方程做一次积分，然后再离散化；同时，给出一个递推公式，并讨论它的适用条件。用该递推公式计算一些常见的非线性问题所得的结果都与其他数值方法的结果一致。由于二维分数阶连续动力学系统是否有混沌运动尚未有定论，应用这个递推公式对二维连续耦合Logistic模型进行研究，发现该系统仅由平衡点通过Hopf分岔产生极限环，不存在混沌运动。最后，给出分数阶二维连续Logistic系统运动的李雅普诺夫指数判据。

关键词: 分数阶, 自治动力学系统, 初值问题, 递推公式, 二维连续Logistic系统

CLC Number:

TP391.9

Wujiu FU, Lin ZHOU, Jianjie DENG, Yong YOU. Recurrence formula for initial value problems of fractional-order autonomous dynamics system and its application[J]. Journal of Computer Applications, 2025, 45(2): 556-562.

符五久, 周林, 邓建杰, 游泳. 分数阶自治动力学系统初值问题的递推公式及其应用[J]. 《计算机应用》唯一官方网站, 2025, 45(2): 556-562.

Figures/Tables 13

Fig. 1 Solution curve of Logistic equation

Fig.2 Time series curve of time-delay Logistic equation

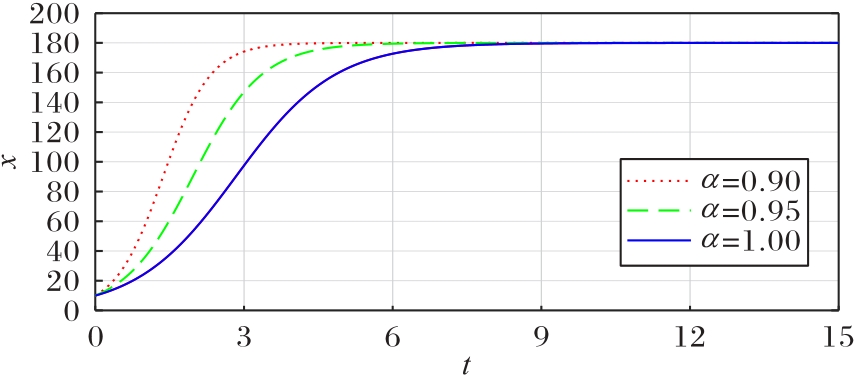

Fig. 3 Solution curves of fractional-order system （19）

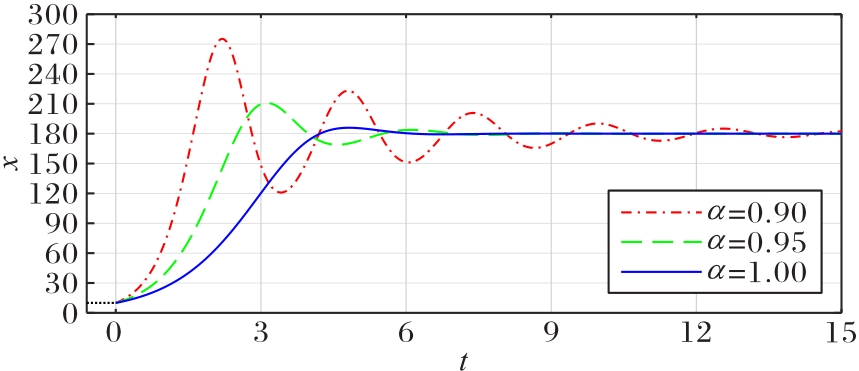

Fig. 4 Solution curves of fractional-order time-delay system （21）

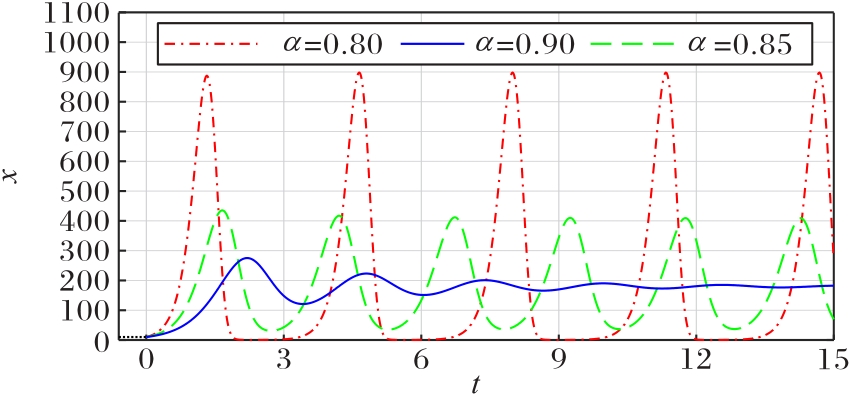

Fig.5 Change of solution curves varying with parameter α

Fig. 6 Change of solution curves varying with parameter r

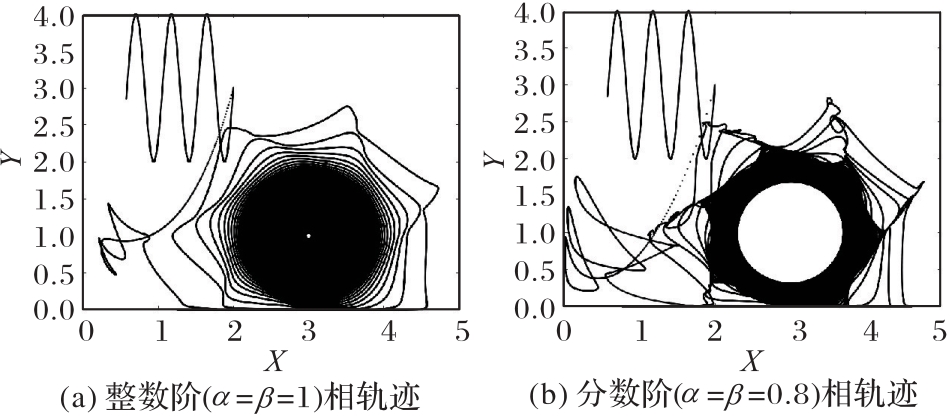

Fig. 7 Phase trajectory of two-population Lotka-Volterra system with time delay

Fig. 8 Integer-order Lorenz chaotic attractors

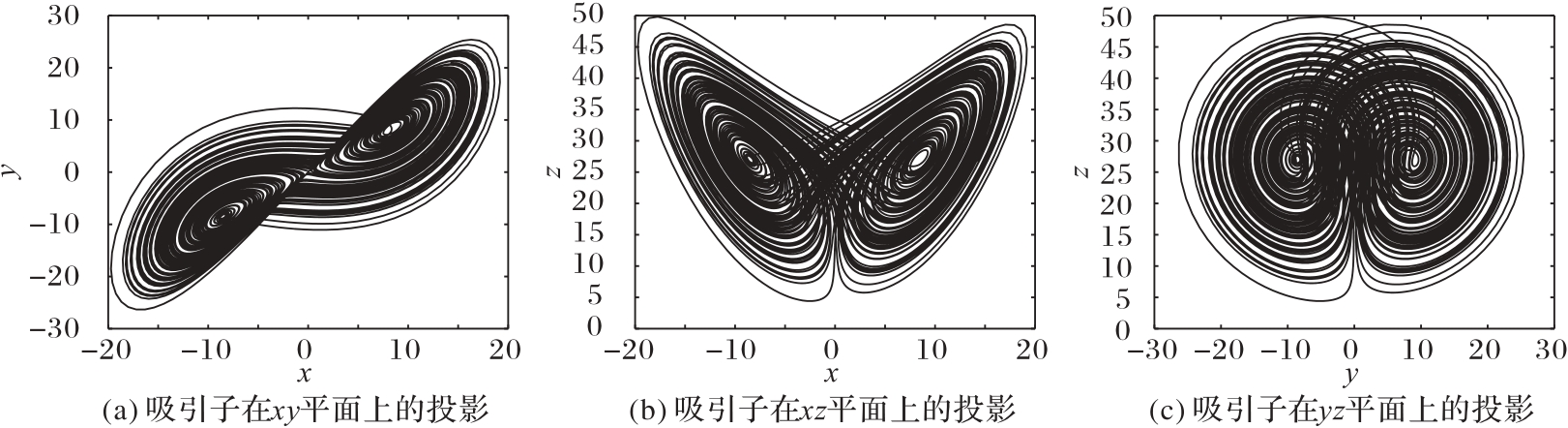

Fig. 9 Fractional-order Lorenz chaotic attractors

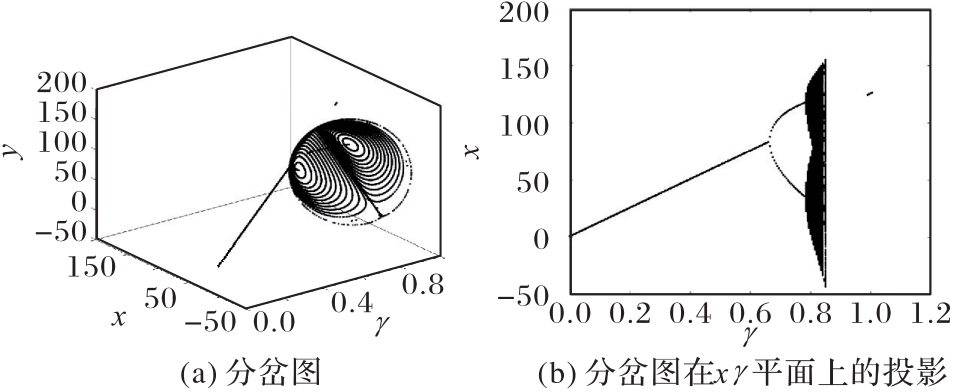

Fig. 10 Bifurcation diagrams of two-dimensional coupled Logistic system （30）

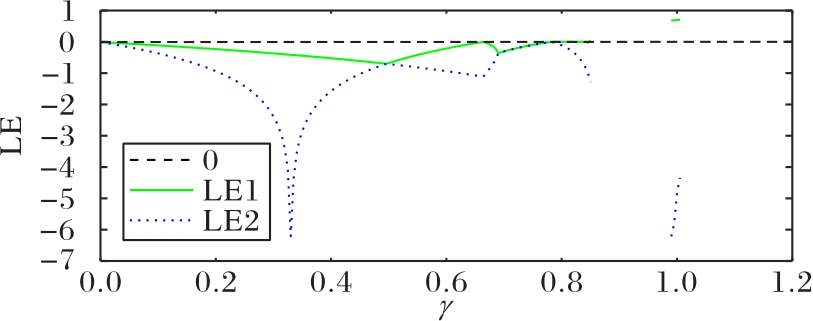

Fig. 11 Lyapunov exponent spectrum of two-dimensional coupled Logistic system （30）

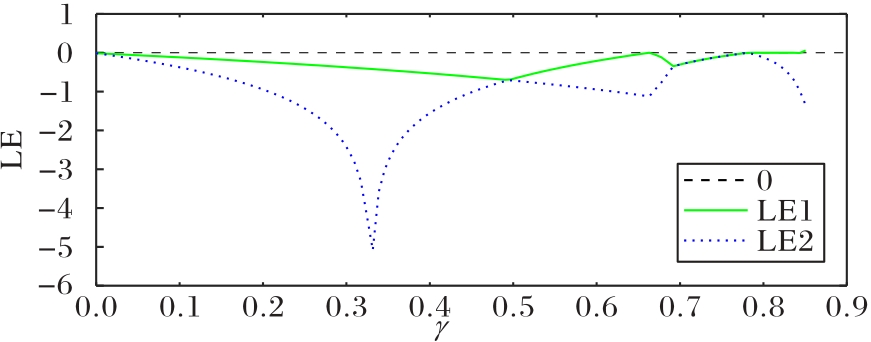

Fig. 12 Lyapunov exponent spectrum of two-dimensional coupled fractional-order Logistic system （30）

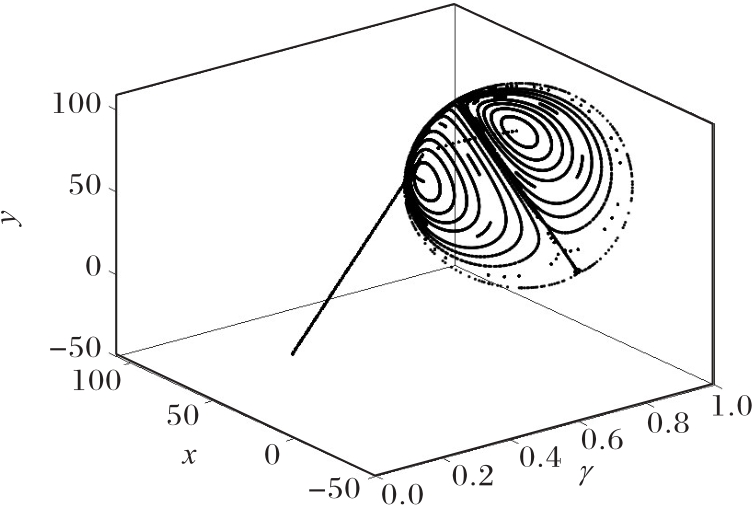

Fig. 13 Bifurcation diagram of two-dimensional coupled fractional Logistic system （30）

References 44

1	MATHAI A M， HAUBOLD H J. Matrix methods and fractional calculus［M］. Singapore： World Scientific Publishing， 2018.
2	ELWY O， ABDELATY A M， SAID L A， et al. Fractional calculus definitions， approximations and engineering applications［J］. Journal of Engineering and Applied Science， 2020， 67（1）： 1-30.
3	PATNAIK S， HOLLKAMP J P， SEMPERLOTTI F. Applications of variable-order fractional operators： a review［J］. Proceedings of the Royal Society A， 2020， 476（2234）： No.20190498.
4	METZLER R， KLAFTER J. The random walk’s guide to anomalous diffusion： a fractional dynamics approach［J］. Physics Reports， 2000， 339（1）： 1-77.
5	WADHWA A， BHARDWAJ A. Enhancement of MRI images of brain tumor using Grünwald Letnikov fractional differential mask［J］. Multimedia Tools and Applications， 2020， 79（35/36）： 25379-25402.
6	XU K， LIU J， MIAO J， et al. An improved SIFT algorithm based on adaptive fractional differential［J］. Journal of Ambient Intelligence and Humanized Computing， 2019， 10（8）： 3297-3305.
7	PAN H， CHANG K， PAN S. Research on fingerprint image enhancement algorithm based on adaptive fractional differential［J］. IOP Conference Series： Earth and Environmental Science， 2019， 234： No.012012.
8	BAGLEY R L， CALICO R A. Fractional order state equations for the control of viscoelastically damped structures［J］. Journal of Guidance， Control， and Dynamics， 1991， 14（2）： 304-311.
9	WEI Y， PETER W T， DU B， et al. An innovative fixed-pole numerical approximation for fractional order systems［J］. ISA Transactions， 2016， 62： 94-102.
10	DEBNATH L. Recent applications of fractional calculus to science and engineering［J］. International Journal of Mathematics and Mathematical Sciences， 2003， 2003： No.753601.
11	WIEMAN A. Nonlinear viscoelastic solids — a review［J］. Mathematics and Mechanics of Solids， 2009， 14（3）： 300-366.
12	KOELLER R C. Polynomial operators， Stieltjes convolution， and fractional calculus in hereditary mechanics［J］. Acta Mechanica， 1986， 58（3/4）： 251-264.
13	TANG J， NIU L， XIONG X， et al. Viscoelasticity of rubber springs affects vibration characteristics of a flip-flow screen with the high G value［J］. IEEE Access， 2020， 8： 26950-26965.
14	RIDA S Z， FARGHALY A A， AZOZ S A， et al. Global stability of a delayed fractional-order SEI epidemic model with logistic growth［J］. Applied Mathematics and Information Sciences， 2021， 15（1）： 1-12.
15	GUO C， FANG S. Stability and approximate analytic solutions of the fractional Lotka-Volterra equations for three competitors［J］. Advances in Difference Equations， 2016， 2016： No.219.
16	ELSADANY A A， MATOUK A E. Dynamical behaviors of fractional-order Lotka-Volterra predator-prey model and its discretization［J］. Journal of Applied Mathematics and Computing， 2015， 49（1/2）： 269-283.
17	AGARWAL R P， BELMEKKI M， BENCHOHRA M. Existence results for semilinear functional differential inclusions involving Riemann-Liouville fractional derivative［J］. Dynamics of Continuous， Discrete and Impulsive Systems Series A： Mathematical Analysis， 2010， 17（3）： 347-361.
18	AGARWAL R P， BENCHOHRA M， HAMANI S. A survey on existence results for boundary value problems of nonlinear fractional differential equations and inclusions［J］. Acta Applicandae Mathematicae， 2010， 109： 973-1033.
19	DHAGE B C. Existence of extremal solutions for discontinuous functional integral equations［J］. Applied Mathematics Letters， 2006， 19（9）： 881-886.
20	DHAGE B C. Hybrid fixed point theory for strictly monotone increasing multi-valued mappings with applications［J］. Computers and Mathematics with Applications， 2007， 53（5）： 803-824.
21	LAKSHMIKANTHAM V. Theory of fractional functional differential equations［J］. Nonlinear Analysis： Theory， Methods and Applications， 2008， 69（10）： 3337-3343.
22	LAKSHMIKANTHAM V， VATSALA A S. Basic theory of fractional differential equations［J］. Nonlinear Analysis： Theory， Methods and Applications， 2008， 69（8）： 2677-2682.
23	IBRAHIM R W， MOMANI S. On the existence and uniqueness of solutions of a class of fractional differential equations［J］. Journal of Mathematical Analysis and Applications， 2007， 334（1）： 1-10.
24	JARADAT O K， AL-OMARI A， MOMANI S. Existence of the mild solution for fractional semilinear initial value problems［J］. Nonlinear Analysis： Theory， Methods and Applications， 2008， 69（9）： 3153-3159.
25	DHAGE B C. A general multi-valued hybrid fixed point theorem and perturbed differential inclusions［J］. Nonlinear Analysis： Theory， Methods and Applications， 2006， 64（12）： 2747-2772.
26	LIN W. Global existence theory and chaos control of fractional differential equations［J］. Journal of Mathematical Analysis and Applications， 2007， 332（1）： 709-726.
27	ZHANG S. Existence of positive solution for some class of nonlinear fractional differential equations［J］. Journal of Mathematical Analysis and Applications， 2003， 278（1）： 136-148.
28	ZHANG S. The existence of a positive solution for a nonlinear fractional differential equation［J］. Journal of Mathematical Analysis and Applications， 2000， 252（2）： 804-812.
29	BAI Z， LÜ H. Positive solutions for boundary value problem of nonlinear fractional differential equation［J］. Journal of Mathematical Analysis and Applications， 2005， 311（2）： 495-505.
30	BAI C. Positive solutions for nonlinear fractional differential equations with coefficient that changes sign［J］. Nonlinear Analysis： Theory， Methods and Applications， 2006， 64（4）： 677-685.
31	LU X， LIU F. The explicit and implicit finite difference approximations for a space fractional advection diffusion equation［C］// Computational Mechanics Abstract （Volume 1）： Abstracts of the Papers Presented at the Minisymposium Sessions of the 6th World Congress on Computational Mechanics in conjunction with the 2nd Asian-Pacific Congress on Computational Mechanics. Cham： Springer， 2004： 120-120.
32	MEERSCHAERT M M， TADJERAN C. Finite difference approximations for fractional advection-dispersion flow equations［J］. Journal of Computational and Applied Mathematics， 2004， 172（1）： 65-77.
33	ZHUANG P， LIU F. Implicit difference approximation for the time fractional diffusion equation［J］. Journal of Applied Mathematics and Computing， 2006， 22（3）： 87-99.
34	LIU Q， LIU F， TURNER I， et al. Finite element approximation for a modified anomalous subdiffusion equation［J］. Applied Mathematical Modelling， 2011， 35（8）： 4103-4116.
35	JIA L， CHEN H， WANG H. Mixed-type Galerkin variational principle and numerical simulation for a generalized nonlocal elastic model［J］. Journal of Scientific Computing， 2017， 71（2）： 660-681.
36	LI Y， CHEN H， WANG H. A mixed-type Galerkin variational formulation and fast algorithms for variable-coefficient fractional diffusion equations［J］. Mathematical Methods in the Applied Sciences， 2017， 40（14）： 5018-5034.
37	FIX G J， ROOF J P. Least squares finite-element solution of a fractional order two-point boundary value problem［J］. Computers and Mathematics with Applications， 2004， 48（7/8）： 1017-1033.
38	PODLUBNY I. Fractional differential equations： an introduction to fractional derivatives， fractional differential equations， to methods of their solution and some of their applications［M］. San Diego， CA： Academic Press， 1998.
39	DENG W. Short memory principle and a predictor-corrector approach for fractional differential equations［J］. Journal of Computational and Applied Mathematics， 2007， 206（1）： 174-188.
40	TOMOVSKI Z， GARRA R. Analytic solutions of fractional integro-differential equations of Volterra type with variable coefficients［J］. Fractional Calculus and Applied Analysis， 2014， 17（1）： 38-60.
41	内藤敏机，原惟行，日野义之，等. 时滞微分方程——泛函微分方程引论［M］. 马万彪，陆征一，译. 北京：科学出版社， 2013.
	NAITO T， HARA T， HINO Y， et al. Differential equations with time lag： introduction to functional differential equations［M］. MA W B， LU Z Y， translated. Beijing： Science Press， 2013.
42	高心，刘兴文，邵仕泉. 分数阶动力学系统的混沌、控制与同步［M］.成都：电子科技大学出版社， 2010.
	GAO X， LIU X W， SHAO S Q. Chaos， control and synchronization of fractional order dynamic systems［M］. Chengdu： University of Electronic Science and Technology of China Press， 2010.
43	EDELMAN M. On stability of fixed points and chaos in fractional systems［J］. Chaos， 2018， 28（2）： No.023112.
44	刘杉杉，高飞，李文琴. 二维Logistic分数阶微分方程的离散化过程［J］. 计算机应用， 2019， 39（1）： 305-310.
	LIU S S， GAO F， LI W Q. Discretization process of coupled Logistic fractional-order differential equation［J］. Journal of Computer Applications， 2019， 39（1）： 305-310.
