Traffic sign recognition model in haze weather based on YOLOv5

doi:10.11772/j.issn.1001-9081.2021071305

Journal of Computer Applications ›› 2022, Vol. 42 ›› Issue (9): 2876-2884.DOI: 10.11772/j.issn.1001-9081.2021071305

• Multimedia computing and computer simulation • Previous Articles Next Articles

Traffic sign recognition model in haze weather based on YOLOv5

Jinghan YIN¹^,², Shaojun QU¹^,²(), Zekai YAO¹^,², Xuanye HU¹^,², Xiaoyu QIN¹^,², Pujing HUA¹^,²

^1.College of Information Science and Engineering，Hunan Normal University，Changsha Hunan 410081，China
^2.College of Xiangjiang Artificial Intelligence，Hunan Normal University，Changsha Hunan 410081，China

Received:2021-07-19 Revised:2021-09-03 Accepted:2021-09-14 Online:2022-09-19 Published:2022-09-10
Contact: Shaojun QU
About author:YIN Jinghan， born in 2000. His research interests include object detection.
YAO Zekai， born in 2000. His research interests include image segmentation， object detection.
HU Xuanye， born in 1999. His research interests include embedded software.
QIN Xiaoyu， born in 2000. Her research interests include object detection.
HUA Pujing， born in 2000. His research interests include data mining.
Supported by:
the National Natural Science Foundation(12071126);Scientific Research Project of Hunan Provincial Department of Education(19C1149);Scientific Research Innovation Project of College of Xiangjiang Artificial Intelligence, Hunan Normal University(202031A12)

基于YOLOv5的雾霾天气下交通标志识别模型

尹靖涵¹^,², 瞿绍军¹^,²(), 姚泽楷¹^,², 胡玄烨¹^,², 秦晓雨¹^,², 华璞靖¹^,²

^1.湖南师范大学信息科学与工程学院，长沙 410081
^2.湖南师范大学湘江人工智能学院，长沙 410081

通讯作者: 瞿绍军
作者简介:尹靖涵（2000—），男，浙江丽水人，主要研究方向：目标检测；
姚泽楷（2000—），男，湖南双峰人，主要研究方向：图像分割、目标检测；
胡玄烨（1999—），男，河南汝州人，主要研究方向：嵌入式软件；
秦晓雨（2000—），女，山东聊城人，主要研究方向：目标检测；
华璞靖（2000—），男，江西景德镇人，主要研究方向：数据挖掘。
基金资助:
国家自然科学基金资助项目(12071126);湖南省教育厅科学研究项目(19C1149);湖南师范大学湘江人工智能学院科研创新项目(202031A12)

Abstract

Abstract:

Aiming at the problem of poor recognition precision and serious missed detection of small traffic signs in bad weather such as haze， rain and snow， a traffic sign recognition model in haze weather based on YOLOv5 （You Only Look Once version 5） was proposed. Firstly， the structure of YOLOv5 was optimized. By using contrary thinking， the problem of small object recognition difficulty was solved by reducing the depth of feature pyramid and limiting the maximum down sampling multiple. By adjusting the depth of residual module， the repeated overlapping of background features was suppressed. Secondly， the mechanisms such as data augmentation， K-means anchor and Global Non-Maximum Suppression （GNMS） were introduced into the model. Finally， the detection ability of the improved YOLOv5 facing the bad weather was verified on the Chinese traffic sign dataset TT100K， and the study on traffic sign recognition in the haze weather with the most obvious precision decline was focused on. Experimental results show that the F1-score， mean Average Precision @0.5 （mAP@0.5）， mean Average Precision @0.5：0.95 （mAP@0.5：0.95） of the improved YOLOv5 model reach 0.921 50， 95.3% and 75.2%， respectively. The proposed model can maintain high-precision recognition of traffic sign in bad weather， and has Frames Per Second （FPS） up to 50， meeting the requirement of real-time detection.

Key words: deep learning, object detection, You Only Look Once version 5 (YOLOv5), feature pyramid, haze weather, Traffic Sign Recognition (TSR)

摘要：

针对雾霾、雨雪等恶劣天气下小型交通标志识别精度低、漏检严重的问题，提出一种基于YOLOv5的雾霾天气下交通标志识别模型。首先，对YOLOv5的结构进行优化，采用逆向思维，通过削减特征金字塔深度、限制最高下采样倍数来解决小目标难以识别的问题，并通过调整残差模块的特征传递深度来抑制背景特征的重复叠加；其次，引入数据增强、K-means先验框、全局非极大值抑制（GNMS）等机制到模型；最后，在中国交通标志数据集TT100K上验证改进YOLOv5模型在面对恶劣天气时的检测能力，并对精度下降最显著的雾霾天气下的交通标志识别展开了重点研究。实验结果表明，改进YOLOv5模型的F1-score达0.921 50，平均精度均值@0.5 （mAP@0.5）达95.3%，平均精度均值@0.5：0.95 （mAP@0.5：0.95）达75.2%，且所提模型在恶劣天气下仍能进行交通标志的高精度识别，每秒检测帧数（FPS）达到50，满足实时检测的需求。

关键词: 深度学习, 目标检测, YOLOv5, 特征金字塔, 雾霾天气, 交通标志识别

CLC Number:

TP391.41

Jinghan YIN, Shaojun QU, Zekai YAO, Xuanye HU, Xiaoyu QIN, Pujing HUA. Traffic sign recognition model in haze weather based on YOLOv5[J]. Journal of Computer Applications, 2022, 42(9): 2876-2884.

尹靖涵, 瞿绍军, 姚泽楷, 胡玄烨, 秦晓雨, 华璞靖. 基于YOLOv5的雾霾天气下交通标志识别模型[J]. 《计算机应用》唯一官方网站, 2022, 42(9): 2876-2884.

Figures/Tables 21

Fig.1 Framework of YOLOv5 model

Fig.2 Main module structures of YOLOv5

Fig.3 Comparison of FPN and PAN before and after structural improvement

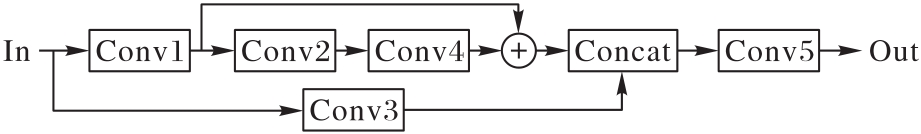

Fig.4 Improved residual module

Fig.5 Clustering scatter diagram

Fig.6 Curve of mAP@0.5 and FPS varying with img-size

Fig. 7 Variation curve ofmAP@0.5 with the number of iterations

Fig. 8 Variation curve of loss value with the number of iterations

Fig.9 Activation function and derivative function

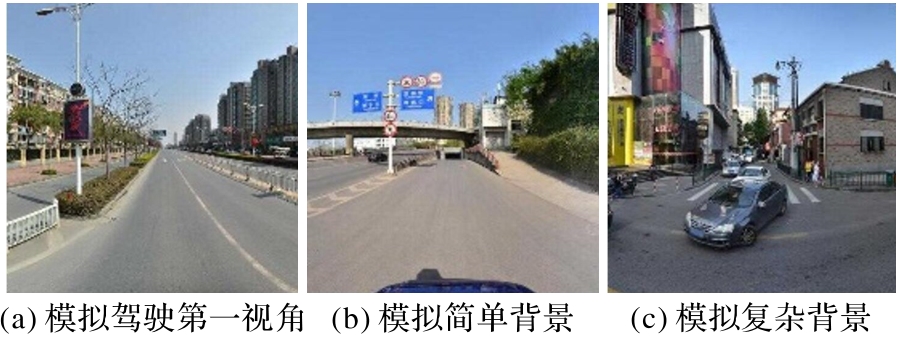

Fig.10 TT100K dataset samples

Fig.11 Twenty-five kinds of traffic signs

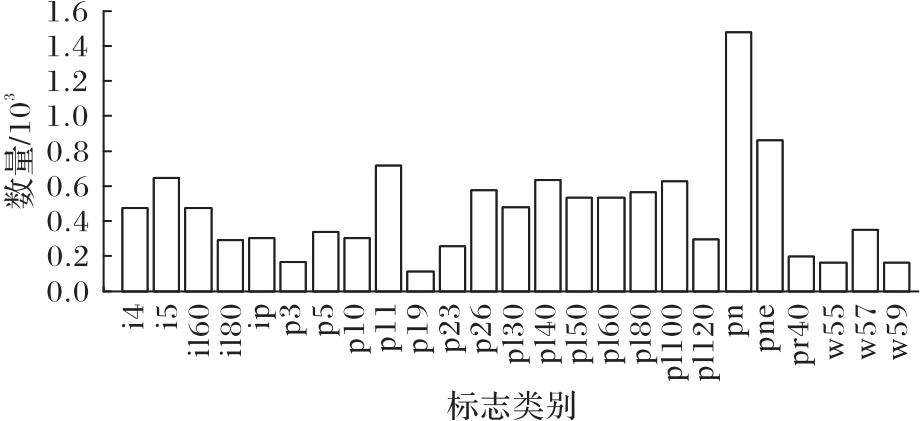

Fig. 12 Traffic sign quantity distribution before augmentation

Fig. 13 Distribution of traffic sign quantity after augmentation

Fig.14 TT100K dataset samples after augmentation

Tab.1 Confusion matrix

预测值	真实值
预测值	Positive	Negative
Positive	TP	FP
Negative	FN	TN

Tab.2 Performance comparison of different YOLOv5 models

模型	F1-score	mAP@0.5/%	mAP@0.5：0.95/%	FPS
YOLOv5s	0.839 26	86.5	66.4	102
YOLOv5m	0.662 71	67.5	50.4	52
YOLOv5l	0.693 99	70.6	52.7	32
本文模型	0.921 50	95.3	75.2	50

Tab.3 F1-score comparison in different weather conditions

模型	F1-score
模型	测试集2	测试集3	测试集4
YOLOv5s	0.868 50	0.844 82	0.816 50
YOLOv5m	0.710 32	0.662 71	0.636 17
YOLOv5l	0.718 13	0.677 41	0.674 10
本文模型	0.941 42	0.924 97	0.914 00

Tab.4 mAP@0.5 comparison in different weather conditions

模型	mAP@0.5
模型	测试集2	测试集3	测试集4
YOLOv5s	90.6	87.9	84.1
YOLOv5m	74.9	70.0	64.0
YOLOv5l	75.5	71.5	68.6
本文模型	97.0	96.0	94.8

Tab.5 mAP@0.5：0.95 comparison in different weather conditions

模型	mAP@0.5：0.95
模型	测试集2	测试集3	测试集4
YOLOv5s	70.2	67.4	64.7
YOLOv5m	56.3	52.4	48.0
YOLOv5l	57.1	53.3	51.3
本文模型	77.4	75.0	75.0

Tab.6 Comparison of several models

组别	滤波器	F1-score	mAP@0.5/%	mAP@0.5：0.95/%
1	无	0.914 00	94.8	75.0
2	无	0.891 12	92.9	71.1
3	无	0.774 31	77.6	58.4
4	DCP	0.771 06	80.9	60.3
5	MSRCR	0.819 76	83.4	63.1
6	HE	0.746 09	78.2	57.9
7	AOD-Net	0.829 19	83.6	63.1
8	无	0.875 56	90.5	73.7
9	无	0.854 22	87.6	70.4

Fig.15 Model detection results
