Ship identification model based on ResNet50 and improved attention mechanism

Yuanjiong LIU¹^,²^,³(), Maozheng HE¹^,²^,³, Yibin HUANG⁴, Cheng QIAN⁴

^1.Key Laboratory of Metallurgical Equipment and Control，Ministry of Education （Wuhan University of Science and Technology），Wuhan Hubei 430081，China
^2.Hubei Provincial Key Laboratory of Mechanical Transmission and Manufacturing Engineering （Wuhan University of Science and Technology），Wuhan Hubei 430081，China
^3.Institute of Precision Manufacturing，Wuhan University of Science and Technology，Wuhan Hubei 430081，China
^4.Jiangsu Jianlong Shore Power Technology Company Limited，Yixing Jiangsu 214200，China

Received:2023-07-04 Revised:2023-08-15 Accepted:2023-08-23 Online:2023-09-11 Published:2024-06-10
Contact: Yuanjiong LIU
About author:HE Maozheng， born in 1997， M. S. candidate. His research interests include machine vision.
HUANG Yibin， born in 1975， M. S.， senior engineer. His research interests include image recognition.
QIAN Cheng， born in 1988， M. S.， senior engineer. His research interests include electrical automation.
Supported by:
Intellectual Property Application Demonstration Project in Hubei Province in 2020(202014)

基于ResNet50和改进注意力机制的船舶识别模型

刘源泂¹^,²^,³(), 何茂征¹^,²^,³, 黄益斌⁴, 钱程⁴

^1.冶金装备及其控制教育部重点实验室(武汉科技大学), 武汉 430081
^2.机械传动与制造工程湖北省重点实验室(武汉科技大学), 武汉 430081
^3.武汉科技大学精密制造研究院, 武汉, 430081
^4.江苏健龙岸电科技有限公司, 江苏宜兴 214200

通讯作者: 刘源泂
作者简介:何茂征（1997—），男，河南濮阳人，硕士研究生，主要研究方向：机器视觉
黄益斌（1975—），男，江苏宜兴人，高级工程师，硕士，主要研究方向：图像识别
钱程（1988—），男，江苏宜兴人，高级工程师，硕士，主要研究方向：电气自动化。
基金资助:
2020年湖北省知识产权运用示范项目(202014)

Abstract

Abstract:

Automatic identification of marine ships plays an important role in alleviating the pressure of marine traffic. To address the problem of low automatic ship identification rate， a ship identification model based on ResNet50 （Residual Network50） and improved attention mechanism was proposed. Firstly， a ship data set was made by ourselves， and divided into the training set， the verification set and the test set， which were augmented by blurring and adding noise. Secondly， an improved attention module — Efficient Spatial Pyramid Attention Module （ESPAM） and ship type recognition model ResNet50_ESPAM were designed. Finally， the ResNet50_ESPAM was trained， verified and compared with other commonly used neural network models using ship data sets. The experimental results show that in the verification set， the highest accuracy of ResNet50_ESPAM is 95.5%， and the initial accuracy is 81.2%； compared with AlexNet（Alex Krizhevsky Network）， GoogleNet （Google Inception Net）， ResNet34（Residual Network34）， ResNet50 and ResNet50_CBAM （ResNet50_Convlutional Block Attention Module）， the maximum accuracy of the model validation set increases by 5.1， 4.9， 2.6， 1.6 and 1.4 percentage points respectively， and the initial accuracy of the validation set increases by 49.4， 44.7， 27.7， 3.0 and 2.1 percentage points respectively， indicating that ResNet50_ESPAM has a high recognition accuracy in ship type recognition， and the improved attention module ESPAM is highly effective.

Key words: image processing, deep learning, residual network, attention mechanism, ship identification

摘要：

海洋船舶的自动识别对缓解海上交通压力起着重要作用。针对当前船舶自动识别率较低的问题，提出一种基于ResNet50（Residual Network50）和改进注意力机制的船舶识别模型。首先，自制船舶数据集并划分为训练集、验证集和测试集，采用模糊、增加噪声等方法得到增强数据集；其次，设计改进注意力模块——高效空间金字塔注意力模块（ESPAM）和船舶种类识别模型ResNet50_ESPAM；最后，将ResNet50_ESPAM与其他常用的神经网络模型对船舶数据集进行训练验证并对比。实验结果表明，ResNet50_ESPAM在验证集最高准确率为95.5%，验证集初始准确率为81.2%，与AlexNet（Alex Krizhevsky Network）、GoogleNet（Google Inception Net）、ResNet34（Residual Network34）、ResNet50和ResNet50_CBAM（ResNet50_ Convlutional Block Attention Module）等模型相比，模型验证集最高准确率分别提升了5.1、4.9、2.6、1.6和1.4个百分点，验证集初始准确率分别提升了49.4、44.7、27.7、3.0和2.1个百分点。实验结果表明ResNet50_ESPAM在船舶种类识别方面具有较高的识别精度，验证了改进的注意力模块ESPAM的有效性。

关键词: 图像处理, 深度学习, 残差网络, 注意力机制, 船舶识别

CLC Number:

TP391.4

Yuanjiong LIU, Maozheng HE, Yibin HUANG, Cheng QIAN. Ship identification model based on ResNet50 and improved attention mechanism[J]. Journal of Computer Applications, 2024, 44(6): 1935-1941.

刘源泂, 何茂征, 黄益斌, 钱程. 基于ResNet50和改进注意力机制的船舶识别模型[J]. 《计算机应用》唯一官方网站, 2024, 44(6): 1935-1941.

Figures/Tables 12

Fig.1 Real multi-scene ship dataset

Tab.1 Number of ship datasets after data augmentation

船舶种类	样本数
船舶种类	训练集	验证集	测试集	总数
工程船	1 680	210	210	2 100
渔船	1 704	213	213	2 130
货船	1 664	208	208	2 080
客船	1 688	211	211	2 110
快艇	1 656	207	207	2 070

Fig. 2 Residual structure of ResNet50

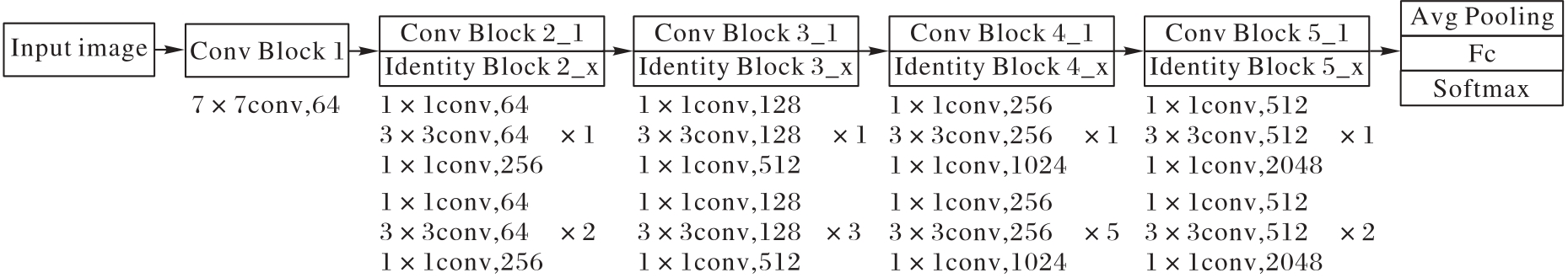

Fig. 3 Network structure of ResNet50

Fig.4 Overall network structure of ESPAM

Fig. 5 Network structure of ResNet50_ESPAM

Tab.2 Performance of ResNet50 model under different insertion schemes of ESPAM attention mechanism

注意力机制插入方式	验证集初始准确率	验证集最高准确率
方案1	41.2	68.6
方案2	34.4	56.2
方案3	81.2	95.5
方案4	78.3	91.6
方案5	36.9	66.6
方案6	35.4	63.2

Fig.6 Impact of learning rate on accuracy

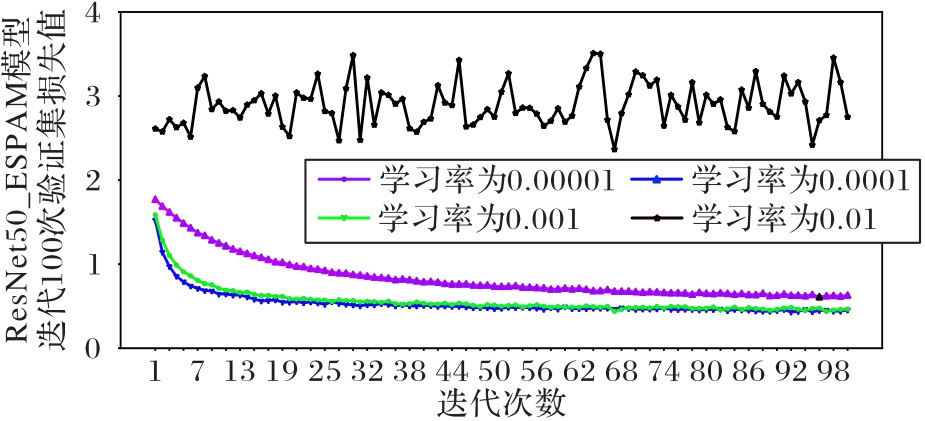

Fig. 7 Impact of learning rate on loss value

Tab.3 Performance evaluation comparison of various neural network models

性能评估对比方式	模型	验证集初始准确率/%	验证集最高准确率/%	参数量/ $106$	浮点运算量/ $109$
（a）引入不同注意力机制模块的 ResNet50模型性能评估对比	ResNet50	78.2	93.9	25.55	4.12
	ResNet50+SPAM	81.6	93.9	26.61	4.94
	ResNet50+ECAM	80.8	94.1	25.55	4.12
	ResNet50+ESPAM	81.2	95.5	29.75	4.94
（b）添加与未添加ESPAM的网络模型性能评估对比	AlexNet	31.8	90.4	16.63	3.12
	AlexNet + ESPAM	62.4	93.2	20.78	3.67
	GoogleNet	36.5	90.6	6.99	1.59
	GoogleNet +ESPAM	67.3	93.7	29.75	4.94
	YOLOv5s	68.7	91.2	8.37	16.57
	YOLOv5s +ESPAM	80.1	95.1	8.92	17.02
（c）不同CNN模型性能评估对比	AlexNet	31.8	90.4	16.63	3.12
	GoogleNet	36.5	90.6	6.99	1.59
	ResNet34	53.5	92.9	21.79	3.67
	ResNet50	78.2	93.9	25.55	4.12
	ResNet50_CBAM	79.1	94.1	26.08	4.12
	ResNet50_ESPAM	81.2	95.5	29.75	4.94

Tab.3 Performance evaluation comparison of various neural network models

性能评估对比方式	模型	验证集初始准确率/%	验证集最高准确率/%	参数量/ $106$	浮点运算量/ $109$
（a）引入不同注意力机制模块的 ResNet50模型性能评估对比	ResNet50	78.2	93.9	25.55	4.12
	ResNet50+SPAM	81.6	93.9	26.61	4.94
	ResNet50+ECAM	80.8	94.1	25.55	4.12
	ResNet50+ESPAM	81.2	95.5	29.75	4.94
（b）添加与未添加ESPAM的网络模型性能评估对比	AlexNet	31.8	90.4	16.63	3.12
	AlexNet + ESPAM	62.4	93.2	20.78	3.67
	GoogleNet	36.5	90.6	6.99	1.59
	GoogleNet +ESPAM	67.3	93.7	29.75	4.94
	YOLOv5s	68.7	91.2	8.37	16.57
	YOLOv5s +ESPAM	80.1	95.1	8.92	17.02
（c）不同CNN模型性能评估对比	AlexNet	31.8	90.4	16.63	3.12
	GoogleNet	36.5	90.6	6.99	1.59
	ResNet34	53.5	92.9	21.79	3.67
	ResNet50	78.2	93.9	25.55	4.12
	ResNet50_CBAM	79.1	94.1	26.08	4.12
	ResNet50_ESPAM	81.2	95.5	29.75	4.94

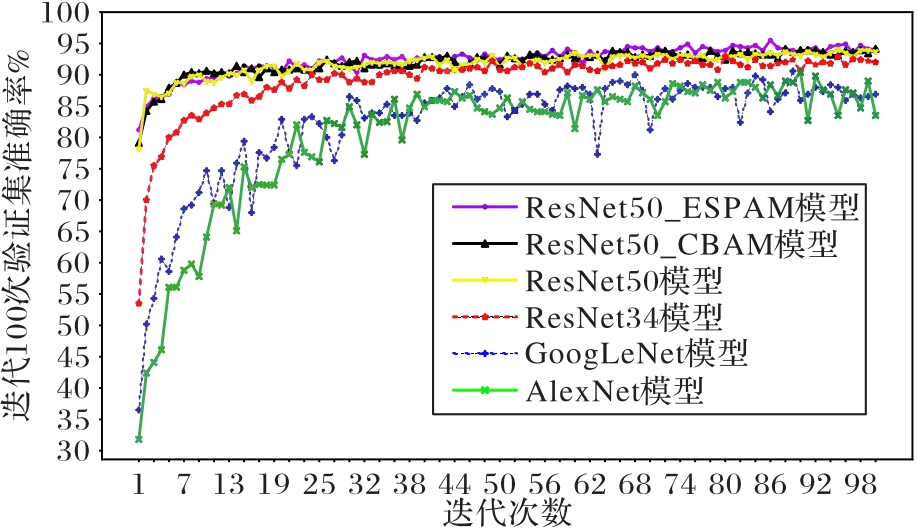

Fig.8 Accuracy comparison on validation set by different CNN models

Fig.9 Visualization of feature extraction by each module of ResNet_ESPAM model
