Temporal shortest path counting query algorithm based on tree decomposition

doi:10.11772/j.issn.1001-9081.2023081128

Journal of Computer Applications ›› 2024, Vol. 44 ›› Issue (8): 2446-2454.DOI: 10.11772/j.issn.1001-9081.2023081128

• Data science and technology • Previous Articles

Temporal shortest path counting query algorithm based on tree decomposition

Yuan LI¹, Qiulan LIN¹, Anzhi CHEN¹, Guoli YANG²(), Wei SONG¹, Guoren WANG³

^1.School of Information Science and Technology，North China University of Technology，Beijing 100144，China
^2.Advanced Institute of Big Data （Beijing），Beijing 100195，China
^3.School of Computer Science and Technology，Beijing Institute of Technology，Beijing 100081，China

Received:2023-08-23 Revised:2023-11-08 Accepted:2023-11-16 Online:2024-08-22 Published:2024-08-10
Contact: Guoli YANG
About author:LI Yuan， born in 1986， Ph. D.， associate professor. His researchinterests include data mining， database， bioinformatics.
LIN Qiulan ， born in 1998， M. S. candidate. Her research interestsinclude graph data management and mining.
CHEN Anzhi， born in 2001. His research interests include graphdata management and mining.
YANG Guoli， born in 1987， Ph. D.， associate research fellow. Hisresearch interests include data management， data mining；
SONG Wei ， born in 1980， Ph. D.， professor. His researchinterests include data mining.
WANG Guoren， born in 1966， Ph. D.， professor. His researchinterests include XML data mining， query processing and optimization，bioinformatics.
Supported by:
This work is partially supported by National Natural ScienceFoundation of China（ 61902004， 72201275， 61977001）.

基于树分解的时序最短路径计数查询算法

李源¹, 林秋兰¹, 陈安之¹, 杨国利²(), 宋威¹, 王国仁³

^1.北方工业大学信息学院, 北京 100144
^2.北京大数据先进技术研究院, 北京 100195
^3.北京理工大学计算机学院, 北京 100081

通讯作者: 杨国利
作者简介:李源（1986—），男，北京人，副教授，博士，CCF会员，主要研究方向：数据挖掘、数据库、生物信息学
林秋兰（1998—），女，广西贺州人，硕士研究生，主要研究方向：图数据管理与挖掘
陈安之（2001—），男，北京人，主要研究方向：图数据管理与挖掘
杨国利（1987—），男，北京人，副研究员，博士，主要研究方向：数据管理、数据挖掘 yanggl@aibd.ac.cn
宋威（1980—），男，北京人，教授，博士，CCF会员，主要研究方向：数据挖掘
王国仁（1966—），男，北京人，教授，博士，CCF杰出会员，主要研究方向：XML数据挖掘、查询处理和优化、生物信息学。
基金资助:
国家自然科学基金资助项目(61902004)

Abstract

Abstract:

The shortest path counting is an important research problem in graph computing. It aims to query the number of shortest paths between vertices， which is widely used in path planning and recommendation， social network analysis， betweenness centrality calculation and so on. At present， more and more networks can be modeled as temporal graphs， but there is no research work on the shortest path counting query problem of temporal graphs. Compared with the static graph， the temporal graph increases the time information， the structure is more complex， and the activation time of the edge must be considered when querying the number of paths between vertices. Therefore， the shortest path counting method for the static graphs is no longer applicable to the temporal graphs， and querying on large-scale temporal graphs is more challenging. In order to solve the shortest path counting problem of temporal graphs， a method of TG-TL （Temporal Graph-Tree Label） index based on tree decomposition was proposed. The method consists of two stages： index construction and online query. In the index construction stage， the temporal tree decomposition algorithm was designed according to the attributes of the temporal graph， and the temporal graph was transformed into a tree structure. Then， according to the structure information of tree decomposition and convex path definition， an efficient index building algorithm was proposed. In the online query stage， an efficient temporal shortest path counting query algorithm was proposed based on TG-TL index. Experiments were carried out on 4 real datasets， and the experimental results showed that compared with the query algorithm based on TG-base （Temporal Graph-base） index， the proposed algorithm improved the query efficiency by 61% at least. Therefore， the proposed algorithm is efficient and effective for the shortest path counting problem of temporal graphs.

Key words: temporal graph, tree decomposition, index, shortest path, shortest path counting

摘要：

最短路径计数是图计算中的一个重要研究问题，旨在查询顶点间的最短路径数，在路径规划与推荐、社交网络分析、介数中心性计算等领域中具有广泛应用。目前越来越多的网络可以建模为时序图，但少有针对时序图最短路径计数查询问题的研究工作。与静态图相比，时序图增加了时间信息，结构更复杂，在查询顶点间的路径数时必须考虑边的激活时间，因此静态图中最短路径计数方法不再适用于时序图，并且在大规模时序图上查询更具有挑战性。针对时序图最短路径计数问题，提出一种基于树分解构建TG-TL（Temporal Graph-Tree Label）索引的方法。该方法包含构建索引和在线查询两个阶段，构建索引阶段根据时序图的属性设计时序树分解算法，将时序图转化为树结构；然后根据树分解的结构信息以及凸路径定义提出高效构建索引算法；在线查询阶段基于TG-TL索引提出了高效的时序最短路径计数查询算法。在4个真实数据集上的实验结果表明，与基于TG-base（Temporal Graph-base）索引的查询算法相比，所提算法在查询效率上至少提升了61％，因此所提算法在时序图最短路径计数问题上具有高效性和有效性。

关键词: 时序图, 树分解, 索引, 最短路径, 最短路径计数

CLC Number:

TP311.1

Yuan LI, Qiulan LIN, Anzhi CHEN, Guoli YANG, Wei SONG, Guoren WANG. Temporal shortest path counting query algorithm based on tree decomposition[J]. Journal of Computer Applications, 2024, 44(8): 2446-2454.

李源, 林秋兰, 陈安之, 杨国利, 宋威, 王国仁. 基于树分解的时序最短路径计数查询算法[J]. 《计算机应用》唯一官方网站, 2024, 44(8): 2446-2454.

Figures/Tables 7

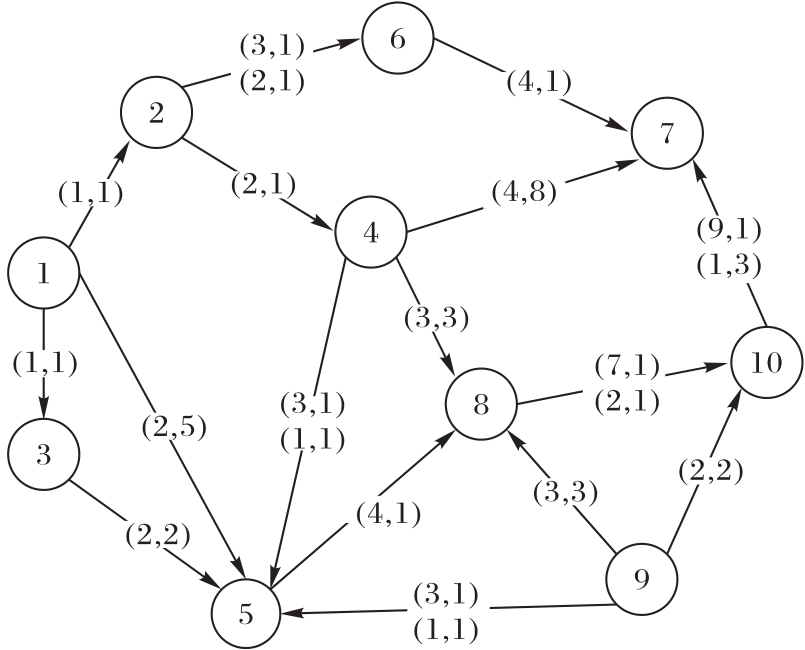

Fig.1 Temporal graph Gt

Fig. 2 Temporal tree decomposition TGt?of temporal graph Gt

Tab. 1 Statistics of experiment datasets

数据集	节点数	边数	数据集	节点数	边数
alpha	3 783	24 186	math	21 688	107 581
otc	5 881	35 592	ask	137 517	280 102

Fig. 3 Comparison of index construction time and size between TG-TL and TL-base

Tab. 2 Query time comparison between TG-TL and TL-base

数据集	TG-TL	TG-base	数据集	TG-TL	TG-base
alpha	42	107	math	105	273
otc	61	171	ask	198	565

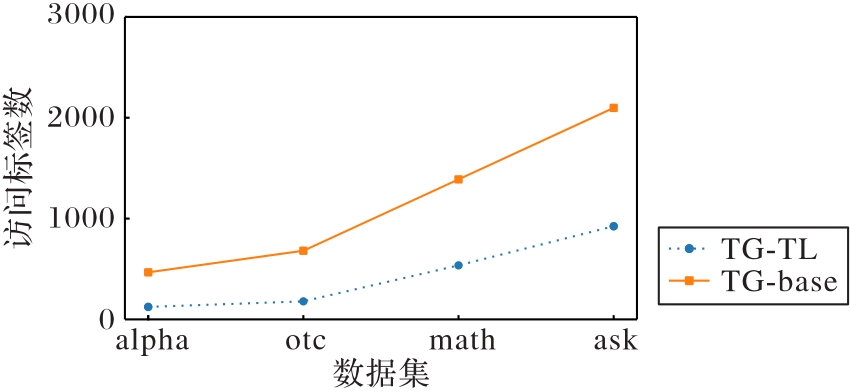

Fig. 4 Comparison of visited labels in query processing between TG-TL and TL-base

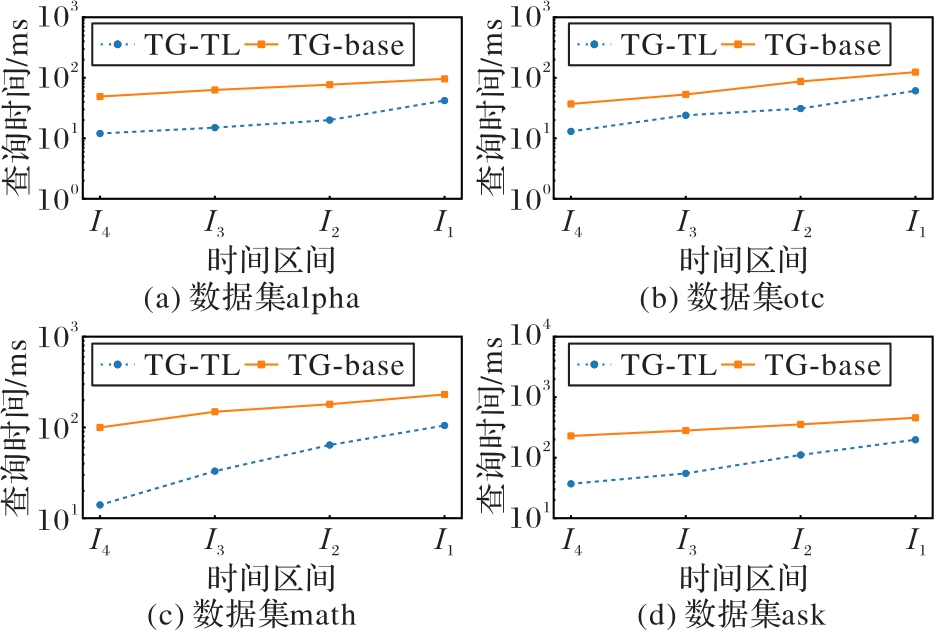

Fig. 5 Comparison of influence of query time interval on query efficiency between TG-TL and TL-base
