Improvement method of heuristic vehicle routing algorithm based on constrained spectral clustering

doi:10.11772/j.issn.1001-9081.2024060882

Journal of Computer Applications ›› 2025, Vol. 45 ›› Issue (5): 1387-1394.DOI: 10.11772/j.issn.1001-9081.2024060882

• China Conference on Data Mining 2024 (CCDM 2024) • Previous Articles

Improvement method of heuristic vehicle routing algorithm based on constrained spectral clustering

Meng LUO¹, Chao GAO²(), Zhen WANG³

^1.School of Mechanical Engineering，Northwestern Polytechnical University，Xi'an Shaanxi 710072，China
^2.School of Artificial Intelligence，Optics and ElectroNics，Northwestern Polytechnical University，Xi'an Shaanxi 710072，China
^3.School of Cybersecurity，Northwestern Polytechnical University，Xi'an Shaanxi 710072，China

Received:2024-07-03 Revised:2024-07-28 Accepted:2024-08-02 Online:2024-12-04 Published:2025-05-10
Contact: Chao GAO
About author:LUO Meng， born in 2000， M. S. candidate. His research interests include multi-objective optimization， evolutionary computing.
GAO Chao， born in 1980， Ph. D.， professor. His research interests include multimodal cognitive computing， group intelligent decision-making.
WANG Zhen， born in 1986， Ph.D.， professor. His research interests include multimodal cognitive computing， group intelligent decision-making.
Supported by:
National Key Research and Development Program of China(2022YFE0112300);National Natural Science Foundation of China(62025602)

基于带约束谱聚类的启发式车辆路径规划算法优化方法

罗蒙¹, 高超²(), 王震³

^1.西北工业大学机电学院，西安 710072
^2.西北工业大学光电与智能研究院，西安 710072
^3.西北工业大学网络空间与安全学院，西安 710072

通讯作者: 高超
作者简介:罗蒙（2000—），男，陕西汉中人，硕士研究生，CCF学生会员，主要研究方向：多目标优化、进化计算
高超（1980—），男，辽宁鞍山人，教授，博士，CCF会员，主要研究方向：多模态认知计算、群智能决策
王震（1986—），男，山西高平人，教授，博士，CCF会员，主要研究方向：多模态认知计算、群智能决策。
基金资助:
国家重点研发计划项目(2022YFE0112300);国家自然科学基金资助项目(62025602)

Abstract

Abstract:

Aiming at the poor initial solution quality of existing heuristic algorithms in solving large-scale Multi-Depot Vehicle Routing Problems （MDVRPs）， an improvement method of heuristic vehicle routing algorithm based on Constrained Spectral Clustering （CSC） was proposed. Firstly， the geographical and demand information feature matrices of delivery points were generated according to the geographical location and demand quantities of the customers to be served. Secondly， the constraint matrix with CSC was generated according to these feature matrices to perform clustering operations. Finally， the spectral clustering results were used to generate the initial solutions of the heuristic algorithms， and the appropriate heuristic algorithms were selected to solve the Vehicle Routing Problems (VRPs). Experimental results on 21 benchmark instances demonstrate that compared with Self-Constrained Spectral Clustering （SCSC）， CSC achieves 18.75% and 31.18% improvements in Normalized Mutual Information （NMI） and Fowlkes-Mallows Index （FMI）， respectively. In vehicle routing tasks， the heuristic algorithm initialized with CSC obtains the shortest path on 16 of 21 different sized instances while reducing runtime by 13.05% compared with SCSC-based initialization. Experimental results indicate that CSC can effectively improve the clustering accuracy of customer points， thereby improving both solving speed and solution quality for VRPs.

Key words: spectral clustering, Vehicle Routing Problem (VRP), Multi-Depot Vehicle Routing Problem (MDVRP), heuristic algorithm, Normalized Mutual Information (NMI), Fowlkes-Mallows Index (FMI)

摘要：

针对现有启发式算法在解决大规模多车场车辆路径规划问题（MDVRP）时存在的初始解质量较差的缺点，提出一种基于带约束谱聚类（CSC）的启发式车辆路径规划算法优化方法。首先，根据待配送客户点的地理位置和需求量生成配送点的地理信息特征矩阵和需求信息特征矩阵；其次，根据地理信息特征矩阵和需求信息特征矩阵生成CSC的约束矩阵，并完成聚类操作；最后，使用谱聚类的结果生成启发式算法的初始解，选择合适的启发式算法完成车辆路径规划问题（VRP）的求解。在标准数据集的21个算例上的实验结果显示，CSC相较于SCSC（Self-Constrained-Spectral-Clustering）在标准化互信息（NMI）和Fowlkes-Mallows指数（FMI）上分别提升了18.75%和31.18%；在车辆路径规划任务中，使用CSC进行初始化的启发式算法在21个不同规模算例中的16个算例上求得了最短路径，并且启发式算法的运行时间相较于使用SCSC缩短了13.05%。实验结果表明，CSC能够有效提高客户点的聚类精度，进而能够有效提高VRP的求解速度和解的精度。

关键词: 谱聚类, 车辆路径规划问题, 多车场车辆路径规划问题, 启发式算法, 标准化互信息, Fowlkes-Mallows指数

CLC Number:

TP301

Meng LUO, Chao GAO, Zhen WANG. Improvement method of heuristic vehicle routing algorithm based on constrained spectral clustering[J]. Journal of Computer Applications, 2025, 45(5): 1387-1394.

罗蒙, 高超, 王震. 基于带约束谱聚类的启发式车辆路径规划算法优化方法[J]. 《计算机应用》唯一官方网站, 2025, 45(5): 1387-1394.

Figures/Tables 9

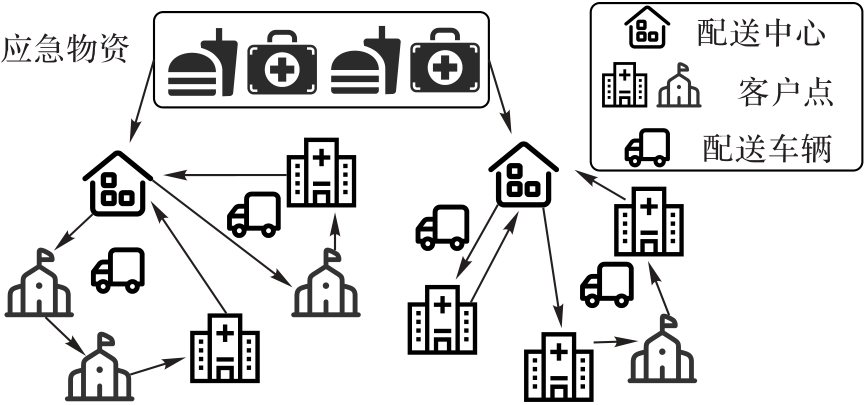

Fig. 1 Schematic diagram of MDVRP

Fig. 2 Flow of CSC based vehicle path planning algorithm

Tab. 1 Main characteristics of each instance

算例	客户点数	车场数	车辆数	车辆最大承载量
P01	50	4	4	80
P02	50	4	2	160
P03	75	5	3	140
P04	100	2	8	100
P05	100	2	5	200
P06	100	3	6	100
P07	100	4	4	100
P08	249	2	14	500
P09	249	3	12	500
P10	249	4	8	500
P11	249	5	6	500
P12	80	2	5	60
P13	80	2	5	60
P14	80	2	5	60
P23	360	9	5	60
Pr01	48	4	1	200
Pr02	96	4	2	195
Pr03	144	4	3	190
Pr04	192	4	4	185
Pr08	144	6	2	190
Pr09	216	6	3	180

Tab. 2 Symbols， meanings， and values of hyper-parameters of CSC

参数	含义	取值
$α$	约束矩阵系数	0.9
$β$	边界点界定阈值	0.3
$u b$	需求信息界定上界	$C$
$l b$	需求信息界定下界	0.25 $C$
$ω 1$	地理信息权重	0.8

Tab. 2 Symbols， meanings， and values of hyper-parameters of CSC

参数	含义	取值
$α$	约束矩阵系数	0.9
$β$	边界点界定阈值	0.3
$u b$	需求信息界定上界	$C$
$l b$	需求信息界定下界	0.25 $C$
$ω 1$	地理信息权重	0.8

Tab. 3 NMIs of different clustering methods on MDVRP dataset

算例	NMI
算例	FCM	SCSC	K-means	本文方法
P01	0.660 8	0.670 0	0.451 0	0.792 2
P02	0.461 2	0.515 2	0.707 7	0.459 3
P03	0.494 7	0.558 3	0.566 2	0.744 0
P04	0.635 0	0.257 9	0.635 0	0.761 0
P05	0.530 0	0.261 1	0.000 8	0.454 0
P06	0.688 2	0.543 9	0.748 7	0.536 4
P07	0.509 4	0.500 0	0.509 8	0.586 5
P08	0.741 1	0.358 7	0.022 9	0.766 8
P09	0.501 4	0.434 2	0.501 4	0.654 6
P10	0.565 3	0.550 0	0.380 7	0.735 2
P11	0.554 9	0.532 6	0.591 4	0.743 2
P12	0.713 6	0.711 0	0.713 6	0.722 4
P13	0.713 6	0.721 0	0.713 6	0.722 4
P14	0.831 3	0.779 1	0.831 3	0.855 6
P23	0.688 0	0.878 5	0.640 8	0.894 0
Pr01	0.580 3	0.700 7	0.547 3	0.751 8
Pr02	0.522 4	0.626 3	0.497 1	0.667 9
Pr03	0.666 0	0.741 3	0.683 5	0.759 1
Pr04	0.559 3	0.777 0	0.464 6	0.745 5
Pr08	0.383 6	0.548 7	0.428 5	0.605 2
Pr09	0.565 9	0.717 0	0.583 8	0.747 0

Tab. 4 FMIs of different clustering methods on MDVRP dataset

算例	FMI
算例	FCM	SCSC	K-means	本文方法
P01	0.578 9	0.572 5	0.578 9	0.678 3
P02	0.686 3	0.378 3	0.653 8	0.525 2
P03	0.565 5	0.465 4	0.646 0	0.737 1
P04	0.675 9	0.640 0	0.801 2	0.921 9
P05	0.518 9	0.226 2	0.494 1	0.769 8
P06	0.825 3	0.806 9	0.843 8	0.658 7
P07	0.501 7	0.541 3	0.501 7	0.583 1
P08	0.838 1	0.845 4	0.636 8	0.930 1
P09	0.690 2	0.515 0	0.711 1	0.670 2
P10	0.491 2	0.058 3	0.484 8	0.601 3
P11	0.551 1	0.337 4	0.562 1	0.764 3
P12	0.902 6	0.925 0	0.902 6	0.902 7
P13	0.902 6	0.925 0	0.902 6	0.902 7
P14	0.950 0	0.950 0	0.950 0	0.950 1
P23	0.752 5	0.100 0	0.734 8	0.761 0
Pr01	0.901 7	0.617 3	0.885 7	0.891 1
Pr02	0.671 6	0.711 5	0.619 7	0.633 9
Pr03	0.641 1	0.852 7	0.641 3	0.633 9
Pr04	0.786 4	0.906 7	0.773 5	0.815 6
Pr08	0.883 4	0.130 4	0.593 7	0.799 7
Pr09	0.420 4	0.491 5	0.517 8	0.606 7

Tab. 5 The shortest route lengths of different clustering methods combined with VNTS algorithm on MDVRP dataset

算例	VNTS	VNTS+FCM	VNTS+SCSC	VNTS+K‑means	VNTS+ 本文方法
P01	617.77	613.27	639.93	669.43	596.28
P02	560.44	490.27	547.42	525.12	480.92
P03	810.18	677.65	706.99	848.63	666.73
P04	930.97	835.40	869.89	1 114.12	825.49
P05	945.04	843.86	831.75	946.39	824.74
P06	1 114.44	937.47	999.27	944.71	1 215.12
P07	1 229.57	994.31	941.05	976.28	960.56
P08	6 532.82	4 900.05	5 369.90	6 333.45	4 780.93
P09	6 511.97	5 292.26	4 424.95	4 733.89	5 836.72
P10	4 657.70	4 176.38	5 025.39	5 882.19	4 062.10
P11	6 188.19	5 176.19	4 048.94	4 507.12	4 114.79
P12	1 828.98	1 510.03	1 502.40	1 534.93	1 483.59
P13	1 821.88	1 559.92	1 520.24	1 569.45	1 511.34
P14	1 856.17	1 510.03	1 578.91	1 559.92	1 476.88
P23	6 983.64	6 805.78	6 945.38	6 995.21	6 805.78
Pr01	1 018.66	912.59	1 036.02	1 076.4	876.39
Pr02	1 795.43	1 559.34	1 565.68	1 542.31	1 559.34
Pr03	2 476.77	2 026.65	1 934.31	2 042.95	1 899.27
Pr04	3 121.45	2 524.92	2 534.97	2 662.12	2 524.92
Pr08	2 523.44	1 951.20	2 004.80	2 264.29	1 951.20
Pr09	3 699.00	3 615.03	2 461.17	3 031.45	2 801.55

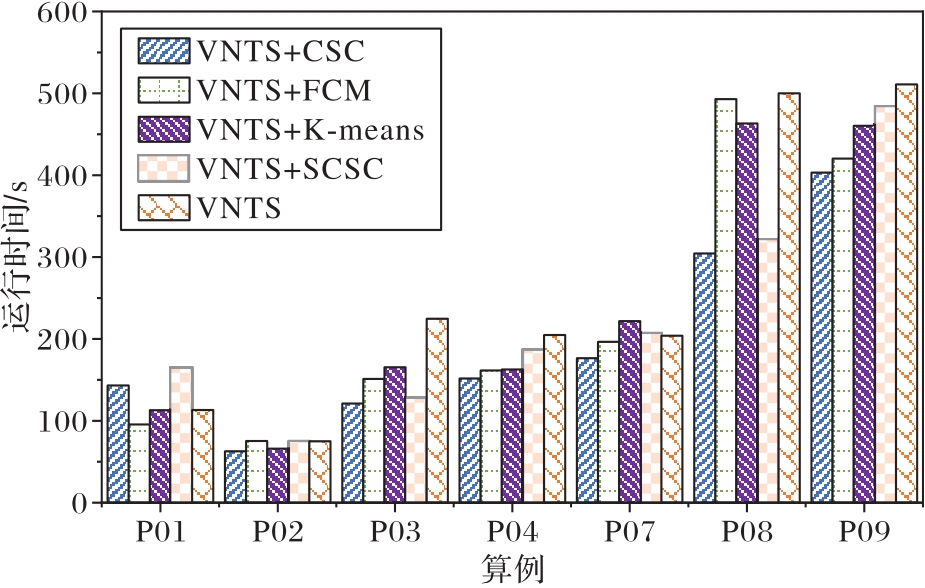

Fig. 3 Running time comparison of heuristic algorithms using different clustering methods

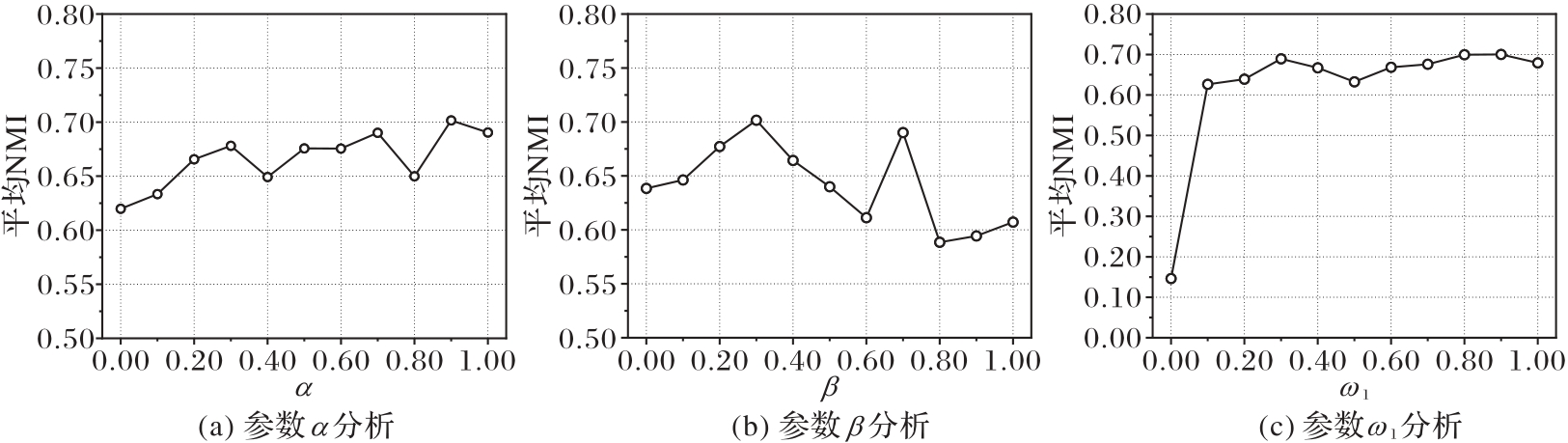

Fig. 4 Average NMIs with different hyper-parameters

References 42

1	DANTZIG G B， RAMSER J H. The truck dispatching problem［J］. Science Management， 1959， 6（1）： 80-91.
2	GIBBS H， LIU Y， PEARSON C A B， et al. Changing travel patterns in China during the early stages of the COVID-19 pandemic［J］. Nature Communications， 2020， 11（1）： No.5012.
3	LI J Y， DENG X Y， ZHAN Z H， et al. A multipopulation multiobjective ant colony system considering travel and prevention costs for vehicle routing in COVID-19-like epidemics［J］. IEEE Transactions on Intelligent Transportation Systems， 2022， 23（12）： 25062-25076.
4	TILLMAN F A. The multiple terminal delivery problem with probabilistic demands［J］. Transportation Science， 1969， 3（3）： 192-204.
5	MONTOYA-TORRES J R， FRANCO J L， ISAZA S N， et al. A literature review on the vehicle routing problem with multiple depots［J］. Computers and Industrial Engineering， 2015， 79： 115-129.
6	TAŞ D， GENDREAU M， DELLAERT N， et al. Vehicle routing with soft time windows and stochastic travel times： a column generation and branch-and-price solution approach［J］. European Journal of Operational Research， 2014， 236（3）： 789-799.
7	DABIA S， ROPKE S， VAN WOENSEL T， et al. Branch and price for the time-dependent vehicle routing problem with time windows［J］. Transportation Science， 2013， 47（3）： 380-396.
8	HERNANDEZ F， FEILLET D， GIROUDEAU R， et al. Branch-and-price algorithms for the solution of the multi-trip vehicle routing problem with time windows［J］. European Journal of Operational Research， 2016， 249（2）： 551-559.
9	MAK V， ERNST A T. New cutting-planes for the time-and/or precedence-constrained ATSP and directed VRP［J］. Mathematical Methods of Operations Research， 2007， 66（1）： 69-98.
10	KALLEHAUGE B， LARSEN J， MADSEN O B G. Lagrangian duality applied to the vehicle routing problem with time windows［J］. Computers and Operations Research， 2006， 33（5）： 1464-1487.
11	MAHMOUDI M， ZHOU X. Finding optimal solutions for vehicle routing problem with pickup and delivery services with time windows： a dynamic programming approach based on state-space-time network representations［J］. Transportation Research Part B： Methodological， 2016， 89： 19-42.
12	PRABU U， RAVISASTHIRI P， SRIRAM R， et al. EODVGA： an enhanced ODV based genetic algorithm for multi-depot vehicle routing problem［J］. EAI Endorsed Transactions on Scalable Information Systems， 2019， 6（21）： No.e8.
13	LI Y， SOLEIMANI H， ZOHAL M. An improved ant colony optimization algorithm for the multi-depot green vehicle routing problem with multiple objectives［J］. Journal of Cleaner Production， 2019， 227： 1161-1172.
14	STODOLA P， NOHEL J. Adaptive ant colony optimization with node clustering for the multi-depot vehicle routing problem［J］. IEEE Transactions on Evolutionary Computation， 2023， 27（6）： 1866-1880.
15	KACHITVICHYANUKUL V， SOMBUNTHAM P， KUNNAPAPDEELERT S. Two solution representations for solving multi-depot vehicle routing problem with multiple pickup and delivery requests via PSO［J］. Computers and Industrial Engineering， 2015， 89： 125-136.
16	DE OLIVEIRA F B， ENAYATIFAR R， SADAEI H J， et al. A cooperative coevolutionary algorithm for the multi-depot vehicle routing problem［J］. Expert Systems with Applications， 2016， 43： 117-130.
17	彭熙舜，陆安江，贾明俊，等.利用Kmeans与蚁群算法的路径寻优方法［J］.智能计算机与应用，2021，11（4）：17-20.
	PENG X S， LU A J， JIA M J， et al. Path optimization method using Kmeans and ant colony algorithm［J］. Intelligent Computer and Applications， 2021， 11（4）： 17-20.
18	CALVET L， FERRER A， GOMES M I， et al. Combining statistical learning with metaheuristics for the multi-depot vehicle routing problem with market segmentation［J］. Computers and Industrial Engineering， 2016， 94： 93-104.
19	MAHMUD N， HAQUE M M. Solving multiple depot vehicle routing problem （MDVRP） using genetic algorithm ［C］//Proceedings of the 2019 International Conference on Electrical， Computer and Communication Engineering. Piscataway： IEEE， 2019： 1-6.
20	SHALABY M A W， MOHAMMED A， KASSEM S. Supervised fuzzy c-means techniques to solve the capacitated vehicle routing problem［J］. The International Arab Journal of Information Technology， 2021， 18（3A）： 452-463.
21	LV C， ZHANG C， LIAN K， et al. A two-echelon fuzzy clustering based heuristic for large-scale bike sharing repositioning problem［J］. Transportation Research Part B： Methodological， 2022， 160： 54-75.
22	ALLAHYARI S， SALARI M， VIGO D. A hybrid metaheuristic algorithm for the multi-depot covering tour vehicle routing problem［J］. European Journal of Operational Research， 2015， 242（3）： 756-768.
23	KUO Y， WANG C C. A variable neighborhood search for the multi-depot vehicle routing problem with loading cost［J］. Expert Systems with Applications， 2012， 39（8）： 6949-6954.
24	WREN A， HOLLIDAY A. Computer scheduling of vehicles from one or more depots to a number of delivery points［J］. Journal of the Operational Research Society， 1972， 23（3）： 333-344.
25	GILLETT B E， JOHNSON J G. Multi-terminal vehicle-dispatch algorithm［J］. Omega， 1976， 4（6）： 711-718.
26	RENAUD J， LAPORTE G， BOCTOR F F. A tabu search heuristic for the multi-depot vehicle routing problem［J］. Computers and Operations Research， 1996， 23（3）： 229-235.
27	CREVIER B， CORDEAU J F， LAPORTE G. The multi-depot vehicle routing problem with inter-depot routes［J］. European Journal of Operational Research， 2007， 176（2）： 756-773.
28	HO W， HO G T S， JI P， et al. A hybrid genetic algorithm for the multi-depot vehicle routing problem［J］. Engineering Applications of Artificial Intelligence， 2008， 21（4）： 548-557.
29	SUREKHA P， SUMATHI S. Application of particle swarm optimization for solving multi-depot vehicle routing problems［J］. International Journal of Artificial Intelligent Systems and Machine Learning， 2011， 3（11）： 677-686.
30	STODOLA P. Hybrid ant colony optimization algorithm applied to the multi-depot vehicle routing problem［J］. Natural Computing， 2020， 19（2）： 463-475.
31	WANG X， CHOI T M， LIU H， et al. Novel ant colony optimization methods for simplifying solution construction in vehicle routing problems［J］. IEEE Transactions on Intelligent Transportation Systems， 2016， 17（11）： 3132-3141.
32	GU Z， ZHU Y， WANG Y， et al. Applying artificial bee colony algorithm to the multidepot vehicle routing problem［J］. Software： Practice and Experience， 2022， 52（3）： 756-771.
33	MOSTAFA N， ELTAWIL A. Solving the heterogeneous capacitated vehicle routing problem using K-means clustering and valid inequalities ［C］// Proceedings of the 2017 International Conference on Industrial Engineering and Operations Management. Southfield， MI： IEOM Society International， 2017： 2239-2249.
34	SINGANAMALA P， REDDY K D， VENKATARAMAIAH P. Solution to a multi depot vehicle routing problem using K-means algorithm， Clarke and Wright algorithm and ant colony optimization［J］. International Journal of Applied Engineering Research， 2018， 13（21）： 15236-15246.
35	ZHU J. Solving capacitated vehicle routing problem by an improved genetic algorithm with fuzzy C-means clustering［J］. Scientific Programming， 2022， 2022： No.8514660.
36	SHI J， MALIK J. Normalized cuts and image segmentation［J］. IEEE Transactions on Pattern Analysis and Machine Intelligence， 2000， 22（8）： 888-905.
37	BAI L， LIANG J， ZHAO Y. Self-constrained spectral clustering［J］. IEEE Transactions on Pattern Analysis and Machine Intelligence， 2023， 45（4）： 5126-5138.
38	MOLINA J C， EGUIA I， RACERO J. Reducing pollutant emissions in a waste collection vehicle routing problem using a variable neighborhood tabu search algorithm： a case study［J］. TOP， 2019， 27（2）： 253-287.
39	LI J， LI T， YU Y， et al. Discrete firefly algorithm with compound neighborhoods for asymmetric multi-depot vehicle routing problem in the maintenance of farm machinery［J］. Applied Soft Computing， 2019， 81： No.105460.
40	SADATI M E H， ÇATAY B， AKSEN D. An efficient variable neighborhood search with tabu shaking for a class of multi-depot vehicle routing problems［J］. Computers and Operations Research， 2021， 133： No.105269.
41	PISINGER D， ROPKE S. A general heuristic for vehicle routing problems［J］. Computers and Operations Research， 2007， 34（8）： 2403-2435.
42	FOWLKES E B， MALLOWS C L. A method for comparing two hierarchical clusterings［J］. Journal of the American Statistical Association， 1983， 78（383）： 553-569.
