Layered solving method for virtual maintenance posture in narrow aircraft space

doi:10.11772/j.issn.1001-9081.2024071068

Journal of Computer Applications ›› 2025, Vol. 45 ›› Issue (8): 2694-2703.DOI: 10.11772/j.issn.1001-9081.2024071068

• Multimedia computing and computer simulation • Previous Articles

Layered solving method for virtual maintenance posture in narrow aircraft space

Zhexu LIU¹, Aobing ZHANG¹, Zhiyong FAN²()

^1.College of Information Engineering and Automation，Civil Aviation University of China，Tianjin 300300，China
^2.Engineering and Technology Training Center，Civil Aviation University of China，Tianjin 300300，China

Received:2024-07-31 Revised:2024-10-08 Accepted:2024-10-09 Online:2024-11-19 Published:2025-08-10
Contact: Zhiyong FAN
About author:LIU Zhexu， born in 1987， Ph. D.， associate professor. His research interests include simulation verification and maintainability analysis and evaluation of aircraft complex system.
ZHANG Aobing， born in 1999， M. S. candidate. Her research interests include virtual maintenance simulation verification analysis for civil aviation.
Supported by:
National Key Research and Development Program of China(2023YFB4302901)

飞机狭小空间虚拟维修姿态分层求解方法

刘哲旭¹, 张澳冰¹, 樊智勇²()

^1.中国民航大学电子信息与自动化学院，天津 300300
^2.中国民航大学工程技术训练中心，天津 300300

通讯作者: 樊智勇
作者简介:刘哲旭（1987—），男，辽宁葫芦岛人，副教授，博士，主要研究方向：飞机复杂系统仿真验证及维修性分析评估
张澳冰（1999—），女，河北石家庄人，硕士研究生，主要研究方向：民航虚拟维修仿真验证分析
基金资助:
国家重点研发计划项目(2023YFB4302901)

Abstract

Abstract:

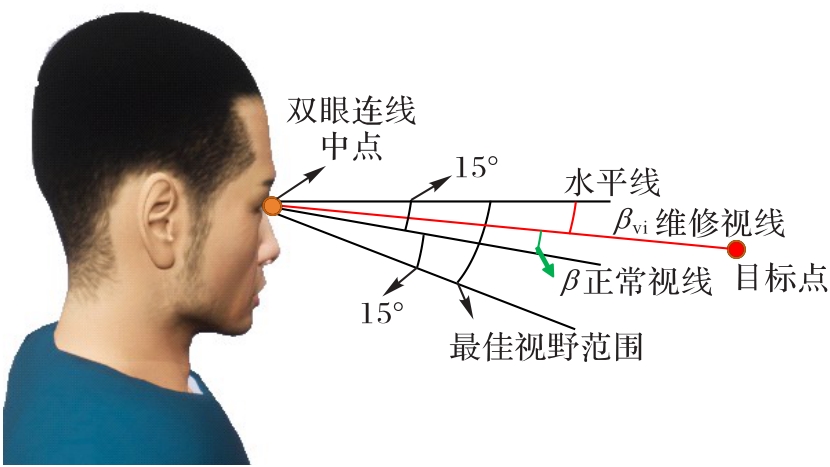

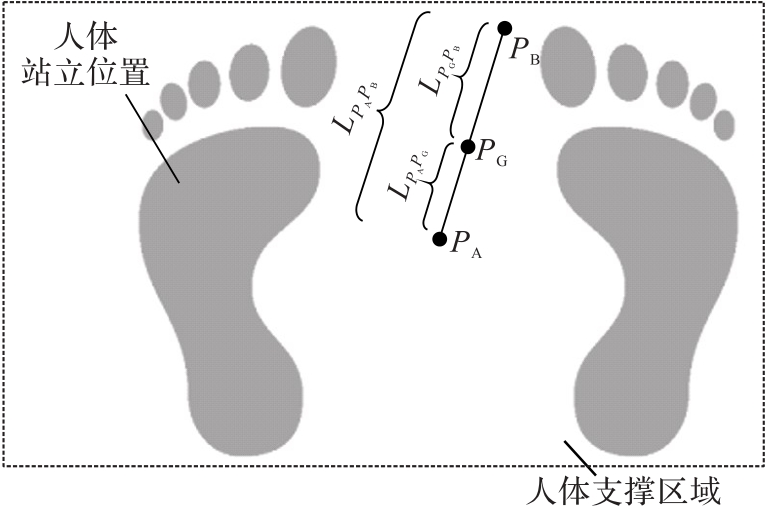

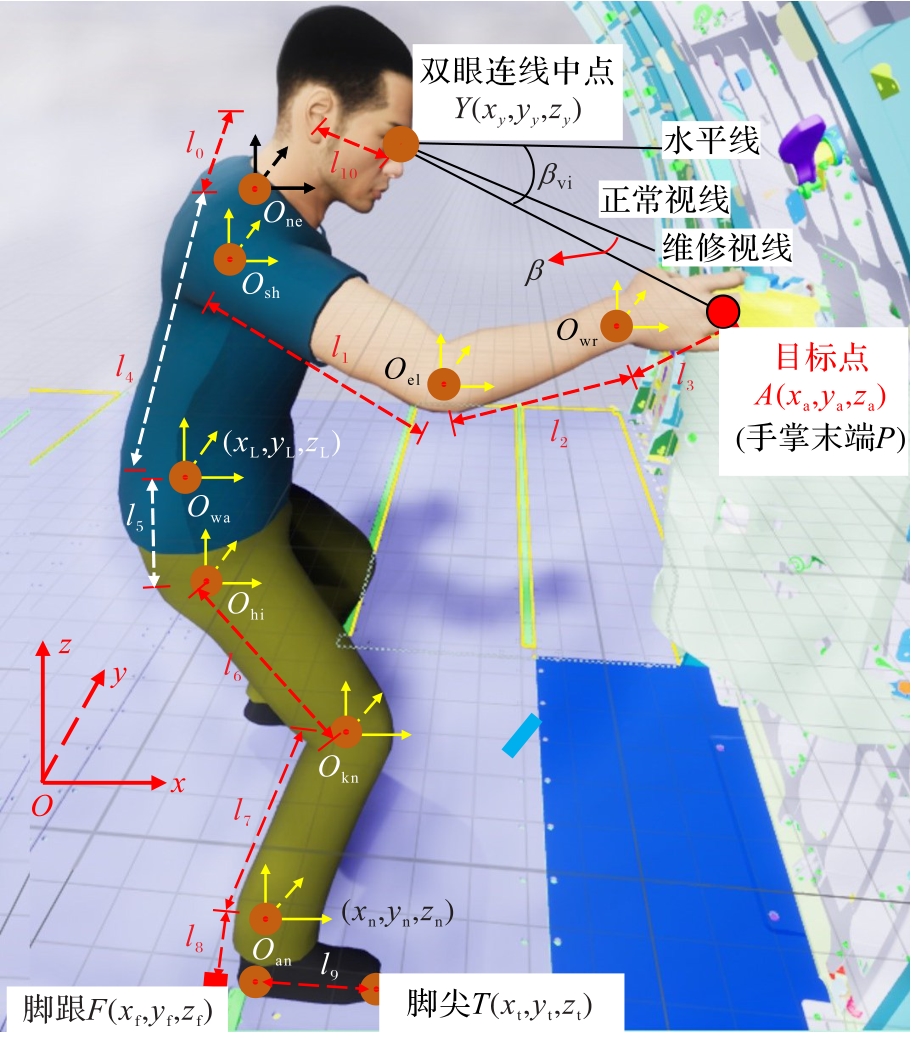

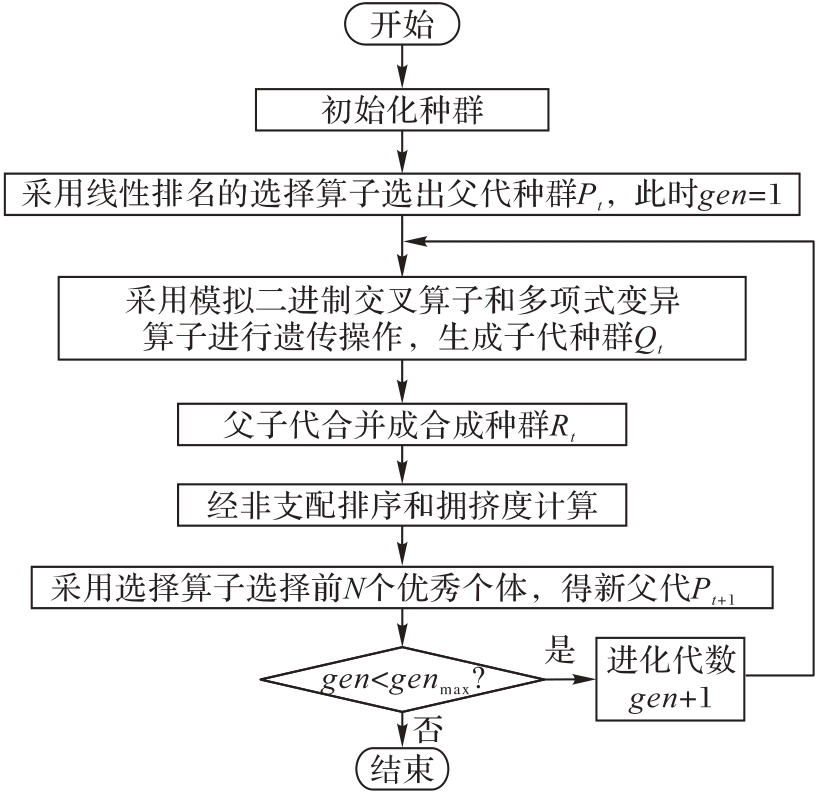

Virtual simulation of maintainability is an important tool for aircraft structure and systems design， in which the rapid generation of appropriate virtual human maintenance posture is crucial to the efficiency and feasibility of maintainability analysis. Aiming at the problems of low efficiency and limited applicability of the current virtual human maintenance posture solving methods， a virtual maintenance posture layered solving method for the narrow space of aircraft was proposed. In the method， with the waist as the demarcation point， the maintenance posture was decomposed into two parts： upper body and lower body， and Elitist Nondominated Sorting Genetic Algorithm Ⅱ （NSGA-Ⅱ） was used to optimize and solve them respectively to obtain the overall maintenance posture. Firstly， the maintenance posture optimization criterion was constructed by considering the space limitations and human body structure constraints comprehensively. Secondly， multi-objective optimization models of upper body and lower body postures were constructed on the basis of the maintenance posture optimization criterion through analyzing geometry and inverse kinematics principles， and NSGA-Ⅱ was applied to solve them sequentially. Through analysis of cases of disassembly of aircraft cockpit Air Data Module （ADM） and cargo promotion in cargo hold， it is verified that the proposed method can generate virtual maintenance posture in narrow space of aircraft effectively， and has good applicability and feasibility.

Key words: virtual simulation of maintainability, virtual maintenance posture, narrow aircraft space, posture optimization criterion, multi-objective optimization

摘要：

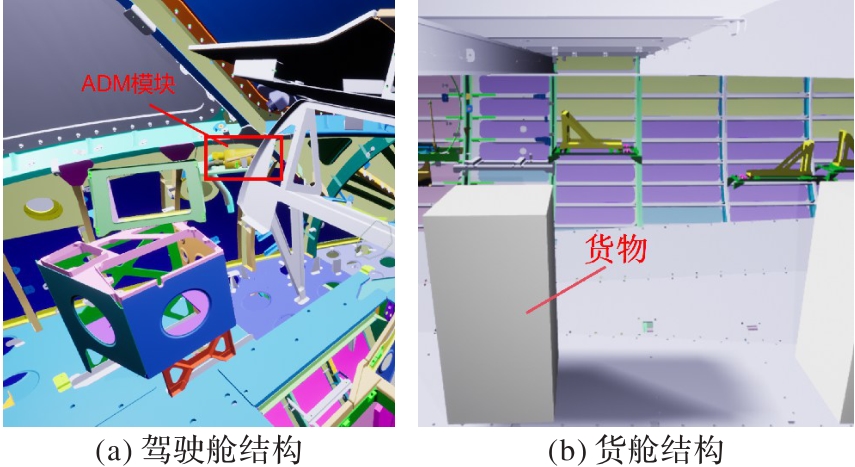

维修性虚拟仿真是飞机结构及系统设计的重要工具，其中快速生成合适的虚拟人维修姿态对维修性分析的效率和可行性至关重要。针对目前虚拟人维修姿态求解方法效率较低且适用性有限的问题，提出一种飞机狭小空间虚拟维修姿态分层求解方法。该方法以腰部为分界点，将维修姿态分解为上身和下身两部分，利用带精英策略的非支配排序遗传算法（NSGA-Ⅱ）分别对它们优化求解获取整体维修姿态。首先，综合考虑空间限制和人体结构约束后，构建维修姿态优化准则；其次，依据维修姿态优化准则，通过解析几何和逆向运动学原理，构建上身和下身姿态的多目标优化模型，并运用NSGA-Ⅱ对它们依次求解。通过对飞机驾驶舱大气数据模块（ADM）拆卸和货舱内货物推行案例的分析，验证了所提方法能在飞机狭小空间里高效生成虚拟维修姿态，且具有良好的适用性和可行性。

关键词: 维修性虚拟仿真, 虚拟维修姿态, 飞机狭小空间, 姿态优化准则, 多目标优化

CLC Number:

TP391.9

Zhexu LIU, Aobing ZHANG, Zhiyong FAN. Layered solving method for virtual maintenance posture in narrow aircraft space[J]. Journal of Computer Applications, 2025, 45(8): 2694-2703.

刘哲旭, 张澳冰, 樊智勇. 飞机狭小空间虚拟维修姿态分层求解方法[J]. 《计算机应用》唯一官方网站, 2025, 45(8): 2694-2703.

Figures/Tables 18

References 27

[1]	焦庆龙，徐达. 关于虚拟人体维修作业姿态库设计研究［J］. 计算机仿真， 2019， 36（4）：324-329， 444.
	JIAO Q L， XU D. Research on the design method of virtual human body maintenance posture examples［J］. Computer Simulation， 2019， 36（4）：324-329， 444.
[2]	王建鹏，秦文虎，孙立博. 基于生物力学的虚拟人运动控制及行走仿真［J］. 计算机辅助设计与图形学学报， 2018， 30（6）：1110-1117.
	WANG J P， QIN W H， SUN L B. Motion control and walking simulation of virtual human based on biomechanics［J］. Journal of Computer-Aided Design and Computer Graphics， 2018， 30（6）：1110-1117.
[3]	武维维，叶林梅，邵晓东，等. 基于多目标遗传算法的虚拟人作业姿态仿真［J］. 计算机集成制造系统， 2019， 25（1）：155-164.
	WU W W， YE L M， SHAO X D， et al. Working posture simulation method for virtual human based on multi-objective genetic algorithm［J］. Computer Integrated Manufacturing Systems， 2019， 25（1）：155-164.
[4]	罗明宇，骆晓萌，朱文敏，等. 船舶狭小空间虚拟人维修姿态建模技术［J］. 计算机应用， 2021， 41（8）：2466-2472.
	LUO M Y， LUO X M， ZHU W M， et al. Modeling technology for maintenance posture of virtual human in narrow space of ship［J］. Journal of Computer Applications， 2021， 41（8）：2466-2472.
[5]	NGUYEN T， BUI T， PHAM H. Using proposed optimization algorithm for solving inverse kinematics of human upper limb applying in rehabilitation robotic［J］. Artificial Intelligence Review， 2022， 55（1）： 679-705.
[6]	郭庆，马欣辰，付宇. 民航机务维修工作的虚拟人姿态生成技术［J］. 计算机集成制造系统， 2023， 29（11）：3582-3591.
	GUO Q， MA X C， FU Y. Virtual human posture generation technology for civil aviation aircraft maintenance［J］. Computer Integrated Manufacturing Systems， 2023， 29（11）：3582-3591.
[7]	李石磊，梁加红，吴冰，等. 虚拟人运动生成与控制技术综述［J］. 系统仿真学报， 2011， 23（9）：1758-1771.
	LI S L， LIANG J H， WU B， et al. Survey of virtual character motion generation and control［J］. Journal of System Simulation， 2011， 23（9）：1758-1771.
[8]	武维维. 基于虚拟人的人机工效评估及装配作业仿真技术研究［D］. 西安：西安电子科技大学， 2020.
	WU W W. Study on technologies for ergonomic assessment and virtual assembly based on virtual human［D］. Xi’an： Xidian University， 2020.
[9]	霍伟. 机器人动力学与控制［M］. 北京：高等教育出版社， 2005.
	HUO W. Robot dynamics and control［M］. Beijing： Higher Education Press， 2005.
[10]	杨宇盟. 虚拟人避障运动规划与装配操作动作库研究［D］. 武汉：华中科技大学， 2014.
	YANG Y M. Research on collision-free motion planning and assembly operation action library for virtual human［D］. Wuhan： Huazhong University of Science and Technology， 2014.
[11]	蒋伟. 基于虚拟人的维修可达性仿真及评价技术研究［D］. 长沙：国防科学技术大学， 2009.
	JIANG W. Research on evaluation technique and maintenance reachability simulation based on virtual humans［D］. Changsha： National University of Defense Technology， 2009.
[12]	何春华，方舟，李阳，等. 基于视野锥的维修可视性分析方法改进［J］. 中国舰船研究， 2020， 15（2）：49-55.
	HE C H， FANG Z， LI Y， et al. Improvement of maintenance visibility analysis method based on human visual field cone［J］. Chinese Journal of Ship Research， 2020， 15（2）：49-55.
[13]	国防科学技术工业委员会. 军事装备和设施的人机工程设计准则：［S］. 北京：中国标准出版社， 1997： 1-5.
	Commission for Science， Technology and Industry for National Defense. Human engineering design criteria for military equipment and facilities：［S］. Beijing： Standards Press of China， 1997： 1-5.
[14]	杨锋，袁修干. 基于舒适度最大化的人体运动控制［J］. 计算机辅助设计与图形学学报， 2005， 17（2）：267-272.
	YANG F， YUAN X G. Computational simulation of human motion based on comfort level maximization［J］. Journal of Computer-Aided Design and Computer Graphics， 2005， 17（2）：267-272.
[15]	刘哲旭，薛丽，刘涛. 维修任务操作中人体手臂的舒适度分析［J］. 机械设计与研究， 2023， 39（4）：45-49， 55.
	LIU Z X， XUE L， LIU T. Human arm comfort analysis method in maintenance task operation［J］. Machine Design and Research， 2023， 39（4）：45-49， 55.
[16]	ZACHER I， BUBB H. Strength based discomfort model of posture and movement［J］. SAE Transactions， 2004， 113：87-92.
[17]	PANDYA A K， HASSON S M， ALDRIDGE A M， et al. Correlation and prediction of dynamic human isolated joint strength from lean body mass［EB/OL］. ［2024-06-12］..
[18]	丁皓，夏冬阳，丁思吉，等. 基于人体关节点的三维重心计算与验证方法［J］. 医用生物力学， 2024， 39（1）：157-163.
	DING H， XIA D Y， DING S J， et al. Calculation and verification method of three-dimensional center of gravity based on human joint points［J］. Journal of Medical Biomechanics， 2024， 39（1）：157-163.
[19]	YEUNG L F， CHENG K C， FONG C H， et al. Evaluation of the Microsoft Kinect as a clinical assessment tool of body sway［J］. Gait and Posture， 2014， 40（4）： 532-538.
[20]	王蔚，冯亚琴，杨再兴，等. 基于体感交互设备的人体重心计算方法［J］. 数据采集与处理， 2018， 33（4）：595-602.
	WANG W， FENG Y Q， YANG Z X， et al. Calculation method for human center of gravity based on somatosensory interaction［J］. Journal of Data Acquisition and Processing， 2018， 33（4）：595-602.
[21]	DEB K， PRATAP A， AGARWAL S， et al. A fast and elitist multiobjective genetic algorithm： NSGA‑Ⅱ［J］. IEEE Transactions on Evolutionary Computation， 2002， 6（2）： 182-197.
[22]	王彬，向甜，吕艺东，等. 基于NSGA‑Ⅱ的自适应多尺度特征通道分组优化算法［J］. 计算机应用， 2023， 43（5）： 1401-1408.
	WANG B， XIANG T， LYU Y D， et al. Adaptive multi-scale feature channel grouping optimization algorithm based on NSGA‑Ⅱ［J］. Journal of Computer Applications， 2023， 43（5）： 1401-1408.
[23]	朱文敏，骆晓萌，范秀敏，等. 基于完整可达域分析的虚拟人作业姿态生成方法［J］. 上海交通大学学报， 2022， 56（10）：1409-1419.
	ZHU W M， LUO X M， FAN X M， et al. Working posture generation method for virtual human based on complete reachable region analysis［J］. Journal of Shanghai Jiao Tong University， 2022， 56（10）：1409-1419.
[24]	国家市场监督管理总局，国家标准化管理委员会. 中国成年人人体尺寸：［S］. 北京：中国标准出版社， 2023： 1-8.
	State Administration for Market Regulation， National Standardization Administration of China. Human dimensions of Chinese adults：［S］. Beijing： Standards Press of China， 2023： 1-8.
[25]	中华人民共和国国家质量监督检验检疫总局，国家标准化管理委员会. 成年人人体惯性参数：［S］. 北京：中国标准出版社， 2004： 1-9.
	General Administration of Quality Supervision， Inspection and Quarantine of China， National Standardization Administration of China. Inertial parameters of adult human body：［S］. Beijing： Standards Press of China， 2004： 1-9.
[26]	中国人民解放军总装备部. 军事装备和设施的人机工程设计手册：［S］. 北京：中国标准出版社， 2002： 1-7.
	General Armaments Department of the People’s Liberation Army. Human engineering design handbook for military equipment and facilities：［S］. Beijing： Standards Press of China， 2002： 1-7.
[27]	McATAMNEY L， CORLETT E N. RULA： a survey method for the investigation of work-related upper limb disorders［J］. Applied Ergonomics， 1993， 24（2）： 91-99.

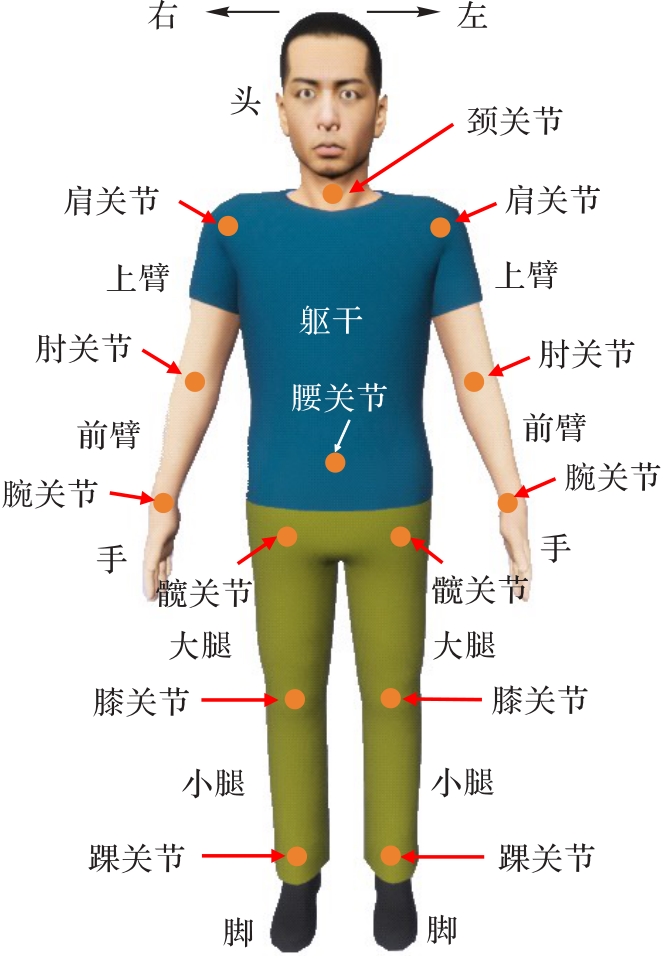

体段名	百分位数	测量尺寸/mm	质量/kg	质心测量起点	质心位置/mm
头颈	P5	210.0	4.48	头顶点	108.5
头颈	P50	231.0	5.16	头顶点	117.8
躯干	P5	512.0	22.91	颈椎点	266.3
躯干	P50	530.0	27.00	颈椎点	293.4
上臂	P5	289.0	1.26	桡骨点	138.1
上臂	P50	316.0	1.46	桡骨点	163.3
前臂	P5	209.0	0.65	桡骨茎突点	120.4
前臂	P50	239.0	0.75	桡骨茎突点	136.6
手	P5	171.0	0.33	中指指尖点	108.4
手	P50	184.0	0.38	中指指尖点	114.2
大腿	P5	424.0	7.73	胫骨点	231.9
大腿	P50	470.0	8.50	胫骨点	254.5
小腿	P5	336.0	1.91	内踝点	204.0
小腿	P50	374.0	2.20	内踝点	224.1
足	P5	233.0	0.77	足底	36.2
足	P50	249.0	0.89	足底	38.2

体段名	百分位数	测量尺寸/mm	质量/kg	质心测量起点	质心位置/mm
头颈	P5	210.0	4.48	头顶点	108.5
头颈	P50	231.0	5.16	头顶点	117.8
躯干	P5	512.0	22.91	颈椎点	266.3
躯干	P50	530.0	27.00	颈椎点	293.4
上臂	P5	289.0	1.26	桡骨点	138.1
上臂	P50	316.0	1.46	桡骨点	163.3
前臂	P5	209.0	0.65	桡骨茎突点	120.4
前臂	P50	239.0	0.75	桡骨茎突点	136.6
手	P5	171.0	0.33	中指指尖点	108.4
手	P50	184.0	0.38	中指指尖点	114.2
大腿	P5	424.0	7.73	胫骨点	231.9
大腿	P50	470.0	8.50	胫骨点	254.5
小腿	P5	336.0	1.91	内踝点	204.0
小腿	P50	374.0	2.20	内踝点	224.1
足	P5	233.0	0.77	足底	36.2
足	P50	249.0	0.89	足底	38.2

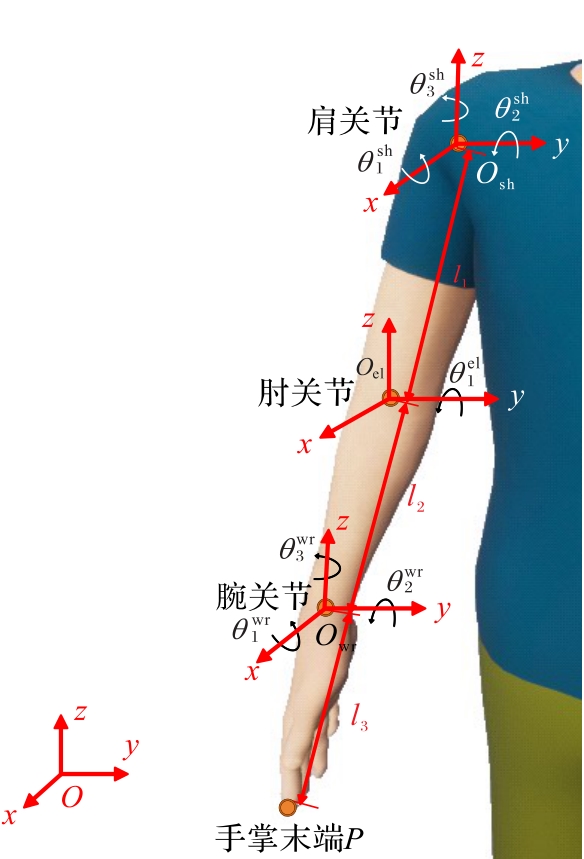

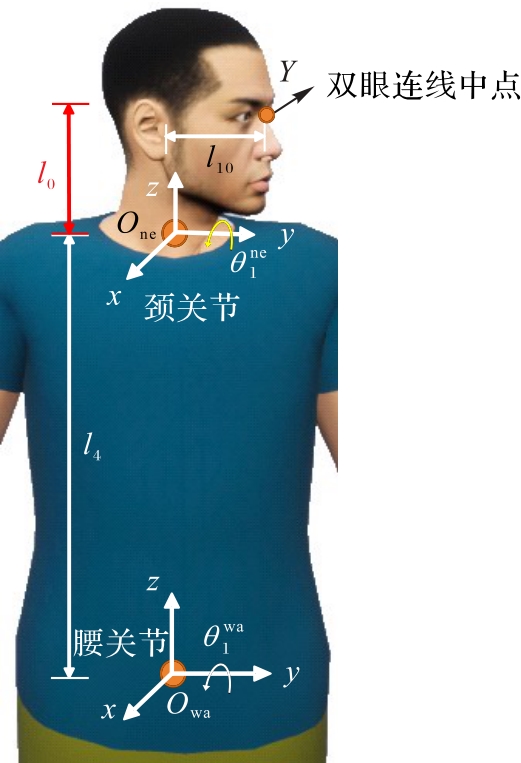

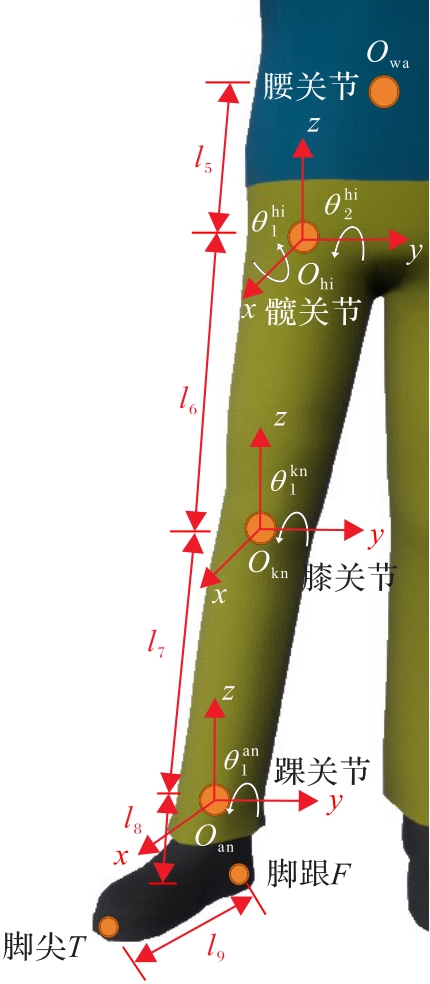

自由度角度	最大活动范围	最适活动范围
θ₁^sh	-20.0~97.0	0~30.0
θ₂^sh	-18.0~80.0	0~25.0
θ₃^sh	-60.0~170.0	-25.0~55.0
θ₁^el	0~150.0	0~40.0，125.0~150.0
θ₁^wr	-117.0~77.0	60.0~77.0
θ₂^wr	-45.0~45.0	-30.0~45.0
θ₃^wr	-85.0~100.0	-50.0~75.0
θ₁^ne	-40.0~45.0	-10.0~20.0
θ₁^wa	-30.0~90.0	-10.0~45.0
θ₁^hi	-20.0~45.0	-10.0~35.0
θ₂^hi	0~120.0	0~80.0
θ₁^kn	-145.0~10.0	-130.0~0
θ₁^an	-45.0~20.0	-10.0~10.0

自由度角度	最大活动范围	最适活动范围
θ₁^sh	-20.0~97.0	0~30.0
θ₂^sh	-18.0~80.0	0~25.0
θ₃^sh	-60.0~170.0	-25.0~55.0
θ₁^el	0~150.0	0~40.0，125.0~150.0
θ₁^wr	-117.0~77.0	60.0~77.0
θ₂^wr	-45.0~45.0	-30.0~45.0
θ₃^wr	-85.0~100.0	-50.0~75.0
θ₁^ne	-40.0~45.0	-10.0~20.0
θ₁^wa	-30.0~90.0	-10.0~45.0
θ₁^hi	-20.0~45.0	-10.0~35.0
θ₂^hi	0~120.0	0~80.0
θ₁^kn	-145.0~10.0	-130.0~0
θ₁^an	-45.0~20.0	-10.0~10.0

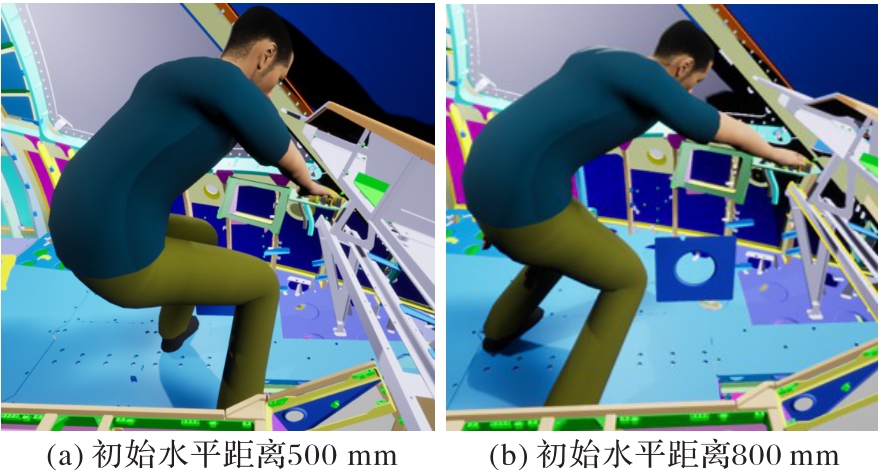

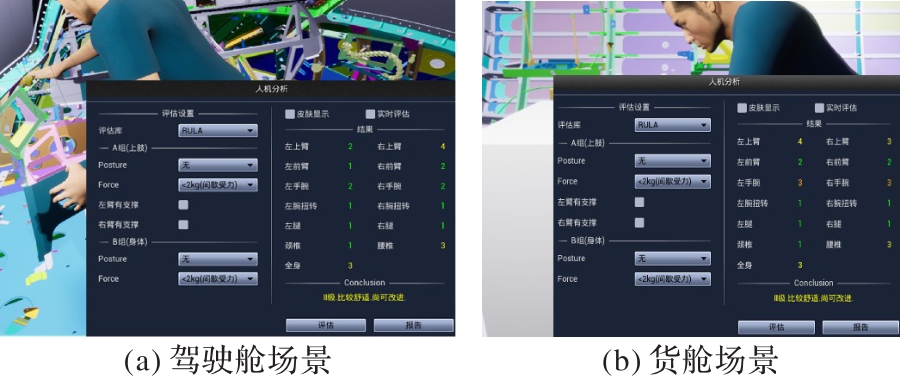

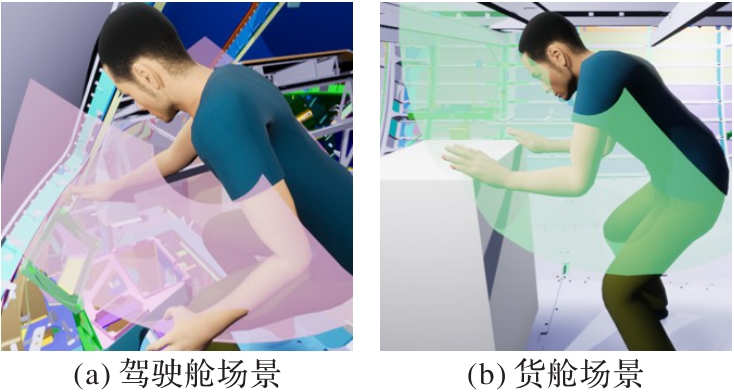

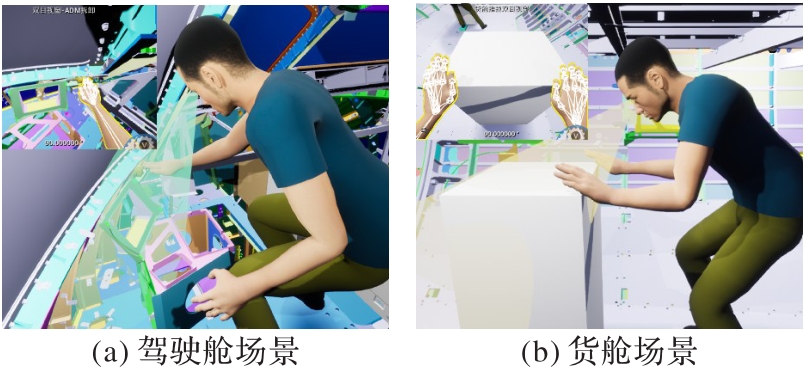

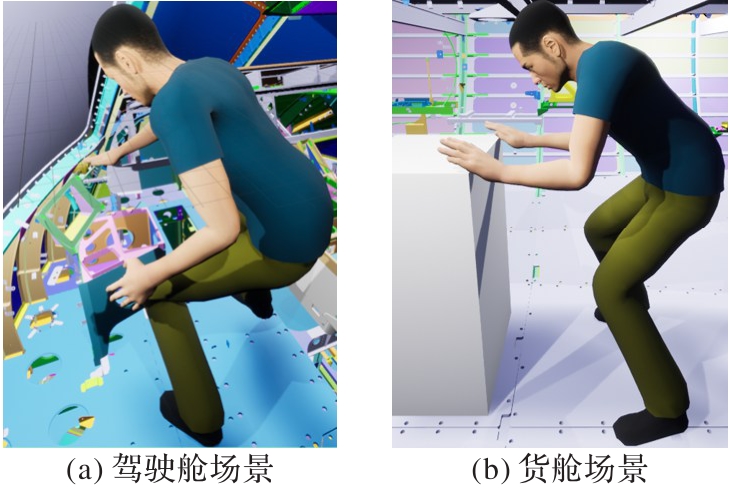

方法	初始水平距离/mm	可达性	可视性	舒适度风险评分					评估结果
方法	初始水平距离/mm	可达性	可视性	手臂	颈椎	腰椎	下肢	全身	评估结果
文献［6］方法	500	满足	满足	4	2	3	1	4	比较舒适
文献［6］方法	800	满足	满足	5	4	4	2	6	不舒服，亟需改进
本文方法	—	满足	满足	4	1	3	1	3	比较舒适
