《计算机应用》唯一官方网站 ›› 2023, Vol. 43 ›› Issue (11): 3504-3509.DOI: 10.11772/j.issn.1001-9081.2022111665
• 网络空间安全 • 上一篇
收稿日期:
2022-11-10
修回日期:
2023-02-21
接受日期:
2023-02-24
发布日期:
2023-03-20
出版日期:
2023-11-10
通讯作者:
葛平
作者简介:
田洪亮(1981—),男,吉林吉林人,副教授,博士,主要研究方向:区块链、电力设备在线监测Hongliang TIAN, Ping GE(), Mingjie XIAN
Received:
2022-11-10
Revised:
2023-02-21
Accepted:
2023-02-24
Online:
2023-03-20
Published:
2023-11-10
Contact:
Ping GE
About author:
TIAN Hongliang, born in 1981, Ph. D., associate professor. His research interests include blockchain, online monitoring of power equipment.摘要:

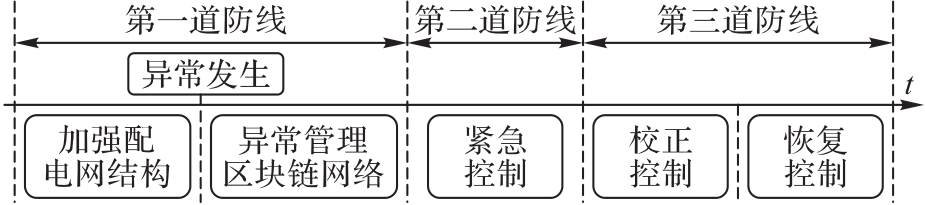

为保障配电网稳定运行,运行异常与处理措施的信息交互通常由操作员完成,但这种方式容易受操作员的主观性影响,出现处理措施与运行异常不匹配的情况,并且缺少对交互过程信息安全的保障。因此,提出一种基于区块链的配电网异常管理网络模型——异常管理区块链网络(EMBN),以及一种改进的配电网三道防线模型。首先,根据区块链防篡改和可追溯的特性,构建异常索引区块链(AIB),根据区块中的最新信息寻找合适的措施处理运行异常;其次,构建异常交互区块链(EIB)对运行异常和处理措施的交互过程进行监控,确保处理措施的实施;最后,将EMBN应用于传统配电网的三道防线,并结合智能合约实现配电网的自适应检测和异常应对。仿真结果表明,面对配电网的复杂环境,EMBN可以匹配处理措施与运行异常,不受操作员主观性的影响;相较于传统配电网,EMBN在信息交互的信息安全方面具有一定的优越性。
中图分类号:
田洪亮, 葛平, 宪明杰. 基于区块链的配电网运行异常管理机制[J]. 计算机应用, 2023, 43(11): 3504-3509.
Hongliang TIAN, Ping GE, Mingjie XIAN. Distribution network operation exception management mechanism based on blockchain[J]. Journal of Computer Applications, 2023, 43(11): 3504-3509.
特征项 | 权重 | 权值 |
---|---|---|
节点度(c) | 0.8 | |
介数中心性(d) | 0.5 | |
平均路径长度(l) | 0.4 |
表1 AICA的权值
Tab. 1 Weights of AICA
特征项 | 权重 | 权值 |
---|---|---|
节点度(c) | 0.8 | |
介数中心性(d) | 0.5 | |
平均路径长度(l) | 0.4 |
特征项 | 权重 | 权值 |
---|---|---|
恢复供电时间(e) | 0.8 | |
负荷损失(s) | 0.6 | |
措施实施成本(f) | 0.4 |
表2 EICA的权值
Tab. 2 Weights of EICA
特征项 | 权重 | 权值 |
---|---|---|
恢复供电时间(e) | 0.8 | |
负荷损失(s) | 0.6 | |
措施实施成本(f) | 0.4 |
处理措施 | 措施代号 | MS | O | G |
---|---|---|---|---|
加强接地 | 0.2 | 0.5 | 0.4 | |
安排清扫 | 0.5,0.8 | 1.0~1.5,2.0~2.5 | 0.3,0.8 | |
安装补偿装置 | 0.4 | 0.5 | 0.2 | |
更换导线 | 0.9 | 4.0~6.0 | 0.6 |
表3 处理措施有限集
Tab. 3 Finite set of treatments
处理措施 | 措施代号 | MS | O | G |
---|---|---|---|---|
加强接地 | 0.2 | 0.5 | 0.4 | |
安排清扫 | 0.5,0.8 | 1.0~1.5,2.0~2.5 | 0.3,0.8 | |
安装补偿装置 | 0.4 | 0.5 | 0.2 | |
更换导线 | 0.9 | 4.0~6.0 | 0.6 |
应对措施 | 相关信息 |
---|---|
加强接地 | 降低避雷器的接地电阻,使得电流可以迅速流过 |
安排清扫 | |
安装补偿装置 | 通过安装自动跟踪补偿消弧装置抑制弧光接地过电压,同时增强防雷性能 |
更换导线 | 针对输送功率的增加,更换截面积较大的导线,或加装复导线 |
表4 处理措施相关信息
Tab. 4 Information about treatments
应对措施 | 相关信息 |
---|---|
加强接地 | 降低避雷器的接地电阻,使得电流可以迅速流过 |
安排清扫 | |
安装补偿装置 | 通过安装自动跟踪补偿消弧装置抑制弧光接地过电压,同时增强防雷性能 |
更换导线 | 针对输送功率的增加,更换截面积较大的导线,或加装复导线 |
选择的措施代号 | 处理措施 |
---|---|
加强接地、安排清扫 | |
安排清扫、安装补偿装置 |
表5 案例的EMBN仿真结果
Tab. 5 EMBN simulation results of cases
选择的措施代号 | 处理措施 |
---|---|
加强接地、安排清扫 | |
安排清扫、安装补偿装置 |
图6 不同网络规模和区块记录数据大小下区块链的信息交互延迟
Fig. 6 Delay of blockchain during information interaction under different sizes of network and different sizes of data in block record
1 | 鲍兴川,彭林. 智能配电网通信多信道调度策略[J].计算机应用,2018,38(5):1476-1480. 10.11772/j.issn.1001-9081.2017102444 |
BAO X C, PENG L. Multi-channel scheduling strategy in smart distribution network[J]. Journal of Computer Applications, 2018, 38(5): 1476-1480. 10.11772/j.issn.1001-9081.2017102444 | |
2 | 刘康先.提升供电可靠性的智能配电网全域自愈技术研究[J].电工技术,2022(9):63-65. |
LIU K X. Research on the whole-area self-healing technology of smart distribution network to improve power supply reliability[J]. Electric Engineering, 2022(9): 63-65. | |
3 | 郭庆来,辛蜀骏,孙宏斌,等.电力系统信息物理融合建模与综合安全评估:驱动力与研究构想[J].中国电机工程学报,2016,36(6):1481-1489. 10.13334/j.0258-8013.pcsee.2016.06.003 |
GUO Q L, XIN S J, SUN H B, et al. Power system cyber-physical modelling and security assessment: motivation and ideas[J]. Proceedings of the CSEE, 2016, 36(6): 1481-1489. 10.13334/j.0258-8013.pcsee.2016.06.003 | |
4 | 韦延方,王志杰,王鹏,等.基于限流电抗电压的柔性直流配电网故障保护方法[J].高电压技术,2022,48(12):5068-5079. |
WEI Y F, WANG Z J, WANG P, et al. Protection method for flexible DC distribution network faults based on current limiting reactance voltage[J]. High Voltage Engineering, 2022, 48(12): 5068-5079. | |
5 | 张筱慧,潘永超,张璐,等.考虑综合能源聚合商与配电公司利益均衡的配电网故障恢复方法[J].电力自动化设备,2023,43(3):38-45. |
ZHANG X H, PAN Y C, ZHANG L, et al. Distribution network fault recovery method considering balance of interests between integrated energy aggregators and power distribution company[J]. Electric Power Automation Equipment, 2023, 43(3):38-45. | |
6 | 叶欣智,尚磊,董旭柱,等.面向配电网故障处置的知识图谱研究与应用[J].电网技术,2022,46(10):3739-3749. |
YE X Z, SHANG L, DONG X Z, et al. Knowledge graph for distribution network fault handling[J]. Power System Technology, 2022, 46(10): 3739-3749. | |
7 | 潘思宇,刘宝柱.面向配电网故障快速处理的边缘计算单元优化配置方法[J].电力建设,2022,43(3):31-41. 10.12204/j.issn.1000-7229.2022.03.004 |
PAN S Y, LIU B Z. Optimal configuration method of edge computing units for rapid faults processing in distribution network[J]. Electric Power Construction, 2022, 43(3): 31-41. 10.12204/j.issn.1000-7229.2022.03.004 | |
8 | NAKAMOTO S. Bitcoin: a peer-to-peer electronic cash system[EB/OL]. [2022-09-10].. 10.2139/ssrn.3977007 |
9 | 龚钢军,张桐,魏沛芳,等.基于区块链的能源互联网智能交易与协同调度体系研究[J].中国电机工程学报,2019,39(5):1278-1289. |
GONG G J, ZHANG T, WEI P F, et al. Research on intelligent trading and cooperative scheduling system of energy internet based on blockchain[J]. Proceedings of the CSEE, 2019, 39(5): 1278-1289. | |
10 | 张玲,陈思捷,严正,等.基于区块链共识机制的多区域最优潮流分布式算法[J].中国电机工程学报,2020,40(20):6433-6441. 10.13334/j.0258-8013.pcsee.192009 |
ZHANG L, CHEN S J, YAN Z, et al. Distributed multi-area optimal power flow algorithm based on blockchain consensus mechanism[J]. Proceedings of the CSEE, 2020, 40(20): 6433-6441. 10.13334/j.0258-8013.pcsee.192009 | |
11 | LIANG G, WELLER S R, LUO F, et al. Distributed blockchain-based data protection framework for modern power systems against cyber attacks[J]. IEEE Transactions on Smart Grid, 2019, 10(3): 3162-3173. 10.1109/tsg.2018.2819663 |
12 | 穆程刚,丁涛,鞠畅,等.基于区块链社群思维的电力系统调频模型[J].中国电机工程学报,2022,42(4):1375-1387. |
MU C G, DING T, JU C, et al. Power system frequency regulation model based on blockchain community thinking[J]. Proceedings of the CSEE, 2022, 42(4): 1375-1387. | |
13 | 佘维,胡跃,杨晓宇,等.基于能源区块链网络的虚拟电厂运行与调度模型[J].中国电机工程学报,2017,37(13):3729-3736. |
SHE W, HU Y, YANG X Y, et al. Virtual power plant operation and scheduling model based on energy blockchain network[J]. Proceedings of the CSEE, 2017, 37(13): 3729-3736. | |
14 | WATANABE H, FUJIMURA S, NAKADAIRA A, et al. Blockchain contract: securing a blockchain applied to smart contracts[C]// Proceedings of the 2016 IEEE International Conference on Consumer Electronics. Piscataway: IEEE, 2016: 467-468. 10.1109/icce.2016.7430693 |
15 | 颜拥,赵俊华,文福拴,等.能源系统中的区块链:概念、应用与展望[J].电力建设,2017,38(2):12-20. 10.3969/j.issn.1000-7229.2017.02.002 |
YAN Y, ZHAO J H, WEN F S, et al. Blockchain in energy systems: concept, application and prospect[J]. Electric Power Construction, 2017, 38(2): 12-20. 10.3969/j.issn.1000-7229.2017.02.002 | |
16 | 陈超洋,周勇,池明,等.基于复杂网络理论的大电网脆弱性研究综述[J].控制与决策,2022, 37(4):782-798. |
CHEN C Y, ZHOU Y, CHI M, et al. Review of large power grid vulnerability based on complex network theory[J]. Control and Decision, 2022, 37(4): 782-798. | |
17 | 黄志球,史文超,李晓明,等.计及分布式电源的配电网节点脆弱性分析[J].工业安全与环保,2019,45(6):34-39. 10.3969/j.issn.1001-425X.2019.06.008 |
HUANG Z Q, SHI W C, LI X M, et al. Vulnerability analysis of distribution network nodes considering distributed generation[J]. Industrial Safety and Environmental Protection, 2019, 45(6): 34-39. 10.3969/j.issn.1001-425X.2019.06.008 | |
18 | 薛禹胜.时空协调的大停电防御框架:(一)从孤立防线到综合防御[J].电力系统自动化,2006,30(1):8-16. |
XUE Y S. Space-time cooperative framework for defending blackouts part Ⅰ from isolated defense lines to coordinated defending[J]. Automation of Electric Power Systems, 2006, 30(1): 8-16. | |
19 | 沈翔宇,罗博航,陈思捷,等.能源区块链共识算法性能的评估方法与实证分析:以分布式能源交易为例[J].中国电机工程学报,2022,42(14):5113-5125. |
SHEN X Y, LUO B H, CHEN S J, et al. An evaluation method and empirical analysis of energy blockchain consensus algorithms: a case study of distributed energy trading[J]. Proceedings of the CSEE, 2022, 42(14): 5113-5125. |
