Strategy with low redundant computation for reachability query preserving graph compression

doi:10.11772/j.issn.1001-9081.2019091666

Journal of Computer Applications ›› 2020, Vol. 40 ›› Issue (2): 510-517.DOI: 10.11772/j.issn.1001-9081.2019091666

• CCF Bigdata 2019 • Previous Articles Next Articles

Strategy with low redundant computation for reachability query preserving graph compression

Danfeng ZHAO¹, Junchen LIN¹, Wei SONG¹, Jian WANG¹, Dongmei HUANG²()

^1.College of Information，Shanghai Ocean University，Shanghai 201306，China
^2.Shanghai University of Electric Power，Shanghai 200090，China

Received:2019-08-30 Revised:2019-09-29 Accepted:2019-10-09 Online:2019-10-14 Published:2020-02-10
Contact: Dongmei HUANG
About author:ZHAO Danfeng， born in 1982. Ph. D.， lecturer. Her research interests include big data storage， business process management.
LIN Junchen， born in 1994， M. S. candidate. His research interests include graph computation.
SONG Wei， born in 1977. Ph. D.， professor. Her research interests include computer vision， machine learning， data mining.
WANG Jian， born in 1979. Ph. D.， lecturer. Her research interests include marine information technology.
Supported by:
the National Key Research and Development Program of China(2016YFC1401907)

低冗余计算的可达性查询保持图压缩策略

赵丹枫¹, 林俊辰¹, 宋巍¹, 王建¹, 黄冬梅²()

^1.上海海洋大学信息学院，上海 201306
^2.上海电力大学，上海 200090

通讯作者: 黄冬梅
作者简介:赵丹枫（1982—），女，黑龙江五常人，讲师，博士，CCF会员，主要研究方向：大数据存储、业务流程管理
林俊辰（1994—），男，吉林白山人，硕士研究生，主要研究方向：图计算
宋巍（1977—），女，山西大同人，教授，博士，主要研究方向：计算机视觉、机器学习、数据挖掘
王建（1979—），女，湖北武汉人，讲师，博士，主要研究方向：海洋信息技术；
基金资助:
国家重点研发计划项目(2016YFC1401907)

Abstract

Abstract:

Since some computation in reachability Query Preserving Graph Compression （QPGC） algorithm are redundant， a high-performance compression strategy was proposed. In the stage of solving the vertex sets of ancestors and descendants， an algorithm named TSB （Topological Sorting Based algorithm for solving ancestor and descendant sets） was proposed for common graph data. Firstly， the vertices of the graph data were topological sorted. Then， the vertex sets were solved in the order or backward order of the topological sequence， avoiding the redundant computation caused by the ambiguous solution order. And an algorithm based on graph aggregation operation was proposed for graph data with short longest path， namely AGGB （AGGregation Based algorithm for solving ancestor and descendant sets）， so the vertex sets were able to be solved in a certain number of aggregation operations. In the stage of solving reachability equivalence class， a Piecewise Statistical Pruning （PSP） algorithm was proposed. Firstly， piecewise statistics of ancestors and descendants sets were obtained and then the statistics were compared to achieve the coarse matching， and some unnecessary fine matches were pruned off. Experimental results show that compared with QPGC algorithm： in the stage of solving the vertex sets of ancestors and descendants， TSB and AGGB algorithm have the performance averagely increased by 94.22% and 90.00% respectively on different datasets； and in the stage of solving the reachability equivalence class， PSP algorithm has the performance increased by more than 70% on most datasets. With the increasing of the dataset， using TSB and AGGB cooperated with PSP has the performance improved by nearly 28 times. Theoretical analysis and simulation results show that the proposed strategy has less redundant computation and faster compression speed compared to QPGC.

Key words: reachability query, graph compression, query preserving, graph data, topological sorting, aggregation operation

摘要：

针对可达性查询保持图压缩（QPGC）算法存在冗余计算的问题，提出了一种高性能压缩策略。在求解顶点的祖先后代集阶段，针对普通图数据，提出一种基于拓扑排序的求解算法TSB，首先将图数据顶点拓扑排序，然后沿拓扑序列顺序（逆序）求解顶点的祖先（后代）集，避免了求解顺序不明确导致的冗余计算；针对最长路径较短的图数据，提出一种基于图聚合运算的求解算法AGGB，可在确定次数的聚合运算内完成顶点的祖先和后代集的求解。在求解可达性等价类阶段，提出一种分段统计剪枝算法PSP，先对祖先后代集分段统计，再比较统计值以实现粗匹配，剪除了部分不必要的精细匹配。实验结果表明，与QPGC算法相比：在祖先后代集求解阶段，TSB和AGGB在不同数据集上的性能平均提升94.22%和90.00%；在求解可达性等价类阶段，PSP算法在大部分数据集上性能提升超过70%；随着数据集的增大，TSB和AGGB配合PSP算法，性能提升了近28倍。理论分析和模拟实验表明，该策略与QPGC算法相比冗余计算更少、压缩速度更快。

关键词: 可达性查询, 图压缩, 查询保持, 图数据, 拓扑排序, 聚合运算

CLC Number:

TP311.12

Danfeng ZHAO, Junchen LIN, Wei SONG, Jian WANG, Dongmei HUANG. Strategy with low redundant computation for reachability query preserving graph compression[J]. Journal of Computer Applications, 2020, 40(2): 510-517.

赵丹枫, 林俊辰, 宋巍, 王建, 黄冬梅. 低冗余计算的可达性查询保持图压缩策略[J]. 《计算机应用》唯一官方网站, 2020, 40(2): 510-517.

Figures/Tables 14

References 37

1	柴瑜晗.基于语义图的中文领域概念及关系抽取方法研究与实现［D］. 石家庄：河北科技大学， 2019： 17.
	CHAI Y H. Research and implementation on the method of Chinese domain concept and relation extraction based on semantic graph［D］. Shijiazhuang： Hebei University of Science and Technology， 2019： 17.
2	LI F， ZHANG Q， GU T， et al. Optimal representation for Web and social network graphs based on K-2-tree［J］. IEEE Access， 2019， 7： 52945-52954. 10.1109/access.2019.2912172
3	马超，孙群，陈换新，等. 加权网页排序算法在道路网自动选取中的应用［J］. 武汉大学学报（信息科学版）， 2018， 43（8）： 1159-1165.
	MA C， SUN Q， CHEN H X， et al. Application of weighted PageRank algorithm in road network auto-selection［J］. Geomatics and Information Science of Wuhan University， 2018， 43（8）： 1159-1165.
4	王婧璇，闫强. 移动应用商店中的平台推荐网络分析［J］. 北京邮电大学学报（社会科学版）， 2014， 16（1）： 60-64， 72. 10.1007/978-3-319-14254-8_6
	WANG J X， YAN Q. Platform recommendation network of mobile application store［J］. Journal of Beijing University of Posts and Telecommunications （Social Sciences Edition）， 2014， 16（1）： 60-64， 72. 10.1007/978-3-319-14254-8_6
5	谢婧璘. 面向Web社会网络的分析工具［D］. 上海：复旦大学， 2011： 6-8.
	XIE J L. Analysis tool for Web social network［D］. Shanghai： Fudan University， 2011： 6-8.
6	许睿，李琳芳，白林峰. 基于节点关联性的关键蛋白质识别算法研究［J］. 河南科技学院学报（自然科学版）， 2016， 44（2）： 68-72， 78.
	XU R， LI L F， BAI L F. Identification of essential proteins based on network node correlation［J］. Journal of Henan Institute of Science and Technology （Natural Science Edition）， 2016， 44（2）： 68-72， 78.
7	AGRAWAL R， BORGIDA A， JAGADISH H V. Efficient management of transitive relationships in large data and knowledge bases［J］. ACM SIGMOD Record， 1989， 18（2）： 253-262. 10.1145/66926.66950
8	CHEN Y. On the evaluation of large and sparse graph reachability queries［C］// Proceedings of the 2008 International Conference on Database and Expert Systems Applications， LNCS5181. Berlin： Springer， 2008： 97-105. 10.1007/978-3-540-85654-2_12
9	FAN W， LI J， MA S， et al. Adding regular expressions to graph reachability and pattern queries［C］// Proceedings of the IEEE 27th International Conference on Data Engineering. Piscataway： IEEE， 2011： 39-50. 10.1109/icde.2011.5767858
10	YUNG D， CHANG S K. Fast reachability query computation on big attributed graphs［C］// Proceedings of the 2016 IEEE International Conference on Big Data. Piscataway： IEEE， 2016： 3370-3380. 10.1109/bigdata.2016.7840997
11	ZHANG K， LI K. The optimization reachability query of large scale multi-attribute constraints directed graph［J］. Computer Systems Science and Engineering， 2018， 33（2）： 71-85. 10.32604/csse.2018.33.071
12	LABRINIDIS A， JAGADISH H V. Challenges and opportunities with big data［J］. Proceedings of the VLDB Endowment， 2012， 5（12）： 2032-2033. 10.14778/2367502.2367572
13	JAGADISH H V， GEHRKE J， LABRINIDIS A， et al. Big data and its technical challenges［J］. Communications of the ACM， 2014， 57（7）： 86-94. 10.1145/2611567
14	微信.2018微信数据报告［EB/OL］.［2019-06-01］.［EB/OL］. ［2019-06-01］. .
15	张宇，刘燕兵，熊刚，等. 图数据表示与压缩技术综述［J］. 软件学报， 2014， 25（9）： 1937-1952.
	ZHANG Y， LIU Y B， XIONG G， et al. Survey on succinct representation of graph data［J］. Journal of Software， 2014， 25（9）： 1937-1952.
16	马绪军. 基于MapReduce的可达性保持图研究［D］. 沈阳：沈阳航空航天大学， 2016： 6-44. 10.35812/cellulosechemtechnol.2020.54.28
	MA X J. Research on reachability preserving graph based on MapReduce［D］. Shenyang： Shenyang Aerospace University， 2016： 6-44. 10.35812/cellulosechemtechnol.2020.54.28
17	S̆IMEC̆EK I， LANGR D， TVRDÍK P. Space efficient formats for structure of sparse matrices based on tree structures［C］// Proceedings of the 15th International Symposium on Symbolic and Numeric Algorithms for Scientific Computing. Piscataway： IEEE， 2013： 344-351. 10.1109/synasc.2013.52
18	S̆IMEC̆EK I， LANGR D. Tree-based space efficient formats for storing the structure of sparse matrices［J］. Scalable Computing： Practice and Experience， 2014， 15（1）： 1-20. 10.12694/scpe.v15i1.962
19	BRISABOA N R， LADRA S， NAVARRO G. K²-trees for compact Web graph representation［C］// Proceedings of the 16th International Symposium on String Processing and Information Retrieval， LNCS5721. Berlin： Springer， 2009： 18-30.
20	CLAUDE F， NAVARRO G. Fast and compact Web graph representations［J］. ACM Transactions on the Web， 2010， 4（4）： 1-31. 10.1145/1841909.1841913
21	YUAN C， CHAI Y， WEI S. Feature analysis and modeling of the network community structure［J］. Communications in Theoretical Physics， 2012， 58（4）： 604-612. 10.1088/0253-6102/58/4/27
22	ASANO Y， MIYAWAKI Y， NISHIZEKI T. Efficient compression of Web graphs［C］// Proceedings of the International Computing and Combinatorics Conference， LNCS5092. Berlin： Springer， 2008： 1-11. 10.1007/978-3-540-69733-6_1
23	BOLDI P， VIGNA S. The WebGraph framework I： compression techniques［C］// Proceedings of the 13th International Conference on World Wide Web. New York： ACM， 2004： 595-602. 10.1145/988672.988752
24	BOLDI P， VIGNA S. The WebGraph framework II： Codes for the World-Wide Web［C］// Proceedings of the 2004 Conference on Data Compression. Piscataway： IEEE， 2004： 528. 10.1109/dcc.2004.1281504
25	DWYER T， RICHE N H， MARRIOTT K， et al. Edge compression techniques for visualization of dense directed graphs［J］. IEEE Transactions on Visualization and Computer Graphics， 2013， 19（12）： 2596-2605. 10.1109/tvcg.2013.151
26	DINKLA K， WESTENBERG M A， WIJK J J VAN. Compressed adjacency matrices： untangling gene regulatory networks［J］. IEEE Transactions on Visualization and Computer Graphics， 2012， 18（12）： 2457-2466. 10.1109/tvcg.2012.208
27	HERNÁNDEZ C， NAVARRO G. Compressed representation of Web and social networks via dense subgraphs［C］// Proceedings of the 2012 International Symposium on String Processing and Information Retrieval， LNCS7608. Berlin： Springer， 2012： 264-276.
28	CHENG J， YU J X， LIN X， et al. Fast computing reachability labelings for large graphs with high compression rate［C］// Proceedings of the 11th International Conference on Extending Database Technology. New York： ACM， 2008： 193-204. 10.1145/1353343.1353370
29	AHO A V， GAREY M R， ULLMAN J D. The transitive reduction of a directed graph［J］. SIAM Journal on Computing， 1972， 1（2）： 131-137. 10.1137/0201008
30	FAN W， LI J， WANG X， et al. Query preserving graph compression［C］// Proceedings of the 2012 ACM SIGMOD International Conference on Management of Data. New York： ACM， 2012： 157-168. 10.1145/2213836.2213855
31	BUNDY A， WALLEN L. Breadth-first search［M］// Catalogue of Artificial Intelligence Tools. Berlin： Springer， 1984： 13-13. 10.1007/978-3-642-96868-6_25
32	VASSEUR J P， AGARWAL N， THUBERT P， et al. Dynamic directed acyclic graph （DAG） adjustment： US8489765［P］. 2013-07-16.
33	DEAN J， GHEMAWAT S. MapReduce： simplified data processing on large clusters［J］. Communications of the ACM， 2008， 51（1）： 107-113. 10.1145/1327452.1327492
34	谢羿. 基于BFS结果集的可达性保持图并行计算［J］. 中国新技术新产品， 2016（11）：35-36. 10.3969/j.issn.1673-9957.2016.11.023
	XIE Y. Parallel computing of reachability preserving graph based on BFS result set［J］. Chinese New Technologies and New Products， 2016（11）：35-36. 10.3969/j.issn.1673-9957.2016.11.023
35	HAGERUP T， MAAS M. Generalized topological sorting in linear time［J］. Nordic Journal of Computing， 1994， 1（1）： 38-49. 10.1145/195058.195202
36	CHENG X， DALE C， LIU J. Dataset for “Statistics and social network of YouTube videos”［EB/OL］. ［2019-06-01］. . 10.1109/iwqos.2008.32
37	LESKOVEC J. Stanford large network dataset collection［EB/OL］. ［2019-06-01］. .

数据集	顶点数（\|V\|）	边数（\|E\|）	数据来源文献	在文中的缩写
Youtube_0	3 356	3 615	［36］	Y0
Web-California	6 175	16 150	［37］	WebC
Wiki-Vote	7 115	103 689	［37］	WikiV
Youtube_1	26 845	60 603	［36］	Y1
Cit-HepTh	27 769	352 768	［37］	CHT
Cit-HepPh	34 546	421 534	［37］	CHP

数据集	顶点数（\|V\|）	边数（\|E\|）	数据来源文献	在文中的缩写
Youtube_0	3 356	3 615	［36］	Y0
Web-California	6 175	16 150	［37］	WebC
Wiki-Vote	7 115	103 689	［37］	WikiV
Youtube_1	26 845	60 603	［36］	Y1
Cit-HepTh	27 769	352 768	［37］	CHT
Cit-HepPh	34 546	421 534	［37］	CHP

软、硬件环境	配置
操作系统	Ubuntu Server 18.04
CPU	Intel Xeon Gold 6130 CPU @ 2.10 GHz
内核数	2
内存	256 GB
硬盘	1 TB
Spark	2.4.3
Hadoop	2.7
Python	3.7.0
Worker 个数	4

软、硬件环境	配置
操作系统	Ubuntu Server 18.04
CPU	Intel Xeon Gold 6130 CPU @ 2.10 GHz
内核数	2
内存	256 GB
硬盘	1 TB
Spark	2.4.3
Hadoop	2.7
Python	3.7.0
Worker 个数	4

数据集	顶点数（\|V\|）	边数（\|E\|）	压缩图顶点数（\|Vr\|）	压缩图边数（\|Er\|）	压缩率/%
Y0	3 356	3 615	350	248	8.58
WebC	6 175	16 150	3 802	11 826	70.00
WikiV	7 115	103 689	1 016	2 666	3.32
Y1	26 845	60 603	3 717	7 331	12.63
CHT	27 769	352 768	18 821	127 280	38.39
CHP	34 546	421 534	18 683	109 583	28.12

Strategy with low redundant computation for reachability query preserving graph compression

低冗余计算的可达性查询保持图压缩策略

RichHTML

PDF

Knowledge

Abstract

Cite this article

share this article

Figures/Tables 14

References 37

Related Articles 9

Recommended Articles

Metrics

数据集	运行时间/s			加速比/%
数据集	QPGC	TSB	AGGB	TSB	AGGB
Y0	1.34	0.06	0.05	95.28	96.41
WebC	4.67	0.39	0.54	91.60	88.37
WikiV	24.92	1.95	2.25	92.17	90.98
Y1	74.53	1.20	4.03	98.39	94.60
CHT	309.85	15.40	52.23	95.03	83.14
CHP	705.15	50.41	95.33	92.85	86.48

数据集	中间变量占用的存储空间大小
数据集	QPGC/KB	TSB/KB	AGGB/B
Y0	10.27	21.73	6
WebC	18.01	36.53	6
WikiV	19.85	38.48	6
Y1	79.98	165.83	6
CHT	76.00	144.61	6
CHP	89.24	158.67	6

S	不同数据集的存储空间占用大小/KB
S	Y0	WebC	WikiV	Y1	CHT	CHP
2	2 749.71	9 310.76	12 360.94	175 947.49	188 267.87	291 363.81
50	111.44	373.89	496.81	7 038.96	7 538.86	11 655.92
100	55.73	186.95	250.15	3 526.04	3 769.44	5 836.40
200	27.87	93.48	125.08	1 769.58	1 884.73	2 918.21
500	11.48	39.21	52.13	707.84	759.32	1 180.79
1 000	6.57	21.12	27.81	353.93	379.67	590.40

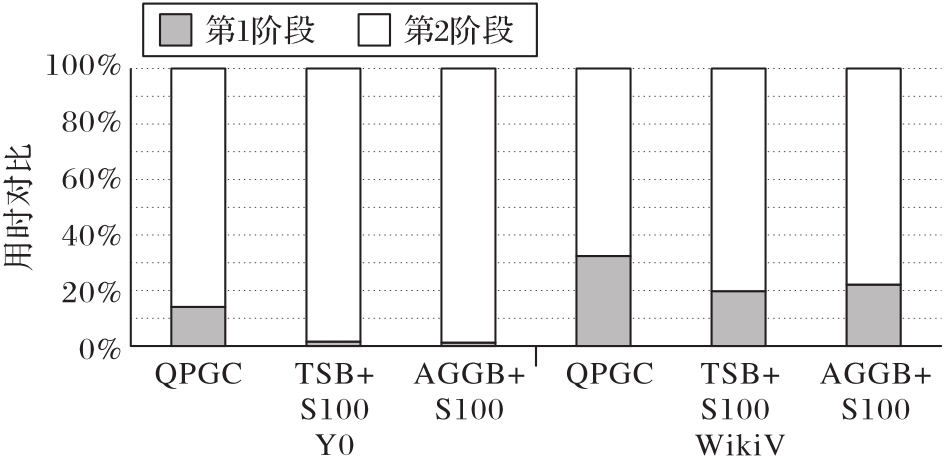

数据集	压缩过程两阶段总体用时/s
