Journal of Computer Applications ›› 2022, Vol. 42 ›› Issue (3): 883-889.DOI: 10.11772/j.issn.1001-9081.2021030384
Special Issue: 人工智能
• Artificial intelligence • Previous Articles Next Articles
Tianmin DENG, Guotao MAO(), Zhenhao ZHOU, Zhijian DUAN
Received:
2021-03-15
Revised:
2021-06-22
Accepted:
2021-06-23
Online:
2022-04-09
Published:
2022-03-10
Contact:
Guotao MAO
About author:
DENG Tianmin, born in 1979, Ph. D., associate professor. His research interests include traffic big data, traffic environment perception.Supported by:
通讯作者:
冒国韬
作者简介:
邓天民(1979—),男,四川阆中人,副教授,博士,主要研究方向:交通大数据、交通环境感知基金资助:
CLC Number:

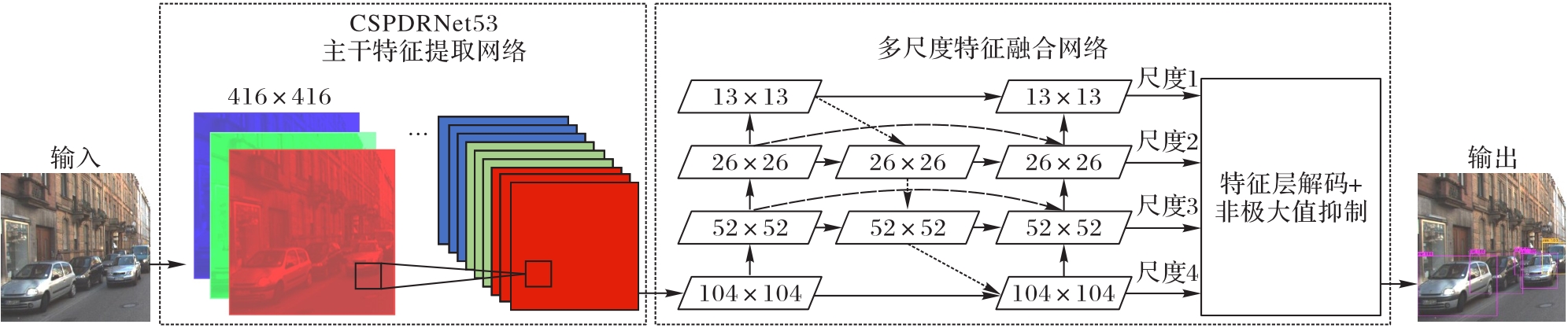

Tianmin DENG, Guotao MAO, Zhenhao ZHOU, Zhijian DUAN. Road vehicle detection and recognition algorithm based on densely connected convolutional neural network[J]. Journal of Computer Applications, 2022, 42(3): 883-889.
邓天民, 冒国韬, 周臻浩, 段志坚. 基于密集连接卷积神经网络的道路车辆检测与识别算法[J]. 《计算机应用》唯一官方网站, 2022, 42(3): 883-889.
Add to citation manager EndNote|Ris|BibTeX
URL: https://www.joca.cn/EN/10.11772/j.issn.1001-9081.2021030384

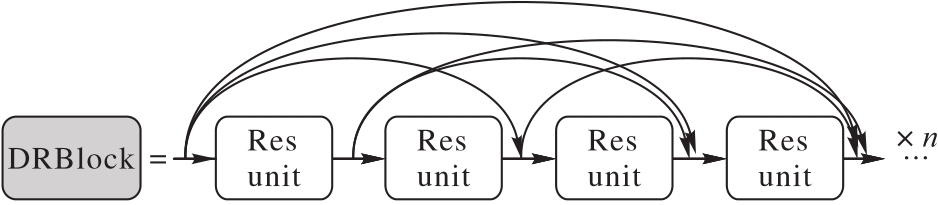

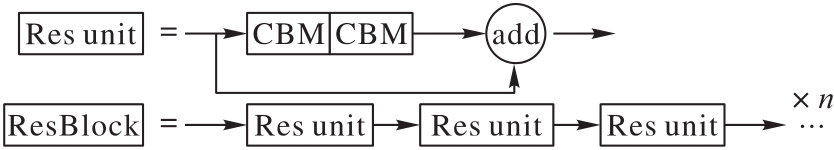

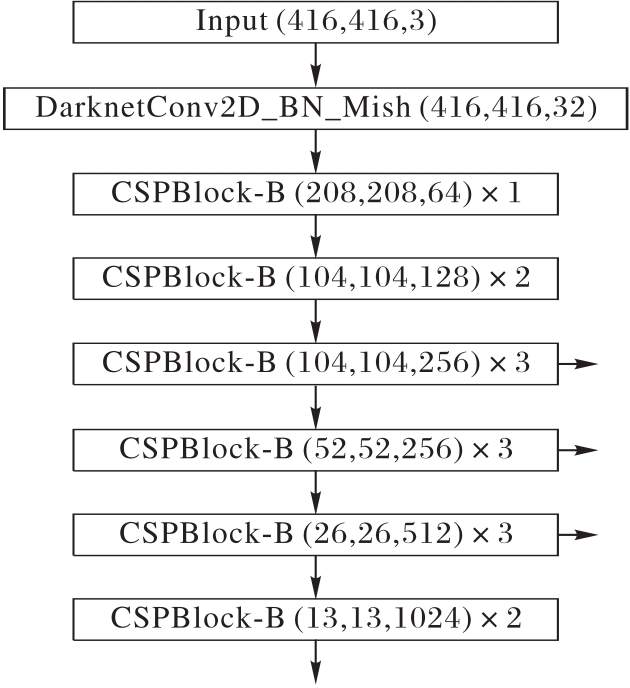

网络结构 | mAP/% | 检测速度/(frame·s-1) |
---|---|---|
YOLOv4 | 97.41 | 45.72 |
YOLOv4+密集连接 | 97.89 | 40.35 |
YOLOv4+跨层连接 | 97.35 | 46.41 |
YOLOv4+深度残差 | 96.44 | 55.92 |
DR-YOLOv4特征提取网络 | 96.93 | 51.39 |
Tab. 1 Influence comparison of different feature extraction networks on model performance
网络结构 | mAP/% | 检测速度/(frame·s-1) |
---|---|---|
YOLOv4 | 97.41 | 45.72 |
YOLOv4+密集连接 | 97.89 | 40.35 |
YOLOv4+跨层连接 | 97.35 | 46.41 |
YOLOv4+深度残差 | 96.44 | 55.92 |
DR-YOLOv4特征提取网络 | 96.93 | 51.39 |
网络结构 | mAP/% | 检测速度/(frame·s-1) |
---|---|---|
YOLOv4 | 97.41 | 45.72 |
YOLOv4+跳跃连接 | 97.47 | 45.39 |
YOLOv4+多尺度特征检测 | 97.98 | 39.87 |
DR-YOLOv4特征融合网络 | 98.09 | 39.68 |
Tab. 2 Influence comparison of different feature fusion networks on model performance
网络结构 | mAP/% | 检测速度/(frame·s-1) |
---|---|---|
YOLOv4 | 97.41 | 45.72 |
YOLOv4+跳跃连接 | 97.47 | 45.39 |
YOLOv4+多尺度特征检测 | 97.98 | 39.87 |
DR-YOLOv4特征融合网络 | 98.09 | 39.68 |
13×13 特征图 | 26×26 特征图 | 52×52 特征图 | 104×104 特征图 | mAP/% | 检测速度/ (frame·s-1) |
---|---|---|---|---|---|
3 | 3 | 3 | 3 | 98.09 | 39.68 |
2 | 4 | 3 | 3 | 98.25 | 41.83 |
2 | 3 | 4 | 3 | 98.27 | 42.51 |
4 | 2 | 2 | 4 | 98.01 | 39.14 |
2 | 4 | 4 | 2 | 98.19 | 40.63 |
1 | 3 | 4 | 4 | 98.13 | 39.64 |
4 | 4 | 2 | 2 | 97.96 | 37.92 |
Tab. 3 Influence comparison of different anchor allocation strategies on model performance
13×13 特征图 | 26×26 特征图 | 52×52 特征图 | 104×104 特征图 | mAP/% | 检测速度/ (frame·s-1) |
---|---|---|---|---|---|
3 | 3 | 3 | 3 | 98.09 | 39.68 |
2 | 4 | 3 | 3 | 98.25 | 41.83 |
2 | 3 | 4 | 3 | 98.27 | 42.51 |
4 | 2 | 2 | 4 | 98.01 | 39.14 |
2 | 4 | 4 | 2 | 98.19 | 40.63 |
1 | 3 | 4 | 4 | 98.13 | 39.64 |
4 | 4 | 2 | 2 | 97.96 | 37.92 |
实验序号 | 特征提取 网络改进 | 特征融合 网络改进 | 先验框 聚类与分配 | 各类别AP/% | mAP/% | 检测速度/ (frame·s-1) | ||
---|---|---|---|---|---|---|---|---|
Car | Van | Truck | ||||||
A | ○ | ○ | ○ | 95.68 | 97.72 | 98.83 | 97.41 | 45.72 |
B | ● | ○ | ○ | 95.22 | 97.23 | 98.35 | 96.93 | 51.39 |
C | ○ | ● | ○ | 97.09 | 98.23 | 98.94 | 98.09 | 39.68 |
D | ○ | ○ | ● | 96.60 | 98.37 | 98.92 | 97.96 | 48.54 |
E | ● | ● | ○ | 96.69 | 97.76 | 98.49 | 97.65 | 46.17 |
F | ○ | ● | ● | 98.08 | 98.91 | 99.09 | 98.69 | 41.88 |
G | ● | ○ | ● | 96.17 | 97.89 | 98.45 | 97.50 | 53.92 |
H | ● | ● | ● | 97.48 | 98.51 | 98.65 | 98.21 | 48.05 |
Tab. 4 Analysis of influence of different experimental schemes on model performance

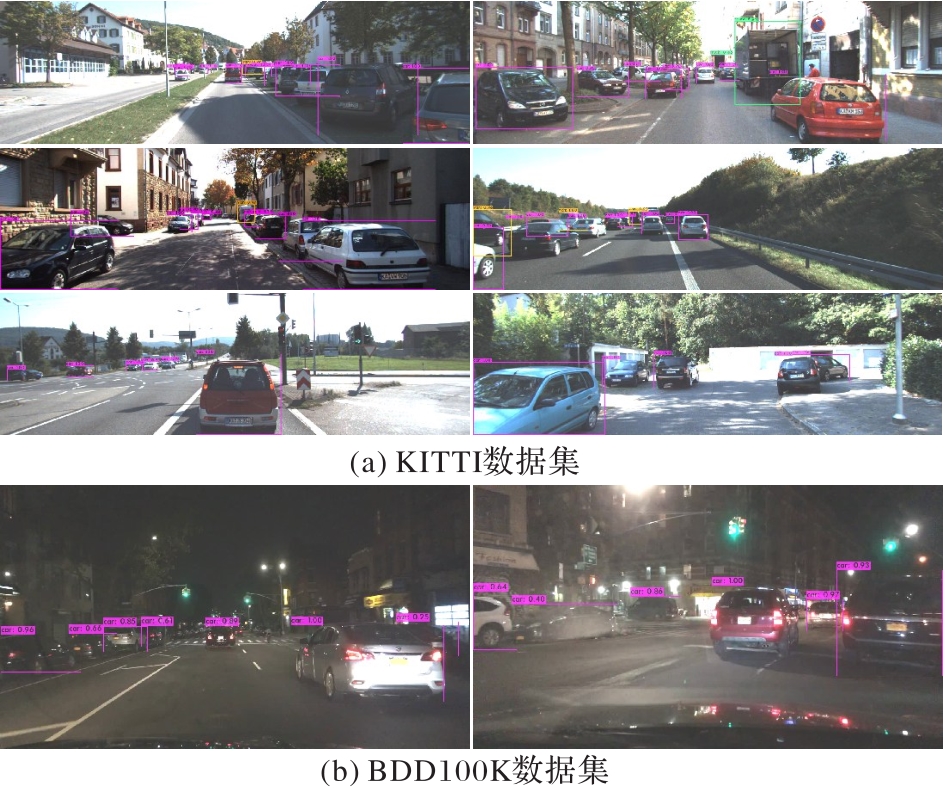

实验序号 | 特征提取 网络改进 | 特征融合 网络改进 | 先验框 聚类与分配 | 各类别AP/% | mAP/% | 检测速度/ (frame·s-1) | ||
---|---|---|---|---|---|---|---|---|
Car | Van | Truck | ||||||
A | ○ | ○ | ○ | 95.68 | 97.72 | 98.83 | 97.41 | 45.72 |
B | ● | ○ | ○ | 95.22 | 97.23 | 98.35 | 96.93 | 51.39 |
C | ○ | ● | ○ | 97.09 | 98.23 | 98.94 | 98.09 | 39.68 |
D | ○ | ○ | ● | 96.60 | 98.37 | 98.92 | 97.96 | 48.54 |
E | ● | ● | ○ | 96.69 | 97.76 | 98.49 | 97.65 | 46.17 |
F | ○ | ● | ● | 98.08 | 98.91 | 99.09 | 98.69 | 41.88 |
G | ● | ○ | ● | 96.17 | 97.89 | 98.45 | 97.50 | 53.92 |
H | ● | ● | ● | 97.48 | 98.51 | 98.65 | 98.21 | 48.05 |
模型 | 各类别AP/% | mAP/% | 检测速度/(frames·s-1) | ||
---|---|---|---|---|---|
Car | Van | Truck | |||
Faster R-CNN | 78.25 | 72.93 | 80.09 | 77.09 | 12.47 |
SSD300 | 81.59 | 74.82 | 87.36 | 81.26 | 56.71 |
SSD512 | 84.81 | 70.72 | 82.98 | 79.50 | 26.24 |
YOLOv3 | 90.53 | 92.39 | 94.87 | 92.60 | 47.91 |
YOLOv4 | 95.68 | 97.72 | 98.83 | 97.41 | 45.72 |
DR-YOLOv4 | 97.48 | 98.51 | 98.65 | 98.21 | 48.05 |
Tab. 5 Comparison of effects of different target detection models on KITTI dataset
模型 | 各类别AP/% | mAP/% | 检测速度/(frames·s-1) | ||
---|---|---|---|---|---|
Car | Van | Truck | |||
Faster R-CNN | 78.25 | 72.93 | 80.09 | 77.09 | 12.47 |
SSD300 | 81.59 | 74.82 | 87.36 | 81.26 | 56.71 |
SSD512 | 84.81 | 70.72 | 82.98 | 79.50 | 26.24 |
YOLOv3 | 90.53 | 92.39 | 94.87 | 92.60 | 47.91 |
YOLOv4 | 95.68 | 97.72 | 98.83 | 97.41 | 45.72 |
DR-YOLOv4 | 97.48 | 98.51 | 98.65 | 98.21 | 48.05 |
模型 | 各类别AP/% | mAP/% | 检测速度/ (frames·s-1) | ||
---|---|---|---|---|---|
Car | Bus | Truck | |||
YOLOv4 | 61.35 | 56.92 | 53.71 | 57.32 | 41.26 |
DR-YOLOv4 | 62.23 | 58.07 | 54.42 | 58.24 | 43.50 |
Tab. 6 Test results on BDD100K dataset before and after model improvement
模型 | 各类别AP/% | mAP/% | 检测速度/ (frames·s-1) | ||
---|---|---|---|---|---|
Car | Bus | Truck | |||
YOLOv4 | 61.35 | 56.92 | 53.71 | 57.32 | 41.26 |
DR-YOLOv4 | 62.23 | 58.07 | 54.42 | 58.24 | 43.50 |
1 | 张新钰, 高洪波, 赵建辉, 等.基于深度学习的自动驾驶技术综述[J].清华大学学报(自然科学版), 2018, 58(4):438-444. 10.16511/j.cnki.qhdxxb.2018.21.010 |
ZHANG X Y, GAO H B, ZHAO J H, et al. Overview of deep learning intelligent driving methods [J]. Journal of Tsinghua University (Science and Technology), 2018, 58(4):438-444. 10.16511/j.cnki.qhdxxb.2018.21.010 | |
2 | KRIZHEVSKY A, SUTSKEVER I, HINTON G E. ImageNet classification with deep convolutional neural networks [J]. Communication of the ACM, 2017, 60(6): 84-90. 10.1145/3065386 |
3 | GIRSHICK R, DONAHUE J, DARRELL T, et al. Rich feature hierarchies for accurate object detection and semantic segmentation [C]// Proceedings of the 2014 IEEE Conference on Computer Vision and Pattern Recognition. Piscataway: IEEE, 2014: 580-587. 10.1109/cvpr.2014.81 |
4 | GIRSHICK R. Fast R-CNN [C]// Proceedings of the 2015 IEEE International Conference on Computer Vision. Piscataway: IEEE, 2015: 1440-1448. 10.1109/iccv.2015.169 |
5 | REN S, HE K, GIRSHICK R, et al. Faster R-CNN: towards real-time object detection with region proposal networks [J]. IEEE Transactions on Pattern Analysis and Machine Intelligence, 2015, 39(6):1137-1149. |
6 | NGUYEN H. Improving faster R-CNN framework for fast vehicle detection [J]. Mathematical Problems in Engineering, 2019,2019: 1-11. 10.1155/2019/3808064 |
7 | 杨薇, 王洪元, 张继, 等. 一种基于Faster-RCNN的车辆实时检测改进算法[J]. 南京大学学报(自然科学版), 2019, 55(2): 231-237. 10.13232/j.cnki.jnju.2019.02.008 |
YANG W, WANG H Y, ZHANG J, et al. An improved vehicle real-time detection algorithm based on Faster-RCNN [J]. Journal of Nanjing University (Natural Science), 2019, 55(2): 231-237. 10.13232/j.cnki.jnju.2019.02.008 | |
8 | REDMON J, DIVVALA S, GIRSHICK R, et al. You only look once: unified, real-time object detection [C]// Proceedings of the 2016 IEEE Conference on Computer Vision and Pattern Recognition. Piscataway: IEEE, 2016: 779-788. 10.1109/cvpr.2016.91 |
9 | 李珣, 刘瑶, 李鹏飞,等. 基Darknet框架下YOLOv2算法的车辆多目标检测方法[J]. 交通运输工程学报, 2018, 18(6): 146-162. 10.1155/2018/7075814 |
LI X, LIU Y, LI P F, et al. Vehicle multitarget detection method based on YOLOv2 algorithm under Darknet framework [J]. Journal of Traffic and Transportation Engineering, 2018, 18(6): 146-162. 10.1155/2018/7075814 | |
10 | REDMON J, FARHADI A. YOLOv3: an incremental improvement [EB/OL]. [2019-12-15]. . 10.1145/3429945 |
11 | BOCHKOVSKIY A, WANG C Y, LIAO H Y M. YOLOv4: optimal speed and accuracy of object detection [EB/OL]. [2020-04-23]. . 10.1109/cvpr46437.2021.01283 |
12 | LIU W, ANGUELOV D, ERHAN D, et al. SSD: single shot multibox detector [C]// Proceedings of the 2016 European Conference on Computer Vision. Cham: Springer, 2016: 21-37. 10.1007/978-3-319-46448-0_2 |
13 | WANG X, WANG S, CAO J, et al. Data-driven based tiny-YOLOv3 method for front vehicle detection inducing SPP-net [J]. IEEE Access, 2020, 8: 110227-110236. 10.1109/access.2020.3001279 |
14 | 赵文清, 周震东, 翟永杰. 基于反卷积和特征融合的SSD小目标检测算法[J]. 智能系统学报, 2020, 15(2): 310-316. 10.11992/tis.201905035 |
ZHAO W Q, ZHOU Z D, ZHAI Y J. SSD small target detection algorithm based on deconvolution and feature fusion [J]. CAAI Transactions on Intelligent Systems, 2020,15(2):310-316. 10.11992/tis.201905035 | |
15 | WANG C Y, LIAO H Y M, WU Y H, et al. CSPNet: a new backbone that can enhance learning capability of CNN [C]// Proceedings of the 2020 IEEE Conference on Computer Vision and Pattern Recognition. Piscataway: IEEE, 2020: 390-391. 10.1109/cvprw50498.2020.00203 |
16 | HE K, ZHANG X, REN S, et al. Deep residual learning for image recognition [C]// Proceedings of the 2016 IEEE Conference on Computer Vision and Pattern Recognition. Piscataway: IEEE, 2016: 770-778. 10.1109/cvpr.2016.90 |
17 | HUANG G, LIU Z, LAURENS V D M, et al. Densely connected convolutional networks [C]// Proceedings of the 2017 IEEE Conference on Computer Vision and Pattern Recognition. Piscataway: IEEE, 2017: 4700-4708. 10.1109/cvpr.2017.243 |
18 | LIU S, QI L, QIN H, et al. Path aggregation network for instance segmentation [C]// Proceedings of the 2018 IEEE Conference on Computer Vision and Pattern Recognition. Piscataway: IEEE, 2018: 8759-8768. 10.1109/cvpr.2018.00913 |
19 | ARTHUR D, VASSILVITSKII S. K-Means++: the advantages of careful seeding [C]// Proceedings of the 8th Annual ACM-SIAM Symposium on Discrete algorithms. Stroudsburg, PA: Association for Computational Linguistics, 2007: 1027-1035. |
20 | REDMON J. Darknet: open source neural networks in C [EB/OL]. [2019-07-15]. . |
21 | GEIGER A, LENZ P, URTASUN R. Are we ready for autonomous driving? The KITTI vision benchmark suite [C]// Proceedings of the 2012 IEEE Conference on Computer Vision and Pattern Recognition. Piscataway: IEEE, 2012: 3354-3361. 10.1109/cvpr.2012.6248074 |
22 | YU F, CHEN H, WANG X, et al. BDD 100K: a diverse driving video database with scalable annotation tooling [EB/OL]. [2020-01-15]. . |
