Single direction projected Transformer method for aliasing text detection

doi:10.11772/j.issn.1001-9081.2021101749

Abstract

Abstract:

To address the performance degradation of segmentation-based text detection methods in aliasing text scenes， a Single Direction Projected Transformer （SDPT） was proposed for aliasing text detection. Firstly， multi-scale features were extracted and fused by using deep Residual Network （ResNet） and Feature Pyramid Network （FPN）. Then， the feature map was projected into a vector sequence by using horizontal projection and was fed into the Transformer module to model， thereby mining the relationship between the lines of text. Finally， joint optimization was performed using multiple objectives. Extensive experiments were conducted on the synthetic dataset BDD-SynText and the real dataset RealText. The results show that the proposed SDPT achieves optimal effect for text detection with high aliasing level， and improves F1-Score （IoU75） by at least 21. 36 percentage points on BDD-SynText and 18.11 percentage points on RealText compared with the state-of-the-art text detection algorithms such as Progressive Scale Expansion Network （PSENet） under the same backbone network （ResNet50）， verifying the important role of the proposed method for performance improvement in aliasing text detection.

Key words: computer vision, deep learning, scene text detection, aliasing text, projection, Transformer algorithm

摘要：

针对基于分割的文字检测方法在混叠文字场景下性能下降的问题，提出了单向投影Transformer （SDPT）用于混叠文本检测。首先，使用深度残差网络（ResNet）和特征金字塔网络（FPN）提取并融合多尺度特征；然后，利用水平投影将特征图投影成向量序列，并送入Transformer模块进行建模，以挖掘文本行与行之间的关系；最后，使用多目标来进行联合优化。在合成数据集BDD-SynText和真实数据集RealText上进行了大量实验，结果表明，所提SDPT在高混叠度的文字检测下取得了最优的效果，而与PSENet等文本检测算法在相同骨干网络（ResNet50）条件下相比，在BDD-SynText上F1-Score（IoU75）至少提高了21.36个百分点，在RealText上的F1-Score （IoU75）至少提高了18.11个百分点，验证了所提方法对于混叠文字检测性能改善的重要作用。

关键词: 计算机视觉, 深度学习, 场景文字检测, 混叠文字, 投影, Transformer算法

CLC Number:

TP391.4

Zhida FENG, Li CHEN. Single direction projected Transformer method for aliasing text detection[J]. Journal of Computer Applications, 2022, 42(12): 3686-3691.

冯智达, 陈黎. 面向混叠文字检测的单向投影Transformer方法[J]. 《计算机应用》唯一官方网站, 2022, 42(12): 3686-3691.

Figures/Tables 14

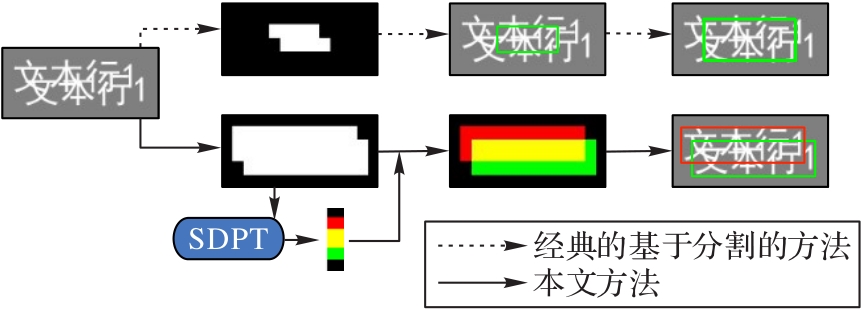

Fig. 1 Comparison of the proposed method and classical segmentation-based methods

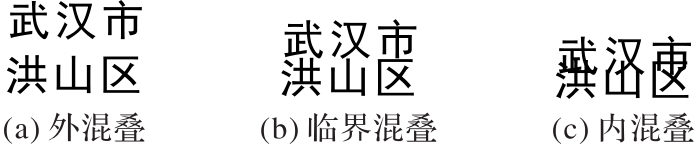

Fig.2 Three situations of text aliasing

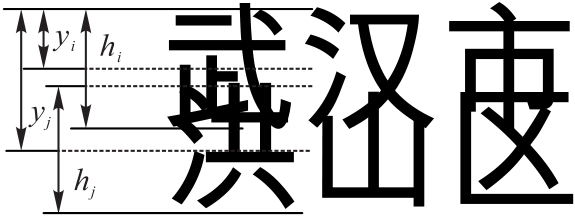

Fig.3 Example of aliasing level calculation

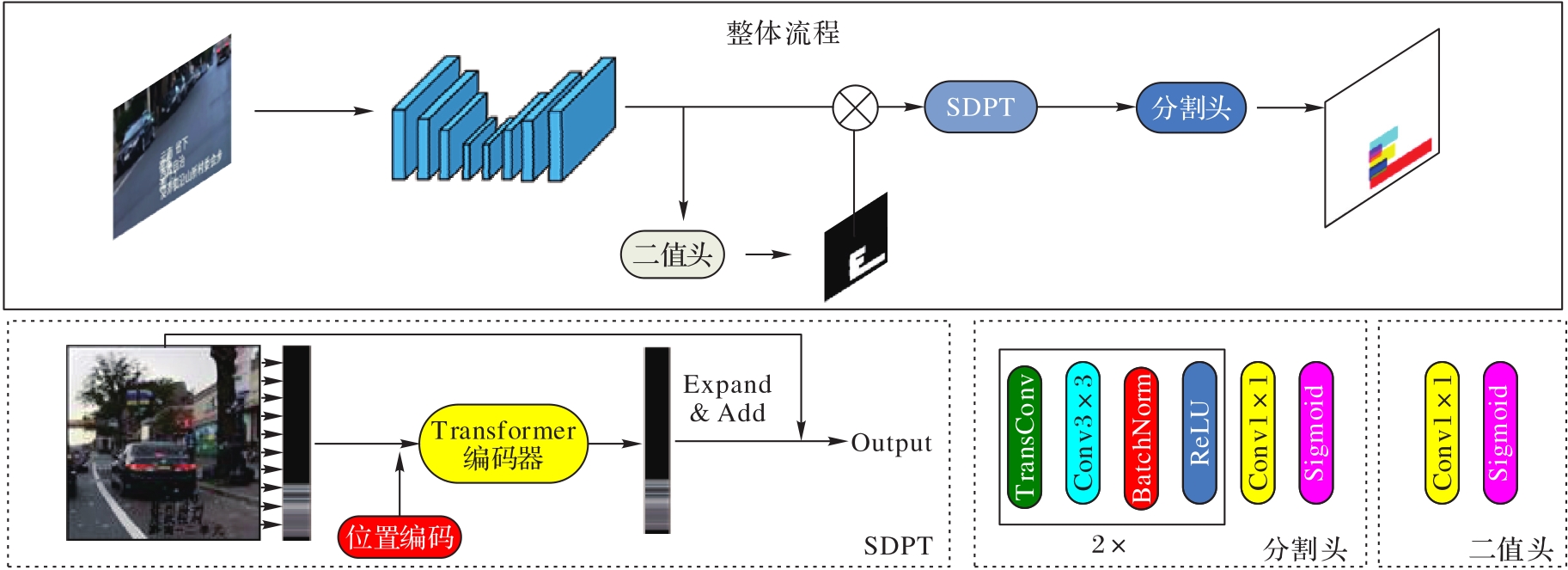

Fig.4 Overview flow of the proposed method

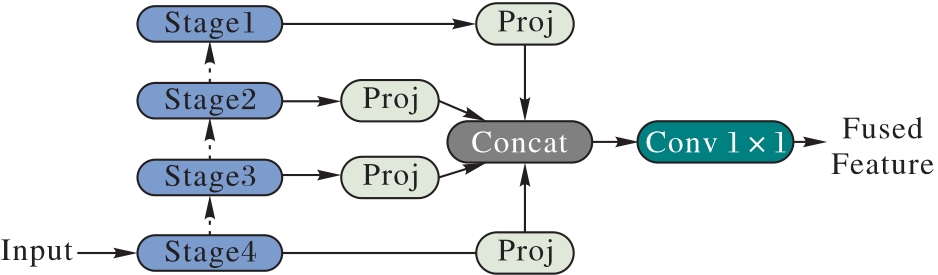

Fig.5 Multi-scale feature fusion

Fig.6 Transformer Encoder

Fig.7 Image examples of BDD-SynText

Tab.1 Comparison results of IoU50 benchmark on BDD-SynText dataset

方法	骨干网络	P $↑$	R $↑$	F $↑$
PSENet	ResNet18	88.04	73.50	79.10
PAN		76.58	68.31	71.11
DB		93.94	88.01	90.53
本文方法		98.54	98.48	98.50
PSENet	ResNet50	89.89	75.23	80.91
PAN		74.35	67.07	69.55
DB		95.24	90.22	92.39
本文方法		98.43	98.35	98.39

Tab.1 Comparison results of IoU50 benchmark on BDD-SynText dataset

方法	骨干网络	P $↑$	R $↑$	F $↑$
PSENet	ResNet18	88.04	73.50	79.10
PAN		76.58	68.31	71.11
DB		93.94	88.01	90.53
本文方法		98.54	98.48	98.50
PSENet	ResNet50	89.89	75.23	80.91
PAN		74.35	67.07	69.55
DB		95.24	90.22	92.39
本文方法		98.43	98.35	98.39

Tab.2 Comparison results of IoU75 benchmark on BDD-SynText dataset

方法	骨干网络	P $↑$	R $↑$	F $↑$
PSENet	ResNet18	74.97	64.15	68.43
PAN		78.21	75.58	76.50
DB		65.63	61.62	63.33
本文方法		92.27	92.19	92.23
PSENet	ResNet50	78.39	67.23	71.68
PAN		64.35	59.47	61.18
DB		63.44	60.25	61.64
本文方法		93.07	93.00	93.04

Tab.2 Comparison results of IoU75 benchmark on BDD-SynText dataset

方法	骨干网络	P $↑$	R $↑$	F $↑$
PSENet	ResNet18	74.97	64.15	68.43
PAN		78.21	75.58	76.50
DB		65.63	61.62	63.33
本文方法		92.27	92.19	92.23
PSENet	ResNet50	78.39	67.23	71.68
PAN		64.35	59.47	61.18
DB		63.44	60.25	61.64
本文方法		93.07	93.00	93.04

Tab.3 Comparison results of IoU50 benchmark on RealText dataset

方法	骨干网络	P $↑$	R $↑$	F $↑$
PSENet	ResNet18	98.60	90.08	94.15
PAN		54.61	51.04	52.77
DB		41.49	60.23	49.14
本文方法		97.25	97.33	97.29
PSENet	ResNet50	99.50	91.50	95.33
PAN		79.42	59.12	67.78
DB		45.92	72，80	56.32
本文方法		97.42	97.51	97.47

Tab.3 Comparison results of IoU50 benchmark on RealText dataset

方法	骨干网络	P $↑$	R $↑$	F $↑$
PSENet	ResNet18	98.60	90.08	94.15
PAN		54.61	51.04	52.77
DB		41.49	60.23	49.14
本文方法		97.25	97.33	97.29
PSENet	ResNet50	99.50	91.50	95.33
PAN		79.42	59.12	67.78
DB		45.92	72，80	56.32
本文方法		97.42	97.51	97.47

Tab.4 Comparison results of IoU75 benchmark on RealText dataset

方法	骨干网络	P $↑$	R $↑$	F $↑$
PSENet	ResNet18	84.34	77.05	80.53
PAN		42.34	39.57	40.91
DB		24.98	36.26	29.58
本文方法		97.25	97.33	97.29
PSENet	ResNet50	82.83	76.17	79.36
PAN		64.20	47.80	54.80
DB		28.93	45.86	35.48
本文方法		97.42	97.51	97.47

Tab.4 Comparison results of IoU75 benchmark on RealText dataset

方法	骨干网络	P $↑$	R $↑$	F $↑$
PSENet	ResNet18	84.34	77.05	80.53
PAN		42.34	39.57	40.91
DB		24.98	36.26	29.58
本文方法		97.25	97.33	97.29
PSENet	ResNet50	82.83	76.17	79.36
PAN		64.20	47.80	54.80
DB		28.93	45.86	35.48
本文方法		97.42	97.51	97.47

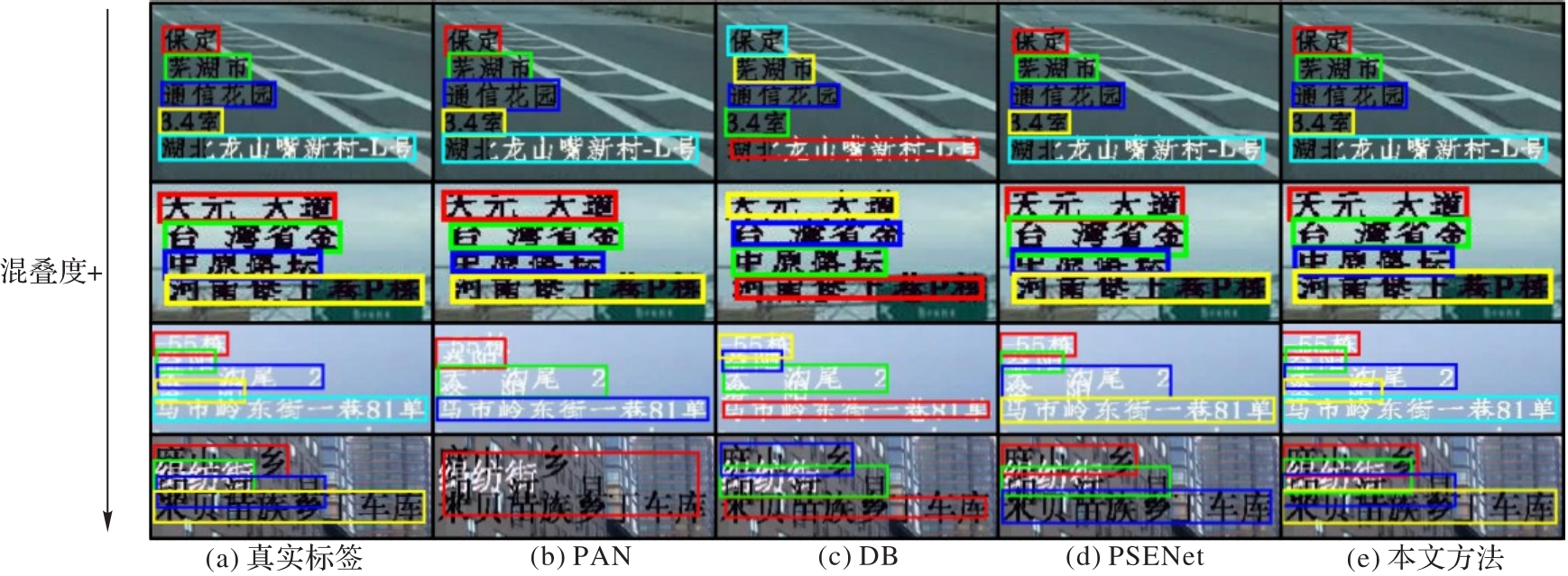

Fig.8 Visualization results of different methods

Fig.9 F1-Score of each method under different aliasing levels

Tab.5 Results of ablation experiment

实验ID	BM	SDPT	MTT	P $↑$ /%	R $↑$ /%	F $↑$ /%
1	×	×	×	87.12	88.43	87.77
2	√	×	×	90.53	91.28	90.90
3	×	√	×	90.57	90.50	90.53
4	×	×	√	90.52	91.38	90.95
5	√	√	×	89.46	89.31	89.38
6	√	×	√	89.51	90.36	89.93
7	×	√	√	91.34	91.26	91.30
8	√	√	√	92.27	92.19	92.23

Tab.5 Results of ablation experiment

实验ID	BM	SDPT	MTT	P $↑$ /%	R $↑$ /%	F $↑$ /%
1	×	×	×	87.12	88.43	87.77
2	√	×	×	90.53	91.28	90.90
3	×	√	×	90.57	90.50	90.53
4	×	×	√	90.52	91.38	90.95
5	√	√	×	89.46	89.31	89.38
6	√	×	√	89.51	90.36	89.93
7	×	√	√	91.34	91.26	91.30
8	√	√	√	92.27	92.19	92.23
