Journal of Computer Applications ›› 2024, Vol. 44 ›› Issue (7): 2175-2182.DOI: 10.11772/j.issn.1001-9081.2023070933
• Multimedia computing and computer simulation • Previous Articles Next Articles
Dahai LI, Zhonghua WANG(), Zhendong WANG
Received:
2023-07-13
Revised:
2023-09-16
Accepted:
2023-09-20
Online:
2023-10-26
Published:
2024-07-10
Contact:
Zhonghua WANG
About author:
LI Dahai, born in 1975, Ph. D., associate professor. His research interests include intelligent optimization algorithms, deep learning.Supported by:
通讯作者:
王忠华
作者简介:
李大海(1975—),男,山东乳山人,副教授,博士,CCF会员,主要研究方向:智能优化算法、深度学习;基金资助:
CLC Number:
Dahai LI, Zhonghua WANG, Zhendong WANG. Dual-branch low-light image enhancement network combining spatial and frequency domain information[J]. Journal of Computer Applications, 2024, 44(7): 2175-2182.
李大海, 王忠华, 王振东. 结合空间域和频域信息的双分支低光照图像增强网络[J]. 《计算机应用》唯一官方网站, 2024, 44(7): 2175-2182.
Add to citation manager EndNote|Ris|BibTeX
URL: https://www.joca.cn/EN/10.11772/j.issn.1001-9081.2023070933
网络模型 | PSNR/dB | SSIM | LPIPS | 参数量/106 |
---|---|---|---|---|
Retinex-Net[ | 16.77 | 0.462 | 0.474 | 0.44 |
Zero-DCE[ | 14.86 | 0.589 | 0.335 | 0.08 |
DRBN[ | 15.13 | 0.472 | 0.316 | 0.58 |
EnlightenGAN[ | 17.48 | 0.677 | 0.322 | 8.64 |
KinD++[ | 20.86 | 0.760 | 0.164 | 8.27 |
IAT[ | 23.38 | 0.809 | 0.261 | 0.09 |
LLFormer[ | 23.64 | 0.816 | 0.169 | 24.52 |
SAFNet | 22.11 | 0.823 | 0.114 | 0.07 |

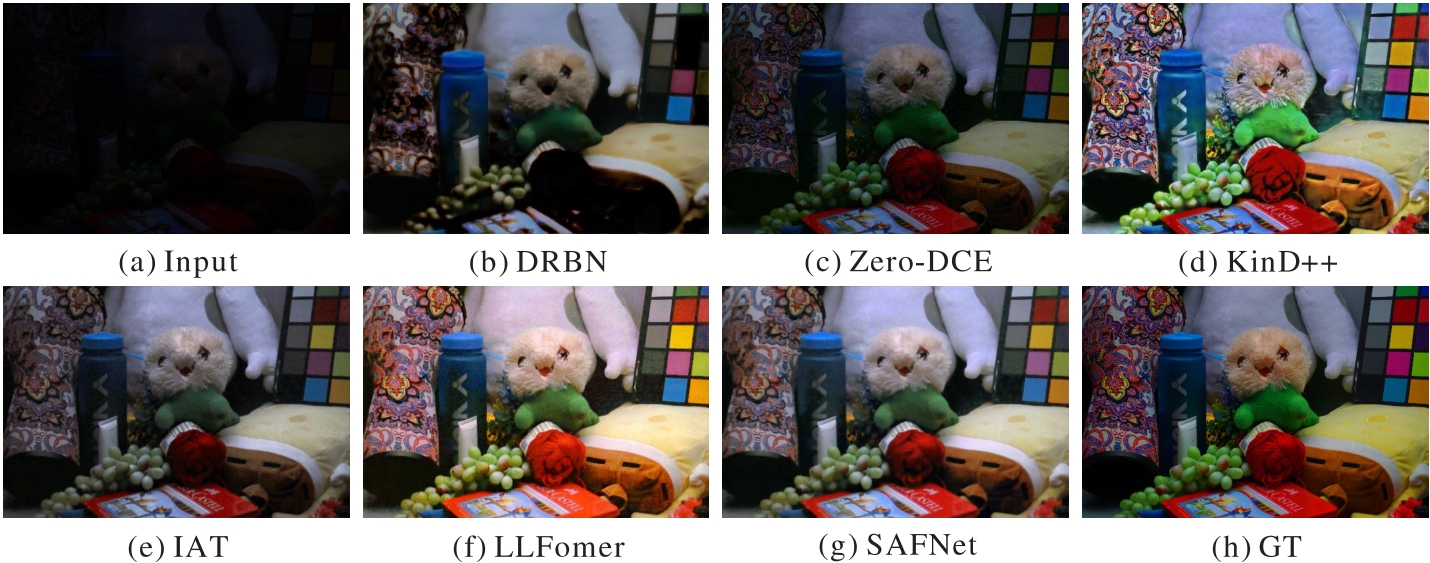

Tab. 1 Objective evaluation results of different network models on LOL dataset
网络模型 | PSNR/dB | SSIM | LPIPS | 参数量/106 |
---|---|---|---|---|
Retinex-Net[ | 16.77 | 0.462 | 0.474 | 0.44 |
Zero-DCE[ | 14.86 | 0.589 | 0.335 | 0.08 |
DRBN[ | 15.13 | 0.472 | 0.316 | 0.58 |
EnlightenGAN[ | 17.48 | 0.677 | 0.322 | 8.64 |
KinD++[ | 20.86 | 0.760 | 0.164 | 8.27 |
IAT[ | 23.38 | 0.809 | 0.261 | 0.09 |
LLFormer[ | 23.64 | 0.816 | 0.169 | 24.52 |
SAFNet | 22.11 | 0.823 | 0.114 | 0.07 |
网络模型 | PSNR/dB | SSIM |
---|---|---|
Retinex-Net[ | 15.90 | 0.373 |
Zero-DCE[ | 15.83 | 0.466 |
DRBN[ | 16.15 | 0.542 |
EnlightenGAN[ | 16.31 | 0.469 |
KinD++[ | 16.47 | 0.492 |
IAT[ | 16.51 | 0.516 |
LLFormer[ | 17.16 | 0.522 |
SAFNet | 17.23 | 0.550 |
Tab. 2 Objective evaluation results of different network models on LSRW dataset
网络模型 | PSNR/dB | SSIM |
---|---|---|
Retinex-Net[ | 15.90 | 0.373 |
Zero-DCE[ | 15.83 | 0.466 |
DRBN[ | 16.15 | 0.542 |
EnlightenGAN[ | 16.31 | 0.469 |
KinD++[ | 16.47 | 0.492 |
IAT[ | 16.51 | 0.516 |
LLFormer[ | 17.16 | 0.522 |
SAFNet | 17.23 | 0.550 |
模型 | PSNR/dB | SSIM |
---|---|---|
w/o FB | 21.62 | 0.814 |
w/o Fusion | 21.81 | 0.819 |
w/o ECA | 21.76 | 0.816 |
SAFNet | 22.11 | 0.823 |

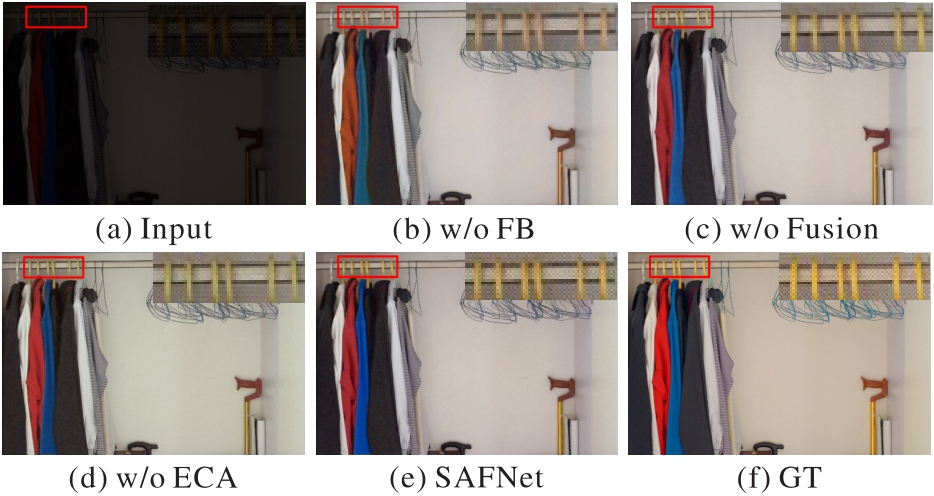

Tab. 3 Objective evaluation results of different model structures on LOL dataset
模型 | PSNR/dB | SSIM |
---|---|---|
w/o FB | 21.62 | 0.814 |
w/o Fusion | 21.81 | 0.819 |
w/o ECA | 21.76 | 0.816 |
SAFNet | 22.11 | 0.823 |
损失函数 | PSNR/dB | SSIM |
---|---|---|
20.16 | 0.809 | |
21.74 | 0.817 | |
21.97 | 0.819 | |
22.11 | 0.823 |
Tab. 4 Objective evaluation results of different loss functions on LOL dataset
损失函数 | PSNR/dB | SSIM |
---|---|---|
20.16 | 0.809 | |
21.74 | 0.817 | |
21.97 | 0.819 | |
22.11 | 0.823 |
1 | LIU J, XU D, YANG W, et al. Benchmarking low-light image enhancement and beyond [J]. International Journal of Computer Vision, 2021, 129: 1153-1184. |
2 | ABDULLAH-AL-WADUD M, KABIR M H, DEWAN M A A, et al. A dynamic histogram equalization for image contrast enhancement [J]. IEEE Transactions on Consumer Electronics, 2007, 53(2): 593-600. |
3 | LAND E H. The Retinex theory of color vision [J]. Scientific American, 1977, 237(6): 108-129. |
4 | JOBSON D J, RAHMAN Z, WOODELL G A. A multiscale Retinex for bridging the gap between color images and the human observation of scenes [J]. IEEE Transactions on Image Processing, 1997, 6(7): 965-976. |
5 | LORE K G, AKINTAYO A, SARKAR S. LLNet: a deep autoencoder approach to natural low-light image enhancement [J]. Pattern Recognition, 2017, 61: 650-662. |
6 | WEI C, WANG W, YANG W, et al. Deep Retinex decomposition for low-light enhancement [EB/OL]. [2023-06-15]. . |
7 | WANG T, ZHANG K, SHEN T, et al. Ultra-high-definition low-light image enhancement: a benchmark and transformer-based method [J]. Proceedings of the AAAI Conference on Artificial Intelligence, 2023, 37(3): 2654-2662. |
8 | CUI Z, LI K, GU L, et al. You only need 90K parameters to adapt light: a light weight transformer for image enhancement and exposure correction [C]// Proceedings of the 33rd Britich Machine Vision Conference. London: BMVA Press, 2022: No. 238. |
9 | XU Z-Q J, ZHANG Y, LUO T, et al. Frequency principle: Fourier analysis sheds light on deep neural networks [EB/OL]. [2023-05-13]. . |
10 | XU Z-Q J, ZHANG Y, XIAO Y. Training behavior of deep neural network in frequency domain [C]// Proceedings of the 26th International Conference on Neural Information Processing. Cham: Springer, 2019: 264-274. |
11 | WANG H, WU X, HUANG Z, et al. High-frequency component helps explain the generalization of convolutional neural networks [C]// Proceedings of the 2020 IEEE/CVF Conference on Computer Vision and Pattern Recognition. Piscataway: IEEE, 2020: 8681-8691. |
12 | ZHANG Y, ZHANG J, GUO X. Kindling the darkness: a practical low-light image enhancer [C]// Proceedings of the 27th ACM International Conference on Multimedia. New York: ACM, 2019: 1632-1640. |
13 | ZHANG Y, GUO X, MA J, et al. Beyond brightening low-light images [J]. International Journal of Computer Vision, 2021, 129: 1013-1037. |
14 | HAI J, XUAN Z, YANG R, et al. R2RNet: low-light image enhancement via real-low to real-normal network [J]. Journal of Visual Communication and Image Representation, 2023, 90: 103712. |
15 | 祖佳贞,周永霞,陈乐.结合注意力的双分支残差低光照图像增强[J].计算机应用, 2023, 43(4): 1240-1247. |
ZU J Z, ZHOU Y X, CHEN L. Dual-branch residual low-light image enhancement combined with attention [J]. Journal of Computer Applications, 2023, 43(4): 1240-1247. | |
16 | 谌贵辉,林瑾瑜,李跃华,等.注意力机制下的多阶段低照度图像增强网络[J].计算机应用, 2023, 43(2): 552-559. |
CHEN G H, LIN J Y, LI Y H, et al. Multi-stage low-illuminance image enhancement network based on attention mechanism [J]. Journal of Computer Applications, 2023, 43(2): 552-559. | |
17 | JIANG Y, GONG X, LIU D, et al. EnlightenGAN: deep light enhancement without paired supervision [J]. IEEE Transactions on Image Processing, 2021, 30: 2340-2349. |
18 | YANG W, WANG S, FANG Y, et al. From fidelity to perceptual quality: a semi-supervised approach for low-light image enhancement [C]// Proceedings of the 2020 IEEE/CVF Conference on Computer Vision and Pattern Recognition. Piscataway: IEEE, 2020: 3060-3069. |
19 | GUO C, LI C, GUO J, et al. Zero-reference deep curve estimation for low-light image enhancement [C]// Proceedings of the 2020 IEEE/CVF Conference on Computer Vision and Pattern Recognition. Piscataway: IEEE, 2020: 1777-1786. |
20 | DOSOVITSKIY A, BEYER L, KOLESNIKOV A, et al. An image is worth 16x16 words: Transformers for image recognition at scale [EB/OL]. [2023-04-10]. . |
21 | CAI M, ZHANG H, HUANG H, et al. Frequency domain image translation: more photo-realistic, better identity-preserving [C]// Proceedings of the 2021 IEEE/CVF International Conference on Computer Vision. Piscataway: IEEE, 2021: 13930-13940. |
22 | JIANG L, DAI B, WU W, et al. Focal frequency loss for image reconstruction and synthesis [C]// Proceedings of the 2021 IEEE/CVF International Conference on Computer Vision. Piscataway: IEEE, 2021: 13899-13909. |
23 | ZHONG Y, LI B, TANG L, et al. Detecting camouflaged object in frequency domain [C]// Proceedings of the 2022 IEEE/CVF Conference on Computer Vision and Pattern Recognition. Piscataway: IEEE, 2022: 4494-4503. |
24 | XU K, YANG X, YIN B, et al. Learning to restore low-light images via decomposition-and-enhancement [C]// Proceedings of the 2020 IEEE/CVF Conference on Computer Vision and Pattern Recognition. Piscataway: IEEE, 2020: 2281-2287. |
25 | WANG Q, WU B, ZHU P, et al. ECA-Net: efficient channel attention for deep convolutional neural networks [C]// Proceedings of the 2020 IEEE/CVF Conference on Computer Vision and Pattern Recognition. Piscataway: IEEE, 2020: 11531-11539. |
26 | HAN Q, FAN Z, DAI Q, et al. On the connection between local attention and dynamic depth-wise convolution [EB/OL]. [2023-07-10]. . |
27 | WU Y, HE K. Group normalization [C]// Proceedings of the 15th European Conference on Computer Vision. Cham: Springer, 2018: 3-19. |
28 | TOUVRON H, CORD M, SABLAYROLLES A, et al. Going deeper with image transformers [C]// Proceedings of the 2021 IEEE/CVF International Conference on Computer Vision. Piscataway: IEEE, 2021: 32-42. |
29 | TRABELSI C, BILANIUK O, ZHANG Y, et al. Deep complex networks [EB/OL]. [2023-04-10]. . |
30 | ZHAO H, GALLO O, FROSIO I, et al. Loss functions for image restoration with neural networks [J]. IEEE Transactions on Computational Imaging, 2016, 3(1): 47-57. |
31 | ZHANG R, ISOLA P, EFROS A A, et al. The unreasonable effectiveness of deep features as a perceptual metric [C]// Proceedings of the 2018 IEEE/CVF Conference on Computer Vision and Pattern Recognition. Piscataway: IEEE, 2018: 586-595. |
32 | YANG W, YUAN Y, REN W, et al. Advancing image understanding in poor visibility environments: a collective benchmark study [J]. IEEE Transactions on Image Processing, 2020, 29: 5737-5752. |
33 | LI J, WANG Y, WANG C, et al. DSFD: dual shot face detector [C]// Proceedings of the 2019 IEEE/CVF Conference on Computer Vision and Pattern Recognition. Piscataway: IEEE, 2019: 5055-5064. |
