Design and implementation of VR head tracking system based on ARM platform

doi:10.11772/j.issn.1001-9081.2023081097

Abstract

Abstract:

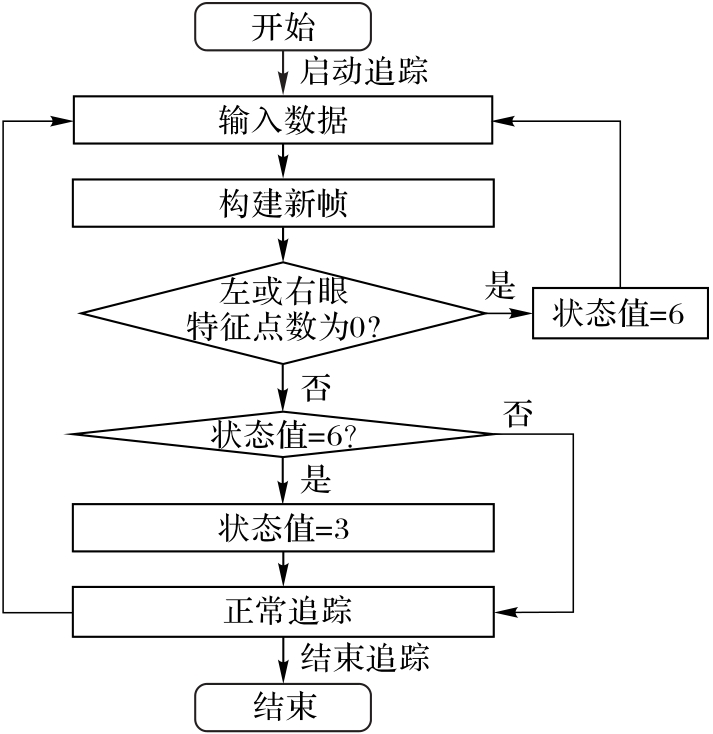

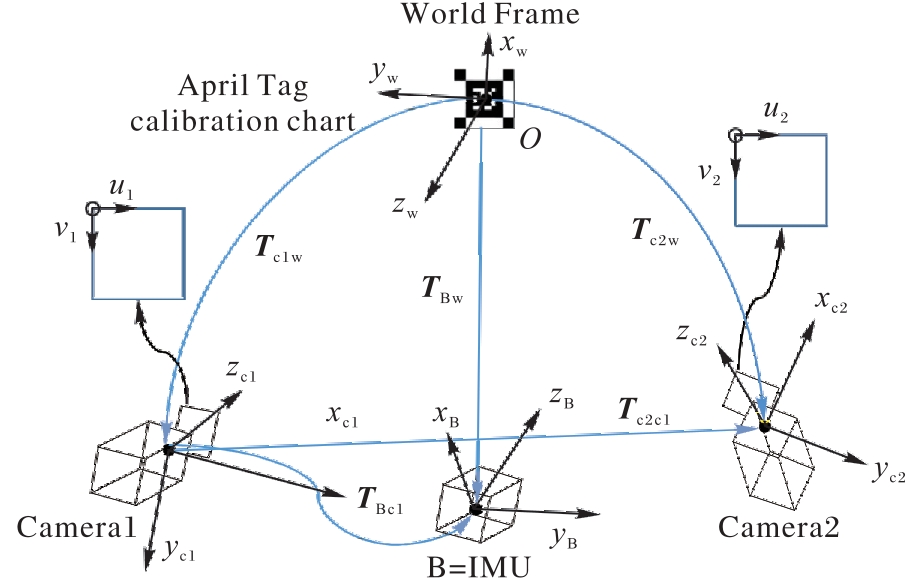

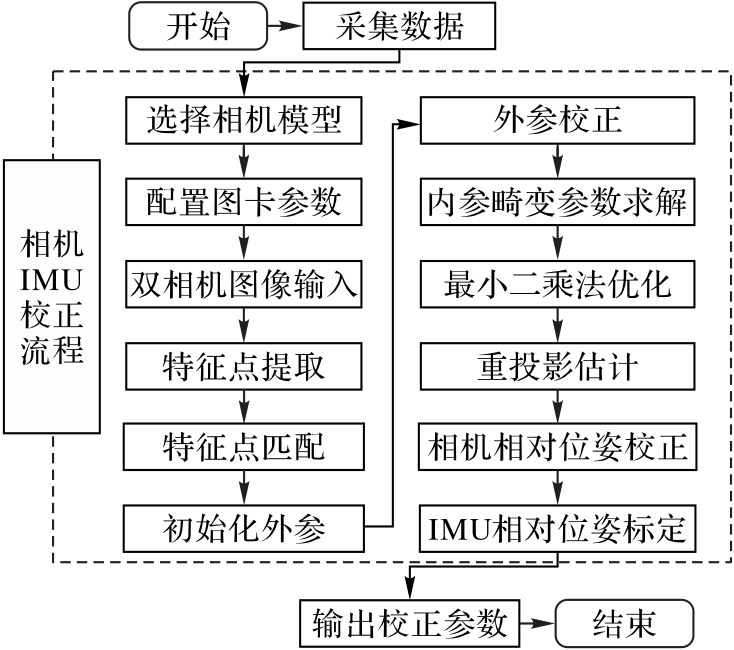

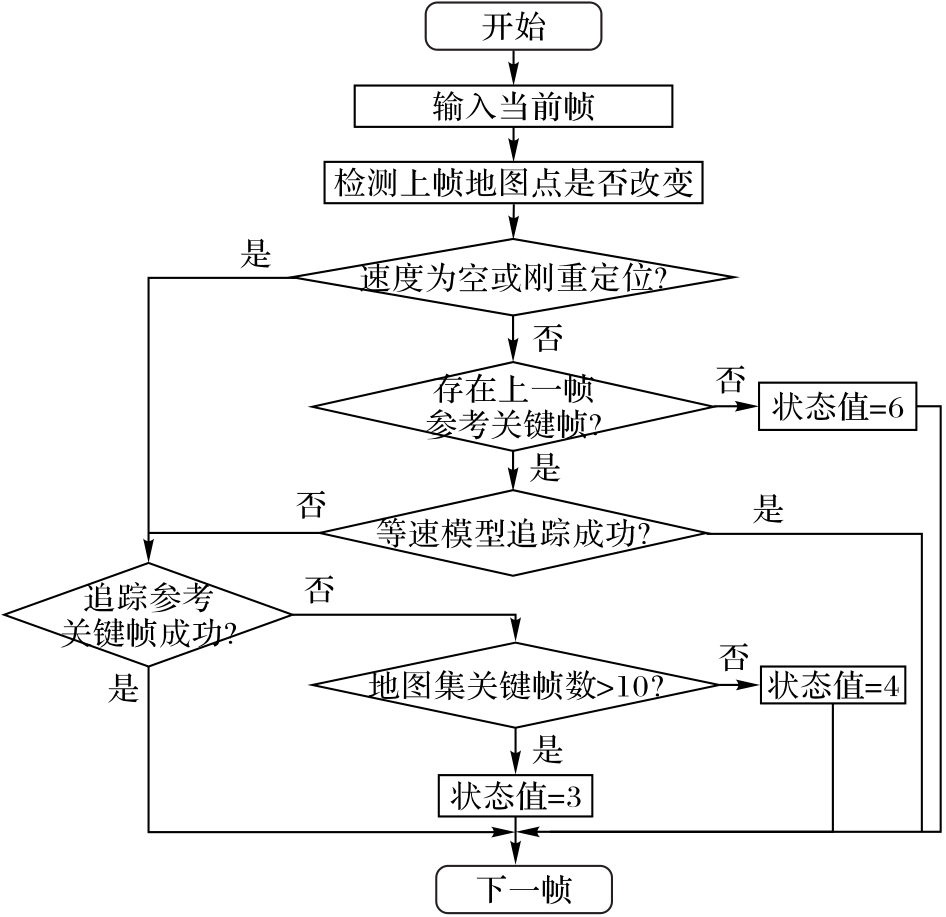

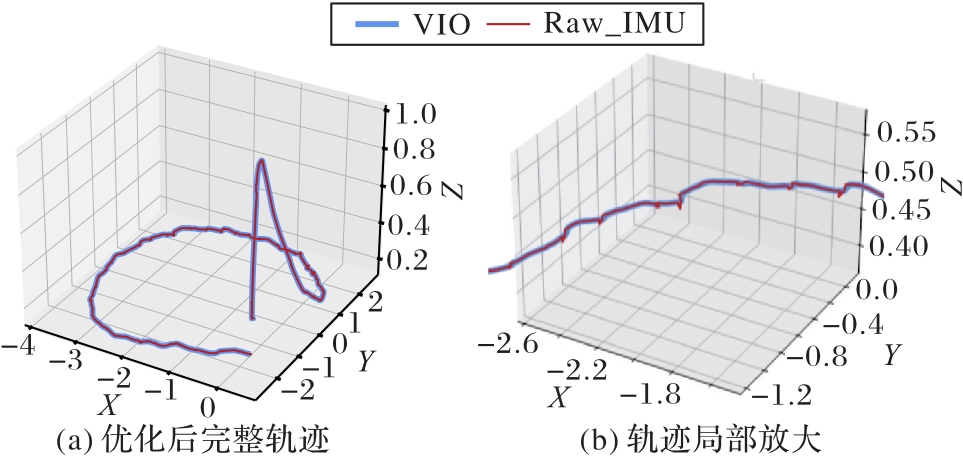

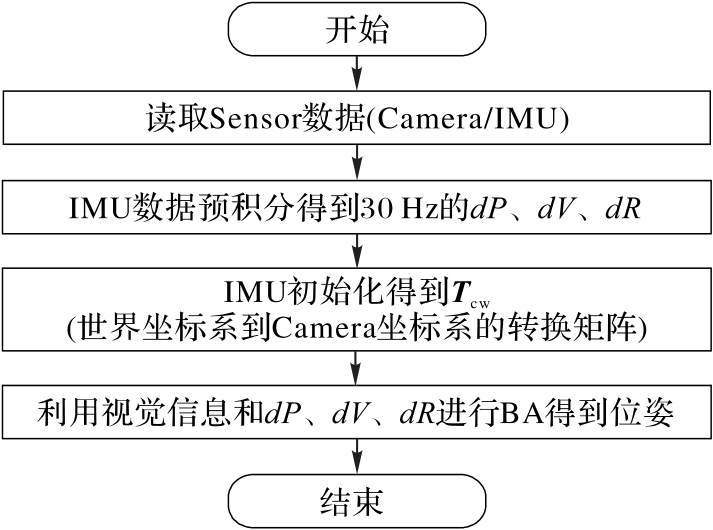

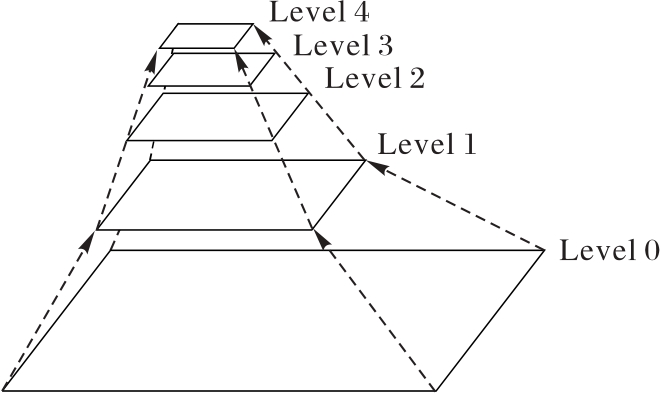

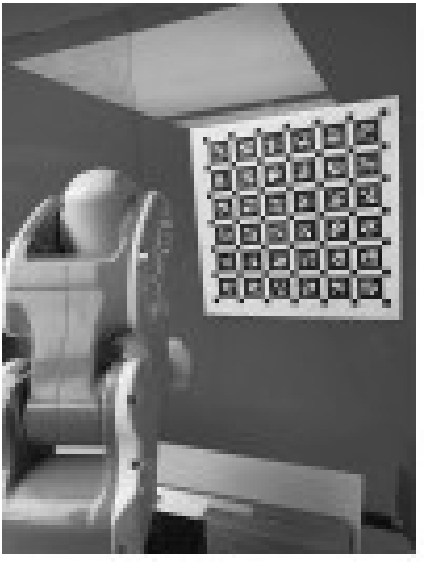

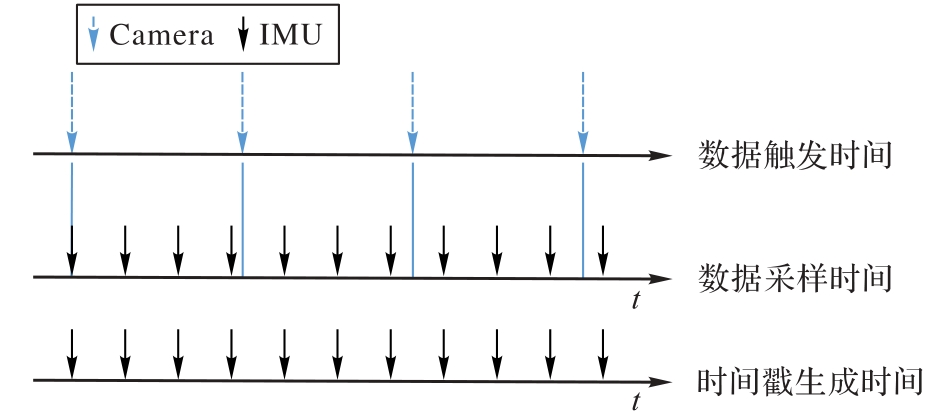

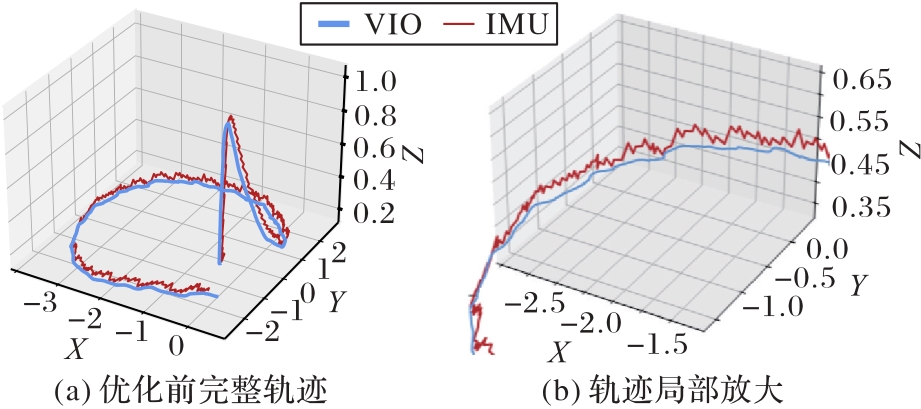

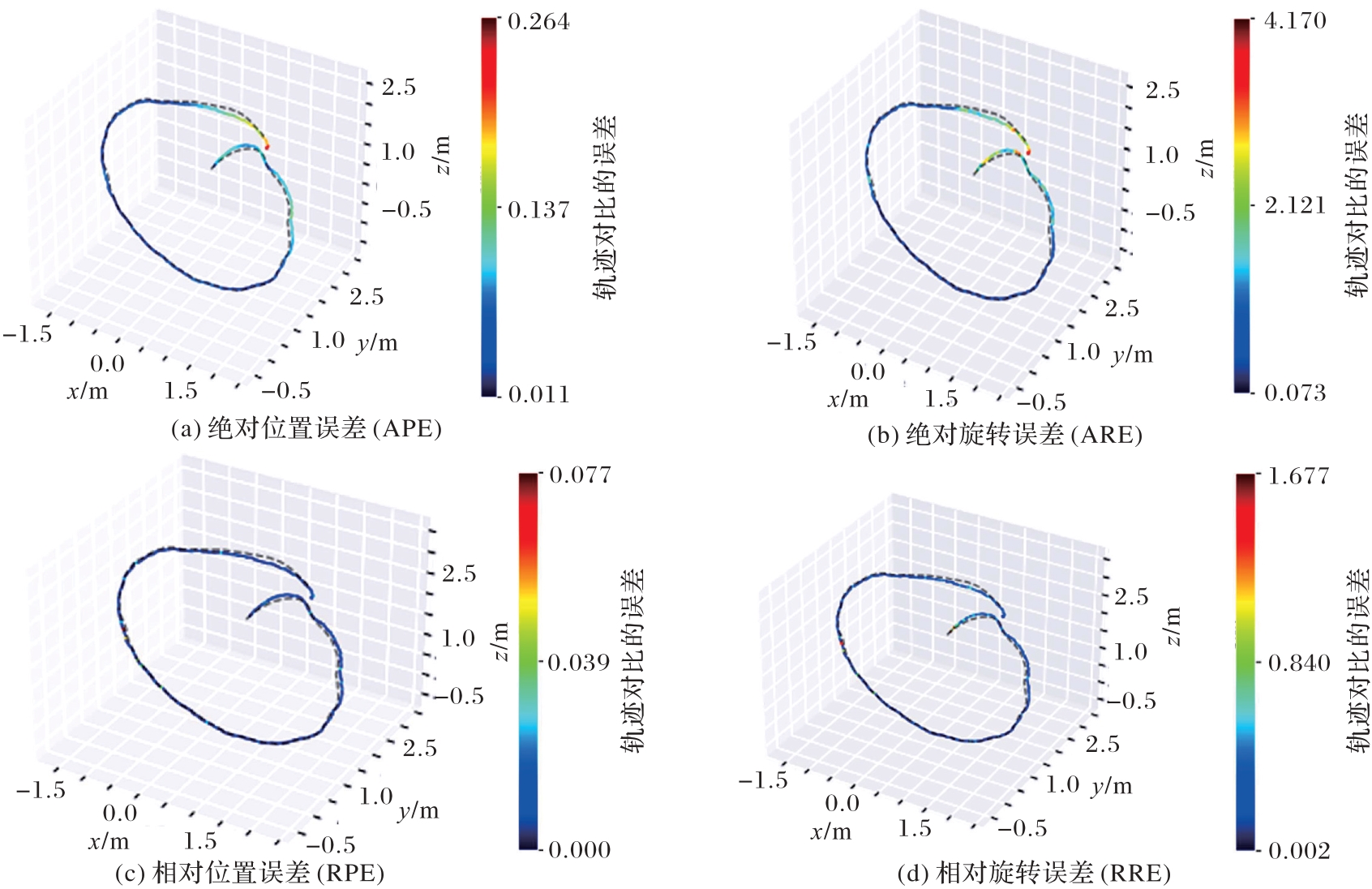

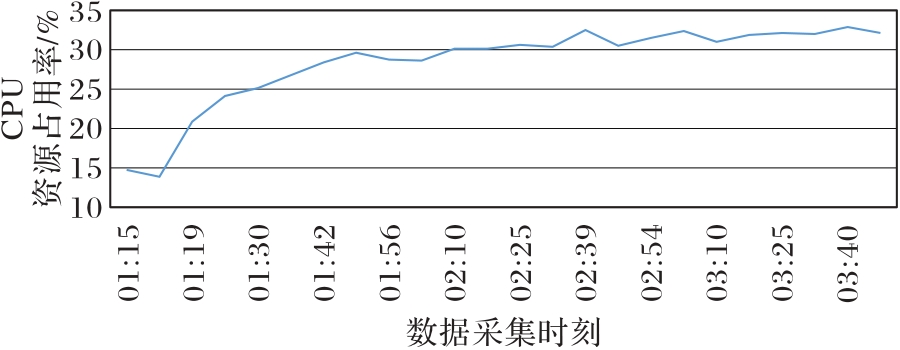

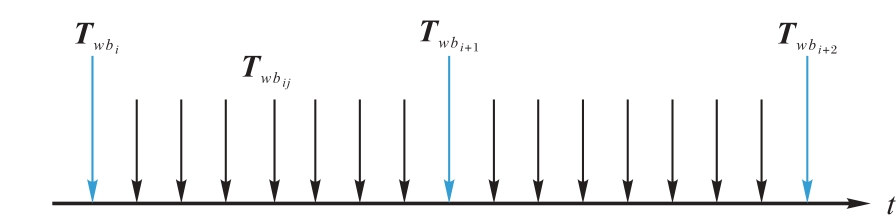

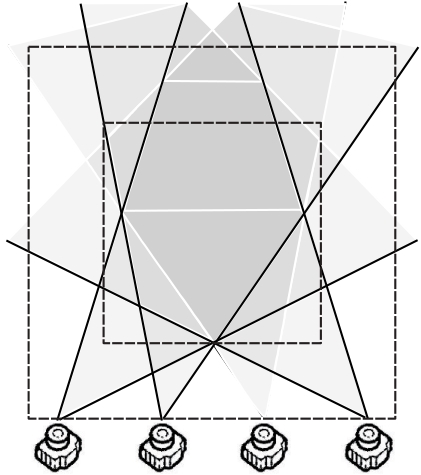

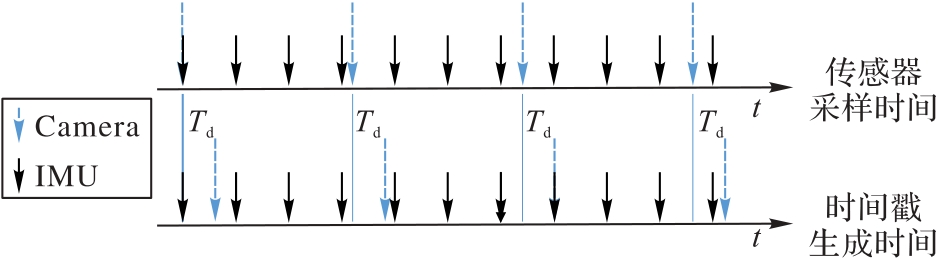

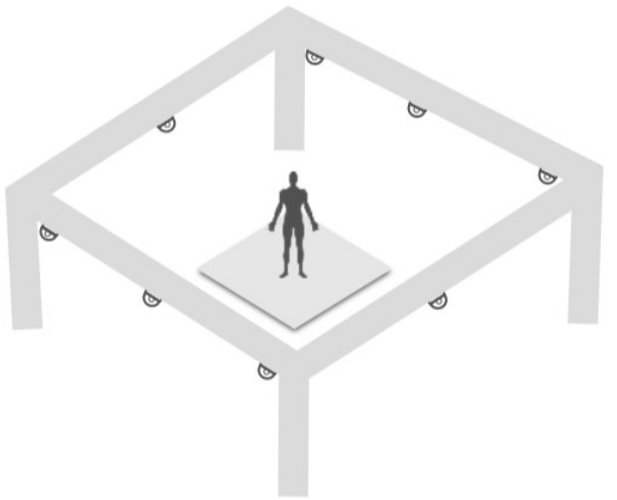

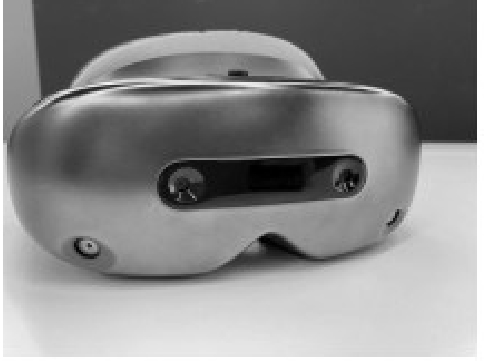

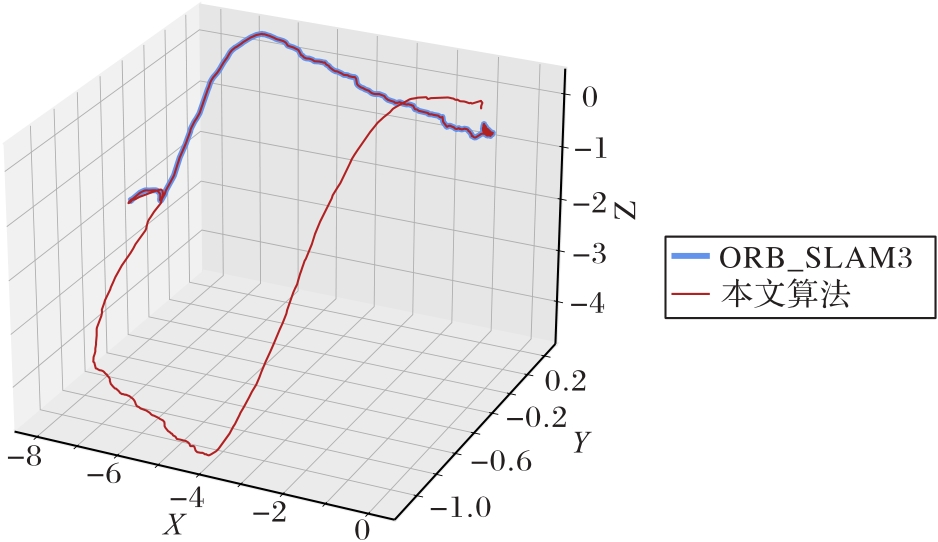

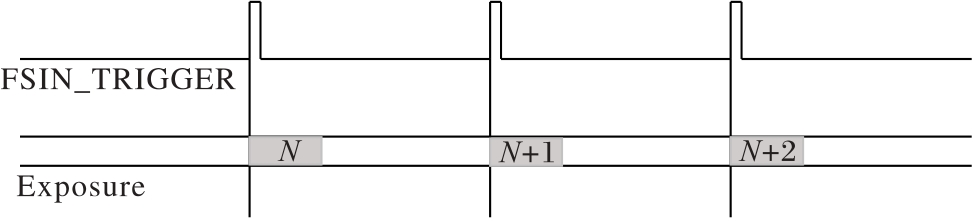

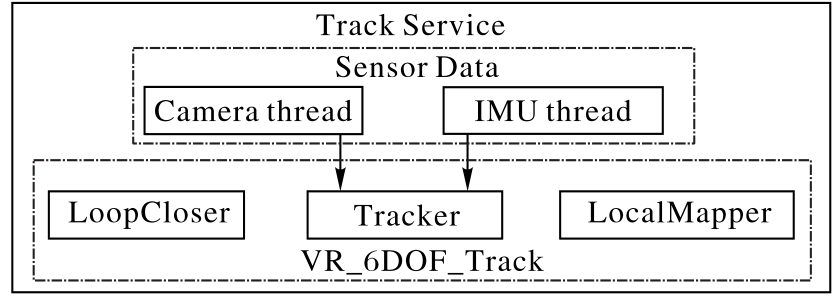

With the rapid development of Virtual Reality （VR） all-in-one devices， inside-out Six Degrees of Freedom （6DOF） tracking technology has become the mainstream head tracking solution. However， these tracking algorithms need to process large numbers of images and Inertial Measurement Unit （IMU） data simultaneously， which consume a lot of computational resource. When deploying the algorithms on ARM mobile platform， achieving good tracking accuracy and stability with limited computing power has become a key technical difficulty. Therefore， based on ARM mobile platform and ORB-SLAM3 algorithm， a VR 6DOF head tracking system with high tracking accuracy and stability was designed and implemented. Firstly， the joint calibration of IMU and Camera was performed by the high-precision manipulator， and pose fusion was optimized through IMU integration information and VIO （Visual Inertial Odometry）. Then， to adapt to the VR usage scenario， the scale of feature points in a single frame image was decreased to reduce the complexity of the algorithm， achieving nearly 1 kHz the 6DOF pose output frequency. Finally， a fast-response strategy for visual tracking loss was proposed to improve the stability of the tracking state. After the above optimizations， experimental results of the proposed algorithm on Qualcomm XR2 platform show that compared with the traditional ORB-SLAM3 algorithm， the proposed algorithm has the Relative Position Error （RPE） and Relative Rotation Error （RRE） indicators decreased by 44.4% and 73.4% respectively. In terms of real-time performance and precision， the proposed algorithm satisfies the needs of VR all-in-one devices， as demonstrated by the experimental results.

Key words: Virtual Reality (VR), Advanced RISC Machine (ARM) platform, Six Degrees of Freedom (6DOF), Oriented Fast and Rotated Brief-Simultaneous Localization And Mapping Three (ORB-SLAM3), Inertial Measurement Unit (IMU)

摘要：

随着虚拟现实（VR）一体机的蓬勃发展，内向外六自由度（6DOF）的追踪技术已成为主流的头部追踪方案。然而，由于要同时处理大量视觉及惯性测量单元（IMU）数据，计算量较大，在ARM移动平台计算能力有限的情况下，如何同时达到较好的追踪精度和稳定性成为实现该系统的关键技术难点。为此，基于ARM移动平台和开源ORB-SLAM3算法，设计并实现一套追踪精度高、稳定性好的VR 6DOF头部追踪系统。首先，通过高精度机械臂对IMU和Camera进行联合标定，并通过IMU积分信息与VIO（Visual-Inertial Odometry）进行位姿融合优化；其次，结合VR使用场景，调低单帧图像的特征点规模，以降低算法复杂度，达到近1 kHz的6DOF位姿输出频率；最后，提出一种针对视觉跟踪丢失的快速处理策略，以提高追踪状态的稳定性。经过以上优化后的算法运行在高通XR2平台上的实验结果显示，相较于传统的ORB-SLAM3算法，所提算法在相对位置误差（RPE）和相对旋转误差（RRE）指标上分别减小了44.4%和73.4%，在实时性和精度指标上能满足VR一体机需求。

关键词: 虚拟现实, ARM平台, 六自由度, ORB-SLAM3, 惯性测量单元

CLC Number:

TP391.4

Xiangjun ZHANG, Guoshu HUANG, Tao QIU, Ming WANG, Xungang YIN, Bingbing FAN. Design and implementation of VR head tracking system based on ARM platform[J]. Journal of Computer Applications, 0, (): 192-200.

张向军, 黄国书, 邱涛, 王明, 尹逊刚, 范兵兵. 基于ARM平台的VR头部追踪系统的设计与实现[J]. 《计算机应用》唯一官方网站, 0, (): 192-200.

Figures/Tables 35

References 38

1	高翔，张涛，刘毅，等. 视觉SLAM十四讲：从理论到实践［M］. 2版. 北京：电子工业出版社， 2019： 283-303.
2	KHOLE A， THAKAR A， SHENDE S， et al. A comprehensive study on Simultaneous Localization and Mapping （SLAM）： types， challenges and applications［C］// Proceedings of the 2023 International Conference on Sustainable Computing and Smart Systems. Piscataway： IEEE， 2023： 643-650.
3	SHIN U， LEE K， LEE S， et al. Self-supervised depth and ego-motion estimation for monocular thermal video using multi-spectral consistency loss［J］. IEEE Robotics and Automation Letters， 2022， 7（2）： 1103-1110.
4	ZHU Z， PENG S， LARSSON V， et al. NICE-SLAM： neural implicit scalable encoding for SLAM［C］// Proceedings of the 2022 IEEE/CVF Conference on Computer Vision and Pattern Recognition. Piscataway： IEEE， 2022： 12776-12786.
5	KLEIN G， MURRAY D. Parallel tracking and mapping for small AR workspaces［C］// Proceedings of the 6th IEEE and ACM International Symposium on Mixed and Augmented Reality. Piscataway： IEEE， 2007： 225-234.
6	MUR-ARTAL R， MONTIEL J M M， TARDÓS J D. ORB-SLAM： a versatile and accurate monocular SLAM system［J］. IEEE Transactions on Robotics， 2015， 31（5）：1147-1163.
7	MUR-ARTAL R， TARDÓS J D. ORB-SLAM2： an open-source SLAM system for monocular， stereo， and RGB-D cameras［J］. IEEE Transactions on Robotics， 2017， 33（5）： 1255-1262.
8	CAMPOS C， ELVIRA R， RODRÍGUEZ J J G， et al. ORB-SLAM3： an accurate open-source library for visual， visual-inertial， and multimap SLAM［J］. IEEE Transactions on Robotics， 2021， 37（6）： 1874-1890.
9	YU Z， PENG S， NIEMEYERM， et al. MonoSDF： exploring monocular geometric cues for neural implicit surface reconstruction［C］// Proceedings of the 36th International Conference on Neural Information Processing Systems. Red Hook， NY： Curran Associates Inc.， 2022： 25018-25032.
10	CHAN E R， LIN C Z， CHAN M A， et al. Efficient geometry-aware 3D generative adversarial networks［C］// Proceedings of the 2022 IEEE/CVF Conference on Computer Vision and Pattern Recognition. Piscataway： IEEE， 2022： 16102-16112.
11	KARNEWAR A， RITSCHEL T， WANG O， et al. ReLU fields： the little non-linearity that could［C］// Proceedings of the 2022 ACM SIGGRAPH Conference. New York： ACM， 2022： No.27.
12	FRIDOVICH-KEIL S， YU A， TANCIK M， et al. Plenoxels： Radiance fields without neural networks［C］// Proceedings of the 2022 IEEE/CVF Conference on Computer Vision and Pattern Recognition. Piscataway： IEEE， 2022： 5491-5500.
13	EFTEKHAR A， SAX A， MALIK J， et al. Omnidata： a scalable pipeline for making multi-task mid-level vision datasets from 3D scans［C］// Proceedings of the 2021 IEEE/CVF International Conference on Computer Vision. Piscataway： IEEE， 2021： 10766-10776.
14	SARLIN P E， UNAGAR A， LARSSON M， et al. Back to the feature： learning robust camera localization from pixels to pose［C］// Proceedings of the 2021 IEEE/CVF Conference on Computer Vision and Pattern Recognition. Piscataway： IEEE， 2021： 3246-3256.
15	SHAN W， LU H， WANG S， et al. Improving robustness and accuracy via relative information encoding in 3D human pose estimation［C］// Proceedings of the 29th ACM International Conference on Multimedia. New York： ACM， 2021： 3446-3454.
16	LIU Z， LIN Y， CAO Y， et al. Swin Transformer： hierarchical vision Transformer using shifted windows［C］// Proceedings of the 2021 IEEE/CVF International Conference on Computer Vision. Piscataway： IEEE， 2021： 9992-10002.
17	CAMPOS C， MONTIEL J M M， TARDÓS J D. Inertial-only optimization for visual-inertial initialization［C］// Proceedings of the 2020 IEEE International Conference on Robotics and Automation. Piscataway： IEEE， 2020： 51-57.
18	ELVIRA R， TARDÓS J D， MONTIEL J M M. ORBSLAM-Atlas： a robust and accurate multi-map system［C］// Proceedings of the 2019 IEEE/RSJ International Conference on Intelligent Robots and Systems. Piscataway： IEEE， 2019： 6253-6259.
19	赵珊，管启，丁德锐，等. COVFast-LCD：一种组合ORB和VLAD特征的快速回环检测算法［J］. 小型微型计算机系统， 2023， 44（6）：1318-1323.
20	许芬，王振. 基于Kinect传感器和ORB特征的视觉SLAM算法设计与实现［J］. 计算机工程与科学， 2018， 40（5）： 836-841.
21	HOU L， XU X， ITO T， et al. An optimization-based IMU/lidar/camera co-calibration method［C］// Proceedings of the 7th International Conference on Robotics and Automation Engineering. Piscataway： IEEE， 2022： 118-122.
22	HUAI J， ZHUANG Y， LIN Y， et al. Continuous-time spatiotemporal calibration of a rolling shutter camera-IMU system［J］. IEEE Sensors Journal， 2022， 22（8）： 7920-7930.
23	REHDER J， NIKOLIC J， SCHNEIDER T， et al. Extending kalibr： calibrating the extrinsics of multiple IMUs and of individual axes［C］// Proceedings of the 2016 IEEE International Conference on Robotics and Automation. Piscataway： IEEE， 2016： 4304-4311.
24	KANNALA J， BRANDT S S. A generic camera model and calibration method for conventional， wide-angle， and fish-eye lenses［J］. IEEE Transactions on Pattern Analysis and Machine Intelligence， 2006， 28（8）： 1335-1340.
25	FURGALE P， REHDER J， SIEGWART R. Unified temporal and spatial calibration for multi-sensor systems［C］// Proceedings of the 2013 IEEE/RSJ International Conference on Intelligent Robots and Systems. Piscataway： IEEE， 2013： 1280-1286.
26	WANG Z， PANG B， SONG Y， et al. Robust visual-inertial odometry based on a Kalman filter and factor graph［J］. IEEE Transactions on Intelligent Transportation Systems， 2023， 24（7）： 7048-7060.
27	YEH S H， WANG D， YAN W， et al. Detection of camera model inconsistency and the existence of optical image stabilization system［C］// Proceedings of the IEEE 18th International Conference on Automation Science and Engineering. Piscataway： IEEE， 2022： 1358-1363.
28	CAI J， YANG K， CHENG L， et al. Pixel-wise fisheye image correction method with single-view phase target［J］. IEEE Photonics Technology Letters， 2022， 34（19）： 1038-1041.
29	YIN H， LIU P X， ZHENG M. Stereo visual-inertial odometry with online initialization and extrinsic self-calibration［J］. IEEE Transactions on Instrumentation and Measurement， 2023， 72： No.9508210.
30	QIN T， LI P， SHEN S. VINS-Mono： a robust and versatile monocular visual-inertial state estimator［J］. IEEE Transactions on Robotics， 2018， 34（4）： 1004-1020.
31	FENG L， ZHANG X， PENG X， et al. Monocular visual-inertial odometry with point and line features using improved line feature extraction［C］// Proceedings of the 2022 China Automation Congress. Piscataway： IEEE， 2022： 4107-4112.
32	WANG S， ZHANG A， LI Y. Feature extraction algorithm based on improved ORB with adaptive threshold［C］// Proceedings of the 2023 IEEE International Conference on Industrial Technology. Piscataway： IEEE， 2023： 1-6.
33	CHUNG C M， TSENG Y C， HSU Y C， et al. Orbeez-SLAM： a real-time monocular visual slam with orb features and nerf-realized mapping［C］// Proceedings of the 2023 IEEE International Conference on Robotics and Automation. Piscataway： IEEE， 2023： 9400-9406.
34	DAVISON A J， REID I D， MOLTON N D， et al. MonoSLAM： real-time single camera SLAM［J］. IEEE Transactions on Pattern Analysis and Machine Intelligence， 2007， 29（6）： 1052-1067.
35	AZIMI A， HOSSEININAVEH AHMADABADIAN A， REMONDINO F. PKS： a photogrammetric key-frame selection method for visual-inertial systems built on ORB-SLAM3［J］. ISPRS Journal of Photogrammetry and Remote Sensing， 2022， 191： 18-32.
36	AZIMI A， HOSSEININAVEH A， REMONDINO F. A novel geometric key-frame selection method for visual-inertial SLAM and odometry systems［J］. The International Archives of the Photogrammetry， Remote Sensing and Spatial Information Sciences， 2022， XLIII-B2-2022： 9-14.
37	WU Z， PAN S， CHEN F， et al. A comprehensive survey on graph neural networks［J］. IEEE Transactions on Neural Networks and Learning Systems， 2021， 32（1）： 4-24.
38	YU Y， LIU Y， FU F， et al. Fast extrinsic calibration for multiple inertial measurement units in visual-inertial system［C］// Proceedings of the 2023 IEEE International Conference on Robotics and Automation. Piscataway： IEEE， 2023： 1-7.

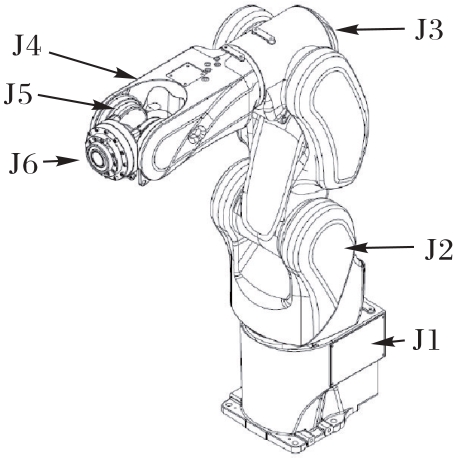

坐标轴	平移	旋转	移动速度/（mm·s^-1）
X	J2	J4	240
Y	J1	J5	240
Z	J3	J6	240

坐标轴	平移	旋转	移动速度/（mm·s^-1）
X	J2	J4	240
Y	J1	J5	240
Z	J3	J6	240

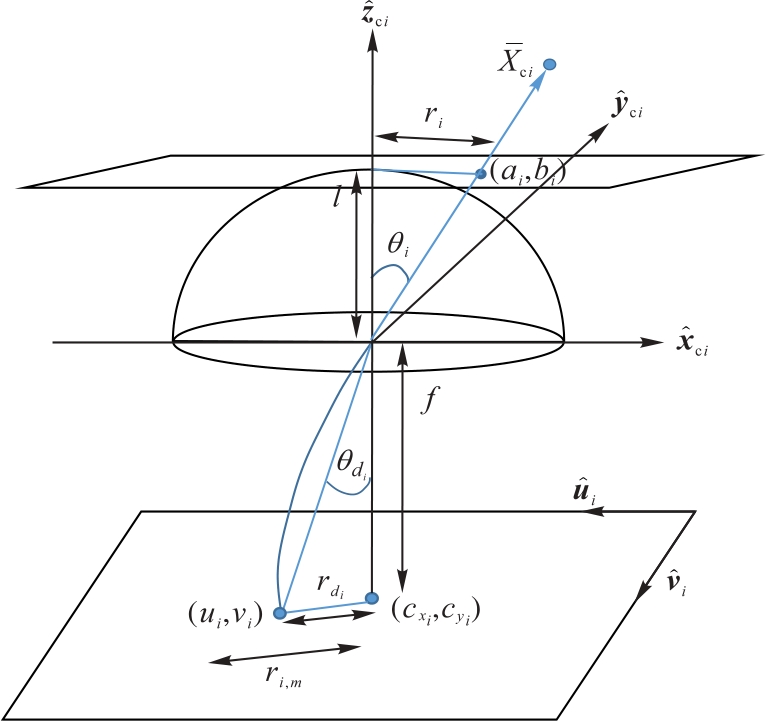

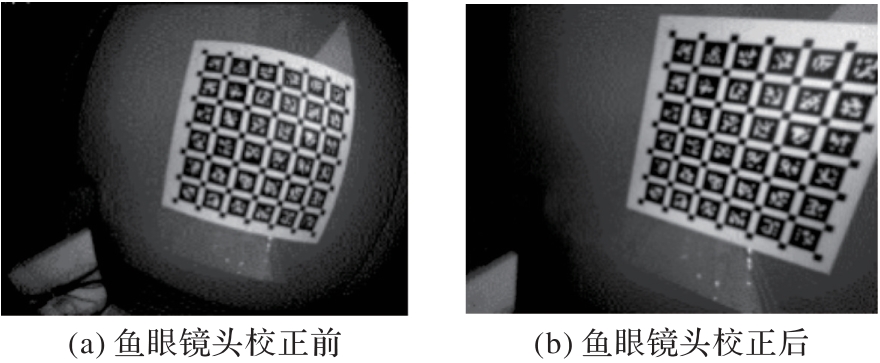

参数	Camera1	Camera2	参数	Camera1	Camera2
f_x	242.863 1	242.866 9	k₁	-0.023 4	-0.033 7
f_y	243.056 7	242.833 7	k₂	0.096 1	0.119 1
c_x	318.899 7	319.951 9	k₃	-0.066 9	-0.089 2
c_y	239.252 9	239.632 2	k₄	0.012 1	0.019 6

参数	Camera1	Camera2	参数	Camera1	Camera2
f_x	242.863 1	242.866 9	k₁	-0.023 4	-0.033 7
f_y	243.056 7	242.833 7	k₂	0.096 1	0.119 1
c_x	318.899 7	319.951 9	k₃	-0.066 9	-0.089 2
c_y	239.252 9	239.632 2	k₄	0.012 1	0.019 6

指标	Camera1/px	Camera2/px	陀螺仪/（rad·s^-1）	加速度计/（m·s^-2）
平均值	0.114 6	0.102 8	0.008 4	0.061 6
标准差	0.073 4	0.063 6	0.007 7	0.136 6
