Multi-objective optimization based on dynamic mixed flow entry timeouts in software defined network

doi:10.11772/j.issn.1001-9081.2021010079

Journal of Computer Applications ›› 2021, Vol. 41 ›› Issue (12): 3658-3665.DOI: 10.11772/j.issn.1001-9081.2021010079

• Advanced computing • Previous Articles Next Articles

Multi-objective optimization based on dynamic mixed flow entry timeouts in software defined network

Xiaohang MA¹, Lingxia LIAO²^,³(), Zhi LI¹^,², Bin QIN⁴, Han-chieh CHAO³

^1.School of Electronic Engineering and Automation，Guilin University of Electronic Technology，Guilin Guanxi 541004，China
^2.School of Electronic Information and Automation，Guilin University of Aerospace Technology，Guilin Guanxi 541004，China
^3.Department of Electrical Engineering，Taiwan Dong Hwa University，Hualien Taiwan 974301，China
^4.Information Center，Guilin University of Aerospace Technology，Guilin Guanxi 541004，China

Received:2021-01-14 Revised:2021-05-18 Accepted:2021-05-21 Online:2021-12-28 Published:2021-12-10
Contact: Lingxia LIAO
About author:MA Xiaohang， born in 1997， M. S. candidate. His research interests include software defined network， multi-objective optimization.
LI Zhi， born in 1965， Ph. D.， professor. His research interests include automatic test bus， intelligent instrument system.
QIN Bin， born in 1980. His research interests include network planning and design， information security.
CHAO Han-chieh， born in 1963， Ph. D.， professor. His research interests include machine learning， edge computing.
Supported by:
the National Natural Science Foundation of China(61962016)

基于动态混合超时的软件定义网络多目标优化

马晓航¹, 廖灵霞²^,³(), 李智¹^,², 秦斌⁴, 赵涵捷³

^1.桂林电子科技大学电子工程与自动化学院，广西桂林 541004
^2.桂林航天工业学院电子信息和自动化学院，广西桂林 541004
^3.台湾东华大学电机工程系，台湾花莲 974301
^4.桂林航天工业学院信息中心，广西桂林 541004

通讯作者: 廖灵霞
作者简介:马晓航（1997—），男，江苏连云港人，硕士研究生，主要研究方向：软件定义网络、多目标优化
李智（1965—），男，广西桂林人，教授，博士，主要研究方向：自动测试总线、智能仪器系统
秦斌（1980—），男，广西桂林人，主要研究方向：网络规划设计、信息安全
赵涵捷（1963—），男，台湾台北人，教授，博士，主要研究方向：机器学习、边缘计算。
基金资助:
国家自然科学基金资助项目(61962016)

Abstract

Abstract:

Flow entries are forwarding rules generated by controllers and guide switches to process data packets in Software Defined Network （SDN）. Every flow entry is stored in the memory of switches and has timeout， which affects the bandwidth cost in SDN control channel， the memory consumption in switches， and the system’s resource management and performance. As most of the existing SDN performance optimization schemes only have single objective， and do not consider the impact of the types and time of the flow entry timeouts， a multi-objective optimization scheme was proposed based on the dynamic mixed timeouts of flow entries to simultaneously optimize the three objects： the detection of elephant flows， the memory consumption of flow entries in switches， and the control channel bandwidth occupation. In the dynamic mixed timeout， hard-timeout and idle-timeout， two timeout methods of flow entries were combined， and the timeout type and time of flow entries were adjusted in a two-dimensional dynamic way. The NSGA-Ⅱ algorithm was used to solve the proposed optimization problem and to evaluate the impact of different timeout methods and timeout time on the three optimization objectives. The solution set of specific timeouts was combined with the solution set of Bayesian multi-objective optimization algorithm to improve the quality of the solution set. The results show that the proposed scheme can provide a higher detection accuracy， a lower bandwidth occupation， and a smaller switch memory consumption. It significantly improves the overall performance of SDNs.

Key words: Software Defined Network (SDN), flow entry timeout, multi-objective optimization, elephant flow detection, network performance optimization

摘要：

软件定义网络（SDN）中，流表项是由控制器创建并指导交换机处理数据包的转发规则。流表项保存在交换机的内存并有一定的超时时间，会影响SDN控制通道的带宽消耗、交换机的内存消耗以及系统资源和性能的管理。针对现有SDN性能优化方案大多为单一目标优化，未考虑流表项超时类型和时间对不同优化目标的影响，提出一种基于流表项动态混合超时的多目标优化方案，对大象流的侦测精度、流表项的交换机内存消耗和控制通道带宽占用进行三目标联合优化。动态混合超时将现有的两种流表项超时方式，即硬超时和空闲超时相结合，并对流表项的超时类型和时间进行双维度动态调节。通过NSGA-Ⅱ算法求解所提优化问题，评估不同超时方式和超时时间对三个优化目标的影响，并通过合并特定超时时间下的解集与贝叶斯多目标优化算法的解集对NSGA-Ⅱ算法的解集质量进行改进。结果表明，所提方案能提供更高的侦测精度、更低的带宽占用和更小的交换机内存消耗，明显提升了SDN的综合性能。

关键词: 软件定义网络, 流表项超时, 多目标优化, 大象流侦测, 网络性能优化

CLC Number:

TP393

Xiaohang MA, Lingxia LIAO, Zhi LI, Bin QIN, Han-chieh CHAO. Multi-objective optimization based on dynamic mixed flow entry timeouts in software defined network[J]. Journal of Computer Applications, 2021, 41(12): 3658-3665.

马晓航, 廖灵霞, 李智, 秦斌, 赵涵捷. 基于动态混合超时的软件定义网络多目标优化[J]. 《计算机应用》唯一官方网站, 2021, 41(12): 3658-3665.

Figures/Tables 12

Fig.1 SDN architecture

Tab. 1 Optimization model parameter description

参数名	描述
$F$	周期内数据流集合
$f i$	数集合 $F$ 的第 $i$ 条数据流
$p i j$	数据流 $f i$ 的第 $j$ 个数据包
$t i j$	包 $p i j$ 的到达时间
$t$	周期内某时刻
$f l a g f i$	$f i$ 的标签，0老鼠流，1大象流
$G$	侦测大象流使用的模型
$G (P i)$	对数据流 $f i$ 识别，0老鼠流，1大象流
$P i$	数据流 $f i$ 转发到控制器的数据总量
$F N$	标记为大象流而预测为老鼠流的流
$T P$	标记为老鼠流预测为老鼠流的流
$b w t$	周期内通过控制通道的数据量均值
$b c$	控制通道最大带宽
$P$	交换机转发到控制器的数据总量
$l i j$	数据流 $f i$ 的第 $j$ 个数据包的大小
$a i j$	数据流 $f i$ 的第 $j$ 个数据包的转发情况
$t i_u p d a t e$	数据流 $f i$ 流表项的更新时间
$E i$	$f i$ 流表项在 $t$ 时刻存活情况
$t i j_e f f e c t i v e$	$p i j$ 转发后流表项超时时间

Tab. 1 Optimization model parameter description

参数名	描述
$F$	周期内数据流集合
$f i$	数集合 $F$ 的第 $i$ 条数据流
$p i j$	数据流 $f i$ 的第 $j$ 个数据包
$t i j$	包 $p i j$ 的到达时间
$t$	周期内某时刻
$f l a g f i$	$f i$ 的标签，0老鼠流，1大象流
$G$	侦测大象流使用的模型
$G (P i)$	对数据流 $f i$ 识别，0老鼠流，1大象流
$P i$	数据流 $f i$ 转发到控制器的数据总量
$F N$	标记为大象流而预测为老鼠流的流
$T P$	标记为老鼠流预测为老鼠流的流
$b w t$	周期内通过控制通道的数据量均值
$b c$	控制通道最大带宽
$P$	交换机转发到控制器的数据总量
$l i j$	数据流 $f i$ 的第 $j$ 个数据包的大小
$a i j$	数据流 $f i$ 的第 $j$ 个数据包的转发情况
$t i_u p d a t e$	数据流 $f i$ 流表项的更新时间
$E i$	$f i$ 流表项在 $t$ 时刻存活情况
$t i j_e f f e c t i v e$	$p i j$ 转发后流表项超时时间

Fig. 2 NSGA-Ⅱ flowchart to solve optimization problem

Fig.3 Pareto Frontiers of two timeout methods under static adjustment

Fig.4 Pareto Frontiers of hard-timeout and idle-timeout under ave_sig dynamic timeout adjustment method

Fig. 5 Pareto Frontiers of hard-timeout and idle-timeout under multiple dynamic timeout adjustment method

Fig.6 Pareto Frontiers of three timeout methods under static adjustment

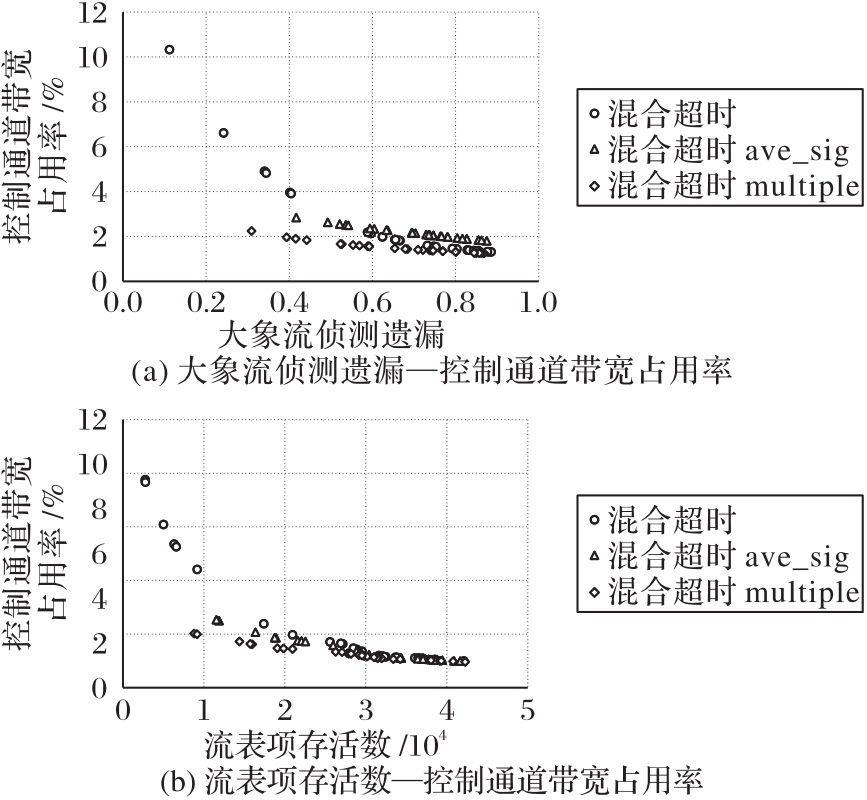

Fig.7 Pareto Frontiers of dynamic mixed timeout and static mixed timeout

Fig. 8 Pareto Frontiers of three timeout methods under ave_sig dynamic timeout adjustment method

Fig.9 Pareto Frontiers of three timeout methods under multiple dynamic timeout adjustment method

Fig.10 Mixed timeout sensitivity analysis

Fig.11 Pareto Frontiers of dynamic mixed timeout and static mixed timeout （after improvement）
