Scholar fine-grained information extraction method fused with local semantic features

doi:10.11772/j.issn.1001-9081.2022091407

Journal of Computer Applications ›› 2023, Vol. 43 ›› Issue (9): 2707-2714.DOI: 10.11772/j.issn.1001-9081.2022091407

• 2022 10th CCF Conference on Big Data • Previous Articles Next Articles

Scholar fine-grained information extraction method fused with local semantic features

Yuelin TIAN¹^,², Ruizhang HUANG¹^,²(), Lina REN¹^,²

^1.State Key Laboratory of Public Big Data （Guizhou University），Guiyang Guizhou 550025，China
^2.College of Computer Science and Technology，Guizhou University，Guiyang Guizhou 550025，China

Received:2022-09-06 Revised:2022-10-27 Accepted:2022-11-07 Online:2023-09-10 Published:2023-09-10
Contact: Ruizhang HUANG
About author:TIAN Yuelin， born in 1997， M. S. candidate. Her research interests include natural language processing， text mining， machine learning.
REN Lina， born in 1987， Ph. D. candidate. Her research interests include natural language processing， text mining， machine learning.
Supported by:
National Natural Science Foundation of China(62066007)

融合局部语义特征的学者细粒度信息提取方法

田悦霖¹^,², 黄瑞章¹^,²(), 任丽娜¹^,²

^1.公共大数据国家重点实验室（贵州大学），贵阳 550025
^2.贵州大学计算机科学与技术学院，贵阳 550025

通讯作者: 黄瑞章
作者简介:田悦霖（1997—），女，河北深州人，硕士研究生，CCF会员，主要研究方向：自然语言处理、文本挖掘、机器学习
任丽娜（1987—），女，辽宁阜新人，博士研究生，主要研究方向：自然语言处理、文本挖掘、机器学习。
基金资助:
国家自然科学基金资助项目(62066007)

Abstract

Abstract:

It is importantly used in the fields such as creation of large-scale professional talent pools to extract scholar fine-grained information such as scholar’s research directions， education experience from scholar homepages. To address the problem that the existing scholar fine-grained information extraction methods cannot use contextual semantic associations effectively， a scholar fine-grained information extraction method incorporating local semantic features was proposed to extract fine-grained information from scholar homepages by using semantic associations in the local text. Firstly， general semantic representation was learned by the full-word mask Chinese pre-trained model RoBERTa-wwm-ext. Subsequently， the representation vector of the target sentence， as well as its locally adjacent text representation vector from the general semantic embeddings， were jointly fed into a CNN （Convolutional Neural Network） to accomplish local semantic fusion， thereby obtaining a higher-dimensional representation vector for the target sentence. Finally， the representation vector of the target sentence was mapped from the high-dimensional space to the low-dimensional labeling space to extract the fine-grained information from the scholar homepage. Experimental results show that the micro-average F1 score of the scholar fine-grained information extraction method fusing local semantic features reaches 93.43%， which is higher than that of RoBERTa-wwm-ext-TextCNN method without fusing local semantic by 8.60 percentage points， which verifies the effectiveness of the proposed method on the scholar fine-grained information extraction task.

Key words: scholar information extraction, pre-trained model, local semantic fusion, TextCNN, feature extraction

摘要：

从学者主页中提取的学者细粒度信息（如学者研究方向、教育经历等）在大规模专业人才库的创建等方面具有非常重要的应用价值。针对现有学者细粒度信息提取方法无法有效利用上下文语义联系的问题，提出一种融合局部语义特征的学者信息提取方法，利用局部范围文本的语义联系对学者主页进行细粒度信息抽取。首先，通过全词掩码中文预训练模型RoBERTa-wwm-ext学习通用语义表征；之后将通用语义表征中的目标句表征向量与局部相邻文本表征向量共同输入卷积神经网络（CNN）实现局部语义融合，从而获得更高维度的目标句表征向量；最终将目标句表征向量从高维度空间映射到低维度标签空间实现学者主页细粒度信息的抽取。实验结果表明，使用此融合局部语义特征的方法进行学者细粒度信息提取的宏平均F1值达到93.43%，与未融合局部语义的RoBERTa-wwm-ext-TextCNN方法相比提高了8.60个百分点，验证了所提方法在学者细粒度信息提取任务上的有效性。

关键词: 学者信息提取, 预训练模型, 局部语义融合, TextCNN, 特征提取

CLC Number:

TP391.1

Yuelin TIAN, Ruizhang HUANG, Lina REN. Scholar fine-grained information extraction method fused with local semantic features[J]. Journal of Computer Applications, 2023, 43(9): 2707-2714.

田悦霖, 黄瑞章, 任丽娜. 融合局部语义特征的学者细粒度信息提取方法[J]. 《计算机应用》唯一官方网站, 2023, 43(9): 2707-2714.

Figures/Tables 11

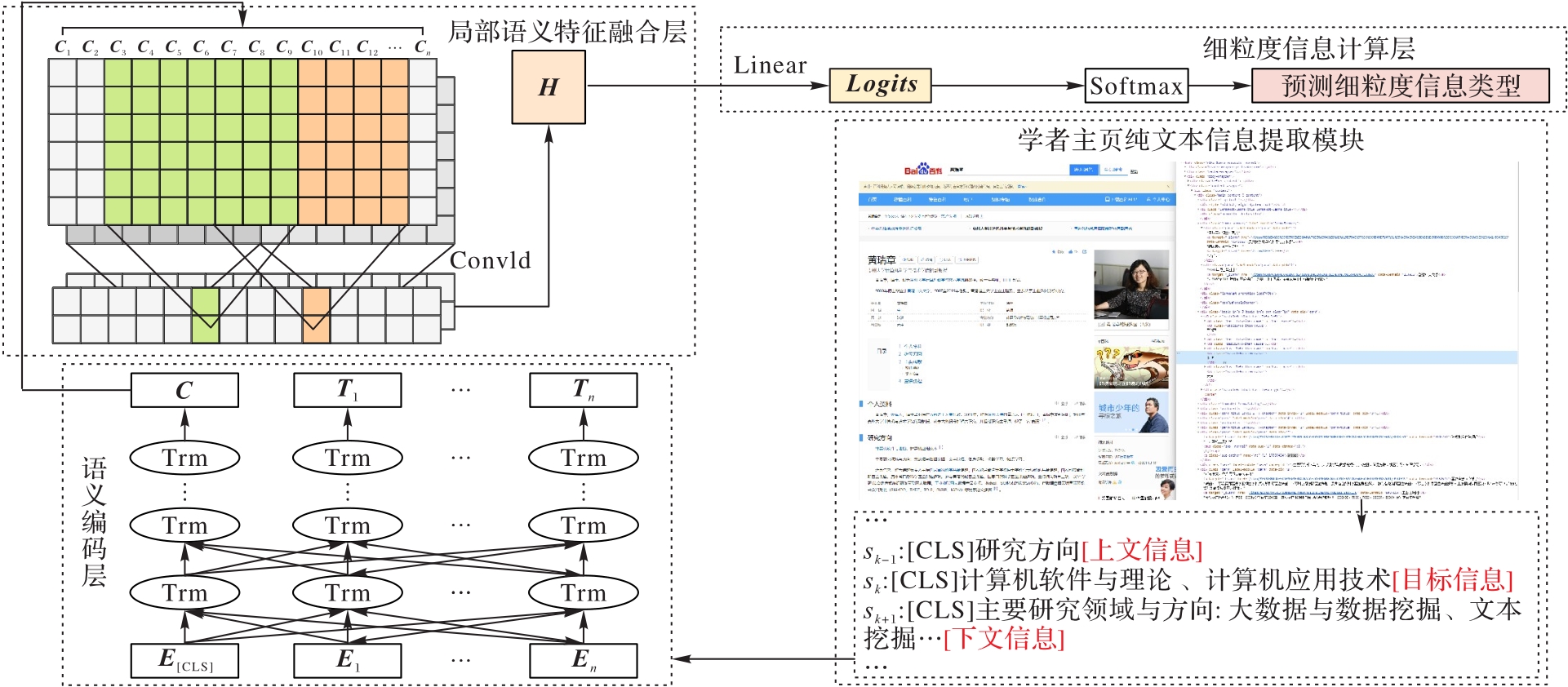

Fig. 1 Model architecture

Tab. 1 Examples of masking modes

掩码方式	示例
初始句	使用语言模型来预测下一个词的概率
典型mask方式	使用语言模型来预［M］下一个词的［M］率
WWM方式	使用语言模型来［M］［M］下一个词的［M］［M］

Fig. 2 Structure of RoBERTa-wwm-ext model

Tab. 2 Detailed explanation of fine-grained information on scholar homepage

标签	说明	举例
base_info	基本信息	姓名：xxx 职称：特任教授，博士生导师
edu	教育经历	2006 学士北京邮电大学电信工程学院，北京，中国通信工程
work	工作履历	讲师天津大学计算机科学与技术学院 2011.7~2014.6
research	研究方向	计算机视觉；计算机图形学
achievement	所获成就	已在主流的国际期刊和会议上发表SCI/EI论文120多篇，包括IEEE/ACMTrans.论文18篇，CCF A类论文22篇， B类论文17篇。
publications	学术论著	Jing Zhang， Zhanpeng Fang， Wei Chen， and Jie Tang. Diffusion of "Following" Links in Microblogging Networks. IEEE Transaction on Knowledge and Data Engineering （TKDE）， 2015， Volume 27， Issue 8， Pages 2093-2106.
projects	科研项目	天津市应用基础与前沿技术研究计划（自然科学基金）青年项目
awards	获得奖项	第三届由田机器视觉奖创新类第二名
teaching	教授课程	数字信号处理，本科生；计算摄像学，研究生
social_service	社会任职	IEEE Trans. SMCB， IEEE Trans. Multimedia， Pattern RecognitionLetters， The Visual Computer等相关国际期刊的审稿人
other	其他内容	版权所有：西安交通大学

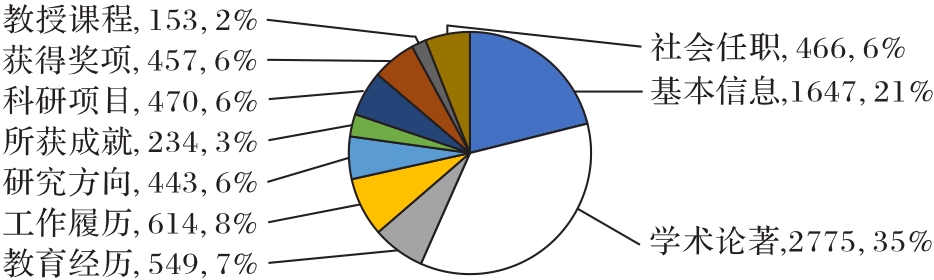

Fig. 3 Samples distribution of scholar homepage fine-grained information

Tab. 3 Hyperparameter setting

超参数	参数值	超参数	参数值
TextLength	100	Hidden layer nodes of CNN	256
LearningRate	1E-5	BatchSize	1
Dropout	0.15	Epochs	7~18
CNN-KernelSize	7

Tab. 4 Comparison of scholar information extraction results

模型	$P m a c r o$	$R m a c r o$	$F 1 m a c r o$
BERT	83.87	82.46	82.89
ELECTRA	85.26	85.59	85.33
RoBERTa	87.35	84.82	85.93
RoBERTa-TextCNN	86.50	83.47	84.83
Ours+ELECTRA-CNN	93.16	92.83	92.96
Ours+RoBERTa-CNN	93.07	93.84	93.43

Tab. 4 Comparison of scholar information extraction results

模型	$P m a c r o$	$R m a c r o$	$F 1 m a c r o$
BERT	83.87	82.46	82.89
ELECTRA	85.26	85.59	85.33
RoBERTa	87.35	84.82	85.93
RoBERTa-TextCNN	86.50	83.47	84.83
Ours+ELECTRA-CNN	93.16	92.83	92.96
Ours+RoBERTa-CNN	93.07	93.84	93.43

Tab. 5 Fine-grained information extraction results of scholar homepage

样本类别	P/%	R/%	F1/%	support
宏平均	93.07	93.84	93.43	44 193
base_info	95.06	95.12	95.09	3 454
edu	96.30	97.15	96.72	1 038
work	92.89	95.23	94.02	1 318
research	88.97	91.94	90.41	900
achievement	83.14	83.43	83.24	529
publications	98.39	98.18	98.28	6 019
projects	95.60	94.50	95.01	1 327
awards	93.88	95.18	94.01	890
teaching	88.34	89.70	88.89	316
social_service	93.59	93.42	93.48	750
other	98.68	98.42	98.55	27 652

Tab. 6 Relationship between receptive field size and model effect

kernel_size	$F 1 m a c r o$ /%	kernel_size	$F 1 m a c r o$ /%
1	84.23	11	92.99
3	91.01	13	93.03
5	92.40	15	92.54
7	92.71	17	92.48
9	92.34	19	92.67

Tab. 6 Relationship between receptive field size and model effect

kernel_size	$F 1 m a c r o$ /%	kernel_size	$F 1 m a c r o$ /%
1	84.23	11	92.99
3	91.01	13	93.03
5	92.40	15	92.54
7	92.71	17	92.48
9	92.34	19	92.67

Tab. 7 Effect comparison of pooling layer

模型	$P m a c r o$	$R m a c r o$	$F 1 m a c r o$
No-pooling	93.68	91.79	92.71
+maxpooling	93.22	92.01	92.58
+avgpooling	93.49	91.44	92.39

Tab. 7 Effect comparison of pooling layer

模型	$P m a c r o$	$R m a c r o$	$F 1 m a c r o$
No-pooling	93.68	91.79	92.71
+maxpooling	93.22	92.01	92.58
+avgpooling	93.49	91.44	92.39

Tab. 8 Experimental results of universality of different models on different datasets

模型	数据集	$P m a c r o$	$R m a c r o$	$F 1 m a c r o$
RoBERTa- TextCNN	waimai_10k	90.32	89.70	90.00
	NLPCC2014	48.56	61.06	53.03
	toutiaonews38w	82.85	82.81	82.83
Ours+ RoBERTa-CNN	waimai_10k	90.40	89.82	90.09
	NLPCC2014	52.13	59.48	55.17
	toutiaonews38w	82.84	82.82	82.83

Tab. 8 Experimental results of universality of different models on different datasets

模型	数据集	$P m a c r o$	$R m a c r o$	$F 1 m a c r o$
RoBERTa- TextCNN	waimai_10k	90.32	89.70	90.00
	NLPCC2014	48.56	61.06	53.03
	toutiaonews38w	82.85	82.81	82.83
Ours+ RoBERTa-CNN	waimai_10k	90.40	89.82	90.09
	NLPCC2014	52.13	59.48	55.17
	toutiaonews38w	82.84	82.82	82.83

References 32

1	Miniwatts Marketing Group. World Internet usage and population statistics 2022 year-Q1 estimates ［EB/OL］. ［2022-06-20］. ，%209.9%20%25%20%205% 20more%20rows%20.
2	CHANG C H， KAYED M， GIRGIS M R， et al. A survey of Web information extraction systems［J］. IEEE Transactions on Knowledge and Data Engineering， 2006， 18（10）： 1411-1428. 10.1109/tkde.2006.152
3	KARLSSON C， HAMMARFELT B. David Audretsch — a bibliometric portrait of a distinguished entrepreneurship scholar［M］// LEHMANN E K， KEILBACH M. From Industrial Organization to Entrepreneurship： A Tribute to David B. Audretsch. Cham： Springer， 2019： 169-192. 10.1007/978-3-030-25237-3_18
4	CHEN Z X， DING J P， ZHOU Z G， et al. Application of association rule mining in talent introduction analysis［J］. Science Journal of Applied Mathematics and Statistics， 2019， 7（3）： 45-50. 10.11648/j.sjams.20190703.13
5	孙玉涛，张艺蕾. 海外人才引进计划提升了我国大学科研产出吗？——以“211”工程大学化学学科为例［J］. 科研管理， 2021， 42（10）：20-27.
	SUN Y T， ZHANG Y L. Does Overseas Talent-Attracting Program increase the research output of Chinese universities？ — a study by taking the chemistry discipline of the universities of the "211 Project"［J］. Science Research Management， 2021， 42（10）： 20-27.
6	CUI Y M， CHE W X， LIU T， et al. Pre-training with whole word masking for Chinese BERT［J］. IEEE/ACM Transactions on Audio， Speech， and Language Processing， 2021， 29： 3504-3514. 10.1109/taslp.2021.3124365
7	SAID W， HASSAN M M， FAWZY A M. Smart search methods in expert database systems［J］. International Journals SSRG， 2018， 66（1）： 24-29. 10.14445/22315381/ijett-v66p205
8	SUN F， SONG D D， LIAO L J. DOM based content extraction via text density［C］// Proceedings of the 34th International ACM SIGIR Conference on Research and Development in Information Retrieval. New York： ACM， 2011： 245-254. 10.1145/2009916.2009952
9	SONG D D， SUN F， LIAO L J. A hybrid approach for content extraction with text density and visual importance of DOM nodes［J］. Knowledge and Information Systems， 2015， 42（1）： 75-96. 10.1007/s10115-013-0687-x
10	FANG Y X， XIE X Q， ZHANG X F， et al. STEM： a suffix tree-based method for Web data records extraction［J］. Knowledge and Information Systems， 2018， 55（2）： 305-331. 10.1007/s10115-017-1062-0
11	YU X， JIN Z P. Web content information extraction based on DOM tree and statistical information［C］// Proceedings of the IEEE 17th International Conference on Communication Technology. Piscataway： IEEE， 2017： 1308-1311. 10.1109/icct.2017.8359846
12	WANG R J， ZHANG Y S， HOU Z Y， et al. Webpage text extraction algorithm based on text block density and tag path features［C］// Proceedings of the SPIE 12330， 2022 International Conference on Cyber Security， Artificial Intelligence， and Digital Economy. Bellingham， WA： SPIE， 2022： No.123301G. 10.1117/12.2646343
13	BARDUCCI A， IANNACCONE S， LA GATTA V， et al. An end-to-end framework for information extraction from Italian resumes［J］. Expert Systems with Applications， 2022， 210： No.118487. 10.1016/j.eswa.2022.118487
14	YU B W， DU J P， SHAO Y X. Web page content extraction based on multi-feature fusion［EB/OL］. ［2022-06-16］. .
15	CAI D， YU S P， WEN J R， et al. VIPS： a vision-based page segmentation algorithm： MSR-TR-2003-79［R/OL］. （2003-11-01）［2022-07-23］..
16	ZELENY J， BURGET R， ZENDULKA J. Box clustering segmentation： a new method for vision-based web page preprocessing［J］. Information Processing and Management， 2017， 53（3）： 735-750. 10.1016/j.ipm.2017.02.002
17	PU J C， LIU J， WANG J. A vision-based approach for Deep Web form extraction［C］// Proceedings of the 2017 International Conference on Future Information Technology/ 2017 International Conference on Multimedia and Ubiquitous Engineering， LNEE 448. Singapore： Springer， 2017： 696-702. 10.1007/978-981-10-5041-1_111
18	陈晓雷. 自适应Web数据抽取技术研究［D］. 沈阳：辽宁大学， 2016：1-7.
	CHEN X L. Research on technique of self-adaptive Web data extraction［D］. Shenyang： Liaoning University， 2016：1-7.
19	PATNAIK S K， BABU C N， BHAVE M. Intelligent and adaptive Web data extraction system using convolutional and long short-term memory deep learning networks［J］. Big Data Mining and Analytics， 2021， 4（4）： 279-297. 10.26599/bdma.2021.9020012
20	梅雪，程学旗，郭岩，等. 一种全自动生成网页信息抽取Wrapper的方法［J］. 中文信息学报， 2008， 22（1）：22-29. 10.3969/j.issn.1003-0077.2008.01.004
	MEI X， CHENG X Q， GUO Y， et al. Fully automatic wrapper generation for Web information extraction［J］. Journal of Chinese Information Processing， 2008， 22（1）：22-29. 10.3969/j.issn.1003-0077.2008.01.004
21	顾韵华，高原，高宝，等. 基于模板和领域本体的Deep Web信息抽取研究［J］. 计算机工程与设计， 2014， 35（1）：327-332. 10.3969/j.issn.1000-7024.2014.01.061
	GU Y H， GAO Y， GAO B， et al. Research on Deep Web information extraction based on template and domain ontology［J］. Computer Engineering and Design， 2014， 35（1）： 327-332. 10.3969/j.issn.1000-7024.2014.01.061
22	郭少华，郭岩，李海燕，等. 可扩展的网页关键信息抽取研究［J］. 中文信息学报， 2015， 29（1）：97-103. 10.3969/j.issn.1003-0077.2015.01.013
	GUO S H， GUO Y， LI H Y， et al. Research on extensible web key information extraction［J］. Journal of Chinese Information Processing， 2015， 29（1）： 97-103. 10.3969/j.issn.1003-0077.2015.01.013
23	LI J， LU Y M， ZHANG X. Extracting news information based on webpage segmentation and parsing DOM tree reversely［C］// Proceedings of the 2014 International Conference on Trustworthy Computing and Services， CCIS 520. Berlin： Springer， 2015： 48-55. 10.1007/978-3-662-47401-3_7
24	张秋颖，傅洛伊，王新兵. 基于BERT-BiLSTM-CRF的学者主页信息抽取［J］. 计算机应用研究， 2020， 37（S1）：47-49.
	ZHANG Q Y， FU L Y， WANG X B. Scholar homepage information extraction based on BERT-BiLSTM-CRF［J］. Application Research of Computers， 2020， 37（S1）：47-49.
25	ZHOU Y C， SHENG Y， VO N， et al. Simplified DOM trees for transferable attribute extraction from the web［EB/OL］. （2021-01-07）［2022-06-17］.. 10.1145/3488560.3498424
26	WANG Q F， FANG Y， RAVULA A， et al. WebFormer： the Web-page transformer for structure information extraction［C］// Proceedings of the ACM Web Conference 2022. New York： ACM， 2022： 3124-3133. 10.1145/3485447.3512032
27	PUTRA EKA PRISMANA G L. Automatic Web news content extraction［J］. Journal Research of Social， Science， Economics， and Management， 2022， 1（7）： 785-794. 10.36418/jrssem.v1i7.107
28	ALARTE J， SILVA J. HybEx： a hybrid tool for template extraction［C］// Companion Proceedings of the Web Conference 2022. New York： ACM， 2022： 205-209. 10.1145/3487553.3524242
29	DEVLIN J， CHANG M W， LEE K， et al. BERT： pre-training of deep bidirectional transformers for language understanding［C］// Proceedings of the 2019 Conference of the North American Chapter of the Association for Computational Linguistics： Human Language Technologies， Volume 1 （Long and Short Papers）. Stroudsburg， PA： ACL， 2019： 4171-4186. 10.18653/v1/n18-2
30	CUI Y M， CHE W X， LIU T， et al. Revisiting pre-trained models for Chinese natural language processing［C］// Findings of the Association for Computational Linguistics： EMNLP 2020. Stroudsburg， PA： ACL， 2020： 657-668. 10.18653/v1/2020.findings-emnlp.58
31	ZHANG Y， WALLACE B. A sensitivity analysis of （and practitioners' guide to） convolutional neural networks for sentence classification［C］// Proceedings of the 8th International Joint Conference on Natural Language Processing （Volume 1： Long Papers）. ［S.l.］： Asian Federation of Natural Language Processing， 2017： 253-263. 10.18653/v1/d16-1076
32	XU Z. RoBERTa-wwm-ext fine-tuning for Chinese text classification［EB/OL］. （2021-02-24）［2022-05-13］..
