Adversarial sample embedded attention U-Net for 3D medical image segmentation

doi:10.11772/j.issn.1001-9081.2024081134

Journal of Computer Applications ›› 2025, Vol. 45 ›› Issue (9): 3011-3016.DOI: 10.11772/j.issn.1001-9081.2024081134

• Multimedia computing and computer simulation • Previous Articles

Adversarial sample embedded attention U-Net for 3D medical image segmentation

Zhixiong XU¹, Bo LI¹^,²^,³(), Xiaoyong BIAN¹^,²^,³, Qiren HU¹

^1.School of Computer Science and Technology，Wuhan University of Science and Technology，Wuhan Hubei 430065，China
^2.Institute of Big Data Science and Engineering，Wuhan University of Science and Technology，Wuhan Hubei 430072，China
^3.Key Laboratory of Hubei Province for Intelligent Information Processing and Real-time Industrial System （Wuhan University of Science and Technology），Wuhan Hubei 430081，China

Received:2024-08-11 Revised:2024-09-25 Accepted:2024-09-27 Online:2024-11-07 Published:2025-09-10
Contact: Bo LI
About author:XU Zhixiong， born in 2000， M. S. candidate. His research interests include deep learning， medical image segmentation.
BIAN Xiaoyong， born in 1976， Ph. D.， associate professor. His research interests include machine learning， object detection.
HU Qiren， born in 1999， M. S. candidate. His research interests include deep learning， object detection.
Supported by:
National Natural Science Foundation of China(61972299)

对抗样本嵌入注意力U型网络的3D医学图像分割

许志雄¹, 李波¹^,²^,³(), 边小勇¹^,²^,³, 胡其仁¹

^1.武汉科技大学计算机科学与技术学院，武汉 430065
^2.武汉科技大学大数据科学与工程研究院，武汉 430072
^3.智能信息处理与实时工业系统湖北省重点实验室（武汉科技大学），武汉 430081

通讯作者: 李波
作者简介:许志雄（2000—），男，湖北荆州人，硕士研究生，主要研究方向：深度学习、医学图像分割
边小勇（1976—），男，江西吉安人，副教授，博士，主要研究方向：机器学习、目标检测
胡其仁（1999—），男，湖北仙桃人，硕士研究生，主要研究方向：深度学习、目标检测。
基金资助:
国家自然科学基金资助项目(61972299)

Abstract

Abstract:

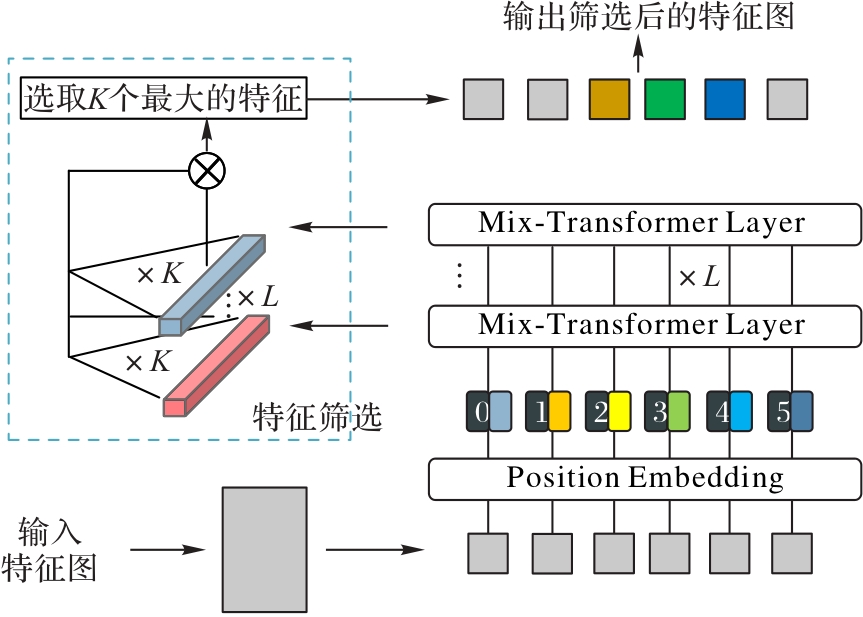

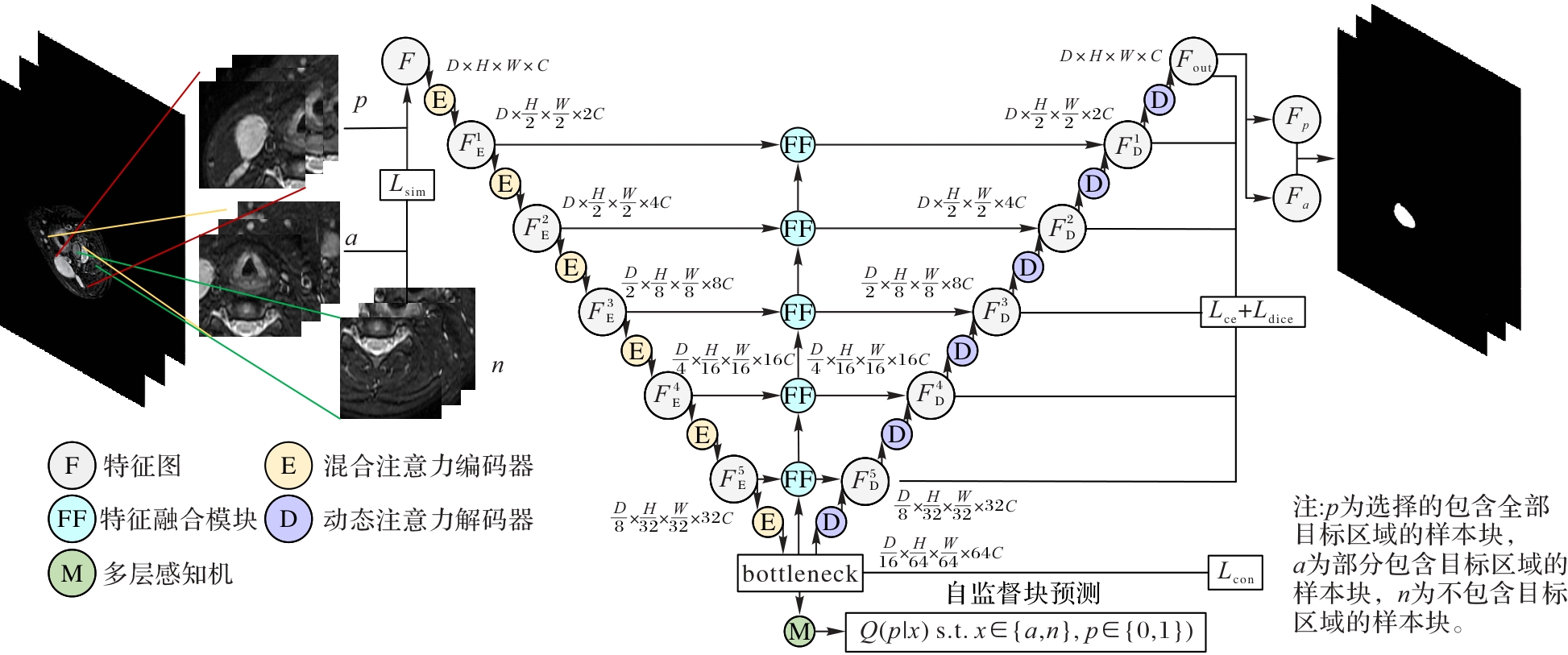

Computed Tomography （CT） and Magnetic Resonance Imaging （MRI） images are widely used in medical image depth segmentation. However， the traditional segmentation methods are affected by tumor boundary blurring and structural complexity， and ignore adversarial samples’ differentiation ability to the segmentation model， leading to challenges in achieving optimal segmentation results. To address these issues， a 3D medical image segmentation model with adversarial sample-embedded attention U-Net learning was proposed. In the model， by using the adversarial sample-embedded attention U-Net， adversarial samples were constructed through sample transformation， and tumor feature information was extracted from medical images； low-dimensional feature screening and high-dimensional feature fusion modules were introduced to purify the tumor distinguishable feature； the entire network was trained using a combined loss function based on cross-entropy， Dice loss， and contrastive loss to obtain a segmentation model rich in discriminative features. Experimental results show that on Nerve Sheath Tumor （NST） and Automated Cardiac Diagnosis Challenge （ACDC） datasets， the Dice Similarity Coefficients （DSCs） of the proposed method reach 88.14% and 91.75%， respectively， which are improved by 1.26 and 2.48 percentage points compared to those of not new U-Net （nnU-Net） method. It can be seen that the proposed method improves performance of 3D medical image segmentation with blurred tumor boundary effectively.

Key words: medical image segmentation, deep learning, attention U-Net, contrastive learning, feature fusion

摘要：

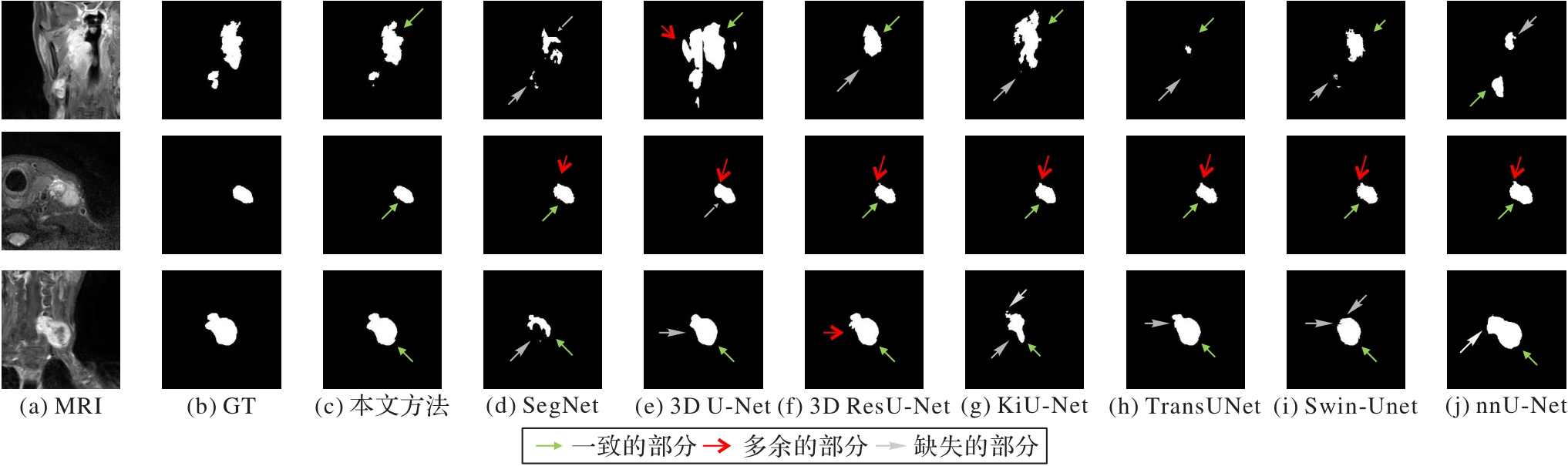

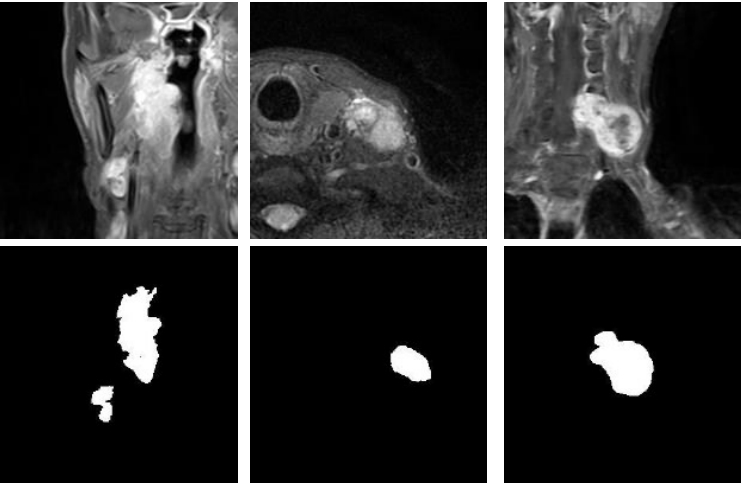

计算机断层扫描（CT）和核磁共振成像（MRI）图像广泛应用于医学图像深度分割。然而，传统的分割方法受到肿瘤边界模糊及其结构复杂的影响，未能利用对抗样本提升分割模型的区分能力，使获得最好的分割效果面临挑战。针对以上问题，提出一种对抗样本嵌入注意力U型网络学习的3D医学图像分割模型。该模型使用对抗样本嵌入的注意力U型网络以通过样本变换构建对抗样本，并提取医学图像的肿瘤特征信息；引入低维度特征筛选和高维度特征融合模块，以提纯肿瘤可区分特征；使用基于交叉熵、Dice损失和对比损失的组合损失函数训练整个网络，从而得到富于判别性的分割模型。实验结果表明，所提方法在神经鞘膜瘤（NST）和自动心脏诊断挑战（ACDC）数据集上的Dice相似性系数（DSC）分别达到88.14%和91.75%，与非新的U-Net（nnU-Net）方法相比，分别提高了1.26和2.48个百分点。可见，所提方法有效提高了在肿瘤边界模糊时的3D医学图像分割性能。

关键词: 医学图像分割, 深度学习, 注意力U型网络, 对比学习, 特征融合

CLC Number:

TP391.4

Zhixiong XU, Bo LI, Xiaoyong BIAN, Qiren HU. Adversarial sample embedded attention U-Net for 3D medical image segmentation[J]. Journal of Computer Applications, 2025, 45(9): 3011-3016.

许志雄, 李波, 边小勇, 胡其仁. 对抗样本嵌入注意力U型网络的3D医学图像分割[J]. 《计算机应用》唯一官方网站, 2025, 45(9): 3011-3016.
