Multi-target detection algorithm for traffic intersection images based on YOLOv9

doi:10.11772/j.issn.1001-9081.2024071020

Journal of Computer Applications ›› 2025, Vol. 45 ›› Issue (8): 2555-2565.DOI: 10.11772/j.issn.1001-9081.2024071020

• Artificial intelligence • Previous Articles

Multi-target detection algorithm for traffic intersection images based on YOLOv9

Yanhua LIAO¹^,², Yuanxia YAN³, Wenlin PAN⁴()

^1.School of Electrical and Information Engineering，Yunnan Minzu University，Kunming Yunnan 650504，China
^2.Yunnan Key Laboratory of Unmanned Autonomous Systems （Yunnan Minzu University），Kunming Yunnan 650504，China
^3.Chengdu Xinjin Electric Power Supply Branch Company，State Grid Sichuan Electric Power Company，Xinjin Sichuan 611430，China
^4.School of Mathematics and Computer Science，Yunnan Minzu University，Kunming Yunnan 650504，China

Received:2024-07-19 Revised:2024-11-04 Accepted:2024-11-04 Online:2024-11-19 Published:2025-08-10
Contact: Wenlin PAN
About author:LIAO Yanhua， born in 2000， M. S. candidate. His research interests include image processing.
YAN Yuanxia， born in 1997， M. S. candidate. Her research interests include image processing.
Supported by:
National Natural Science Foundation of China(62362071)

基于YOLOv9的交通路口图像的多目标检测算法

廖炎华¹^,², 鄢元霞³, 潘文林⁴()

^1.云南民族大学电气信息工程学院，昆明 650504
^2.云南省无人自主系统重点实验室（云南民族大学），昆明 650504
^3.国网四川省电力公司成都市新津供电分公司，四川新津 611430
^4.云南民族大学数学与计算机科学学院，昆明 650504

通讯作者: 潘文林
作者简介:廖炎华（2000—），男，江西宜春人，硕士研究生，主要研究方向：图像处理
鄢元霞（1997—），女，四川成都人，硕士研究生，主要研究方向：图像处理
基金资助:
国家自然科学基金资助项目(62362071)

Abstract

Abstract:

Aiming at the problem of complex traffic intersection images， the difficulty in detecting small targets， and the tendency for occlusion between targets， as well as the color distortion， noise， and blurring caused by changes in weather and lighting， a multi-target detection algorithm ITD-YOLOv9（Intersection Target Detection-YOLOv9） for traffic intersection images based on YOLOv9 （You Only Look Once version 9） was proposed. Firstly， the CoT-CAFRNet （Chain-of-Thought prompted Content-Aware Feature Reassembly Network） image enhancement network was designed to improve image quality and optimize input features. Secondly， the iterative Channel Adaptive Feature Fusion （iCAFF） module was added to enhance feature extraction for small targets as well as overlapped and occluded targets. Thirdly， the feature fusion pyramid structure BiHS-FPN （Bi-directional High-level Screening Feature Pyramid Network） was proposed to enhance multi-scale feature fusion capability. Finally， the IF-MPDIoU （Inner-Focaler-Minimum Point Distance based Intersection over Union） loss function was designed to focus on key samples and enhance generalization ability by adjusting variable factors. Experimental results show that on the self-made dataset and SODA10M dataset， ITD-YOLOv9 algorithm achieves 83.8% and 56.3% detection accuracies and 64.8 frame/s and 57.4 frame/s detection speeds， respectively； compared with YOLOv9 algorithm， the detection accuracies are improved by 3.9 and 2.7 percentage points respectively. It can be seen that the proposed algorithm realizes multi-target detection at traffic intersections effectively.

Key words: YOLOv9 (You Only Look Once version 9), traffic intersection detection, adaptive fusion, multi-target detection, deep learning

摘要：

针对交通路口图像复杂，小目标难测且目标之间易遮挡以及天气和光照变化引发的颜色失真、噪声和模糊等问题，提出一种基于YOLOv9（You Only Look Once version 9）的交通路口图像的多目标检测算法ITD-YOLOv9（Intersection Target Detection-YOLOv9）。首先，设计CoT-CAFRNet （Chain-of-Thought prompted Content-Aware Feature Reassembly Network）图像增强网络，以提升图像质量，并优化输入特征；其次，加入通道自适应特征融合（iCAFF）模块，以增强小目标及重叠遮挡目标的提取能力；再次，提出特征融合金字塔结构BiHS-FPN （Bi-directional High-level Screening Feature Pyramid Network），以增强多尺度特征的融合能力；最后，设计IF-MPDIoU （Inner-Focaler-Minimum Point Distance based Intersection over Union）损失函数，以通过调整变量因子，聚焦关键样本，并增强泛化能力。实验结果表明，在自制数据集和SODA10M数据集上，ITD-YOLOv9算法的检测精度分别为83.8%和56.3%，检测帧率分别为64.8 frame/s和57.4 frame/s。与YOLOv9算法相比，ITD-YOLOv9算法的检测精度分别提升了3.9和2.7个百分点。可见，所提算法有效实现了交通路口的多目标检测。

关键词: YOLOv9, 交通路口检测, 自适应融合, 多目标检测, 深度学习

CLC Number:

TP391.41

Yanhua LIAO, Yuanxia YAN, Wenlin PAN. Multi-target detection algorithm for traffic intersection images based on YOLOv9[J]. Journal of Computer Applications, 2025, 45(8): 2555-2565.

廖炎华, 鄢元霞, 潘文林. 基于YOLOv9的交通路口图像的多目标检测算法[J]. 《计算机应用》唯一官方网站, 2025, 45(8): 2555-2565.

Figures/Tables 20

Fig. 1 Network structure of ITD-YOLOv9

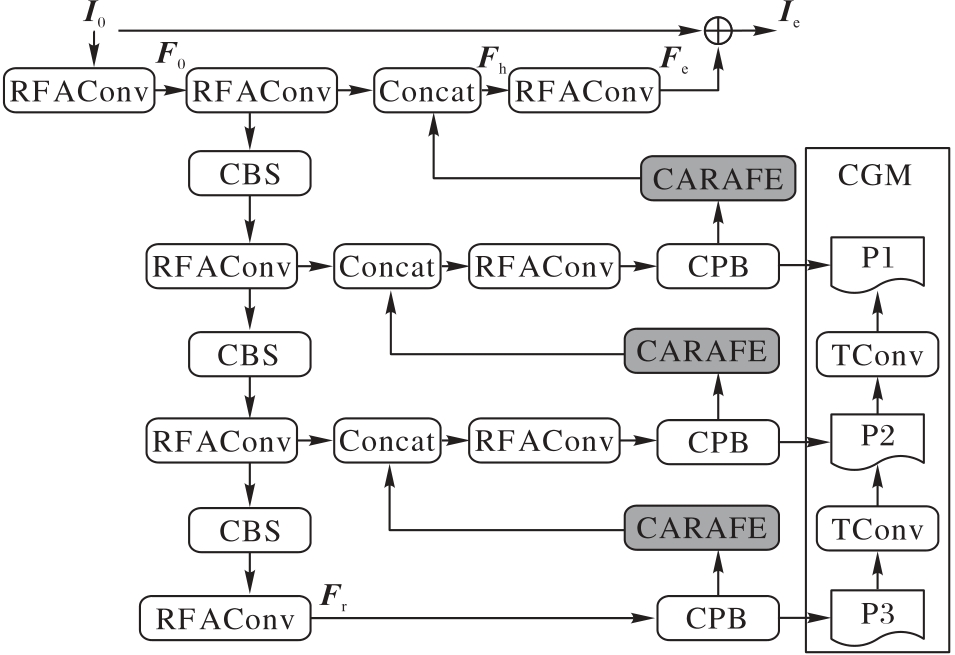

Fig. 2 Structure of CoT-CAFRNet

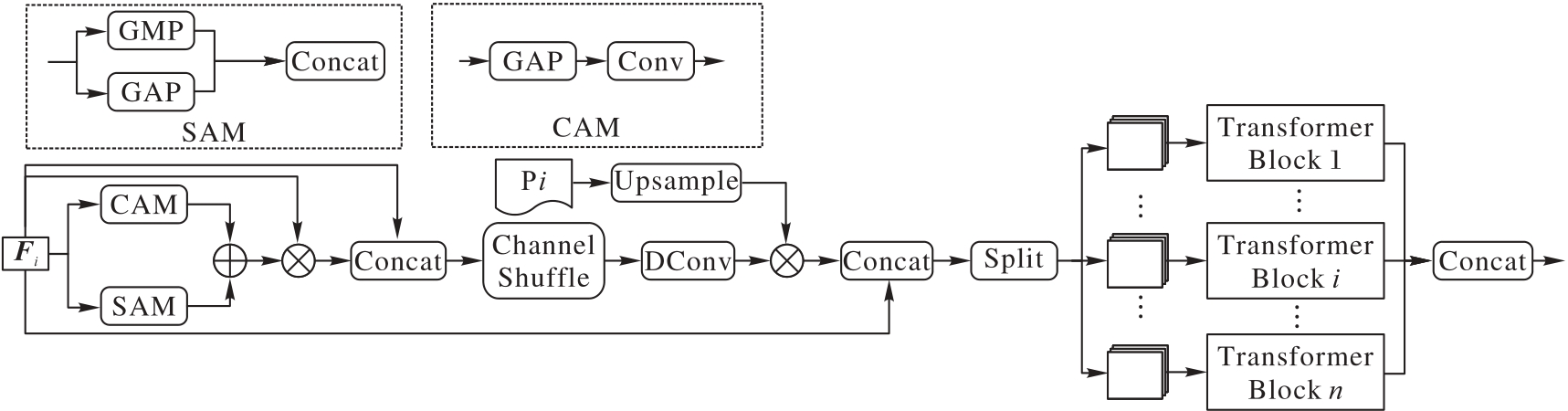

Fig. 3 Module structure of CPB

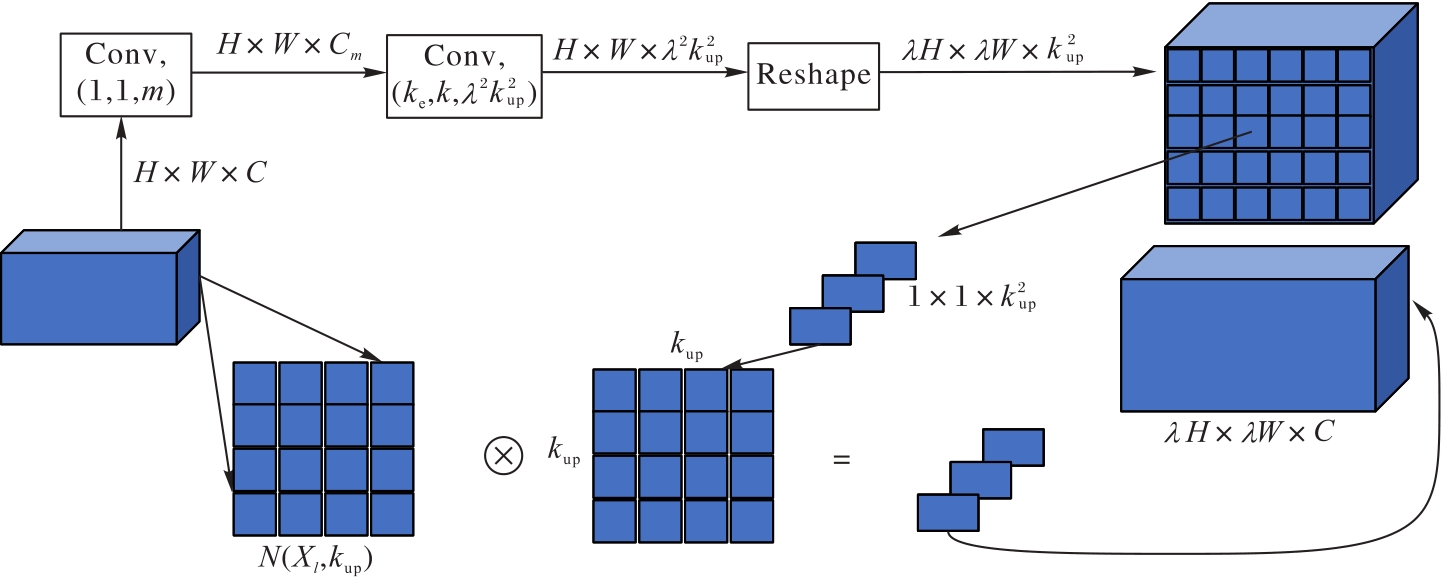

Fig. 4 Module structure of CARAFE

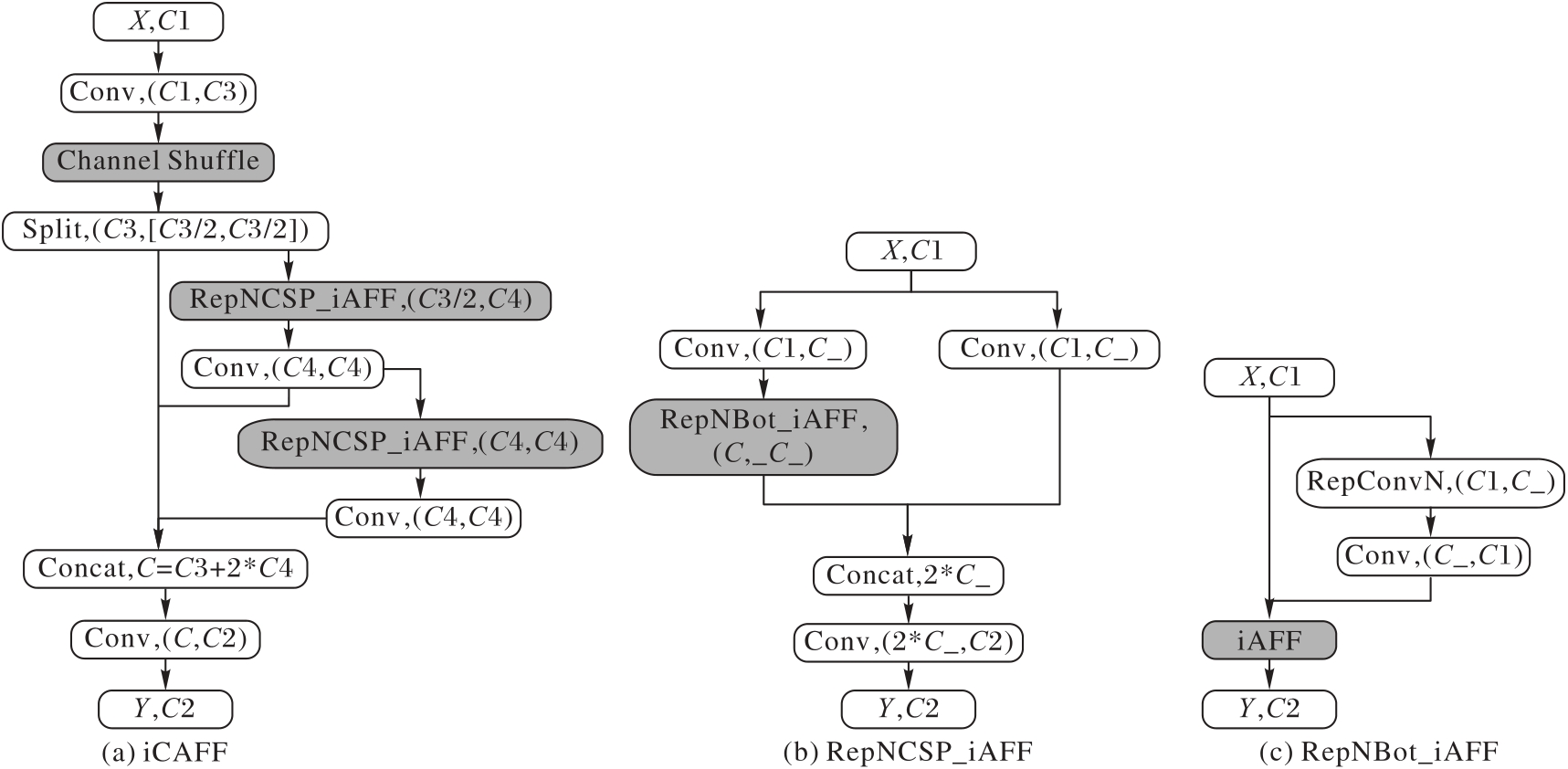

Fig. 5 Module structure of iCAFF

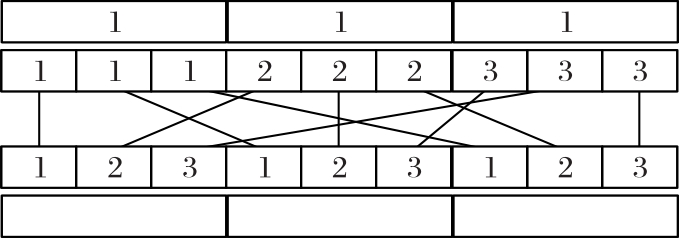

Fig. 6 Schematic diagram of channel shuffle mechanism

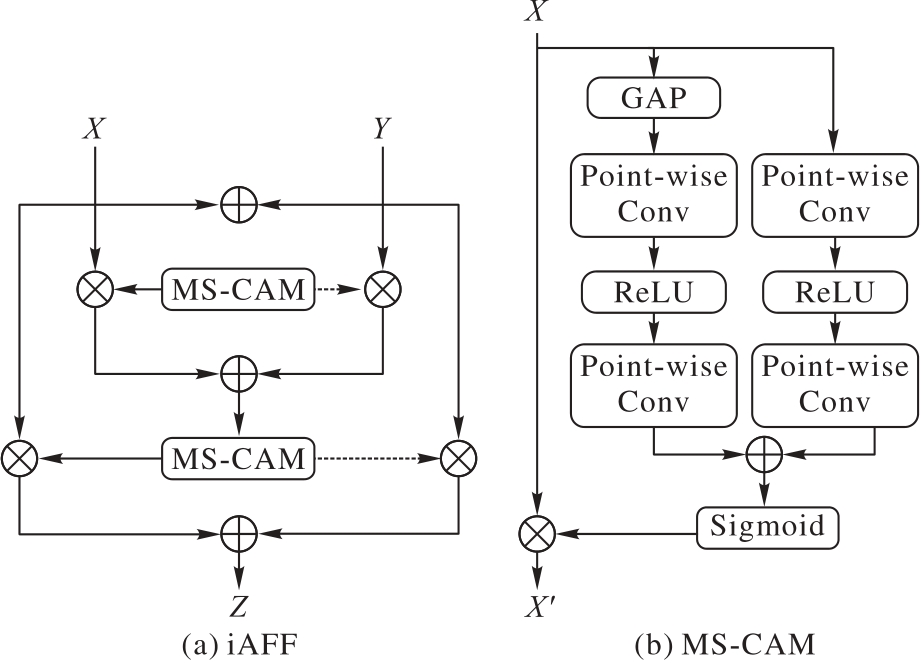

Fig. 7 Module structure of iAFF

Fig. 8 Structure of BiHS-FPN

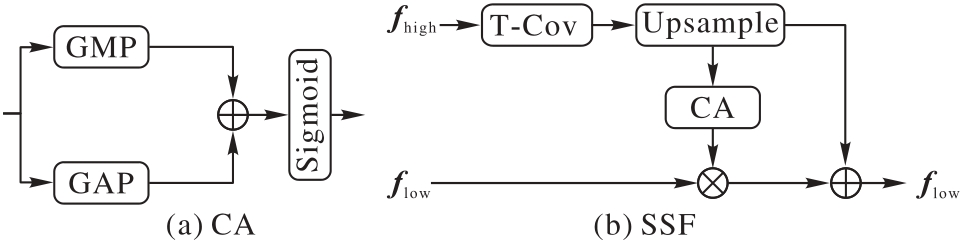

Fig. 9 Module structure of CA and SSF

Tab. 1 Training hyperparameters

参数	设置	参数	设置
Learning Rate	0.01	Batch Size	8
Image Size	640 $×$ 640	Epoch	100
Momentum	0.937	Weight Decay	0.000 5
Optimizer	SGD

Tab. 1 Training hyperparameters

参数	设置	参数	设置
Learning Rate	0.01	Batch Size	8
Image Size	640 $×$ 640	Epoch	100
Momentum	0.937	Weight Decay	0.000 5
Optimizer	SGD

Tab. 2 Comparison of target detection accuracy between ITD-YOLOv9 and YOLOv9 algorithms

算法	mAP@0.5/%	Precision/%	Recall/%	帧率/（frame·s^-1）	AP@0.5/%
算法	mAP@0.5/%	Precision/%	Recall/%	帧率/（frame·s^-1）	类别0	类别1	类别2	类别3	类别4	类别5	类别6	类别7	类别8
YOLOv9	79.9	85.1	74.8	69.6	80.4	87.2	76.2	89.3	68.4	82.9	66.8	80.8	86.9
ITD-YOLOv9	83.8	88.2	76.6	64.8	83.8	95.5	79.2	94.2	72.8	88.8	69.5	82.7	87.4

Fig. 10 Comparison of experimental results of different algorithms

Tab. 3 Comparison experiment results of image enhancement networks

图像增强网络	mAP@0.5/%	帧率/（frame·s^-1）
YOLOv9（baseline）	79.9	69.6
+Retinexformer	80.5	60.8
+CPA-Enhancer	81.3	63.2
+CoT-CAFRNet	81.6	62.9

Tab. 4 Comparison experiment results of feature pyramids

特征金字塔	mAP@0.5/%	帧率/（frame·s^-1）
PANet（baseline）	79.9	69.6
+BiFPN	80.6	79.1
+HS-FPN	79.7	87.3
+BiHS-FPN	82.0	73.4

Tab. 5 Comparison experiment results of loss functions

损失函数	mAP@0.5/%	帧率/（frame·s^-1）
CIoU（baseline）	79.9	69.6
SIoU	79.3	74.5
MPDIoU	80.7	68.5
IF-MPDIoU	81.5	68.1

Tab. 6 Comparison experiment results of loss function adjustment factors

调节因子	mAP@0.5/%
CIoU（baseline）	79.9
ratio=0.7， d=0， u=0.95	80.9
ratio=1.0， d=0， u=0.95	81.2
ratio=1.3， d=0， u=0.95	80.8
ratio=1.0， d=0， u=0.98	81.4
ratio=1.0， d=0， u=0.92	81.5

Tab. 7 Ablation experiment results

方法改进	CoT-CAFRNet	BiHS-FPN	iCAFF	IF-MPDIoU	mAP@0.5/%	帧率/（frame·s^-1）
1					79.9	69.6
2	√				81.6	62.9
3		√			82.0	73.4
4			√		80.5	68.4
5				√	81.5	68.1
6	√	√			82.7	66.9
7	√		√		81.9	61.8
8		√	√		82.4	72.5
9	√	√	√		83.0	65.9
10	√	√	√	√	83.8	64.8

Tab. 8 Comparison experiment results

算法	帧率/（frame·s^-1）	mAP@0.5/%
Faster R-CNN^［7］	18.1	63.2
SSD^［9］	38.1	64.8
YOLOv5s^［29］	60.8	65.3
YOLOv7^［29］	32.3	68.8
YOLOv8s^［29］	62.4	70.7
YOLOv9^［19］	69.6	79.9
Dynamic R-CNN^［30］	31.2	51.5
Cascade R-CNN^［31］	26.8	57.0
Deformable DETR^［32］	23.3	74.9
RTMDet^［33］	17.4	80.2
ITD-YOLOv9	64.8	83.8

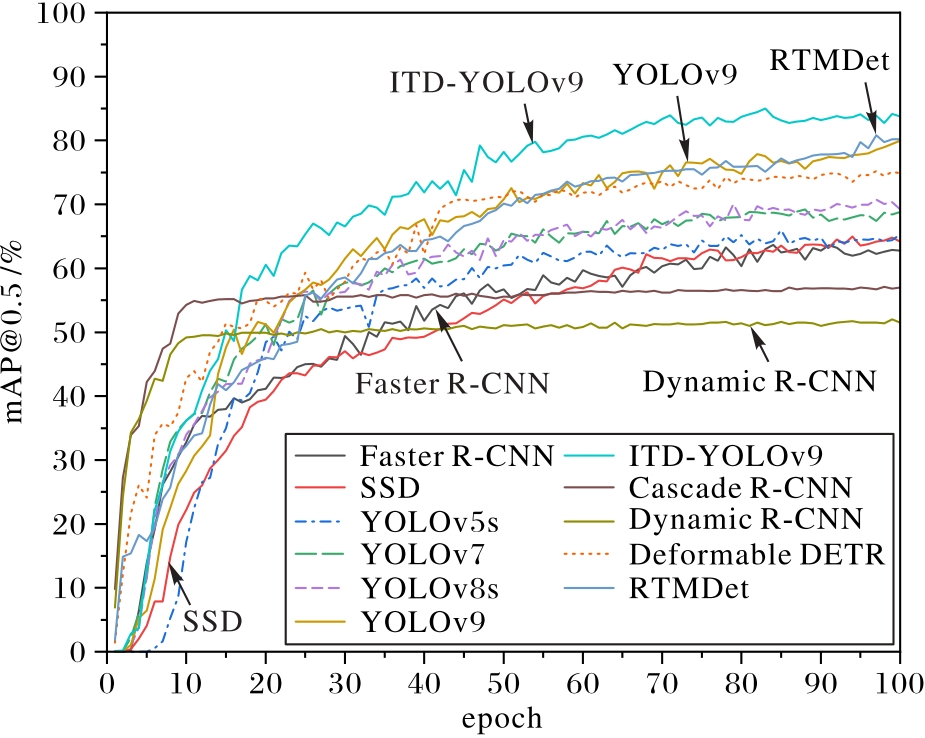

Fig. 11 Curves of different algorithms in mAP@0.5

Tab. 9 Comparison experiment results of generalization

算法	帧率/（frame·s^-1）	mAP@0.5/%
YOLOv9	63.7	53.6
Dynamic R-CNN	28.6	28.4
Cascade R-CNN	25.8	31.2
Deformable DETR	20.2	39.4
RTMDet	16.1	43.2
ITD-YOLOv9	57.4	56.3
