Classification algorithm for point cloud based on local-global interaction and structural Transformer

doi:10.11772/j.issn.1001-9081.2024050572

Abstract

Abstract:

Aiming at the problem of insufficient local and global feature extraction in the feature extraction process of point cloud classification， a point cloud classification algorithm with local-global interaction and structural Transformer was proposed. Firstly， a dual-branch parallel local-global interaction framework was proposed and used to extract local and global features respectively， where in one branch， maximum pooling and convolution were used to extract local features， and in the other branch， global features were extracted by using average pooling and Transformer. Meanwhile， considering the importance of position information in Transformer， a structural Transformer was proposed to further enhance the global structural features by applying interaction of position information with current features for several times. Finally， the local-global features were used for classification to complete the classification task of point cloud. Experimental results show that the classification Overall Accuracies （OAs） of the proposed algorithm are 93.6% and 87.5% respectively on ModelNet40 and ScanObjectNN benchmark datasets. It can be seen that the proposed local-global interaction and structural Transformer network achieve good performance in point cloud classification task.

Key words: deep learning, point cloud classification, local-global interaction, structural Transformer

摘要：

针对点云分类特征提取过程中局部与全局特征提取不充分的问题，提出一种局部-全局交互与结构Transformer的点云分类算法。首先，提出双支并行的局部-全局交互框架并分别提取局部特征和全局特征，其中一支用最大池化与卷积提取局部特征，另一支用平均池化与Transformer提取全局特征。同时，考虑Transformer中位置信息的重要性，提出结构Transformer，以多次应用位置信息与当前特征的交互，进一步增强全局结构特征。最后，利用局部-全局特征进行分类，以完成点云的分类任务。实验结果表明，所提算法在ModelNet40和ScanObjectNN数据集上分别获得了93.6%和87.5%的总体准确率（OA）。可见，所提出的局部-全局交互与结构Transformer网络在点云分类任务中取得了良好的性能。

关键词: 深度学习, 点云分类, 局部-全局交互, 结构Transformer

CLC Number:

TP391.4

Kai CHEN, Hailiang YE, Feilong CAO. Classification algorithm for point cloud based on local-global interaction and structural Transformer[J]. Journal of Computer Applications, 2025, 45(5): 1671-1676.

陈凯, 叶海良, 曹飞龙. 基于局部-全局交互与结构Transformer的点云分类算法[J]. 《计算机应用》唯一官方网站, 2025, 45(5): 1671-1676.

Figures/Tables 11

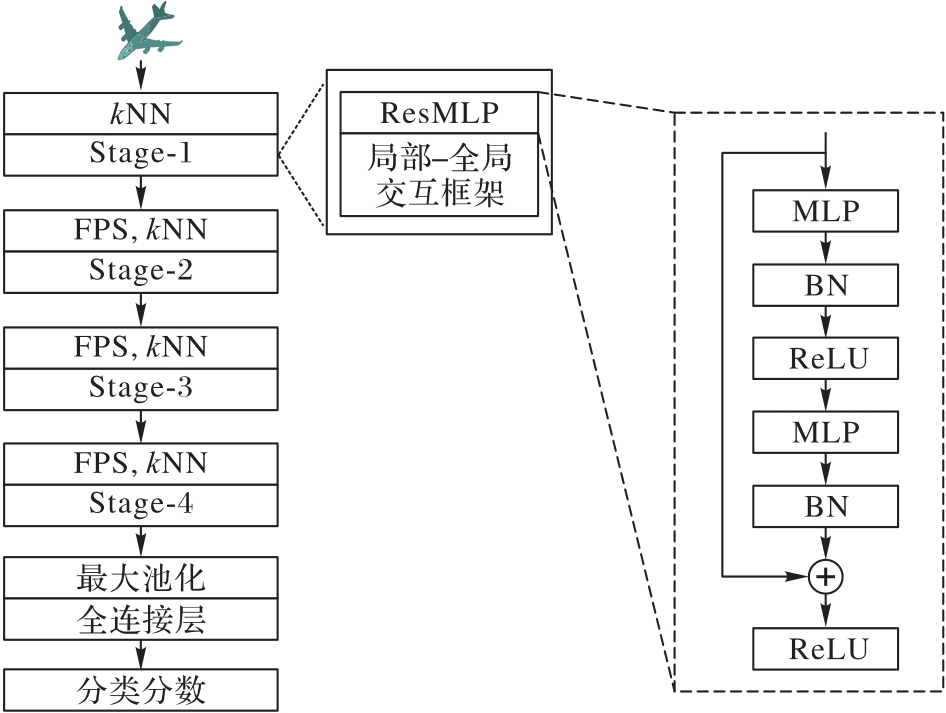

Fig. 1 Framework of LGSTNet

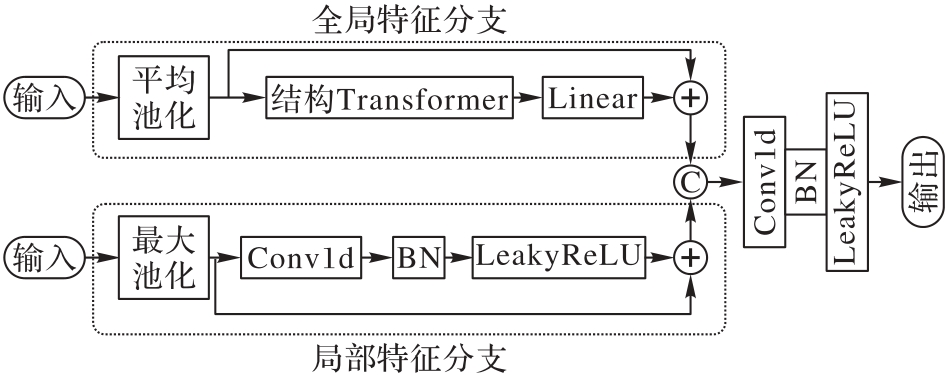

Fig. 2 Local-global interaction framework

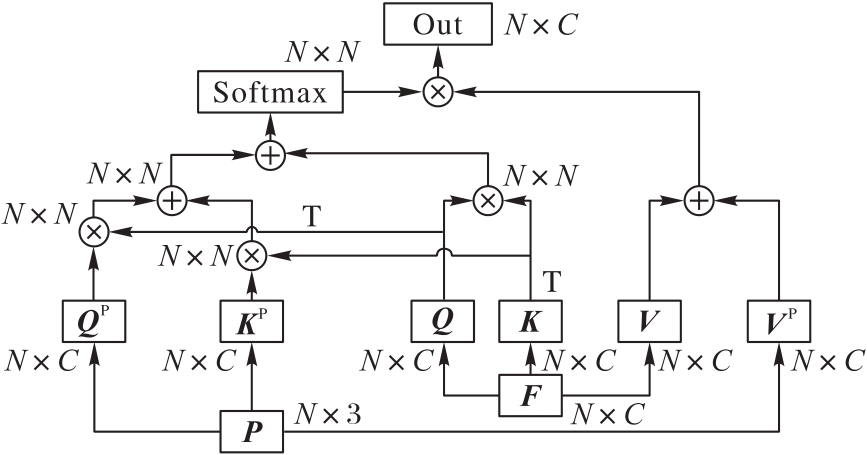

Fig. 3 Structural Transformer module

Tab. 1 Classification performance comparison on ModelNet40 dataset

算法	输入格式	输入点数	mAcc/%	OA/%
PointNet［2017］	坐标	1 024	86.0	89.2
PointNet++［2017］	坐标+法向量	5 000	—	91.9
RS-CNN［2019］	坐标	1 024	—	92.9
DGCNN［2019］	坐标	1 024	90.2	92.9
KPConv［2019］	坐标	6 800	—	92.9
DRNet ［2021］	坐标	1 024	—	93.1
PRA-Net［2021］	坐标	1 024	90.6	93.2
PCT ［2021］	坐标	1 024	—	93.2
CT ［2021］	坐标	1 024	90.8	93.1
Point-BERT［2022］	坐标	1 024	—	93.2
PatchFormer［2022］	坐标	1 024	—	93.2
CSANet［2022］	坐标	1 024	89.9	92.8
LFT-Net［2023］	坐标+法向量	1 024	89.7	93.2
AGConv［2023］	坐标	1 024	90.7	93.4
LGSTNet	坐标	1 024	90.8	93.6

Tab. 2 Classification performance comparison on ScanObjectNN dataset

算法	mAcc/%	OA/%
PointNet［2017］	63.4	68.2
PointNet++［2017］	75.4	77.9
DGCNN［2019］	73.6	78.1
MVTN［2021］	—	82.8
DRNet［2021］	78.0	80.3
CT［2021］	83.1	85.5
PointFormer［2022］	78.9	81.1
Point-BERT［2022］	—	83.1
PointMLP［2022］	83.9	85.4
RepSurf-U［2022］	83.1	86.0
GLSCN［2023］	84.1	85.8
Point-PN［2023］	—	87.1
LGSTNet	86.5	87.5

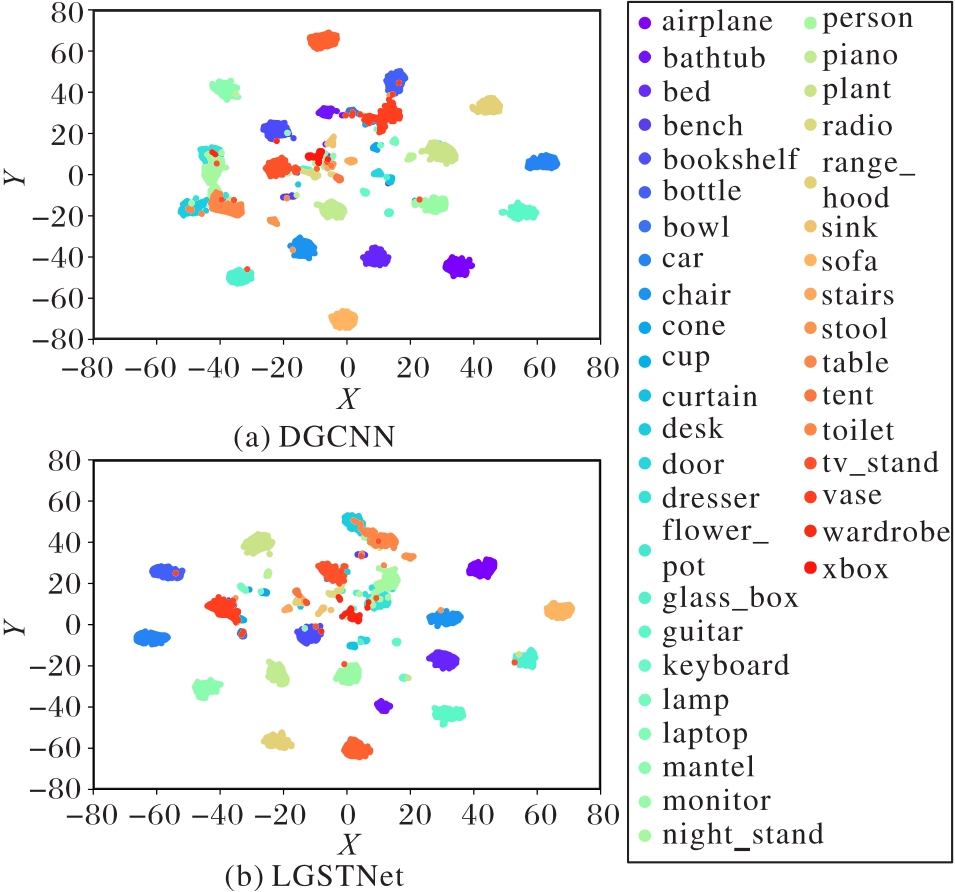

Fig. 4 t-SNE visual comparison on ModelNet40 dataset

Fig. 5 t-SNE visual comparison on ScanObjectNN dataset

Tab. 3 Module ablation experimental results

模型	局部-全局交互框架		结构Transformer	OA/%	mAcc/%
模型	局部特征分支	全局特征分支	结构Transformer	OA/%	mAcc/%
A	√			86.0	84.5
B		√		80.7	77.8
C	√	√		86.7	85.2
D	√	√	√	87.5	86.5

Tab. 4 Complexity comparison of different algorithms on ScanObjectNN dataset

算法	参数量/10⁶	吞吐量/（shape· $s - 1$ ）	GFLOPs	OA/%
PointNet	3.47	518	0.45	68.2
PointNet++	1.74	29	4.03	77.9
DGCNN	1.81	104	2.43	78.1
CT	22.91	16	12.69	85.5
PointFormer	3.99	94	3.48	81.1
PointMLP	12.60	19	15.70	85.5
LGSTNet	4.96	151	3.36	87.5

Tab. 4 Complexity comparison of different algorithms on ScanObjectNN dataset

算法	参数量/10⁶	吞吐量/（shape· $s - 1$ ）	GFLOPs	OA/%
PointNet	3.47	518	0.45	68.2
PointNet++	1.74	29	4.03	77.9
DGCNN	1.81	104	2.43	78.1
CT	22.91	16	12.69	85.5
PointFormer	3.99	94	3.48	81.1
PointMLP	12.60	19	15.70	85.5
LGSTNet	4.96	151	3.36	87.5

Tab. 5 Influence of k on performance on ScanObjectNN dataset

k	mAcc/%	OA/%	k	mAcc/%	OA/%
8	81.8	84.0	20	84.8	86.7
12	83.3	85.4	24	84.8	86.6
16	86.5	87.5

Tab. 6 Influence of i on performance on ScanObjectNN dataset

i	mAcc/%	OA/%	参数量/10⁶
3	84.6	85.6	1.40
4	86.5	87.5	4.96
5	85.6	87.5	18.89

References 41
