Pedestrian detection algorithm based on multi-view information

doi:10.11772/j.issn.1001-9081.2024070961

Journal of Computer Applications ›› 2025, Vol. 45 ›› Issue (7): 2325-2332.DOI: 10.11772/j.issn.1001-9081.2024070961

• Multimedia computing and computer simulation • Previous Articles Next Articles

Pedestrian detection algorithm based on multi-view information

Haoyu LIU¹, Pengwei KONG², Yaoli WANG³(), Qing CHANG³

^1.College of Integrated Circuits，Taiyuan University of Technology，Jinzhong Shanxi 030600，China
^2.Shanxi Weitao Food Technology Company Limited，Linfen Shanxi 041000，China
^3.College of Electronic Information Engineering，Taiyuan University of Technology，Jinzhong Shanxi 030600，China

Received:2024-07-10 Revised:2024-09-13 Accepted:2024-09-26 Online:2025-07-10 Published:2025-07-10
Contact: Yaoli WANG
About author:LIU Haoyu， born in 1999， M. S. candidate. His research interests include computer vision， object detection， object tracking.
KONG Pengwei， born in 1978， engineer. His research interests include information security， big data.
WANG Yaoli， born in 1965， Ph. D.， associate professor. His research interests include machine vision， computational intelligence and optimal modeling， wireless sensor networks.
CHANG Qing， born in 1975， Ph. D.， associate professor. His research interests include embedded systems， audio and video （AVS coding）， information system design theory.
Supported by:
Key Research and Development Program of Shanxi(201903D321003);Enterprise Commissioned Development Program(RH2400001203)

基于多视角信息的行人检测算法

刘皓宇¹, 孔鹏伟², 王耀力³(), 常青³

^1.太原理工大学集成电路学院，山西晋中 030600
^2.山西伟涛食品科技股份有限公司，山西临汾 041000
^3.太原理工大学电子信息工程学院，山西晋中 030600

通讯作者: 王耀力
作者简介:刘皓宇（1999—），男，陕西宝鸡人，硕士研究生，主要研究方向：计算机视觉、目标检测、目标跟踪
孔鹏伟（1978—），男，山西侯马人，工程师，主要研究方向：信息安全、大数据
王耀力（1965—），男，河北定州人，副教授，博士，主要研究方向：机器视觉、计算智能与最优化建模、无线传感器网络 tyutyjs0901@163.com
常青（1975—），男，山西太原人，副教授，博士，主要研究方向：嵌入式系统、音视频（AVS编码）、信息系统设计理论。
基金资助:
山西省重点研发计划项目(201903D321003);企业委托开发项目(RH2400001203)

Abstract

Abstract:

To address the issues of false detection and missed detection caused by severe object occlusion and the lack of consideration of relationships among multiple views in the existing multi-view pedestrian detection algorithms， an improved multi-view pedestrian detection algorithm based on MVDeTr （MultiView Detection with shadow Transformer） algorithm was proposed. Firstly， during the feature extraction phase， a view enhancement module — VEM （View Enhancement Module） was designed to enhance important views by focusing on relationships among different views. Secondly， in the process of introducing multi-view information into a single view， an Efficient Multi-scale Attention （EMA） module was added to establish short-distance and long-distance dependencies， thereby improving the detection performance. Finally， based on the Shadow Transformer module in the original baseline algorithm， a new multi-view information processing module — EST （Efficient Shadow Transformer） was designed to reduce the use of redundant information in multiple views while maintaining detection effect. Experimental results show that the proposed algorithm enhances the main detection metric MODA （Multiple Object Detection Accuracy） by 1.8 percentage points， the detection metric MODP （Multiple Object Detection Precision） by 0.6 percentage points， and Recall by 1.8 percentage points on Wildtrack dataset compared to the original MVDeTr algorithm， demonstrating the effectiveness of the proposed algorithm in multi-view pedestrian detection tasks.

Key words: multi-view, pedestrian detection, MVDeTr (MultiView Detection with shadow Transformer), attention mechanism, feature enhancement

摘要：

针对现有的多视角行人检测算法中因目标遮挡严重以及未关注多视角之间关系而导致的错检和漏检等问题，提出一种基于MVDeTr（MultiView Detection with shadow Transformer）算法改进的多视角行人检测算法。首先，在特征提取阶段，设计一个视角特征增强模块VEM（View Enhancement Module），通过关注不同视角之间的关系实现对重要视角的增强；其次，在将多视角信息引入单视角的过程中，加入高效多尺度注意力（EMA）模块建立短距离和长距离依赖关系，从而提升检测效果；最后，在原始基线算法Shadow Transformer模块的基础上，设计一种新的多视角信息处理模块EST（Efficient Shadow Transformer），在保持检测效果的基础上减少多视角中冗余信息的使用。实验结果表明，在Wildtrack数据集上与原始MVDeTr算法相比，所提算法的主要检测指标MODA（Multiple Object Detection Accuracy）提升了1.8个百分点，检测指标MODP（Multiple Object Detection Precision）提升了0.6个百分点，召回率提升了1.8个百分点。可见，所提算法能很好地应用于多视角行人检测任务。

关键词: 多视角, 行人检测, MVDeTr, 注意力机制, 特征增强

CLC Number:

TP18

Haoyu LIU, Pengwei KONG, Yaoli WANG, Qing CHANG. Pedestrian detection algorithm based on multi-view information[J]. Journal of Computer Applications, 2025, 45(7): 2325-2332.

刘皓宇, 孔鹏伟, 王耀力, 常青. 基于多视角信息的行人检测算法[J]. 《计算机应用》唯一官方网站, 2025, 45(7): 2325-2332.

Figures/Tables 13

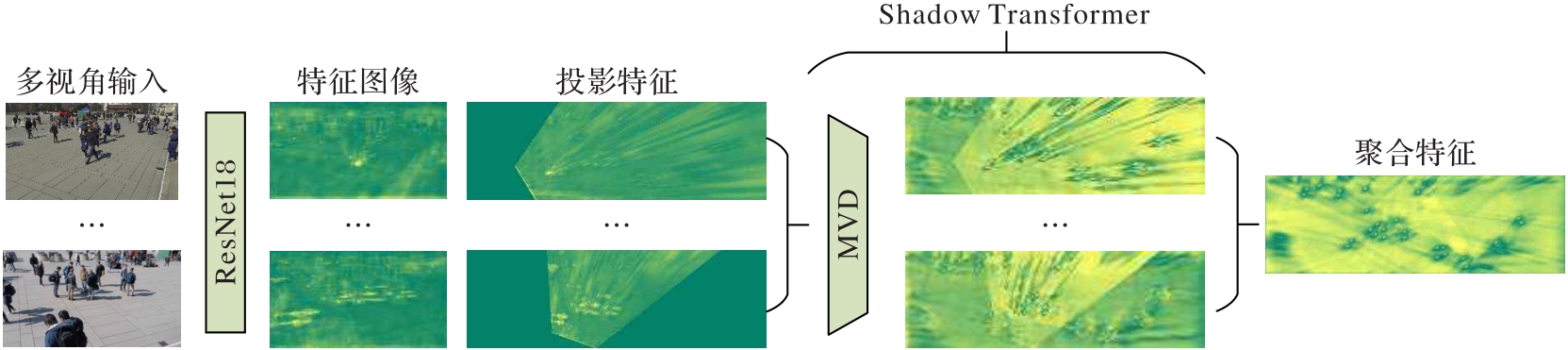

Fig. 1 Flow of MVDeTr algorithm

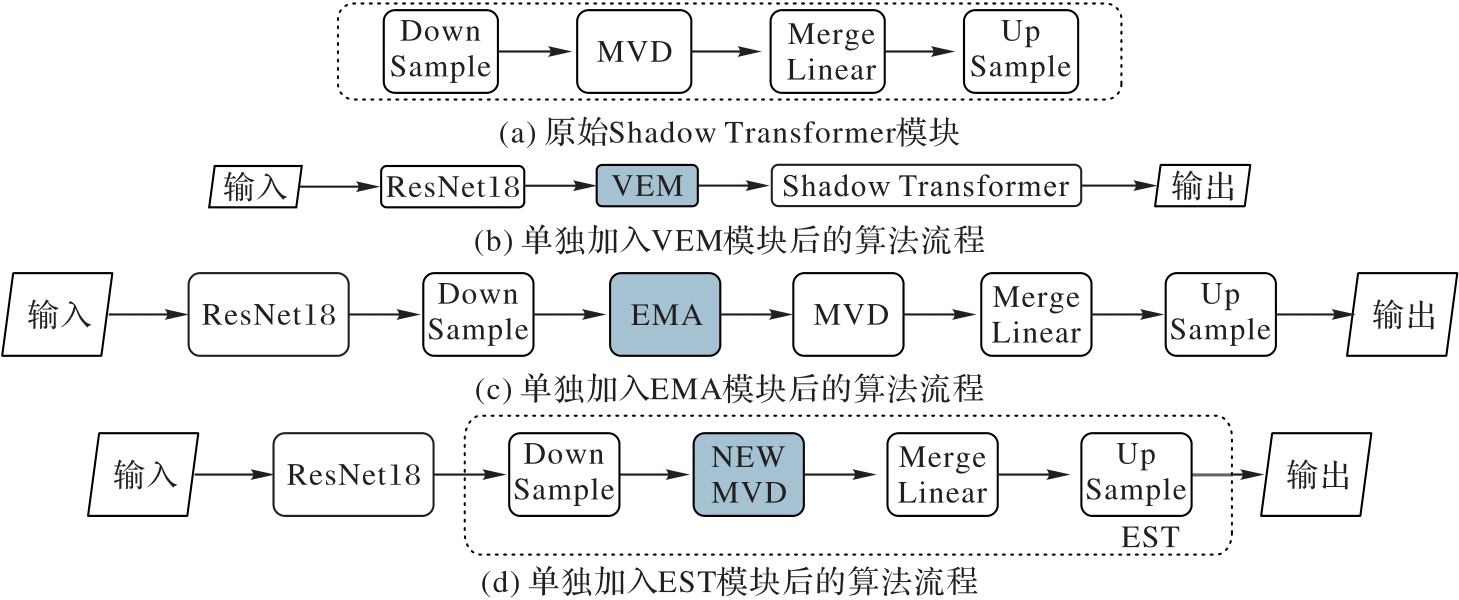

Fig. 2 Algorithm flow after introducing different modules

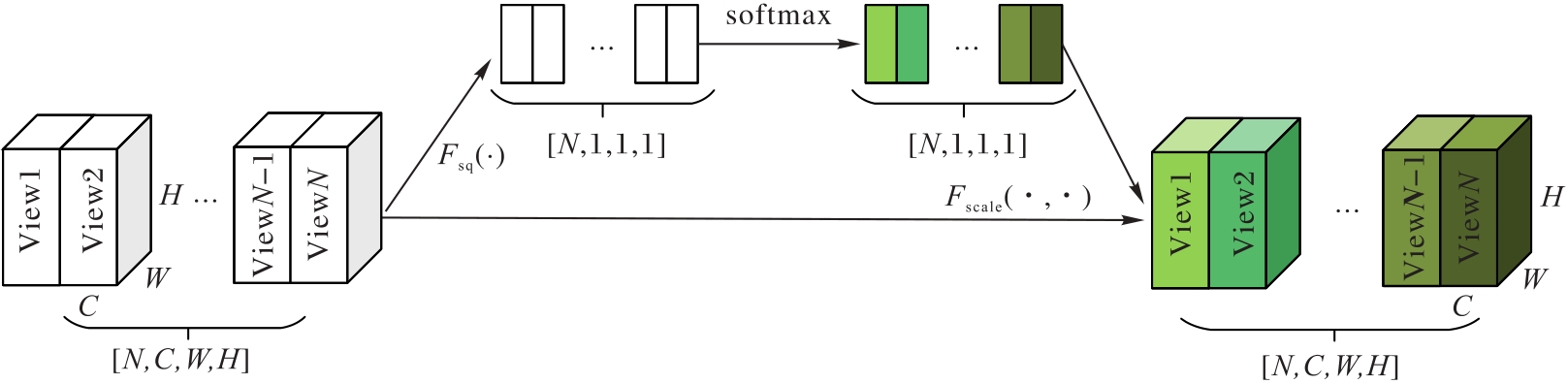

Fig. 3 VEM composition

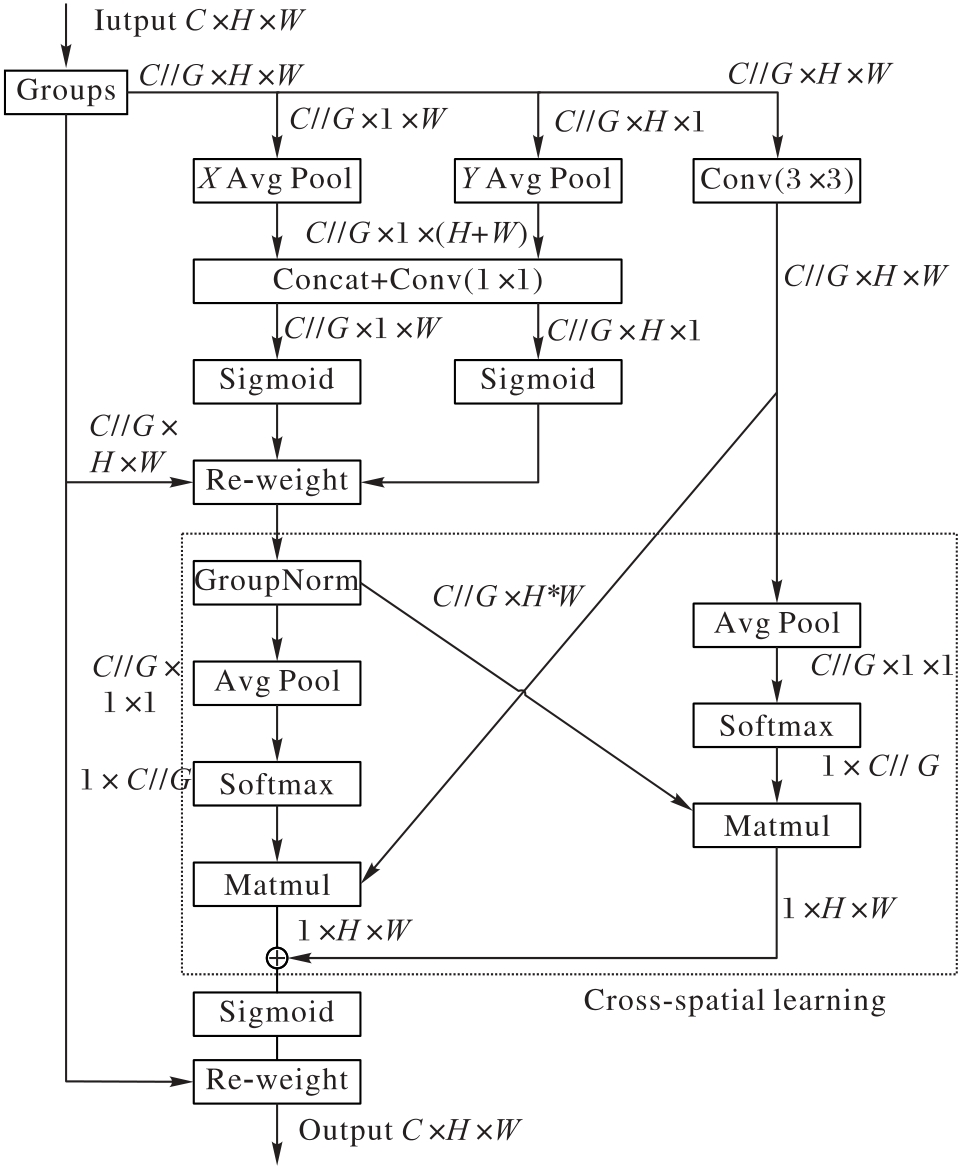

Fig. 4 Structure of EMA module

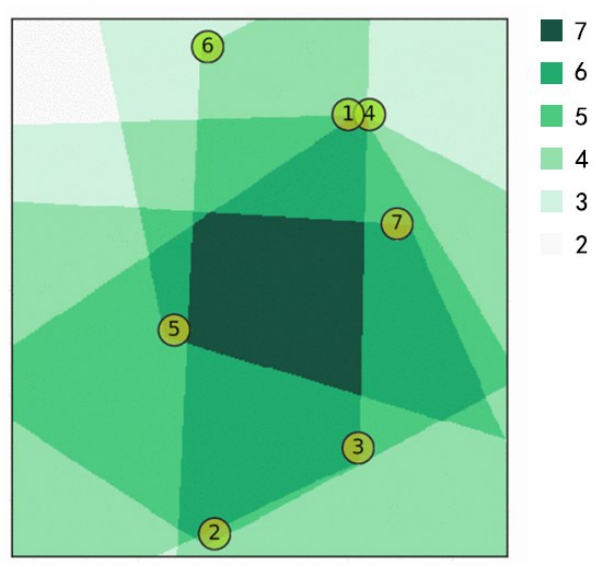

Fig. 5 Overlap among cameras’ fields of view （top view）［18］

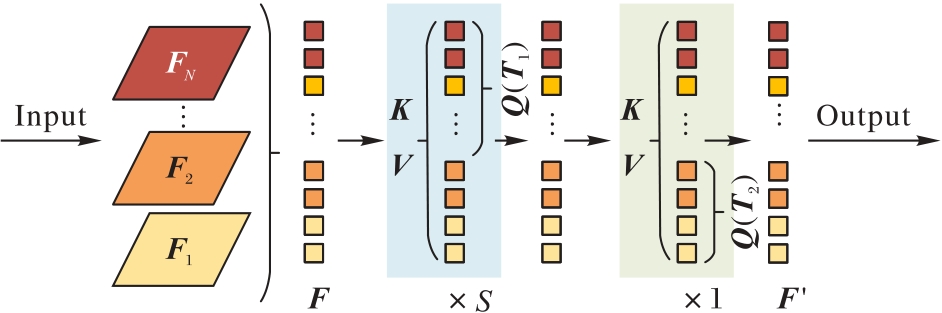

Fig. 6 Structure of EST module

Tab. 1 Experimental environment configuration

名称	参数/版本
CPU	Intel Xeon Gold 6230R CPU @ 2.10 GHz
GPU	NVIDIA RTX 3090 24G
操作系统	Ubuntu 18.04
编程语言	Python 3.8
深度学习框架	PyTorch 1.11

Tab. 2 Performance comparison of different attention mechanisms

对比算法	MODA	召回率
MVDeTr	91.5	94.0
MVDeTr-SE	92.2	95.5
MVDeTr-ECA	92.4	95.2
MVDeTr-CA	92.7	95.5
MVDeTr-EMA	93.2	95.9

Tab. 3 Computation cost and time comparison of different view partitioning strategies

对比项	浮点运算量/GFLOPs	浮点运算量减少比率/%	时间/s	时间减少比率/%
Shadow Transformer	75.7	—	1.336	—
EST （A：5 B：2）	51.0	32.6	1.089	18.5
EST （A：4 B：3）	47.2	37.6	1.033	22.7
EST （A：3 B：4）	43.6	42.4	0.985	26.3

Tab. 4 Results of ablation experiments

实验	VEM	EMA	EST	MODA	MODP	Precision	Recall
基线算法				91.5	82.1	97.4	94.0
实验1	$√$			93.0	82.4	97.3	95.6
实验2		$√$		93.2	82.4	97.2	95.9
实验3	$√$	$√$		93.4	82.9	97.3	96.1
实验4（［A：B=5：2］）	$√$	$√$	$√$	93.3	82.7	97.4	95.8
实验5（［A：B=4：3］）	$√$	$√$	$√$	93.0	82.3	97.3	95.6

Tab. 4 Results of ablation experiments

实验	VEM	EMA	EST	MODA	MODP	Precision	Recall
基线算法				91.5	82.1	97.4	94.0
实验1	$√$			93.0	82.4	97.3	95.6
实验2		$√$		93.2	82.4	97.2	95.9
实验3	$√$	$√$		93.4	82.9	97.3	96.1
实验4（［A：B=5：2］）	$√$	$√$	$√$	93.3	82.7	97.4	95.8
实验5（［A：B=4：3］）	$√$	$√$	$√$	93.0	82.3	97.3	95.6

Tab. 5 Comparison experimental results of different algorithms

算法	Wildtrack				MultiviewX
算法	MODA	MODP	Precision	Recall	MODA	MODP	Precision	Recall
RCNN&clustering	11.3	18.4	68.0	43.0	18.7	46.4	63.5	43.9
DeepMCD	67.8	64.2	85.0	82.0	70.0	73.0	85.7	83.3
Deep-Occlusion	74.1	53.8	95.0	80.0	75.2	54.7	97.8	80.2
UMPD	76.6	61.2	90.1	86.0	67.5	79.4	93.4	72.6
MVDet	88.2	75.7	94.7	93.6	83.9	79.6	96.8	86.7
SHOT	90.2	76.5	96.1	94.0	88.3	82.0	96.6	91.5
DEMVDet	90.7	75.9	95.5	95.2	89.5	81.5	98.2	93.2
MVDeTr	91.5	82.1	97.4	94.0	93.7	91.3	99.5	94.2
VEM+EMA	93.4	82.9	97.3	96.1	94.3	92.0	99.3	95.0
VEM+EMA+EST	93.3	82.7	97.4	95.8	94.2	91.8	99.4	94.8

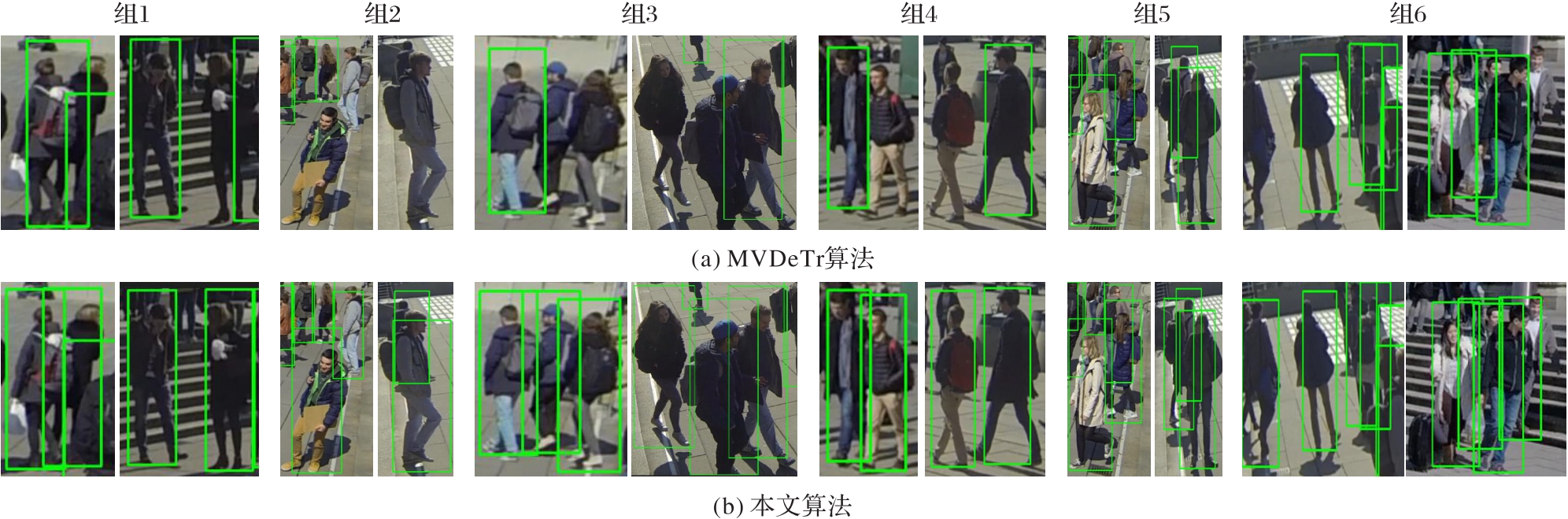

Fig. 7 Comparison of detection results between proposed algorithm and MVDeTr algorithm

Fig. 8 Detection results of proposed algorithm on MultiviewX dataset

References 24

[1]	耿艺宁，刘帅师，刘泰廷，等.基于计算机视觉的行人检测技术综述［J］.计算机应用，2021， 41（S1）： 43-50.
	GENG Y N， LIU S S， LIU T T， et al. Survey of pedestrian detection technology based on computer vision ［J］. Journal of Computer Applications， 2021， 41（S1）： 43-50.
[2]	FLEURET F， BERCLAZ J， LENGAGNE R， et al. Multicamera people tracking with a probabilistic occupancy map ［J］. IEEE Transactions on Pattern Analysis and Machine Intelligence， 2008， 30（2）： 267-282.
[3]	BAQUÉ P， FLEURET F， FUA P. Deep occlusion reasoning for multi-camera multi-target detection ［C］// Proceedings of the 2017 IEEE International Conference on Computer Vision. Piscataway： IEEE， 2017： 271-279.
[4]	陈丽，马楠，逄桂林，等.多视角数据融合的特征平衡YOLOv3行人检测研究［J］.智能系统学报，2021， 16（1）： 57-65.
	CHEN L， MA N， PANG G L， et al. Research on multi-view data fusion and balanced YOLOv3 for pedestrian detection ［J］. CAAI Transactions on Intelligent Systems， 2021， 16（1）： 57-65.
[5]	HOU Y， ZHENG L， GOULD S. Multiview detection with feature perspective transformation ［C］// Proceedings of the 2020 European Conference on Computer Vision， LNCS 12352. Cham： Springer， 2020： 1-18.
[6]	HOU Y， ZHENG L. Multiview detection with shadow transformer （and view-coherent data augmentation）［C］// Proceedings of the 29th ACM International Conference on Multimedia. New York： ACM， 2021： 1673-1682.
[7]	LIU M， ZHU C， REN S， et al. Unsupervised multi-view pedestrian detection ［C］// Proceedings of the 32nd ACM International Conference on Multimedia. New York： ACM， 2024： 1034-1042.
[8]	叶洪滨，林政宽，程红举.基于多相机特征融合的行人检测算法［J］.北京邮电大学学报，2023， 46（5）： 66-71.
	YE H B， LIN Z K， CHENG H J. Pedestrian detection algorithm based on multi-camera feature fusion ［J］. Journal of Beijing University of Posts and Telecommunications， 2023， 46（5）： 66-71.
[9]	HOU Y， LENG X， GEDEON T， et al. Optimizing camera configurations for multi-view pedestrian detection ［EB/OL］. ［2024-06-10］. .
[10]	OUYANG D， HE S， ZHANG G， et al. Efficient multi-scale attention module with cross-spatial learning ［C］// Proceedings of the 2023 IEEE International Conference on Acoustics， Speech and Signal Processing. Piscataway： IEEE， 2023： 1-5.
[11]	HE K， ZHANG X， REN S， et al. Deep residual learning for image recognition ［C］// Proceedings of the 2016 IEEE Conference on Computer Vision and Pattern Recognition. Piscataway： IEEE， 2016： 770-7783.
[12]	LAW H， DENG J. CornerNet： detecting objects as paired keypoints ［C］// Proceedings of the 2018 European Conference on Computer Vision， LNCS 11218. Cham： Springer， 2018： 765-781.
[13]	ZHOU X， WANG D， KRÄHENBÜHL P. Objects as points ［EB/OL］. ［2024-06-10］. .
[14]	CARION N， MASSA F， SYNNAEVE G， et al. End-to-end object detection with transformers ［C］// Proceedings of the 2020 European Conference on Computer Vision， LNCS 12346. Cham： Springer， 2020： 213-229.
[15]	ZHU X， SU W， LU L， et al. Deformable DETR： deformable Transformers for end-to-end object detection ［EB/OL］. ［2024-06-10］. .
[16]	VASWANI A， SHAZEER N， PARMAR N， et al. Attention is all you need ［C］// Proceedings of the 31st International Conference on Neural Information Processing Systems. Red Hook： Curran Associates Inc.， 2017： 6000-6010.
[17]	HU J， SHEN L， SUN G. Squeeze-and-excitation networks ［C］// Proceedings of the 2018 IEEE/CVF Conference on Computer Vision and Pattern Recognition. Piscataway： IEEE， 2018： 7132-7141.
[18]	CHAVDAROVA T， BAQUÉ P， BOUQUET S， et al. WILDTRACK： a multi-camera HD dataset for dense unscripted pedestrian detection ［C］// Proceedings of the 2018 IEEE/CVF Conference on Computer Vision and Pattern Recognition. Piscataway： IEEE， 2018： 5030-5039.
[19]	LI F， ZENG A， LIU S， et al. Lite DETR： an interleaved multi-scale encoder for efficient DETR ［C］// Proceedings of the 2023 IEEE/CVF Conference on Computer Vision and Pattern Recognition. Piscataway： IEEE， 2023： 18558-18567.
[20]	HOU Q， ZHOU D， FENG J. Coordinate attention for efficient mobile network design ［C］// Proceedings of the 2021 IEEE/CVF Conference on Computer Vision and Pattern Recognition. Piscataway： IEEE， 2021： 13708-13717.
[21]	WANG Q， WU B， ZHU P， et al. ECA-Net： efficient channel attention for deep convolutional neural networks ［C］// Proceedings of the 2020 IEEE/CVF Conference on Computer Vision and Pattern Recognition. Piscataway： IEEE， 2020： 11531-11539.
[22]	XU Y， LIU X， LIU Y， et al. Multi-view people tracking via hierarchical trajectory composition ［C］// Proceedings of the 2016 IEEE Conference on Computer Vision and Pattern Recognition. Piscataway： IEEE， 2016： 4256-4265.
[23]	CHAVDAROVA T， FLEURET F. Deep multi-camera people detection ［C］// Proceedings of the 16th IEEE International Conference on Machine Learning and Applications. Piscataway： IEEE， 2017： 848-853.
[24]	SONG L， WU J， YANG M， et al. Stacked homography transformations for multi-view pedestrian detection ［C］// Proceedings of the 2021 IEEE/CVF International Conference on Computer Vision. Piscataway： IEEE， 2021： 6029-6037.
