关键词: 轴承故障诊断, 深度学习, 迁移学习, 图卷积网络, 小波变换

Abstract:

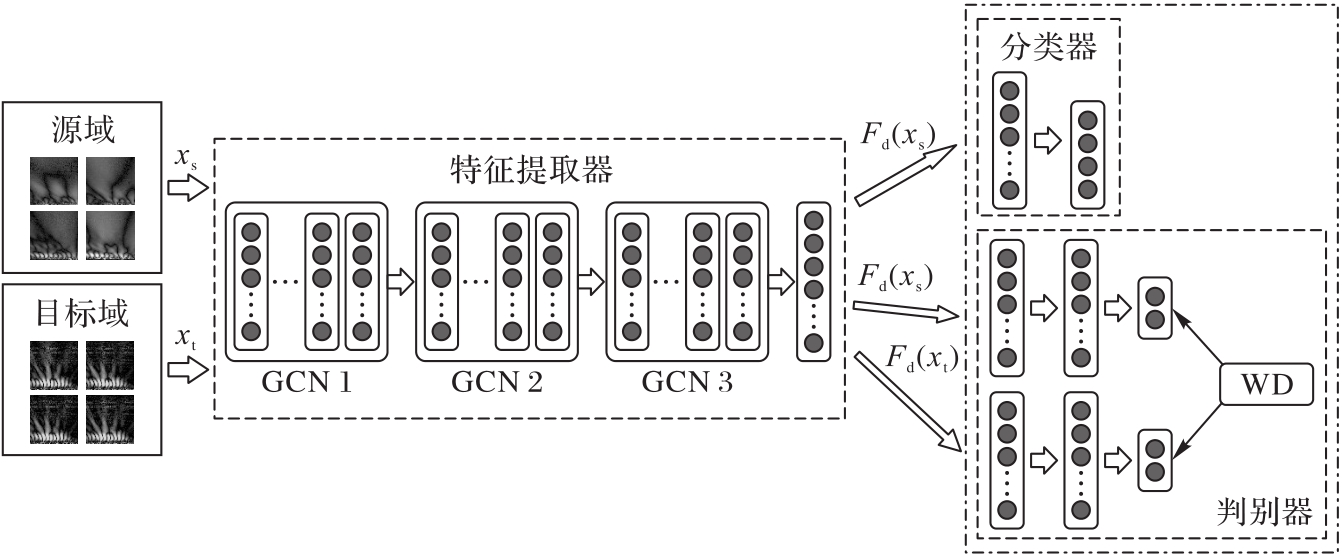

Deep learning methods are widely used in bearing fault diagnosis， but in actual engineering applications， real service fault data during bearing service are not easily collected and lack of data labels， which is difficult to train adequately. Focused on the difficulty of bearing service fault diagnosis， a transfer learning model based on Graph Convolutional Network （GCN） in bearing service fault diagnosis was proposed. In the model， the fault knowledge was learned from artificially simulated damage fault data with sufficient data and transferred to real service faults， so as to improve the diagnostic accuracy of service faults. Specifically， the original vibration signals of artificially simulated damage fault data and service fault data were converted into the time-frequency maps with both time and frequency information through wavelet transform， and the obtained maps were input into graph convolutional layers for learning， so as to effectively extract the fault feature representations in the source and target domains. Then the Wasserstein distance between the data distributions of source domain and target domain was calculated to measure the difference between two data distributions， and a fault diagnosis model that can diagnose bearing service faults was constructed by minimizing the difference in data distribution. A variety of different tasks were designed for experiments with different bearing failure data sets and different operating conditions. Experimental results show that the proposed model has the ability to diagnose bearing service faults and also can be transferred from one working condition to another， and perform fault diagnosis between different component types and different working conditions.

Key words: bearing fault diagnosis, deep learning, transfer learning, Graph Convolutional Network (GCN), wavelet transform
