Artifacts sensing generative adversarial network for low-dose CT denoising

doi:10.11772/j.issn.1001-9081.2021040700

Journal of Computer Applications ›› 2022, Vol. 42 ›› Issue (7): 2301-2310.DOI: 10.11772/j.issn.1001-9081.2021040700

Special Issue: 前沿与综合应用

• Frontier and comprehensive applications • Previous Articles

Artifacts sensing generative adversarial network for low-dose CT denoising

Zefang HAN, Xiong ZHANG(), Hong SHANGGUAN, Xinglong HAN, Jing HAN, Gang FENG, Xueying CUI

School of Electronic Information Engineering，Taiyuan University of Science and Technology，Taiyuan Shanxi 030024，China

Received:2021-05-06 Revised:2021-10-08 Accepted:2021-10-12 Online:2022-07-15 Published:2022-07-10
Contact: Xiong ZHANG
About author:HAN Zefang， born in 1996， M. S. candidate. Her research interests include medical image processing.
SHANGGUAN Hong， born in 1988， Ph. D.， associate professor. Her research interests include pattern recognition， medical image processing.
HAN Xinglong， born in 1995， M. S. candidate. His research interest includes medical image processing.
HAN Jing， born in 1998， M. S. candidate. Her research interests include medical image processing.
FENG Gang， born in 1994， M. S. candidate. His research interests include medical image processing.
CUI Xueying， born in 1978， Ph. D.， associate professor. Her research interests include image processing and reconstruction.
Supported by:
National Natural Science Foundation of China(62001321);Natural Science Foundation of Shanxi Province(201901D111261);Graduate Education Innovation Project of Shanxi Province(2020SY417)

用于低剂量CT降噪的伪影感知生成对抗网络

韩泽芳, 张雄(), 上官宏, 韩兴隆, 韩静, 奉刚, 崔学英

太原科技大学电子信息工程学院，太原 030024

通讯作者: 张雄
作者简介:韩泽芳（1996—），女，山西晋城人，硕士研究生，主要研究方向：医学图像处理
上官宏（1988—），女，山西乡宁人，副教授，博士，主要研究方向：模式识别、医学图像处理
韩兴隆（1995—），男，河南禹州人，硕士研究生，主要研究方向：医学图像处理
韩静（1998—），女，河北衡水人，硕士研究生，主要研究方向：医学图像处理
奉刚（1994—），男，四川南充人，硕士研究生，主要研究方向：医学图像处理
崔学英（1978—），女，山西太原人，副教授，博士，主要研究方向：图像处理与重建。
基金资助:
国家自然科学基金资助项目(62001321);山西省自然科学基金资助项目(201901D111261);山西省研究生教育创新项目(2020SY417)

Abstract

Abstract:

In recent years， Generative Adversarial Network （GAN） has become a new research hotspot in Low-Dose Computed Tomography （LDCT） artifact suppression because of its performance advantages. Due to irregular distribution and strong relevance to the normal tissues of artifacts， denoising performance of the existing GAN-based denoising networks is limited. Aiming at this problem， a LDCT denoising algorithm based on artifacts sensing GAN was proposed. Firstly， an artifacts direction sensing generator was designed. In this generator， on the basis of U-residual encoding and decoding structure， an Artifacts Direction Sensing Sub-module （ADSS） was added to improve the generator’s sensitivity to artifacts direction features. Secondly， the Attention Discriminator （AttD） was designed to improve the ability of distinguishing noise and artifacts. Finally， the loss functions corresponding to the network functions were designed. Through the cooperation of multiple loss functions， the denoising performance of network was improved. Experimental results show that compared to the High-Frequency Sensitive GAN （HFSGAN）， the proposed denoising algorithm has the average Peak Signal-to-Noise Ratio （PSNR） and Structural SIMilarity （SSIM） improved by 4.9% and 2.8% respectively， and has good artifact suppression effect.

Key words: Low-Dose Computed Tomography （LDCT）, image denoising, Generative Adversarial Network （GAN）, orientation convolution, attention mechanism

摘要：

近年来，生成对抗网络（GAN）用于低剂量CT（LDCT）伪影抑制表现出一定性能优势，已成为该领域新的研究热点。由于伪影分布不规律且与正常组织位置息息相关，现有GAN网络的降噪性能受限。针对上述问题，提出了一种基于伪影感知GAN的LDCT降噪算法。首先，设计了伪影方向感知生成器，该生成器在U型残差编解码结构的基础上增加了伪影方向感知子模块（ADSS），从而提高生成器对伪影方向特征的敏感度；其次，设计了注意力判别器（AttD）来提高对噪声伪影的鉴别能力；最后，设计了与网络功能相对应的损失函数，通过多种损失函数协同作用来提高网络的降噪性能。实验结果表明，与高频敏感GAN（HFSGAN）相比，该降噪算法的平均峰值信噪比（PSNR）和结构相似度（SSIM）分别提升了4.9%和2.8%，伪影抑制效果良好。

关键词: 低剂量断层扫描成像, 图像降噪, 生成对抗网络, 方向卷积, 注意力机制

CLC Number:

TP391.41

Zefang HAN, Xiong ZHANG, Hong SHANGGUAN, Xinglong HAN, Jing HAN, Gang FENG, Xueying CUI. Artifacts sensing generative adversarial network for low-dose CT denoising[J]. Journal of Computer Applications, 2022, 42(7): 2301-2310.

韩泽芳, 张雄, 上官宏, 韩兴隆, 韩静, 奉刚, 崔学英. 用于低剂量CT降噪的伪影感知生成对抗网络[J]. 《计算机应用》唯一官方网站, 2022, 42(7): 2301-2310.

Figures/Tables 15

References 38

1	张权.低剂量X线CT重建若干问题研究［D］. 南京：东南大学， 2015：1. 10.7666/d.Y2977255
	ZHANG Q. A study on some problems in image reconstruction for low-dose CT system［D］. Nanjing： Southeast University， 2015：1. 10.7666/d.Y2977255
2	ALIASGHARZADEH A， MIHANDOOST E， MOHSENI M. A survey of computed tomography dose index and dose length product level in usual computed tomography protocol［J］. Journal of Cancer Research and Therapeutics， 2018， 14（3）： 549. 10.4103/0973-1482.172713
3	BUADES A， COLL B， MOREL J M. A non-local algorithm for image denoising［C］// Proceedings of the 2005 IEEE Computer Society Conference on Computer Vision and Pattern Recognition. Piscataway： IEEE， 2005： 60-65.
4	FERUGLIO P F， VINEGONI C， GROS J， et al. Block matching 3D random noise filtering for absorption optical projection tomography［J］. Physics in Medicine and Biology， 2010， 55（18）： No.5401. 10.1088/0031-9155/55/18/009
5	代晓婷，龚敬，聂生东. 基于结构联合字典的肺部LDCT图像降噪［J］. 电子学报， 2018， 46（6）：1445-1453. 10.3969/j.issn.0372-2112.2018.06.025
	DAI X T， GONG J， NIE S D. Low-dose lung CT image denoising using joint structural dictionary［J］. Acta Electronica Sinica， 2018， 46（6）：1445-1453. 10.3969/j.issn.0372-2112.2018.06.025
6	CHEN W B， SHAO Y L， JIA L N， et al. Low-dose CT image denoising model based on sparse representation by stationarily classified sub-dictionaries［J］. IEEE Access， 2019， 7： 116859-116874. 10.1109/access.2019.2932754
7	LIU W B， WANG Z D， LIU X H， et al. A survey of deep neural network architectures and their applications［J］. Neurocomputing， 2017， 234： 11-26. 10.1016/j.neucom.2016.12.038
8	CHEN H， ZHANG Y， ZHANG W H， et al. Low-dose CT via convolutional neural network［J］. Biomedical Optics Express， 2017， 8（2）： 679-694. 10.1364/boe.8.000679
9	SHAN H M， ZHANG Y， YANG Q S， et al. 3-D convolutional encoder-decoder network for low-dose CT via transfer learning from a 2-D trained network［J］. IEEE Transactions on Medical Imaging， 2018， 37（6）： 1522-1534. 10.1109/tmi.2018.2832217
10	CHEN H， ZHANG Y， KALRA M K， et al. Low-dose CT with a residual encoder-decoder convolutional neural network［J］. IEEE Transactions on Medical Imaging， 2017， 36（12）： 2524-2535. 10.1109/tmi.2017.2715284
11	WU D F， KIM K， FAKHRI G EL， et al. A cascaded convolutional neural network for X-ray low-dose CT image denoising［EB/OL］. （2017-08-28）［2021-04-20］..
12	RONNEBERGER O， FISCHER P， BROX T. U-Net： convolutional networks for biomedical image segmentation［C］// Proceedings of the 2015 International Conference on Medical Image Computing and Computer-Assisted Intervention， LNCS 9351. Cham： Springer， 2015： 234-241.
13	LIN T Y， DOLLÁR P， GIRSHICK R， et al. Feature pyramid networks for object detection［C］// Proceedings of the 2017 IEEE Conference on Computer Vision and Pattern Recognition. Piscataway： IEEE， 2017： 936-944. 10.1109/cvpr.2017.106
14	YANG Q S， YAN P K， KALRA M K， et al. CT image denoising with perceptive deep neural networks［EB/OL］. （2017-02-22）［2021-04-20］.. 10.1007/978-3-030-13969-8_14
15	LIU H Y， JIANG B， SONG Y B， et al. Rethinking image inpainting via a mutual encoder-decoder with feature equalizations［C］// Proceedings of the 2020 European Conference on Computer Vision， LNCS 12347. Cham： Springer， 2020： 725-741.
16	GOODFELLOW I J， POUGET-ABADIE J， MIRZA M， et al. Generative adversarial nets［C］// Proceedings of the 27th International Conference on Neural Information Processing Systems. Cambridge： MIT Press， 2014： 2672-2680.
17	WOLTERINK J M， LEINER T， VIERGEVER M A， et al. Generative adversarial networks for noise reduction in low-dose CT［J］. IEEE Transactions on Medical Imaging， 2017， 36（12）：2536-2545. 10.1109/tmi.2017.2708987
18	YI X， BABYN P. Sharpness-aware low-dose CT denoising using conditional generative adversarial network［J］. Journal of Digital Imaging， 2018， 31（5）： 655-669. 10.1007/s10278-018-0056-0
19	DENTON E， CHINTALA S， SZLAM A， et al. Deep generative image models using a Laplacian pyramid of adversarial networks［C］// Proceedings of the 28th International Conference on Neural Information Processing Systems. Cambridge： MIT Press， 2015： 1486-1494.
20	ZHANG H， XU T， LI H S， et al. StackGAN： text to photo-realistic image synthesis with stacked generative adversarial networks［C］// Proceedings of the 2017 IEEE International Conference on Computer Vision. Piscataway： IEEE， 2017： 5908-5916. 10.1109/iccv.2017.629
21	LI M， HSU W， XIE X D， et al. SACNN： self-attention convolutional neural network for low-dose CT denoising with self-supervised perceptual loss network［J］. IEEE Transactions on Medical Imaging， 2020， 39（7）：2289-2301. 10.1109/tmi.2020.2968472
22	ISOLA P， ZHU J Y， ZHOU T H， et al. Image-to-image translation with conditional adversarial networks［C］// Proceedings of the 2017 IEEE Conference on Computer Vision and Pattern Recognition. Piscataway： IEEE， 2017： 5967-5976. 10.1109/cvpr.2017.632
23	YANG L， SHANGGUAN H， ZHANG X， et al. High-frequency sensitive generative adversarial network for low-dose CT image denoising［J］. IEEE Access， 2020， 8： 930-943. 10.1109/access.2019.2961983
24	HUANG X S， LI S Z， WANG Y S. Jensen-Shannon boosting learning for object recognition［C］// Proceedings of the 2005 IEEE Computer Society Conference on Computer Vision and Pattern Recognition. Piscataway： IEEE， 2005： 144-149.
25	ARJOVSKY M， CHINTALA S， BOTTOU L. Wasserstein GAN［EB/OL］. （2017-12-06）［2021-04-20］..
26	YANG Q S， YAN P K， ZHANG Y B， et al. Low-dose CT image denoising using a generative adversarial network with Wasserstein distance and perceptual loss［J］. IEEE Transactions on Medical Imaging， 2018， 37（6）： 1348-1357. 10.1109/tmi.2018.2827462
27	LI X L， YE C， YAN Y J， et al. Low-dose CT image denoising based on improved WGAN-gp［J］. Journal of New Media， 2019， 1（2）： 75-85. 10.32604/jnm.2019.06259
28	GULRAJANI I， AHMED F， ARJOVSKY M， et al. Improved training of Wasserstein GANs［C］// Proceedings of the 31st International Conference on Neural Information Processing Systems. Red Hook， NY： Curran Associates Inc.， 2017： 5769-5779.
29	MAO X D， LI Q， XIE H R， et al. Least squares generative adversarial networks［C］// Proceedings of the 2017 IEEE International Conference on Computer Vision. Piscataway： IEEE， 2017： 2813-2821. 10.1109/iccv.2017.304
30	PARK H S， BAEK J， YOU S K， et al. Unpaired image denoising using a generative adversarial network in X-ray CT［J］. IEEE Access， 2019， 7：110414-110425. 10.1109/access.2019.2934178
31	American Association of Physicists in Medicine. Low dose CT grand challenge［DS/OL］. ［2021-04-20］.. 10.1118/1.4957556
32	THOMAS L， SLOVIS M D. The ALARA （as low as reasonably achievable） concept in pediatric CT intelligent dose reduction［J］. Pediatric Radiology， 2002， 32（4）： 219-220.
33	KANDE N A， DAKHANE R， DUKKIPATI A， et al. SiameseGAN： a generative model for denoising of spectral domain optical coherence tomography images［J］. IEEE Transactions on Medical Imaging， 2021， 40（1）： 180-192. 10.1109/tmi.2020.3024097
34	YAO S S， LIN W S， OOG E P， et al. Contrast signal-to-noise ratio for image quality assessment［C］// Proceedings of the 2005 IEEE International Conference on Image Processing. Piscataway： IEEE， 2005： 1529771. 10.1109/icip.2005.1529771
35	WANG Z， BOVIK A C， SHEIKH H R， et al. Image quality assessment： from error visibility to structural similarity［J］. IEEE Transactions on Image Processing， 2004， 13（4）： 600-612. 10.1109/tip.2003.819861
36	SHEIKH H R， BOVIK A C. Image information and visual quality［J］. IEEE Transactions on Image Processing， 2006， 15（2）： 430-444. 10.1109/tip.2005.859378
37	SHEIKH H R， BOVIK A C， DE VECIANA G. An information fidelity criterion for image quality assessment using natural scene statistics［J］. IEEE Transactions on Image Processing， 2005， 14（12）： 2117-2128. 10.1109/tip.2005.859389
38	KINGMA D P， BA J L. Adam： a method for stochastic optimization［EB/OL］. （2017-01-30）［2021-04-20］..

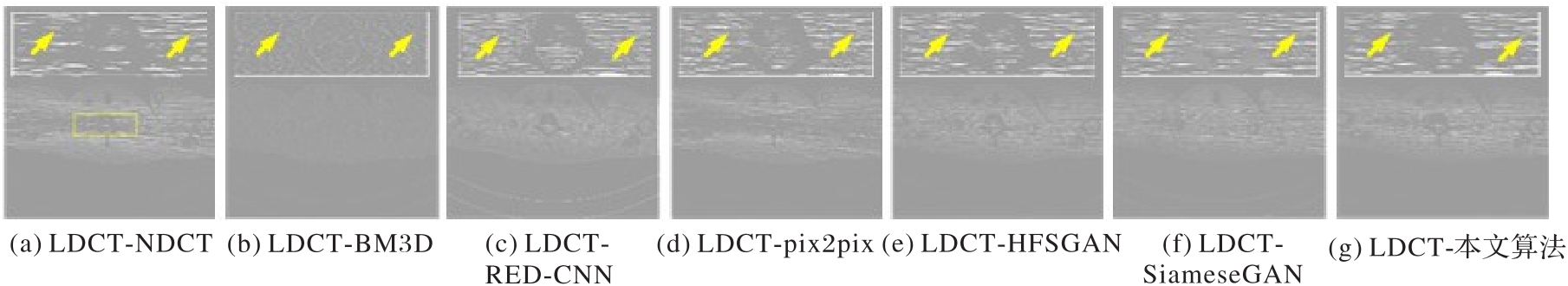

算法	PSNR/dB	SSIM	VIF	IFC
LDCT	26.789 1±1.978 2	0.810 0±0.053 5	0.364 2±0.057 9	2.416 2±0.243 6
BM3D	30.261 8±1.712 8	0.856 6±0.040 8	0.385 4±0.047 7	2.584 8±0.222 1
RED-CNN	30.511 4±1.764 7	0.866 0±0.041 8	0.390 2±0.059 9	2.602 2±0.230 5
pix2pix	28.318 3±1.659 9	0.811 1±0.054 5	0.334 2±0.054 3	2.209 1±0.203 7
HFSGAN	30.081 8±1.588 9	0.852 7±0.044 5	0.373 3±0.052 7	2.504 5±0.202 7
SiameseGAN	29.443 9±1.535 0	0.861 7±0.042 2	0.391 1±0.056 0	2.678 6±0.233 0
本文算法	31.543 2±1.720 8	0.876 4±0.040 9	0.426 2±0.058 3	2.934 8±0.249 1

算法	PSNR/dB	SSIM	VIF	IFC
LDCT	26.789 1±1.978 2	0.810 0±0.053 5	0.364 2±0.057 9	2.416 2±0.243 6
BM3D	30.261 8±1.712 8	0.856 6±0.040 8	0.385 4±0.047 7	2.584 8±0.222 1
RED-CNN	30.511 4±1.764 7	0.866 0±0.041 8	0.390 2±0.059 9	2.602 2±0.230 5
pix2pix	28.318 3±1.659 9	0.811 1±0.054 5	0.334 2±0.054 3	2.209 1±0.203 7
HFSGAN	30.081 8±1.588 9	0.852 7±0.044 5	0.373 3±0.052 7	2.504 5±0.202 7
SiameseGAN	29.443 9±1.535 0	0.861 7±0.042 2	0.391 1±0.056 0	2.678 6±0.233 0
本文算法	31.543 2±1.720 8	0.876 4±0.040 9	0.426 2±0.058 3	2.934 8±0.249 1

算法	SSIM	PSNR/dB	VIF	IFC
LDCT	0.489 9±0.124 1	19.990 5±3.928 5	0.163 8±0.040 1	1.486 1±0.561 7
BM3D	0.576 2±0.142 6	23.114 4±5.698 5	0.232 4±0.063 6	1.469 8±0.516 8
RED-CNN	0.626 8±0.092 0	23.805 8±5.118 5	0.252 7±0.051 5	1.590 3±0.506 0
pix2pix	0.489 0±0.109 0	21.754 8±3.626 2	0.152 3±0.046 1	1.160 2±0.558 5
HFSGAN	0.603 4±0.092 4	23.786 1±4.189 9	0.227 9±0.039 1	1.451 2±0.541 2
SiameseGAN	0.623 6±0.083 8	22.832 6±3.507 1	0.244 7±0.035 7	1.390 5±0.943 1
本文算法	0.651 7±0.079 3	24.962 8±4.310 1	0.306 4±0.044 4	1.729 2±0.468 5

算法	SSIM	PSNR/dB	VIF	IFC
LDCT	0.489 9±0.124 1	19.990 5±3.928 5	0.163 8±0.040 1	1.486 1±0.561 7
BM3D	0.576 2±0.142 6	23.114 4±5.698 5	0.232 4±0.063 6	1.469 8±0.516 8
RED-CNN	0.626 8±0.092 0	23.805 8±5.118 5	0.252 7±0.051 5	1.590 3±0.506 0
pix2pix	0.489 0±0.109 0	21.754 8±3.626 2	0.152 3±0.046 1	1.160 2±0.558 5
HFSGAN	0.603 4±0.092 4	23.786 1±4.189 9	0.227 9±0.039 1	1.451 2±0.541 2
SiameseGAN	0.623 6±0.083 8	22.832 6±3.507 1	0.244 7±0.035 7	1.390 5±0.943 1
本文算法	0.651 7±0.079 3	24.962 8±4.310 1	0.306 4±0.044 4	1.729 2±0.468 5

算法	子模块			平均SSIM	平均PSNR/dB
算法	ADSS	URED	AttD	平均SSIM	平均PSNR/dB
w/o AttD+URED+ADSS				0.874 7	31.378 0
w/o AttD+URED	√			0.874 6	31.390 6
w/o AttD	√	√		0.876 5	31.521 6
本文算法	√	√	√	0.876 4	31.543 2

Artifacts sensing generative adversarial network for low-dose CT denoising

用于低剂量CT降噪的伪影感知生成对抗网络

RichHTML

PDF

Knowledge

Abstract

Cite this article

share this article

Figures/Tables 15

References 38

Related Articles 15

Recommended Articles

Metrics

算法	训练时间/s	每幅测试时间/s	参数量	迭代次数
BM3D	—	1.207 8	—	—
RED-CNN	674.68	0.104 1	1 848 865	30
pix2pix	4 740.58	0.067 9	57 190 084	30
HFSGAN	6 522.60	0.075 1	108 877 962	30
SiameseGAN	55 635.40	0.047 5	86 829 640	30
本文算法	32 177.65	0.053 5	35 285 594	30
