Super-resolution reconstruction of lung CT images based on feature pyramid network and dense network

doi:10.11772/j.issn.1001-9081.2022040620

Abstract

Abstract:

To pay more attention to pulmonary nodules and satisfy the objective existence of reconstructed features in lung Computed Tomography （CT） image Super-Resolution （SR） reconstruction， a lung image SR reconstruction method based on Feature Pyramid Network （FPN） and dense network was proposed. Firstly， at the feature extraction layer， FPN was used to extract features. Secondly， the local structure based on residual network was designed at the feature mapping layer， and then the special dense network was used to connect the local structure. Thirdly， at the feature reconstruction layer， Convolution Neural Network （CNN） was used to gradually reduce the convolution layers with different depths to the image size. Finally， the residual network was used to integrate the initial Low-Resolution （LR） features and the reconstructed High-Resolution （HR） features to form the final SR image. In comparison experiments， the deep learning network with two feature fusion in FPN and five local structure connections in feature mapping has better effect. Compared with classic networks such as Super-Resolution Convolutional Neural Network （SRCNN）， the proposed network has higher Peak Signal-to-Noise Ratio （PSNR） and better visual quality of the reconstructed SR images.

Key words: lung Computed Tomography (CT) image, Super-Resolution (SR) reconstruction, Feature Pyramid Network (FPN), dense network, residual network

摘要：

针对肺部计算机断层扫描（CT）图像的超分辨率（SR）重建中需要加大对肺结节的关注度、满足重建后的特征具有客观存在性等问题，提出一种基于特征金字塔网络（FPN）和密集网络的肺部图像SR重建方法。首先，在特征提取层利用FPN提取特征；其次，在特征映射层设计基于残差网络的局部结构，再用特殊的密集网络连接此类局部结构；再次，在特征重建层利用卷积神经网络（CNN）将不同深度的卷积层逐渐降为图像大小；最后，利用残差网络融合初始低分辨率（LR）特征与重建的高分辨率（HR）特征，形成最终的SR图像。对比实验显示，FPN中2次特征融合和特征映射中5个局部结构连接的深度学习网络效果更佳。所提出的网络相较于超分辨率卷积神经网络（SRCNN）等经典网络重建SR图像的峰值信噪比（PSNR）更高，并且可以获得更好的视觉质量。

关键词: 肺部计算机断层扫描图像, 超分辨率重建, 特征金字塔网络, 密集网络, 残差网络

CLC Number:

TP183

Lihua SHEN, Bo LI. Super-resolution reconstruction of lung CT images based on feature pyramid network and dense network[J]. Journal of Computer Applications, 2023, 43(5): 1612-1619.

申利华, 李波. 基于特征金字塔网络和密集网络的肺部CT图像超分辨率重建[J]. 《计算机应用》唯一官方网站, 2023, 43(5): 1612-1619.

Figures/Tables 16

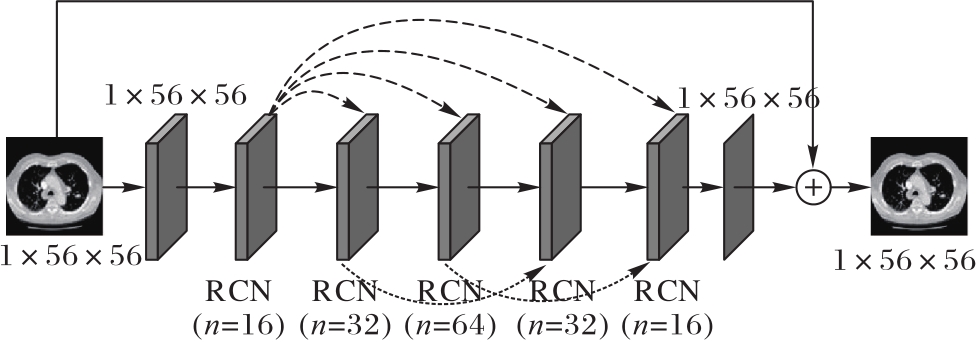

Fig. 1 FDSR network

Fig. 2 Feature pyramid network

Fig. 3 Feature extraction structure of FDSR

Fig. 4 RCN

Fig. 5 Dense connection between RCNs

Fig. 6 Feature reconstruction

Fig. 7 Training and evaluation data preprocessing

Fig. 8 HR image and processed LR image

Fig. 9 Relationship between PSNR and epochs

Tab. 1 PSNR and SSIM of test images under different fusion times

图像	比例	1次融合（m1）		2次融合（m2）		3次融合（m3）
图像	比例	PSNR/dB	SSIM	PSNR/dB	SSIM	PSNR/dB	SSIM
1	$×$ 2	36.91	0.957	37.17	0.958	36.74	0.956
	$×$ 3	27.52	0.897	28.14	0.903	27.92	0.893
	$×$ 4	24.08	0.762	24.11	0.762	24.09	0.762
2	$×$ 2	26.28	0.752	26.41	0.756	26.12	0.743
	$×$ 3	21.59	0.602	21.62	0.603	21.66	0.602
	$×$ 4	20.28	0.523	20.27	0.523	20.27	0.523
3	$×$ 2	35.48	0.930	35.42	0.929	35.35	0.928
	$×$ 3	26.42	0.813	26.46	0.814	26.48	0.813
	$×$ 4	24.63	0.738	24.64	0.739	24.63	0.738

Tab. 1 PSNR and SSIM of test images under different fusion times

图像	比例	1次融合（m1）		2次融合（m2）		3次融合（m3）
图像	比例	PSNR/dB	SSIM	PSNR/dB	SSIM	PSNR/dB	SSIM
1	$×$ 2	36.91	0.957	37.17	0.958	36.74	0.956
	$×$ 3	27.52	0.897	28.14	0.903	27.92	0.893
	$×$ 4	24.08	0.762	24.11	0.762	24.09	0.762
2	$×$ 2	26.28	0.752	26.41	0.756	26.12	0.743
	$×$ 3	21.59	0.602	21.62	0.603	21.66	0.602
	$×$ 4	20.28	0.523	20.27	0.523	20.27	0.523
3	$×$ 2	35.48	0.930	35.42	0.929	35.35	0.928
	$×$ 3	26.42	0.813	26.46	0.814	26.48	0.813
	$×$ 4	24.63	0.738	24.64	0.739	24.63	0.738

Fig. 10 Comparison of images with different fusion times

Fig. 11 VDSR_RCN

Tab. 2 Experimental results of VDSR， VDSR_RDB and VDSR_RCN

图像	比例	VDSR		VDSR_RDB		VDSR_RCN
图像	比例	PSNR/dB	SSIM	PSNR/dB	SSIM	PSNR/dB	SSIM
1	$×$ 2	34.89	0.949	34.74	0.949	36.59	0.957
	$×$ 3	29.78	0.836	29.06	0.842	30.64	0.872
	$×$ 4	24.03	0.761	24.04	0.761	24.07	0.762
2	$×$ 2	25.91	0.761	25.87	0.761	26.81	0.777
	$×$ 3	21.64	0.604	21.74	0.606	21.61	0.603
	$×$ 4	20.19	0.521	20.18	0.521	20.24	0.522
3	$×$ 2	34.45	0.924	34.25	0.924	35.52	0.931
	$×$ 3	26.49	0.814	26.62	0.815	26.38	0.814
	$×$ 4	24.58	0.737	24.56	0.737	24.61	0.738

Tab. 2 Experimental results of VDSR， VDSR_RDB and VDSR_RCN

图像	比例	VDSR		VDSR_RDB		VDSR_RCN
图像	比例	PSNR/dB	SSIM	PSNR/dB	SSIM	PSNR/dB	SSIM
1	$×$ 2	34.89	0.949	34.74	0.949	36.59	0.957
	$×$ 3	29.78	0.836	29.06	0.842	30.64	0.872
	$×$ 4	24.03	0.761	24.04	0.761	24.07	0.762
2	$×$ 2	25.91	0.761	25.87	0.761	26.81	0.777
	$×$ 3	21.64	0.604	21.74	0.606	21.61	0.603
	$×$ 4	20.19	0.521	20.18	0.521	20.24	0.522
3	$×$ 2	34.45	0.924	34.25	0.924	35.52	0.931
	$×$ 3	26.49	0.814	26.62	0.815	26.38	0.814
	$×$ 4	24.58	0.737	24.56	0.737	24.61	0.738

Tab. 3 PSNR and SSIM of test images under different RCN numbers

图像	比例	n₁		n₂		n₃		n₄		n₅		n₆
图像	比例	PSNR/dB	SSIM	PSNR/dB	SSIM	PSNR/dB	SSIM	PSNR/dB	SSIM	PSNR/dB	SSIM	PSNR/dB	SSIM
1	$×$ 2	36.62	0.956	37.09	0.957	37.07	0.957	37.04	0.957	37.17	0.958	36.82	0.956
	$×$ 3	27.51	0.887	28.06	0.902	28.04	0.902	27.85	0.898	28.14	0.903	27.63	0.892
	$×$ 4	24.08	0.762	24.09	0.761	24.09	0.762	24.09	0.762	24.11	0.762	24.08	0.762
2	$×$ 2	26.08	0.743	26.27	0.749	26.33	0.749	26.33	0.751	26.41	0.756	26.09	0.742
	$×$ 3	21.61	0.601	21.57	0.601	21.59	0.601	21.61	0.601	21.62	0.603	21.61	0.602
	$×$ 4	20.28	0.523	20.26	0.522	20.27	0.522	20.26	0.522	20.27	0.523	20.25	0.521
3	$×$ 2	35.38	0.928	35.41	0.929	35.42	0.929	35.41	0.929	35.42	0.929	35.37	0.928
	$×$ 3	26.51	0.813	26.43	0.812	26.45	0.812	26.46	0.812	26.46	0.814	26.45	0.813
	$×$ 4	24.63	0.738	24.62	0.737	24.63	0.737	24.61	0.736	24.64	0.739	24.62	0.738

Tab. 3 PSNR and SSIM of test images under different RCN numbers

图像	比例	n₁		n₂		n₃		n₄		n₅		n₆
图像	比例	PSNR/dB	SSIM	PSNR/dB	SSIM	PSNR/dB	SSIM	PSNR/dB	SSIM	PSNR/dB	SSIM	PSNR/dB	SSIM
1	$×$ 2	36.62	0.956	37.09	0.957	37.07	0.957	37.04	0.957	37.17	0.958	36.82	0.956
	$×$ 3	27.51	0.887	28.06	0.902	28.04	0.902	27.85	0.898	28.14	0.903	27.63	0.892
	$×$ 4	24.08	0.762	24.09	0.761	24.09	0.762	24.09	0.762	24.11	0.762	24.08	0.762
2	$×$ 2	26.08	0.743	26.27	0.749	26.33	0.749	26.33	0.751	26.41	0.756	26.09	0.742
	$×$ 3	21.61	0.601	21.57	0.601	21.59	0.601	21.61	0.601	21.62	0.603	21.61	0.602
	$×$ 4	20.28	0.523	20.26	0.522	20.27	0.522	20.26	0.522	20.27	0.523	20.25	0.521
3	$×$ 2	35.38	0.928	35.41	0.929	35.42	0.929	35.41	0.929	35.42	0.929	35.37	0.928
	$×$ 3	26.51	0.813	26.43	0.812	26.45	0.812	26.46	0.812	26.46	0.814	26.45	0.813
	$×$ 4	24.63	0.738	24.62	0.737	24.63	0.737	24.61	0.736	24.64	0.739	24.62	0.738

Tab. 4 Comparison of FDSR and different deep learning methods on PSNR and SSIM

图像	比例	Bicubic		SRCNN		FSRCNN		VDSR		LapSRN		FDSR（RCN=5）
图像	比例	PSNR/dB	SSIM	PSNR/dB	SSIM	PSNR/dB	SSIM	PSNR/dB	SSIM	PSNR/dB	SSIM	PSNR/dB	SSIM
1	$×$ 2	29.78	0.915	36.08	0.955	36.28	0.956	36.81	0.956	37.02	0.956	37.17	0.958
	$×$ 3	25.56	0.823	27.23	0.872	27.26	0.876	27.54	0.881	27.86	0.893	28.14	0.903
	$×$ 4	24.07	0.758	24.02	0.761	24.22	0.762	24.32	0.763	24.40	0.764	24.11	0.762
2	$×$ 2	23.67	0.696	26.36	0.769	26.39	0.769	26.41	0.756	26.41	0.762	26.41	0.756
	$×$ 3	21.66	0.592	21.69	0.605	21.70	0.605	21.71	0.606	22.83	0.609	21.62	0.603
	$×$ 4	20.17	0.521	20.18	0.521	20.21	0.520	20.21	0.522	20.25	0.523	20.27	0.523
3	$×$ 2	29.96	0.888	35.20	0.928	35.34	0.927	35.41	0.928	35.42	0.928	35.42	0.929
	$×$ 3	26.42	0.803	26.53	0.815	26.54	0.815	26.55	0.816	26.53	0.814	26.46	0.814
	$×$ 4	24.58	0.735	24.54	0.736	24.59	0.737	24.61	0.737	24.62	0.738	24.64	0.739

Tab. 4 Comparison of FDSR and different deep learning methods on PSNR and SSIM

图像	比例	Bicubic		SRCNN		FSRCNN		VDSR		LapSRN		FDSR（RCN=5）
图像	比例	PSNR/dB	SSIM	PSNR/dB	SSIM	PSNR/dB	SSIM	PSNR/dB	SSIM	PSNR/dB	SSIM	PSNR/dB	SSIM
1	$×$ 2	29.78	0.915	36.08	0.955	36.28	0.956	36.81	0.956	37.02	0.956	37.17	0.958
	$×$ 3	25.56	0.823	27.23	0.872	27.26	0.876	27.54	0.881	27.86	0.893	28.14	0.903
	$×$ 4	24.07	0.758	24.02	0.761	24.22	0.762	24.32	0.763	24.40	0.764	24.11	0.762
2	$×$ 2	23.67	0.696	26.36	0.769	26.39	0.769	26.41	0.756	26.41	0.762	26.41	0.756
	$×$ 3	21.66	0.592	21.69	0.605	21.70	0.605	21.71	0.606	22.83	0.609	21.62	0.603
	$×$ 4	20.17	0.521	20.18	0.521	20.21	0.520	20.21	0.522	20.25	0.523	20.27	0.523
3	$×$ 2	29.96	0.888	35.20	0.928	35.34	0.927	35.41	0.928	35.42	0.928	35.42	0.929
	$×$ 3	26.42	0.803	26.53	0.815	26.54	0.815	26.55	0.816	26.53	0.814	26.46	0.814
	$×$ 4	24.58	0.735	24.54	0.736	24.59	0.737	24.61	0.737	24.62	0.738	24.64	0.739

Fig. 12 Visual comparison of FDSR and different deep learning methods
