Speaker verification system utilizing global-local feature dependency for anti-spoofing

doi:10.11772/j.issn.1001-9081.2023121877

Journal of Computer Applications ›› 2025, Vol. 45 ›› Issue (1): 308-317.DOI: 10.11772/j.issn.1001-9081.2023121877

• Multimedia computing and computer simulation • Previous Articles Next Articles

Speaker verification system utilizing global-local feature dependency for anti-spoofing

Jialin ZHANG¹, Qinghua REN¹, Qirong MAO¹^,²()

^1.School of Computer Science and Communication Engineering，Jiangsu University，Zhenjiang Jiangsu 212013，China
^2.Jiangsu Province Big Data Ubiquitous Perception and Intelligent Agriculture Application Engineering Research Center （Jiangsu University） Zhenjiang Jiangsu 212013，China

Received:2024-01-06 Revised:2024-02-27 Accepted:2024-03-04 Online:2024-04-01 Published:2025-01-10
Contact: Qirong MAO
About author:ZHANG Jialin， born in 1998， M. S. candidate. His research interests include synthetic speech detection.
REN Qinghua， born in 1992， Ph. D.， lecturer. His research interests include image segmentation， transfer learning.
Supported by:
Surface Project of National Natural Science Foundation of China(62176106);Special Scientific Research Project of School of Emergency Management, Jiangsu University(KY-A-01)

利用全局-局部特征依赖的反欺骗说话人验证系统

张嘉琳¹, 任庆桦¹, 毛启容¹^,²()

^1.江苏大学计算机科学与通信工程学院，江苏镇江 212013
^2.江苏省大数据泛在感知与智能农业应用工程研究中心（江苏大学），江苏镇江 212013

通讯作者: 毛启容
作者简介:张嘉琳（1998—），男，山东莱州人，硕士研究生，主要研究方向：合成语音检测；
任庆桦（1992—），男，江苏淮安人，讲师，博士，CCF会员，主要研究方向：图像分割、迁移学习；
基金资助:
国家自然科学基金面上项目(62176106);江苏大学应急管理学院专项科研项目(KY-A-01)

Abstract

Abstract:

Aiming at the problem that the existing speaker verification systems for anti-spoofing， with convolutional model as main part， cannot capture global feature dependency well， an speaker verification system utilizing global-local feature dependency for anti-spoofing was proposed. Firstly， for the speech spoofing detection module， two filter combination ways were designed to filter the original speech， and sample augmentation was achieved by masking the frequency sub-bands. Secondly， a multi-dimensional global attention mechanism was proposed， where the global dependencies of each dimension were obtained by pooling the channel dimension， frequency dimension， and time dimension， respectively， and the global information was fused with the original features by weighting. Finally， for the speaker verification part， a Statistical Pyramid Dense Time Delay Neural Network （SPD-TDNN） was introduced to compute the standard deviation of the features and add the global information while obtaining the multi-scale time-frequency features. Experimental results show that on ASVspoof2019 dataset， the proposed speech spoofing detection system reduces the Equal Error Rate （EER） by 65.4% compared to Audio Anti-Spoofing using Integrated Spectro-Temporal graph attention network （AASIST） model， the proposed speaker verification system for anti-spoofing reduces the spoofing-aware speaker verification EER by 97.8% compared to the separate pyramid pooling speaker verification system. The above verifies that the proposed two modules achieve better classification results with the help of global feature dependency.

Key words: speaker verification, data augmentation, frequency masking, attention mechanism, speech spoofing detection

摘要：

针对现有卷积模型为主的反欺骗说话人验证系统捕获全局特征依赖不理想的问题，提出一种利用全局-局部特征依赖的反欺骗说话人验证系统。首先，对于欺骗语音检测模块，设计两种滤波器组合方式对原始语音进行滤波，并通过对频率子带的掩蔽实现样本扩充；其次，提出多维全局注意力机制，通过对信道维度、频率维度和时间维度分别进行池化，获得每个维度的全局依赖关系，并将全局信息通过加权的方式与原始特征相融合；最后，在说话人验证部分引入统计金字塔池化时延神经网络（SPD-TDNN），在获取多尺度时频特征的同时计算特征的标准差，并加入全局信息。实验结果表明，与集成时频图卷积（AASIST）模型相比，在ASVspoof2019数据集上提出的欺骗语音检测系统将等错误率（EER）降低了65.4%；与单独的金字塔池化说话人验证系统相比，提出的反欺骗说话人验证系统将欺骗感知说话人验证等错误率降低了约97.8%。以上验证了所提两个模块借助全局特征依赖能实现更好的分类效果。

关键词: 说话人验证, 数据增强, 频率掩蔽, 注意力机制, 欺骗语音检测

CLC Number:

TN912.34

Jialin ZHANG, Qinghua REN, Qirong MAO. Speaker verification system utilizing global-local feature dependency for anti-spoofing[J]. Journal of Computer Applications, 2025, 45(1): 308-317.

张嘉琳, 任庆桦, 毛启容. 利用全局-局部特征依赖的反欺骗说话人验证系统[J]. 《计算机应用》唯一官方网站, 2025, 45(1): 308-317.

Figures/Tables 13

Fig. 1 Overall flowchart

Tab. 1 Symbols and their meanings

符号	含义
$x$	输入的语音信号
$y$	输入语音信号的标签
$g (⋅)$	滤波器组的滤波操作
$K$	滤波分支数
$W K$	$K$ 个滤波分支的权重
$m i x$	频带增强过程中的混合语音
$β 1, β 2$	频带增强过程中的混合权重
$a u g$	频带增强后的语音
$(B, C, 1,1)$	特征的批量值和通道数
$w c$	信道的权重
$w f$	频率维度的权重
$w t$	时间维度的权重
$σ$	表示Sigmoid操作
$f 1, f 2$	表示两次全连接层的计算
$T, F$	表示特征的时间维数和频率维数
$R e L U$	ReLU函数的计算
$n$	频带增强的次数
$f (⋅)$	欺骗语音检测模型
$α$	调节得分占比的权重因子
$λ$	平衡分类损失和一致性损失的调节因子

Tab. 1 Symbols and their meanings

符号	含义
$x$	输入的语音信号
$y$	输入语音信号的标签
$g (⋅)$	滤波器组的滤波操作
$K$	滤波分支数
$W K$	$K$ 个滤波分支的权重
$m i x$	频带增强过程中的混合语音
$β 1, β 2$	频带增强过程中的混合权重
$a u g$	频带增强后的语音
$(B, C, 1,1)$	特征的批量值和通道数
$w c$	信道的权重
$w f$	频率维度的权重
$w t$	时间维度的权重
$σ$	表示Sigmoid操作
$f 1, f 2$	表示两次全连接层的计算
$T, F$	表示特征的时间维数和频率维数
$R e L U$	ReLU函数的计算
$n$	频带增强的次数
$f (⋅)$	欺骗语音检测模型
$α$	调节得分占比的权重因子
$λ$	平衡分类损失和一致性损失的调节因子

Tab. 2 MA-AASIST network structure

模块名称	模块内容	输出
Sinc卷积层	一维卷积+BN+SeLU	（1，23，32 090）
残差块1	BN+多维全局注意力+ 二维卷积+SeLU+BN+ 二维卷积	（32，23，10 696）
残差模块2~6	BN+二维卷积+ SeLU+BN+二维卷积	（64，23，44）
时频图注意力模块	图注意力层+图池化+ 异构图注意力层	（20，32）
Dropout		（1，32）
全连接层		（1）

Tab. 3 Convolutional channel numbers of layers in SPD-TDNN

模块序号	模块名称	输出
1	一维卷积+BN+ReLU	128
2	SPD-TDNN	192
	SPD-TDNN	256
	SPD-TDNN	320
	SPD-TDNN	384
	SPD-TDNN	448
	SPD-TDNN	512
	一维卷积+BN+ReLU	256
	SPD-TDNN	320
	SPD-TDNN	384
	SPD-TDNN	448
	SPD-TDNN	512
	SPD-TDNN	576
	SPD-TDNN	640
	SPD-TDNN	704
	SPD-TDNN	768
	SPD-TDNN	832
	SPD-TDNN	896
	SPD-TDNN	960
	SPD-TDNN	1 024
	一维卷积+BN+ReLU	512
3	统计池化+BN	1 024
4	全连接层+BN	128

Tab. 4 ASVspoof dataset used in experiments

数据集	训练集		验证集		测试集
数据集	真实	欺骗	真实	欺骗	真实	欺骗
ASVspoof2019	2 580	22 800	2 548	22 296	7 355	63 882
ASVspoof2021	2 580	22 800	2 548	22 296	14 816	133 360

Tab. 5 Ablation experimental results about λ on ASVspoof2019 dataset

$λ$ 值	EER/%	$λ$ 值	EER/%
10⁰	0.53	10^-3	0.39
10^-1	0.36	0	0.55
10^-2	0.43

Tab. 5 Ablation experimental results about λ on ASVspoof2019 dataset

$λ$ 值	EER/%	$λ$ 值	EER/%
10⁰	0.53	10^-3	0.39
10^-1	0.36	0	0.55
10^-2	0.43

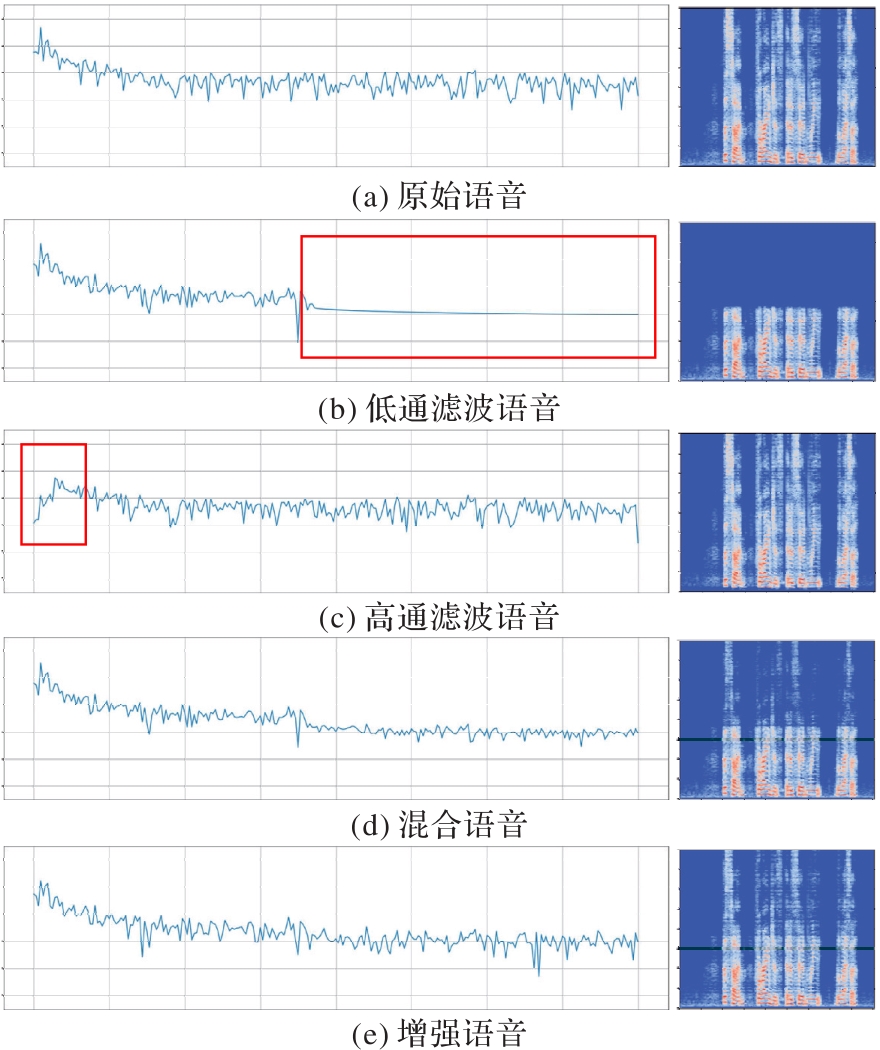

Fig. 2 Frequency map and spectrogram of speech in frequency enhancement process （low-pass and high-pass combinations）

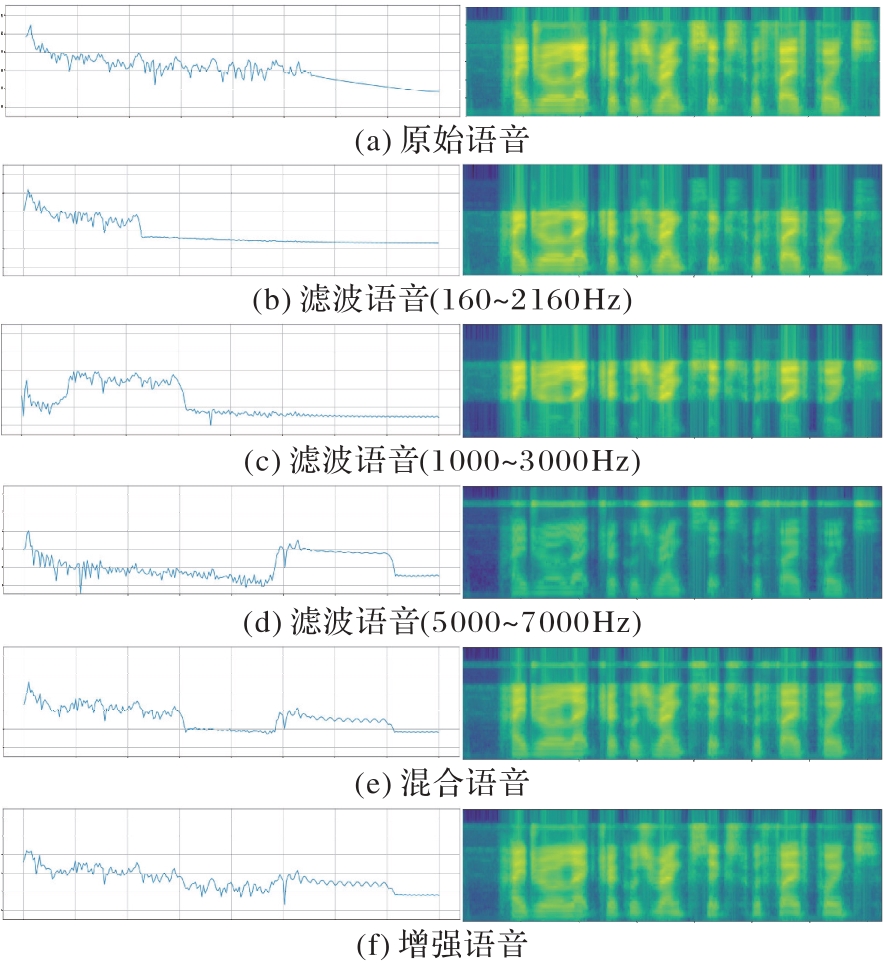

Fig. 3 Frequency map and FBank feature map of speech in frequency enhancement process （band-pass combination）

Tab. 6 Results of ablation experiments

系统	增强手段				损失函数	ASVspoof2019		ASVspoof2021
系统	无	仅滤波（带通）	滤波后混合（带通）	完整频带增强（带通/低通高通）	一致性损失	EER/%	t-DCF	EER/%	t-DCF
AASIST^［12］	✓					1.04	0.031 7	6.24	0.342 8
		✓				0.84	0.023 5	4.25	0.276 8
			✓			0.84	0.026 0	3.74	0.268 4
				✓（带通）		0.57	0.019 3	4.25	0.291 3
AASIST				✓（带通）	✓	0.38	0.012 0	3.29	0.270 7
MA-AASIST				✓（带通）	✓	0.36	0.011 4	4.63	0.302 6
AASIST				✓（低通高通）	✓	0.51	0.016 6	3.07	0.264 6
MA-AASIST				✓（低通高通）	✓	0.49	0.014 9	2.68	0.251 4

Tab. 7 Selection of filter branch number K

$K$	EER/%
$K$	ASVspoof2019测试集	ASVspoof2021测试集
0	1.04	6.24
1	0.42	4.13
2	0.53	4.13
3	0.38	3.29
4	0.97	4.82

Tab. 7 Selection of filter branch number K

$K$	EER/%
$K$	ASVspoof2019测试集	ASVspoof2021测试集
0	1.04	6.24
1	0.42	4.13
2	0.53	4.13
3	0.38	3.29
4	0.97	4.82

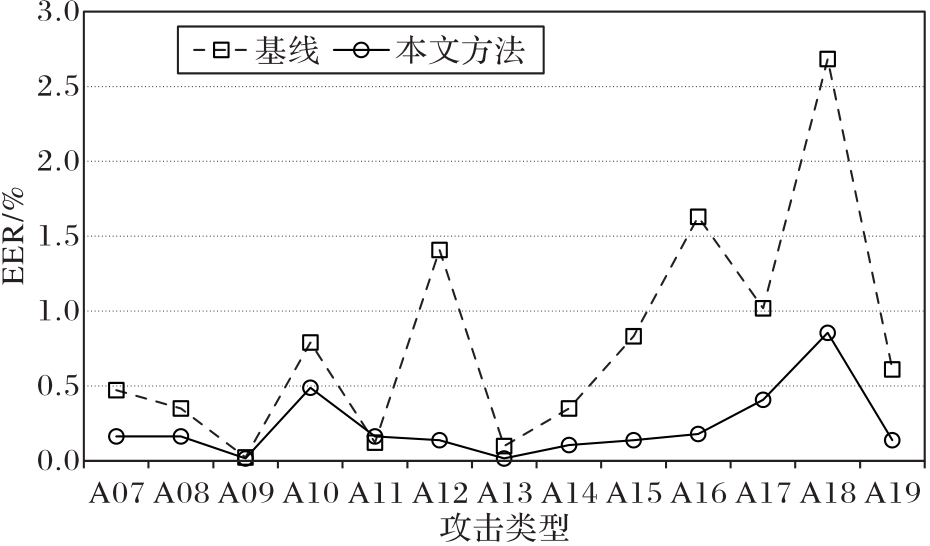

Fig. 4 Detection effects of models on various kinds of speech spoofing

Tab. 8 Comparison of proposed spoofing detection system with current advanced models

系统	ASVspoof2019		ASVspoof2021
系统	EER/%	t-DCF	EER/%	t-DCF
MA-AASIST（带通）	0.36	0.011 4	4.63	0.302 6
MA-AASIST（低通高通）	0.49	0.014 9	2.68	0.251 4
DFSincNet^［15］	0.52	0.017 6	3.05	0.260 1
GST+GCN^［17］	0.58	0.016 6
Rawformer^［18］	0.59	0.018 4	4.53	0.308 8
To-AASIST^［31］	1.02
To-RawNet^［31］			3.58
CNN+Transformer^［30］	1.61	0.048 1

Tab. 9 Score fusion results of speaker verification system for anti-spoofing

系统	SASV_EER	SV_EER	SPF_EER
MA-AASIST	25.14	49.49	0.29
SPD-TDNN	24.37	0.63	32.26
MA-AASIST+SPD-TDNN	0.64	0.87	0.28
MA-AASIST+SPD-TDNN（std）+权重规整	0.54	0.74	0.19
I_Aug^［5］	0.73	1.10	0.42
End-to-End SASV^［3］	6.83	4.43	8.36
SA-SASV^［32］	4.86	8.06	0.50
TDT-1^［22］	4.78	6.24	1.73
TAP-1024^［33］	0.97	1.15	0.56
CLIPS System^［34］	1.36	1.75	0.76

References 34

1	JUNG J W， TAK H， SHIM H J， et al. SASV 2022： the first spoofing-aware speaker verification challenge ［C］// Proceedings of the INTERSPEECH 2022. ［S.l.］： International Speech Communication Association， 2022： 2893-2897.
2	TA B T， NGUYEN T L， DANG D S， et al. A multi-task conformer for spoofing aware speaker verification ［C］// Proceedings of the IEEE 9th International Conference on Communications and Electronics. Piscataway： IEEE， 2022： 306-310.
3	KANG W， ALAM M J， FATHAN A. End-to-end framework for spoof-aware speaker verification ［C］// Proceedings of the INTERSPEECH 2022. ［S.l.］： International Speech Communication Association， 2022： 4362-4366.
4	HE K， WANG Z， FU Y， et al. Adaptively weighted multi-task deep network for person attribute classification ［C］// Proceedings of the 25th ACM International Conference on Multimedia. New York： ACM， 2017： 1636-1644.
5	ZHANG L， LI Y， ZHAO H， et al. Backend ensemble for speaker verification and spoofing countermeasure ［C］// Proceedings of the INTERSPEECH 2022. ［S.l.］： International Speech Communication Association， 2022： 4381-4385.
6	ZHANG P， HU P， ZHANG X. Norm-constrained score-level ensemble for spoofing aware speaker verification ［C］// Proceedings of the INTERSPEECH 2022. ［S.l.］： International Speech Communication Association， 2022： 4371-4375.
7	TODISCO M， DELGADO H， LEE K A， et al. Integrated presentation attack detection and automatic speaker verification： common features and Gaussian back-end fusion ［C］// Proceedings of the INTERSPEECH 2018. ［S.l.］： International Speech Communication Association， 2018： 77-81.
8	DESPLANQUES B， THIENPONDT J， DEMUYNCK K. ECAPA-TDNN： emphasized channel attention， propagation and aggregation in TDNN based speaker verification ［C］// Proceedings of the INTERSPEECH 2020. ［S.l.］： International Speech Communication Association， 2020： 3830-3834.
9	YU Y Q， LI W J. Densely connected time delay neural network for speaker verification ［C］// Proceedings of the INTERSPEECH 2020. ［S.l.］： International Speech Communication Association， 2020： 921-925.
10	ZHOU B， KHOSLA A， LAPEDRIZA A， et al. Object detectors emerge in deep scene CNNs ［EB/OL］. ［2023-12-01］. .
11	HU J， SHEN L， SUN G. Squeeze-and-excitation networks ［C］// Proceedings of the 2018 IEEE/CVF Conference on Computer Vision and Pattern Recognition. Piscataway： IEEE， 2018： 7132-7141.
12	JUNG J W， HEO H S， TAK H， et al. AASIST： audio anti-spoofing using integrated spectro-temporal graph attention networks ［C］// Proceedings of the 2022 IEEE International Conference on Acoustics， Speech and Signal Processing. Piscataway： IEEE， 2022： 6367-6371.
13	方昕，黄泽鑫，张聿晗，等.基于时域波形的半监督端到端虚假语音检测方法［J］.计算机应用， 2023， 43（1）： 227-231.
	FANG X， HUANG Z X， ZHANG Y H， et al. Semi-supervised end-to-end fake speech detection method based on time-domain waveforms ［J］. Journal of Computer Applications， 2023， 43（1）： 227-231.
14	ZHANG Y， WANG W， ZHANG P. The effect of silence and dual-band fusion in anti-spoofing system ［C］// Proceedings of the INTERSPEECH 2021. ［S.l.］： International Speech Communication Association， 2021： 4279-4283.
15	HUANG B， CUI S， HUANG J， et al. Discriminative frequency information learning for end-to-end speech anti-spoofing ［J］. IEEE Signal Processing Letters， 2023， 30： 185-189.
16	WAN Z K， REN Q H， QIN Y C， et al. Statistical pyramid dense time delay neural network for speaker verification ［C］// Proceedings of the 2022 IEEE International Conference on Acoustics， Speech and Signal Processing. Piscataway： IEEE， 2022： 7532-7536.
17	CHEN F， DENG S， ZHENG T， et al. Graph-based spectro-temporal dependency modeling for anti-spoofing ［C］// Proceedings of the 2023 IEEE International Conference on Acoustics， Speech and Signal Processing. Piscataway： IEEE， 2023： 1-5.
18	LIU X， LIU M， WANG L， et al. Leveraging positional-related local-global dependency for synthetic speech detection ［C］// Proceedings of the 2023 IEEE International Conference on Acoustics， Speech and Signal Processing. Piscataway： IEEE， 2023： 1-5.
19	WOO S， PARK J， LEE J Y， et al. CBAM： convolutional block attention module ［C］// Proceedings of the 2018 European Conference on Computer Vision， LNCS 11211. Cham： Springer， 2018： 3-19.
20	TAK H， KAMBLE M， PATINO J， et al. RawBoost： a raw data boosting and augmentation method applied to automatic speaker verification anti-spoofing ［C］// Proceedings of the 2022 IEEE International Conference on Acoustics， Speech and Signal Processing. Piscataway： IEEE， 2022： 6382-6386.
21	DAS R K， YANG J， LI H. Data augmentation with signal companding for detection of logical access attacks ［C］// Proceedings of the 2021 IEEE International Conference on Acoustics， Speech and Signal Processing. Piscataway： IEEE， 2021： 6349-6353.
22	ZHANG Y， LI Z， WANG W， et al. SASV based on pre-trained ASV system and integrated scoring module ［C］// Proceedings of the INTERSPEECH 2022. ［S.l.］： International Speech Communication Association， 2022： 4376-4380.
23	WANG X， QIN X， WANG Y， et al. The DKU-OPPO system for the 2022 spoofing-aware speaker verification challenge ［C］// Proceedings of the INTERSPEECH 2022. ［S.l.］： International Speech Communication Association， 2022： 4396-4400.
24	KARAM L J， McCLELLAN J H. A multiple exchange Remez algorithm for complex FIR filter design in the Chebyshev sense ［C］// Proceedings of the 1994 IEEE International Symposium on Circuits and Systems — Volume 2. Piscataway： IEEE， 1994： 517-520.
25	江苏大学.一种多重注意力特征融合的说话人识别方法： 202110986397.6 ［P］. 2021-12-07.
	Jiangsu University. A speaker recognition method based on multiple attention feature fusion： 202110986397.6 ［P］. 2021-12-07.
26	NAGRANI A， CHUNG J S， ZISSERMAN A. VoxCeleb： a large-scale speaker identification dataset ［C］// Proceedings of the INTERSPEECH 2017. ［S.l.］： International Speech Communication Association， 2017： 2616-2620.
27	CHUNG J S， NAGRANI A， ZISSERMAN A. VoxCeleb2： deep speaker recognition ［C］// Proceedings of the INTERSPEECH 2018. ［S.l.］： International Speech Communication Association， 2018： 1086-1090.
28	WANG X， YAMAGISHI J， TODISCO M， et al. ASVspoof 2019： a large-scale public database of synthesized， converted and replayed speech ［J］. Computer Speech and Language， 2020， 64： No.101114.
29	YAMAGISHI J， WANG X， TODISCO M， et al. ASVspoof 2021： accelerating progress in spoofed and deepfake speech detection ［C］// Proceedings of the 2021 Automatic Speaker Verification and Spoofing Countermeasures Challenge. ［S.l.］： International Speech Communication Association， 2021： 47-54.
30	徐童心，黄俊.基于CNN-Transformer的欺骗语音检测［J］.无线电工程， 2024， 54（5）： 1091-1098.
	XU T X， HUANG J. Spoofed speech detection based on CNN-Transformer ［J］. Radio Engineering， 2024， 54（5）： 1091-1098.
31	WANG C， YI J， TAO J， et al. TO-RawNet： improving RawNet with TCN and orthogonal regularization for fake audio detection ［C］// Proceedings of the INTERSPEECH 2023. ［S.l.］： International Speech Communication Association， 2023： 3137-3141.
32	TENG Z， FU Q， WHITE J， et al. SA-SASV： an end-to-end spoof-aggregated spoofing-aware speaker verification system ［C］// Proceedings of the INTERSPEECH 2022. ［S.l.］： International Speech Communication Association， 2022： 4391-4395.
33	WU H， MENG L， KANG J， et al. Spoofing-aware speaker verification by multi-level fusion ［C］// Proceedings of the INTERSPEECH 2022. ［S.l.］： International Speech Communication Association， 2022： 4357-4361.
34	LIN J， CHEN T， HUANG J， et al. The CLIPS system for 2022 spoofing-aware speaker verification challenge ［C］// Proceedings of the INTERSPEECH 2022. ［S.l.］： International Speech Communication Association， 2022： 4367-4370.
