Moving pedestrian detection neural network with invariant global sparse contour point representation

doi:10.11772/j.issn.1001-9081.2024040561

Abstract

Abstract:

As pedestrians are non-rigid objects， effective invariant representation of their visual features is the key to improving recognition performance. In natural visual scenes， moving pedestrians often undergo changes in scale， background， and pose， which creates obstacles for existing techniques for extracting these irregular features. The issue was addressed by exploring the problem of invariant recognition of moving pedestrians based on the neural structural characteristics of mammalian retinas， and a Moving Pedestrian Detection Neural Network （MPDNN） was proposed for visual scenes. MPDNN was composed of two neural modules： the presynaptic network and the postsynaptic network. The presynaptic network was used to perceive low-level visual motion cues representing the moving object and extract the object’s binarized visual information， and the postsynaptic network was utilized to take advantage of the sparse invariant response properties in the biological visual system and use the invariant relationship between large concave and convex regions of the object’s contour after continuous shape changes， then， stably changed visual features were encoded from low-level motion cues to build invariant representations of pedestrians. Experimental results show that MPDNN achieves a 96.96% cross-domain detection accuracy on the public datasets CUHK Avenue and EPFL， which is 4.52 percentage points higher than the SOTA （State of the Art） model； MPDNN demonstrates good robustness on scale and motion posture variation datasets， with accuracy of 89.48% and 91.45%， respectively. The effectiveness of the biological invariant object recognition mechanism in moving pedestrian detection was validated by the above experimental results.

Key words: object detection, moving pedestrian, invariant object recognition, visual motion perception, retinal nerve

摘要：

行人作为非刚性物体，对它的视觉特征进行有效的不变表示是提高识别效果的关键。在自然视觉场景中，运动行人通常会发生尺度、背景、姿态等变化，这对用现有技术提取这些不规则特征造成阻碍。针对该问题，基于哺乳动物视网膜神经结构特性，探究运动行人不变性识别问题，并提出一种适用于视觉场景的运动行人检测神经网络（MPDNN）。MPDNN包括2个神经模块：突触前网络和突触后网络。其中，突触前网络感知表征运动目标的低阶视觉运动线索，并提取目标的二值化视觉信息；突触后网络借助生物视觉系统中的稀疏不变响应特性，利用目标轮廓在连续改变形状后较大凹凸区域之间的位置关系不变特性，从低阶运动线索中编码平稳变化的视觉特征以构建行人不变表征。实验结果表明，MPDNN在公共数据集CUHK Avenue与EPFL上达到了96.96%的跨域检测准确率，比SOTA （State Of The Art）模型高4.52个百分点；在尺度、运动姿势变化数据集上也表现了较好的鲁棒性，准确率分别达到了89.48%与91.45%。以上实验结果验证了生物不变性物体识别机制在运动行人检测中的有效性。

关键词: 目标检测, 运动行人, 不变性物体识别, 视觉运动感知, 视网膜神经

CLC Number:

TP183

Qingqing ZHAO, Bin HU. Moving pedestrian detection neural network with invariant global sparse contour point representation[J]. Journal of Computer Applications, 2025, 45(4): 1271-1284.

赵轻轻, 胡滨. 不变性全局稀疏轮廓点表征的运动行人检测神经网络[J]. 《计算机应用》唯一官方网站, 2025, 45(4): 1271-1284.

Figures/Tables 27

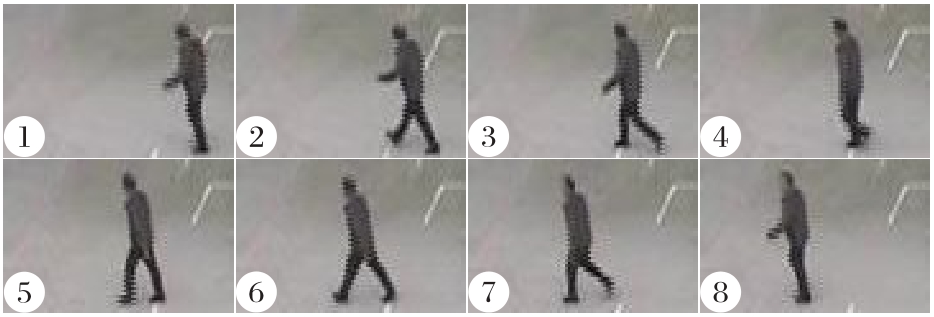

Fig. 1 Schematic diagrams of pedestrian walking posture

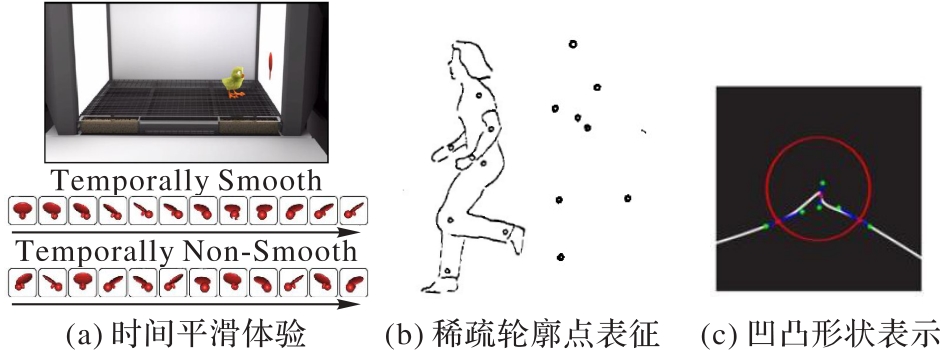

Fig. 2 Invariant object recognition

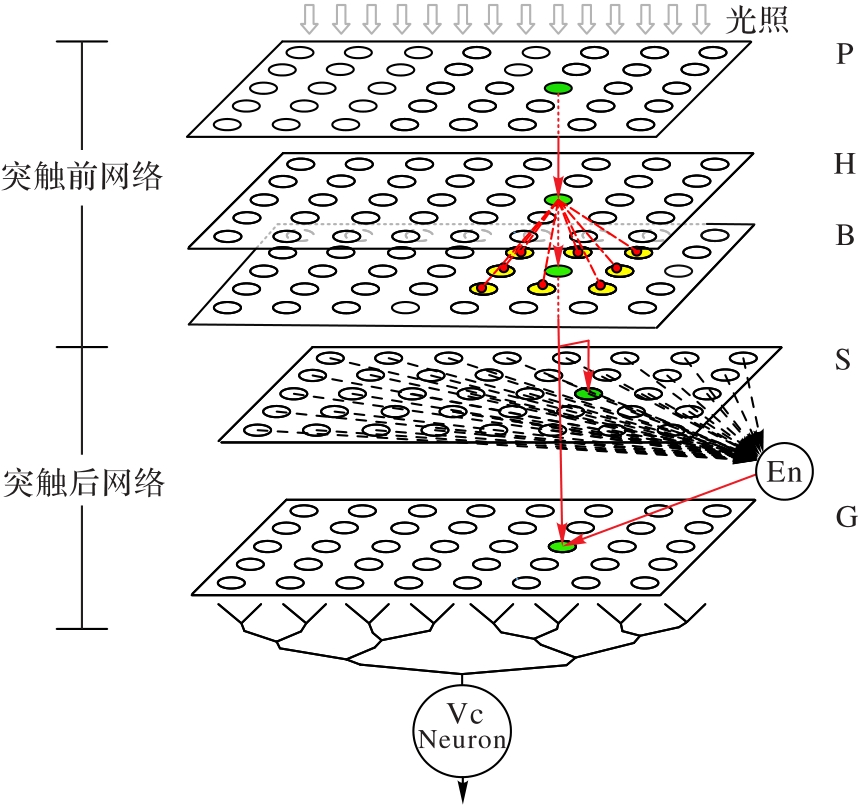

Fig. 3 Structure of MPDNN

Tab. 1 Parameter setting of MPDNN

参数名	值	参数名	值
$n c$	1 280	$T C$	0.8
$n r$	720	$γ$	3
$T p$	220	$r w$	1
$T r$	2	$T m$	3
$γ'$	9	$φ$	0.6
$μ$	0.92	$υ$	0.5
$T w$	200	$T n$	800

Tab. 1 Parameter setting of MPDNN

参数名	值	参数名	值
$n c$	1 280	$T C$	0.8
$n r$	720	$γ$	3
$T p$	220	$r w$	1
$T r$	2	$T m$	3
$γ'$	9	$φ$	0.6
$μ$	0.92	$υ$	0.5
$T w$	200	$T n$	800

Fig. 4 Validity test video sequences

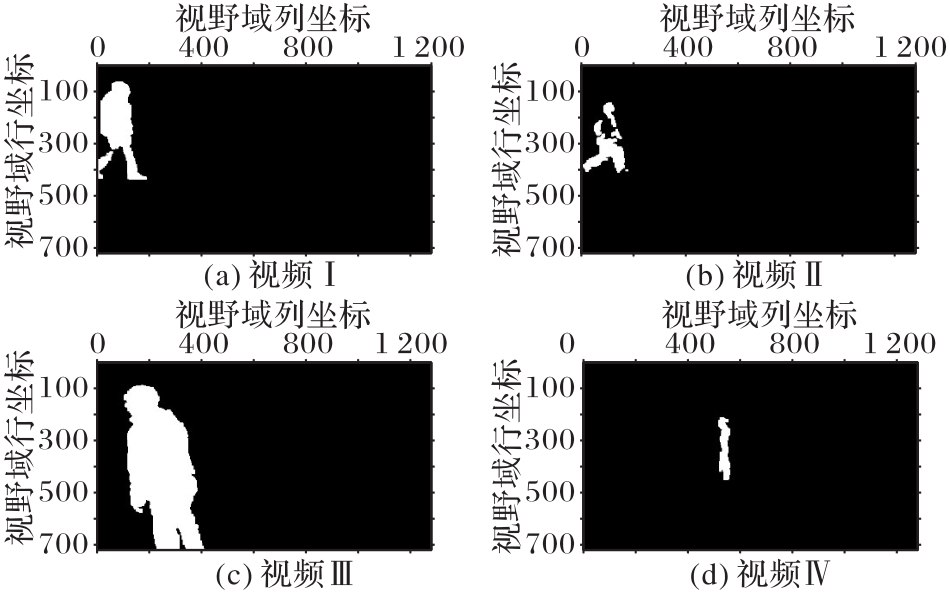

Fig. 5 Visualization of membrane potential results for validity test of neural layer G

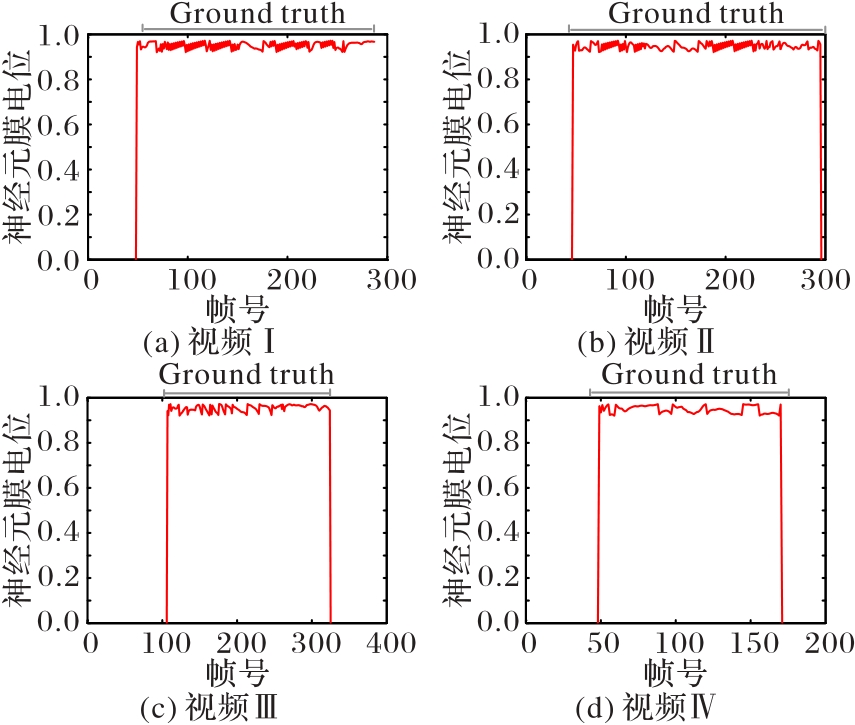

Fig. 6 Output curves for validity test of neuronVc

Tab. 2 Numerical statistical results of validity test

视频序号	总帧数	实际行人所在时间序列的帧号范围	MPDNN检测出的时间序列的帧号范围	帧数				ACC/%	FNR/%	FPR/%
视频序号	总帧数	实际行人所在时间序列的帧号范围	MPDNN检测出的时间序列的帧号范围	TP	TN	FN	FP	ACC/%	FNR/%	FPR/%
Ⅰ	287	46~287	49~287	239	45	3	0	98.95	1.24	0.00
Ⅱ	300	45~300	47~295	249	44	7	0	97.67	2.73	0.00
Ⅲ	325	105~325	107~324	218	104	3	0	99.08	1.36	0.00
Ⅳ	175	34~175	49~170	122	33	20	0	88.57	14.08	0.00

Fig. 7 Scale test video sequences

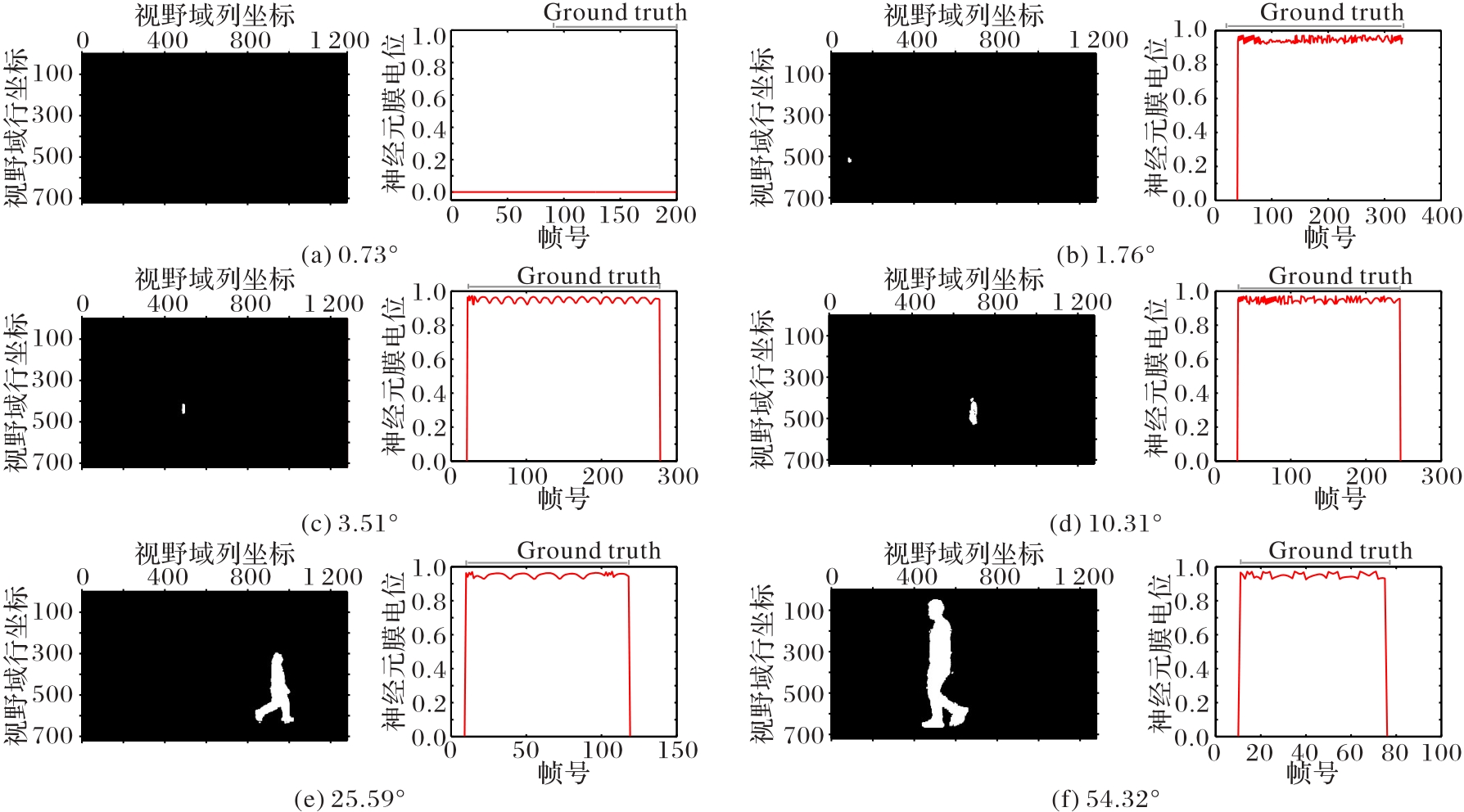

Fig. 8 Output results of scale test for neural layer G and neuron Vc

Tab. 3 Numerical statistical results of scale test

视频	总帧数	行人尺度/（°）	实际行人所在时间序列的帧号范围	MPDNN检测时间序列的帧号范围	ACC/%	FNR/%
图7（a）	200	0.73	90~200	0	0.00	100.00
图7（b）	333	1.76	16~333	41~333	92.14	7.86
图7（c）	290	3.51	13~273	13~273	100.00	0.00
图7（d）	253	10.31	16~236	21~236	100.00	0.00
图7（e）	130	25.59	11~119	11~119	100.00	0.00
图7（f）	87	54.32	12~76	12~76	100.00	0.00

Fig. 9 Motion posture test video sequences

Fig. 10 Visualization of membrane potential results for motion posture test of neural layer G

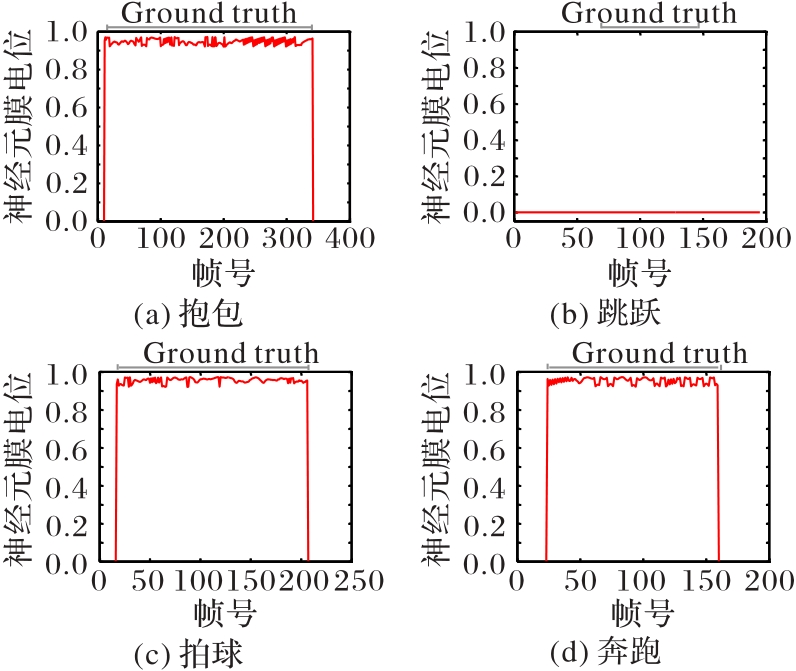

Fig. 11 Output curves for motion posture test of neuron Vc

Tab. 4 Numerical statistical results of motion posture test

视频	总帧数	实际行人所在时间序列的帧号范围	MPDNN检测时间序列的帧号范围	ACC/%	FNR/%
图9（a）	355	12~342	12~342	100.00	0.00
图9（b）	195	67~147	0	58.46	100.00
图9（c）	224	16~207	16~207	100.00	0.00
图9（d）	162	21~156	21~156	100.00	0.00

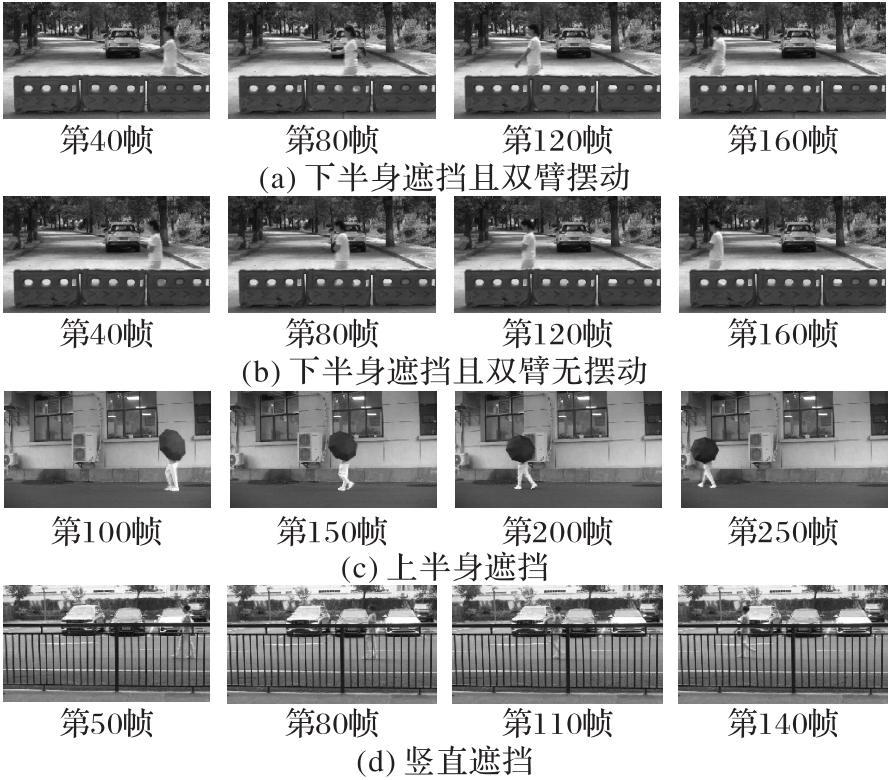

Fig. 12 Occlusion test video sequences

Fig. 13 Visualization of membrane potential results for occlusion test of neural layer G

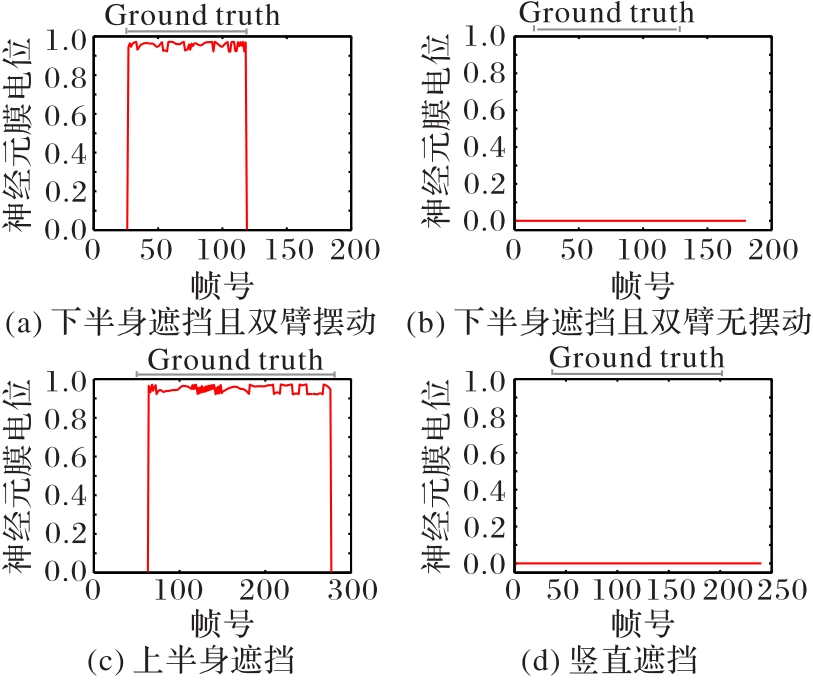

Fig. 14 Output curve for occlusion test of neuron Vc

Tab. 5 Numerical statistical results of occlusion test

视频	总帧数	实际行人所在时间序列	MPDNN检测时间序列	ACC/%	FNR/%
图12（a）	165	22~118	27~118	96.95	5.15
图12（b）	180	14~120	0	40.56	100.00
图12（c）	300	71~283	82~279	95.00	7.04
图12（d）	240	34~196	0	32.37	100.00

Fig. 15 Preference test video sequences

Fig. 16 Output results of preference test for neural layer G and neuron Vc

Tab. 6 Numerical statistical results of comparison experiments of object detection models

模型	帧数				ACC/%	FNR/%	FPR/%
模型	TP	TN	FN	FP	ACC/%	FNR/%	FPR/%
Faster R-CNN^［18］	842	198	19	66	92.44	2.21	6.07
Cascade R-CNN^［19］	861	177	0	102	91.05	0.00	9.38
YOLOv5^［20］	856	221	5	217	82.91	0.58	19.96
YOLOv8^［21］	851	215	10	241	80.94	1.16	22.17
SSD^［22］	786	205	75	24	90.92	8.71	2.21
MPDNN	828	226	33	0	96.96	3.83	0.00

Tab. 7 Numerical statistical results of comparison experiments of pedestrian detection models

模型	帧数				ACC/%	FNR/%	FPR/%
模型	TP	TN	FN	FP	ACC/%	FNR/%	FPR/%
F2DNet^［25］	171	226	690	0	36.52	80.14	0.00
VLPD^［33］	265	201	596	45	42.10	69.22	4.14
Pedestron^［34］	661	197	200	16	79.89	23.23	1.47
BFDA^［36］	725	226	136	0	87.49	15.80	0.00
MPDNN	828	226	33	0	96.96	3.83	0.00

Tab. 8 Numerical statistical results of comparison experiments of moving pedestrian detection models

模型	有效性测试数据集			尺度测试数据集			运动姿势测试数据集			遮挡测试数据集
模型	ACC	FNR	FPR	ACC	FNR	FPR	ACC	FNR	FPR	ACC	FNR	FPR
EMFD+SVM^［26］	95.78	4.56	0.00	46.64	63.59	0.00	76.98	29.03	0.00	38.54	81.59	0.00
SOF+ACF^［27］	63.29	49.21	0.00	66.82	39.54	0.00	67.37	34.51	0.00	41.23	78.35	0.00
TSM^［28］	92.37	4.15	0.00	66.56	39.54	0.00	63.46	46.22	0.00	67.57	49.48	0.00
DeepStep^［29］	98.31	2.41	0.00	59.09	51.86	0.00	87.69	13.47	0.00	57.81	72.24	0.00
MPDNN	96.96	3.83	0.00	89.48	12.53	0.00	91.45	10.79	0.00	68.86	46.21	0.00

Fig. 17 Membrane potential response output curves of homologous models

Tab. 9 Numerical statistical results of comparison experiments of homologous models

模型	帧数				ACC/%	FNR/%	FPR/%
模型	TP	TN	FN	FP	ACC/%	FNR/%	FPR/%
CDNN^［11］	0	45	242	0	15.68	100.00	0.00
CEBDNN^［8］	0	45	242	0	15.68	100.00	0.00
DSNN^［55］	124	45	118	124	41.12	48.76	43.21
STPDNN^［12］	138	45	104	0	63.76	42.98	0.00
MPDNN	239	45	3	0	98.95	1.24	0.00

Fig. 18 Sensitivity analysis of MPDNN parameters
