Channel shuffle attention mechanism based on group convolution

Liwei ZHANG¹^,², Quan LIANG¹^,²(), Yutao HU¹^,², Qiaole ZHU¹^,²

^1.School of Computer Science and Mathematics，Fujian University of Technology，Fuzhou Fujian 350118，China
^2.Fujian Provincial Key Laboratory of Big Data Mining and Applications （Fujian University of Technology），Fuzhou Fujian 350118，China

Received:2024-04-28 Revised:2024-08-05 Accepted:2024-08-08 Online:2025-04-08 Published:2025-04-10
Contact: Quan LIANG
About author:ZHANG Liwei， born in 2000， M. S. candidate. His research interests include object detection.
LIANG Quan， born in 1972， Ph. D.， professor. His research interests include artificial intelligence， internet of things， intelligent control.
HU Yutao， born in 1999， M. S. candidate. His research interests include object detection.
ZHU Qiaole， born in 2000， M. S. candidate. His research interests include image segmentation.
Supported by:
Fujian Provincial Natural Science Foundation(GY-Z23014)

基于分组卷积的通道重洗注意力机制

张李伟¹^,², 梁泉¹^,²(), 胡禹涛¹^,², 朱乔乐¹^,²

^1.福建理工大学计算机科学与数学学院，福州 350118
^2.福建省大数据挖掘与应用技术重点实验室（福建理工大学），福州 350118

通讯作者: 梁泉
作者简介:张李伟（2000—），男，湖北阳新人，硕士研究生，主要研究方向：目标检测
梁泉（1972—），男，湖南邵阳人，教授，博士，主要研究方向：人工智能、物联网、智能控制
胡禹涛（1999—），男（布依族），贵州贵阳人，硕士研究生，主要研究方向：目标检测
朱乔乐（2000—），男，河南周口人，硕士研究生，主要研究方向：图像分割。
基金资助:
福建省自然科学基金资助项目（GY?Z23014）。

Abstract

Abstract:

Introduction of attention mechanisms allows the backbone network to learn more discriminative feature representations. However， traditional attention mechanisms control the complexity of attention by channel dimension reduction or decreasing channel number while increasing batch size， which leads to excessive reduction of the number of channels and loss of important feature information. To address this issue， a Channel Shuffle Attention （CSA） module was proposed. Firstly， group convolutions were used to learn attention weights to control the complexity of CSA. Secondly， the traditional channel shuffle and Deep Channel Shuffle （DCS） methods were used to enhance the exchange of channel feature information between different groups. Thirdly， inverse channel shuffle was used to restore the order of attention weights. Finally， the restored attention weights were multiplied with the original feature map to obtain a more expressive feature map. Experimental results show that on CIFAR-100 dataset， ResNet50 adding CSA reduces the number of parameters by 2.3% and increases the Top-1 accuracy by 0.57 percentage points compared to ResNet50 adding CA （Coordinate Attention）， and has the quantity of computation reduced by 18.4% and the Top-1 accuracy increased by 0.27 percentage points compared with ResNet50 adding EMA （Efficient Multi-scale Attention）. On COCO2017 dataset， YOLOv5s adding CSA improves the mean Average Precision （mAP@50） by 0.5 and 0.2 percentage points， respectively， compared to YOLOv5s adding CA and EMA. It can be seen that CSA achieves a balance between the number of parameters and the computational complexity， and improves the accuracy of image classification tasks and the localization capability of object detection tasks at the same time.

Key words: attention mechanism, group convolution, channel shuffle, image classification, object detection

摘要：

注意力机制的引入使得主干网能够学习更具区分性的特征表示。然而，为了控制注意力的复杂度，传统的注意力机制采用的通道降维或减少通道数而增加批量大小的策略会导致过度减少通道数和损失重要特征信息的问题。为解决这一问题，提出通道重洗注意力（CSA）模块。首先，利用分组卷积学习注意力权重，以控制CSA的复杂度；其次，通过传统通道重洗和深层通道重洗（DCS）方法，增强不同组间的通道特征信息交流；再次，使用逆通道重洗恢复注意力权重的顺序；最后，将恢复后的注意力权重与原始特征图相乘，以获得更具表达能力的特征图。实验结果表明，在CIFAR-100数据集上，与添加CA（Coordinate Attention）的ResNet50相比，添加CSA的ResNet50的参数量降低了2.3%，Top-1准确率提升了0.57个百分点；与添加EMA（Efficient Multi-scale Attention）的ResNet50相比，添加CSA的ResNet50的计算量降低了18.4%，Top-1准确率提升了0.27个百分点。在COCO2017数据集上，添加CSA的YOLOv5s比添加CA和EMA的YOLOv5s在平均精度均值（mAP@50）上分别提升了0.5和0.2个百分点。可见，CSA达到了参数量和计算量的平衡，并能够同时提升图像分类任务的准确率和目标检测任务的定位能力。

关键词: 注意力机制, 分组卷积, 通道重洗, 图像分类, 目标检测

CLC Number:

TP391.41

Liwei ZHANG, Quan LIANG, Yutao HU, Qiaole ZHU. Channel shuffle attention mechanism based on group convolution[J]. Journal of Computer Applications, 2025, 45(4): 1069-1076.

张李伟, 梁泉, 胡禹涛, 朱乔乐. 基于分组卷积的通道重洗注意力机制[J]. 《计算机应用》唯一官方网站, 2025, 45(4): 1069-1076.

Figures/Tables 13

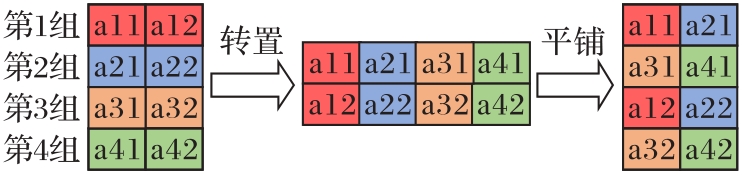

Fig. 1 Group convolution operation of dividing into three groups

Fig. 2 Channel shuffle flow of m>n

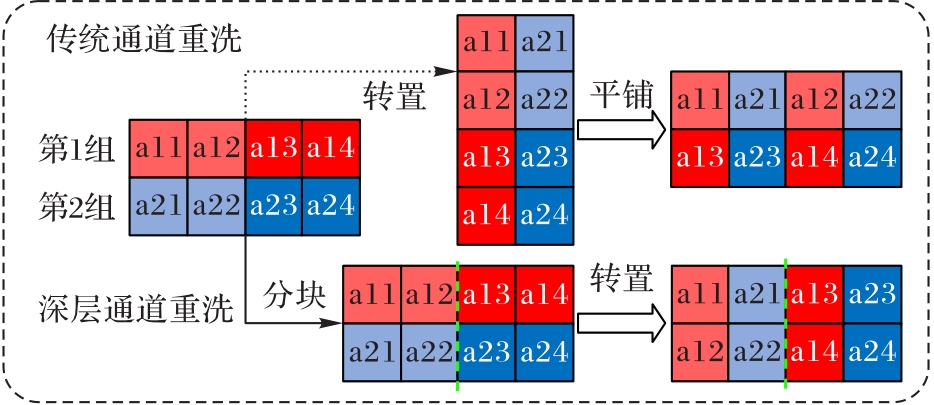

Fig. 3 Flows of traditional channel shuffle and deep channel shuffle

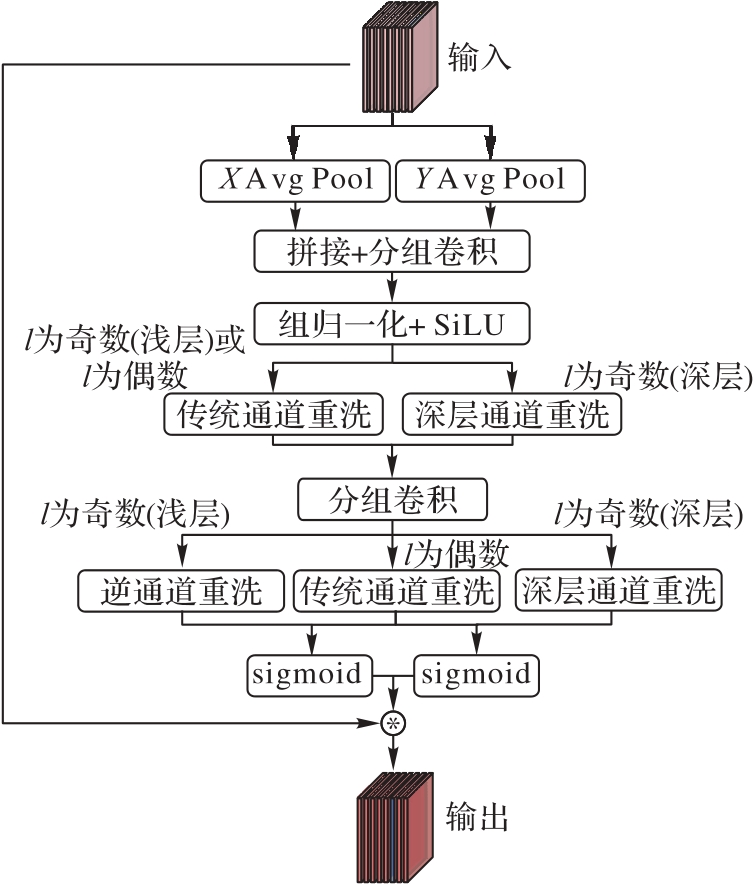

Fig. 4 CSA module structure

Fig. 5 Comparison of experimental results on CIFAR-100 and COCO2017 datasets

Tab. 1 Comparison results of different attention mechanisms on CIFAR-100 dataset

模型	参数量/ $106$	计算量/GFLOPs	Top-1/%	Top-5/%
ResNet50	23.71	1.31	77.26	93.63
+SE^［8］	26.22	1.32	79.91_+2.65	95.04_+1.41
+NAM^［18］	23.71	1.31	78.89_+1.63	95.09_+1.46
+SA^［14］	23.71	1.31	79.92_+2.66	95.00_+1.37
+CA^［11］	25.62	1.33	79.91_+2.65	95.23_+1.60
+EMA^［15］	23.90	1.63	80.21_+2.95	95.10_+1.47
+CSA	25.04	1.33	80.48_+3.22	95.19_+1.56

Tab. 1 Comparison results of different attention mechanisms on CIFAR-100 dataset

模型	参数量/ $106$	计算量/GFLOPs	Top-1/%	Top-5/%
ResNet50	23.71	1.31	77.26	93.63
+SE^［8］	26.22	1.32	79.91_+2.65	95.04_+1.41
+NAM^［18］	23.71	1.31	78.89_+1.63	95.09_+1.46
+SA^［14］	23.71	1.31	79.92_+2.66	95.00_+1.37
+CA^［11］	25.62	1.33	79.91_+2.65	95.23_+1.60
+EMA^［15］	23.90	1.63	80.21_+2.95	95.10_+1.47
+CSA	25.04	1.33	80.48_+3.22	95.19_+1.56

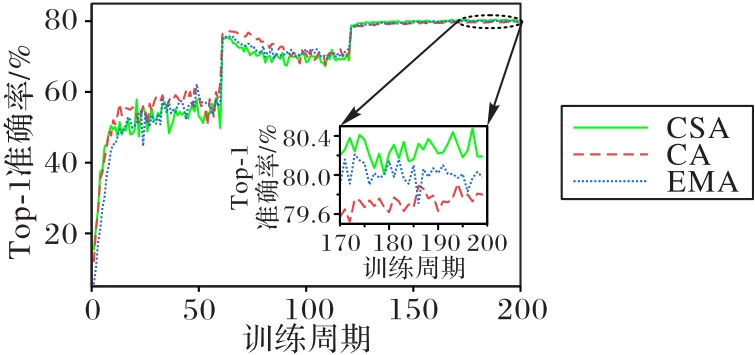

Fig. 6 Comparison of training processes for ResNet50 adding CA， EMA， and CSA

Tab. 2 Comparison results of different attention mechanisms on COCO2017 dataset

模型	参数量/ $106$	计算量/ GFLOPs	mAP@50/%	mAP@50：95/%
YOLOv5s（v6.0）	7.24	16.6	56.0	37.2
+CBAM	7.56	16.9	57.1_+1.1	37.7_+0.5
+SA	7.24	16.6	56.8_+0.8	37.4_+0.2
+CA	7.27	16.7	57.5_+1.5	38.1_+0.9
+EMA	7.24	16.8	57.8_+1.8	38.4_+1.2
+CSA	7.28	16.7	58.0_+2.0	38.0_+0.8

Tab. 2 Comparison results of different attention mechanisms on COCO2017 dataset

模型	参数量/ $106$	计算量/ GFLOPs	mAP@50/%	mAP@50：95/%
YOLOv5s（v6.0）	7.24	16.6	56.0	37.2
+CBAM	7.56	16.9	57.1_+1.1	37.7_+0.5
+SA	7.24	16.6	56.8_+0.8	37.4_+0.2
+CA	7.27	16.7	57.5_+1.5	38.1_+0.9
+EMA	7.24	16.8	57.8_+1.8	38.4_+1.2
+CSA	7.28	16.7	58.0_+2.0	38.0_+0.8

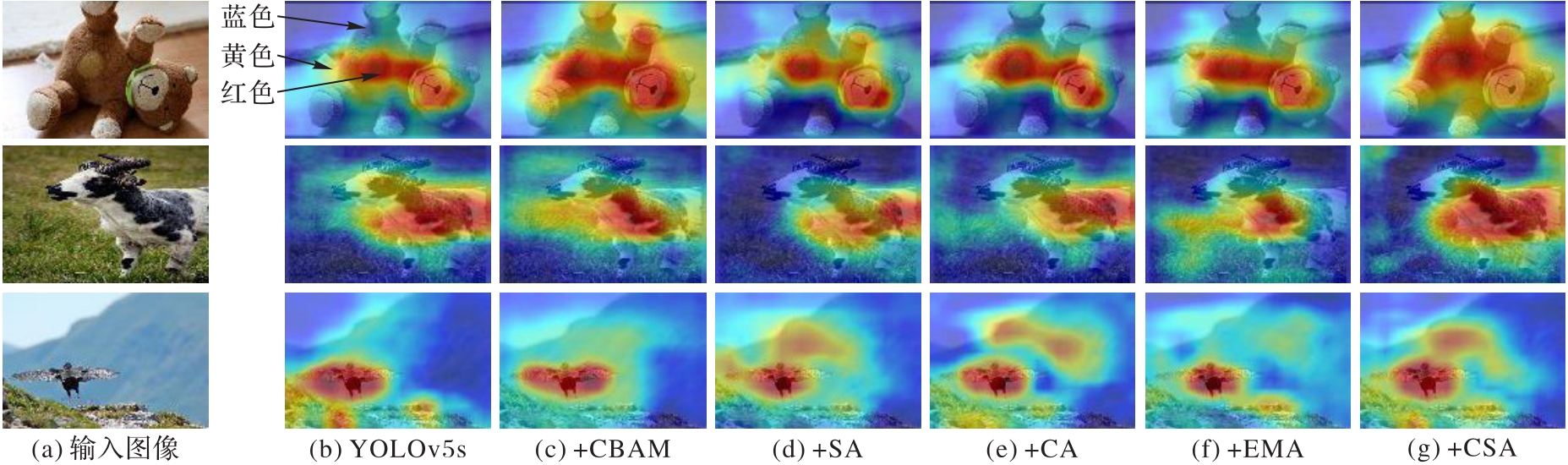

Fig. 7 Visualization of single object detection results

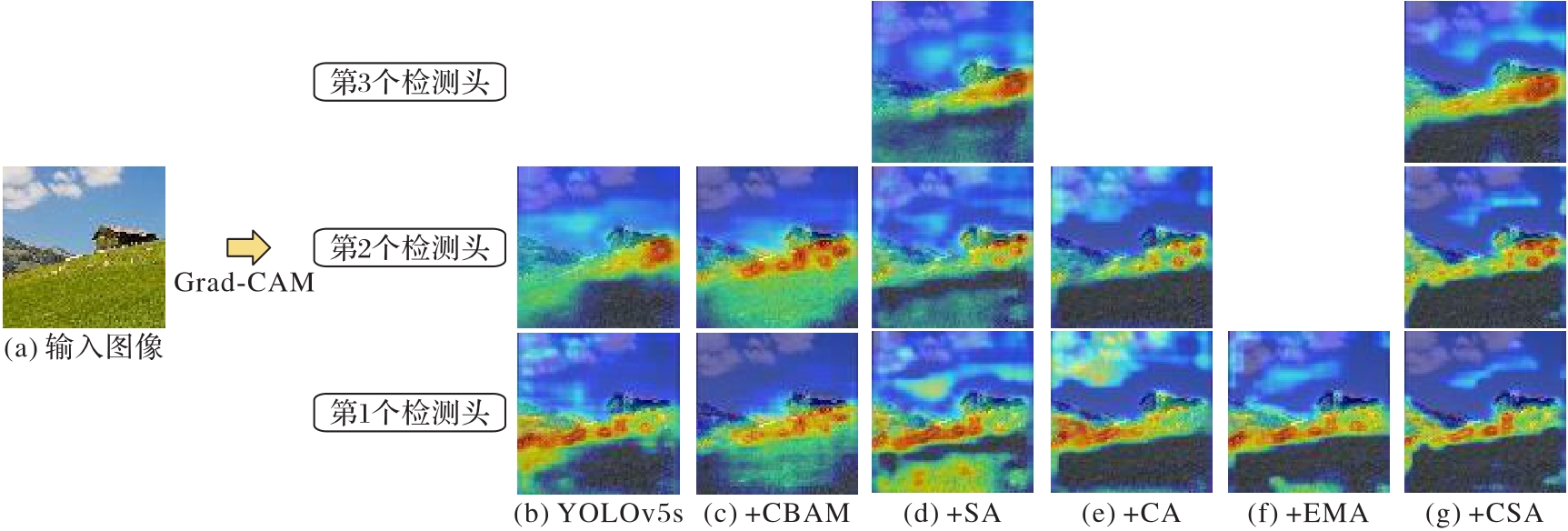

Fig. 8 Visualization of multi-object detection results

Tab. 3 Comparison results of different attention mechanisms on SHWD dataset

模型	参数量/ $106$	计算量/GFLOPs	mAP@50/%	mAP@50：95/%
YOLOv8s	11.17	28.8	95.4	65.8
+SE	11.19	28.8	95.4	65.9
+CBAM	11.38	29.0	95.6	66.2
+CA	11.20	28.9	95.3	66.0
+EMA	11.17	29.0	95.2	66.0
+CSA	11.20	28.9	95.5	66.3

Tab. 3 Comparison results of different attention mechanisms on SHWD dataset

模型	参数量/ $106$	计算量/GFLOPs	mAP@50/%	mAP@50：95/%
YOLOv8s	11.17	28.8	95.4	65.8
+SE	11.19	28.8	95.4	65.9
+CBAM	11.38	29.0	95.6	66.2
+CA	11.20	28.9	95.3	66.0
+EMA	11.17	29.0	95.2	66.0
+CSA	11.20	28.9	95.5	66.3

Tab. 4 Comparison of complexity and speeds among three types of attention

模型	参数量/ $106$	计算量/GFLOPs	帧率/（frame·s^-1）
YOLOv5s+CA	7.27	16.7	232
YOLOv5s+EMA	7.24	16.8	227
YOLOv5s+CSA	7.28	16.7	243
YOLOv8s+CA	11.20	28.9	215
YOLOv8s+EMA	11.17	29.0	178
YOLOv8s+CSA	11.20	28.9	238

Tab. 4 Comparison of complexity and speeds among three types of attention

模型	参数量/ $106$	计算量/GFLOPs	帧率/（frame·s^-1）
YOLOv5s+CA	7.27	16.7	232
YOLOv5s+EMA	7.24	16.8	227
YOLOv5s+CSA	7.28	16.7	243
YOLOv8s+CA	11.20	28.9	215
YOLOv8s+EMA	11.17	29.0	178
YOLOv8s+CSA	11.20	28.9	238

Tab. 5 Ablation experimental results

模型	Top-1/%	Top-5/%	帧率/（frame·s^-1）
+CSA_11	79.97	94.87	95
+CSA_22	78.71	95.07	96
+CSA_21	79.98	95.08	94
+CSA（无顺序恢复）	80.15	95.14	101
+CSA（ $m > n$ ）	79.79	94.69	110
+CSA	80.48	95.19	96

Tab. 5 Ablation experimental results

模型	Top-1/%	Top-5/%	帧率/（frame·s^-1）
+CSA_11	79.97	94.87	95
+CSA_22	78.71	95.07	96
+CSA_21	79.98	95.08	94
+CSA（无顺序恢复）	80.15	95.14	101
+CSA（ $m > n$ ）	79.79	94.69	110
+CSA	80.48	95.19	96

References 40

1	KRIZHEVSKY A， SUTSKEVER I， HINTON G E. ImageNet classification with deep convolutional neural networks［C］// Proceedings of the 25th International Conference on Neural Information Processing Systems — Volume 1. Red Hook： Curran Associates Inc.， 2012： 1097-1105.
2	HE K， ZHANG X， REN S， et al. Deep residual learning for image recognition［C］// Proceedings of the 2016 IEEE Conference on Computer Vision and Pattern Recognition. Piscataway： IEEE， 2016： 770-778.
3	SZEGEDY C， LIU W， JIA Y， et al. Going deeper with convolutions［C］// Proceedings of the 2015 IEEE Conference on Computer Vision and Pattern Recognition. Piscataway： IEEE， 2015： 1-9.
4	SIMONYAN K， ZISSERMAN A. Very deep convolutional networks for large-scale image recognition ［EB/OL］. ［2024-04-26］..
5	HUANG G， LIU Z， VAN DER MAATEN L， et al. Densely connected convolutional networks［C］// Proceedings of the 2017 IEEE Conference on Computer Vision and Pattern Recognition. Piscataway： IEEE， 2017： 2261-2269.
6	SZEGEDY C， VANHOUCKE V， IOFFE S， et al. Rethinking the inception architecture for computer vision［C］// Proceedings of the 2016 IEEE Conference on Computer Vision and Pattern Recognition. Piscataway： IEEE， 2016： 2818-2826.
7	REDMON J， FARHADI A. YOLO9000： better， faster， stronger［C］// Proceedings of the 2017 IEEE Conference on Computer Vision and Pattern Recognition. Piscataway： IEEE， 2017： 6517-6525.
8	HU J， SHEN L， SUN G. Squeeze-and-excitation networks［C］// Proceedings of the 2018 IEEE/CVF Conference on Computer Vision and Pattern Recognition. Piscataway： IEEE， 2018： 7132-7141.
9	WOO S， PARK J， LEE J Y， et al. CBAM： convolutional block attention module［C］// Proceedings of the 2018 European Conference on Computer Vision， LNCS 11211. Cham： Springer， 2018： 3-19.
10	肖斌，甘昀，汪敏，等. 基于端口注意力与通道空间注意力的网络异常流量检测［J］. 计算机应用， 2024， 44（4）： 1027-1034.
	XIAO B， GAN Y， WANG M， et al. Network abnormal traffic detection based on port attention and convolutional block attention module［J］. Journal of Computer Applications， 2024， 44（4）： 1027-1034.
11	HOU Q， ZHOU D， FENG J. Coordinate attention for efficient mobile network design［C］// Proceedings of the 2021 IEEE/CVF Conference on Computer Vision and Pattern Recognition. Piscataway： IEEE， 2021： 13713-13722.
12	YANG W， WU J， ZHANG J， et al. Deformable convolution and coordinate attention for fast cattle detection［J］. Computers and Electronics in Agriculture， 2023， 211： No.108006.
13	ZHAO D， CAI W， CUI L. Adaptive thresholding and coordinate attention-based tree-inspired network for aero-engine bearing health monitoring under strong noise［J］. Advanced Engineering Informatics， 2024， 61： No.102559.
14	ZHANG Q L， YANG Y B. SA-Net： shuffle attention for deep convolutional neural networks［C］// Proceedings of the 2021 IEEE International Conference on Acoustics， Speech and Signal Processing. Piscataway： IEEE， 2021： 2235-2239.
15	OUYANG D， HE S， ZHANG G， et al. Efficient multi-scale attention module with cross-spatial learning［C］// Proceedings of the 2023 IEEE International Conference on Acoustics， Speech and Signal Processing. Piscataway： IEEE， 2023： 1-5.
16	WU T， DONG Y. YOLO-SE： improved YOLOv8 for remote sensing object detection and recognition［J］. Applied Sciences， 2023， 13（24）： No.12977.
17	CHEN S， LI Y， ZHANG Y， et al. Soft X-ray image recognition and classification of maize seed cracks based on image enhancement and optimized YOLOv8 model［J］. Computers and Electronics in Agriculture， 2024， 216： No.108475.
18	LIU Y， SHAO Z， TENG Y， et al. NAM： normalization-based attention module［EB/OL］. ［2024-04-26］..
19	WANG C Y， LIAO H Y M， WU Y H， et al. CSPNet： a new backbone that can enhance learning capability of CNN［C］// Proceedings of the 2020 IEEE/CVF Conference on Computer Vision and Pattern Recognition Workshops. Piscataway： IEEE， 2020： 1571-1580.
20	HOWARD A G， ZHU M， CHEN B， et al. MobileNets： efficient convolutional neural networks for mobile vision applications［EB/OL］. ［2024-04-26］..
21	SANDLER M， HOWARD A， ZHU M， et al. MobileNetV2： inverted residuals and linear bottlenecks［C］// Proceedings of the 2018 IEEE/CVF Conference on Computer Vision and Pattern Recognition. Piscataway： IEEE， 2018： 4510-4520.
22	HOWARD A， SANDLER M， CHEN B， et al. Searching for MobileNetV3［C］// Proceedings of the 2019 IEEE/CVF International Conference on Computer Vision. Piscataway： IEEE， 2019： 1314-1324.
23	ZHANG X， ZHOU X， LIN M， et al. ShuffleNet： an extremely efficient convolutional neural network for mobile devices［C］// Proceedings of the 2018 IEEE/CVF Conference on Computer Vision and Pattern Recognition. Piscataway： IEEE， 2018： 6848-6856.
24	MA N， ZHANG X， ZHENG H T， et al. ShuffleNet V2： practical guidelines for efficient CNN architecture design［C］// Proceedings of the 2018 European Conference on Computer Vision， LNCS 11218. Cham： Springer， 2018： 122-138.
25	LI X， HU X， YANG J. Spatial group-wise enhance： improving semantic feature learning in convolutional networks［EB/OL］. ［2024-04-26］..
26	YANG K， CHANG S， TIAN Z， et al. Automatic polyp detection and segmentation using shuffle efficient channel attention network［J］. Alexandria Engineering Journal， 2022， 61（1）： 917-926.
27	WANG Q， WU B， ZHU P， et al. ECA-Net： efficient channel attention for deep convolutional neural networks［C］// Proceedings of the 2020 IEEE/CVF Conference on Computer Vision and Pattern Recognition. Piscataway： IEEE， 2020： 11531-11539.
28	GAO X， XU L， WANG F， et al. Multi-branch aware module with channel shuffle pixel-wise attention for lightweight image super-resolution［J］. Multimedia Systems， 2023， 29： 289-303.
29	LIU K， CHEN K， GUO L， et al. ShuffleMix： improving representations via channel-wise shuffle of interpolated hidden states［EB/OL］. ［2024-04-26］..
30	LYU J， ZHANG S， QI Y， et al. AutoShuffleNet： learning permutation matrices via an exact Lipschitz continuous penalty in deep convolutional neural networks［C］// Proceedings of the 26th ACM SIGKDD International Conference on Knowledge Discovery and Data Mining. New York： ACM， 2020： 608-616.
31	WANG C Y， BOCHKOVSKIY A， LIAO H Y M. YOLOv7： trainable bag-of-freebies sets new state-of-the-art for real-time object detectors［C］// Proceedings of the 2023 IEEE/CVF Conference on Computer Vision and Pattern Recognition. Piscataway： IEEE， 2023： 7464-7475.
32	WANG C Y， LIAO H Y M， YEH I H. Designing network design strategies through gradient path analysis［J］. Journal of Information Science and Engineering， 2023， 39（4）： 975-995.
33	CHEN Y， KALANTIDIS Y， LI J， et al. A²-Nets： double attention networks［C］// Proceedings of the 32nd International Conference on Neural Information Processing Systems. Red Hook： Curran Associates Inc.， 2018： 350-359.
34	YANG L， ZHANG R Y， LI L， et al. SimAM： a simple， parameter-free attention module for convolutional neural networks［C］// Proceedings of the 38th International Conference on Machine Learning. New York： JMLR.org， 2021： 11863-11874.
35	LI X， WANG W， HU X， et al. Selective kernel networks［C］// Proceedings of the 2019 IEEE/CVF Conference on Computer Vision and Pattern Recognition. Piscataway： IEEE， 2019： 510-519.
36	DENG J， DONG W， SOCHER R， et al. ImageNet： a large-scale hierarchical image database［C］// Proceedings of the 2009 IEEE Conference on Computer Vision and Pattern Recognition. Piscataway： IEEE， 2009： 248-255.
37	LIN T Y， MAIRE M， BELONGIE S， et al. Microsoft COCO： common objects in context［C］// Proceedings of the 2014 European Conference on Computer Vision， LNCS 8693. Cham： Springer， 2014： 740-755.
38	Ultralytics. YOLOv8［EB/OL］. ［2024-04-26］..
39	Ultralytics. YOLOv5［EB/OL］. ［2024-04-26］..
40	SELVARAJU R R， COGSWELL M， DAS A， et al. Grad-CAM： visual explanations from deep networks via gradient-based localization［C］// Proceedings of the 2017 IEEE International Conference on Computer Vision. Piscataway： IEEE， 2017： 618-626.

[1]	Yiqin YAN, Chuan LUO, Tianrui LI, Hongmei CHEN. Cross-domain few-shot classification model based on relation network and Vision Transformer [J]. Journal of Computer Applications, 2025, 45(4): 1095-1103.
[2]	Jie HU, Qiyang ZHENG, Jun SUN, Yan ZHANG. Multi-label classification model based on multi-label relational graph and local dynamic reconstruction learning [J]. Journal of Computer Applications, 2025, 45(4): 1104-1112.
[3]	Qingqing ZHAO, Bin HU. Moving pedestrian detection neural network with invariant global sparse contour point representation [J]. Journal of Computer Applications, 2025, 45(4): 1271-1284.
[4]	Shiyue GUO, Jianwu DANG, Yangping WANG, Jiu YONG. 3D hand pose estimation combining attention mechanism and multi-scale feature fusion [J]. Journal of Computer Applications, 2025, 45(4): 1293-1299.
[5]	Chun XU, Shuangyan JI, Huan MA, Enwei SUN, Mengmeng WANG, Mingyu SU. Consultation recommendation method based on knowledge graph and dialogue structure [J]. Journal of Computer Applications, 2025, 45(4): 1157-1168.
[6]	Yang HOU, Qiong ZHANG, Zixuan ZHAO, Zhengyu ZHU, Xiaobo ZHANG. YOLOv5s-MRD： efficient fire and smoke detection algorithm for complex scenarios based on YOLOv5s [J]. Journal of Computer Applications, 2025, 45(4): 1317-1324.
[7]	Kunyuan JIANG, Xiaoxia LI, Li WANG, Yaodan CAO, Xiaoqiang ZHANG, Nan DING, Yingyue ZHOU. Boundary-cross supervised semantic segmentation network with decoupled residual self-attention [J]. Journal of Computer Applications, 2025, 45(4): 1120-1129.
[8]	Meirong DING, Jinxin ZHUO, Yuwu LU, Qinglong LIU, Jicong LANG. Domain adaptation integrating environment label smoothing and nuclear norm discrepancy [J]. Journal of Computer Applications, 2025, 45(4): 1130-1138.
[9]	Liqin WANG, Zhilei GENG, Yingshuang LI, Yongfeng DONG, Meng BIAN. Open-world knowledge reasoning model based on path and enhanced triplet text [J]. Journal of Computer Applications, 2025, 45(4): 1177-1183.
[10]	Chuanhao ZHANG, Xiaohan TU, Xuehui GU, Bo XUAN. LiDAR-camera 3D object detection based on multi-modal information mutual guidance and supplementation [J]. Journal of Computer Applications, 2025, 45(3): 946-952.
[11]	Haijun GENG, Yun DONG, Zhiguo HU, Haotian CHI, Jing YANG, Xia YIN. Encrypted traffic classification method based on Attention-1DCNN-CE [J]. Journal of Computer Applications, 2025, 45(3): 872-882.
[12]	Songsen YU, Zhifan LIN, Guopeng XUE, Jianyu XU. Lightweight large-format tile defect detection algorithm based on improved YOLOv8 [J]. Journal of Computer Applications, 2025, 45(2): 647-654.
[13]	Danni DING, Bo PENG, Xi WU. VPNet： fatty liver ultrasound image classification method inspired by ventral pathway [J]. Journal of Computer Applications, 2025, 45(2): 662-669.
[14]	Tianqi ZHANG, Shuang TAN, Xiwen SHEN, Juan TANG. Image watermarking method combining attention mechanism and multi-scale feature [J]. Journal of Computer Applications, 2025, 45(2): 616-623.
[15]	Yan LI, Guanhua YE, Yawen LI, Meiyu LIANG. Enterprise ESG indicator prediction model based on richness coordination technology [J]. Journal of Computer Applications, 2025, 45(2): 670-676.
