Incremental semantic mapping system based on visual SLAM

doi:10.11772/j.issn.1001-9081.2025081035

Journal of Computer Applications ›› 2026, Vol. 46 ›› Issue (9): 2800-2808.DOI: 10.11772/j.issn.1001-9081.2025081035

• Artificial intelligence • Previous Articles

Incremental semantic mapping system based on visual SLAM

Wei CUI¹, Ping ZHANG¹(), Zhuoling XIAO², Zhuohang CHEN³

^1.Digital Development Center，Luzhou Laojiao Company Limited，Luzhou Sichuan 646000，China
^2.School of Information and Communication Engineering，University of Electronic Science and Technology of China，Chengdu Sichuan 611731，China
^3.Glasgow College，University of Electronic Science and Technology of China，Chengdu Sichuan 611731，China

Received:2025-09-09 Revised:2026-03-18 Accepted:2026-03-20 Online:2026-04-22 Published:2026-09-10
Contact: Ping ZHANG
About author:CUI Wei， born in 1983， M. S. candidate， senior engineer. His research interests include artificial intelligence， internet of things.
ZHANG Ping， born in 1986， senior engineer. His research interests include parallel computing， big data applications.
XIAO Zhuoling， born in 1985， Ph. D.， professor. His research interests include intelligent signal processing， internet of things.
CHEN Zhuohang， born in 2005. His research interests include embedded development， artificial intelligence.
Supported by:
General Program of National Natural Science Foundation of China(61973056)

基于视觉SLAM的增量式语义建图系统

崔伟¹, 张平¹(), 肖卓凌², 陈卓航³

^1.泸州老窖股份有限公司数字化发展中心，四川泸州 646000
^2.电子科技大学信息与通信工程学院，成都 611731
^3.电子科技大学格拉斯哥学院，成都 611731

通讯作者: 张平
作者简介:崔伟（1983—），男，四川自贡人，高级工程师，硕士研究生，主要研究方向：人工智能、物联网
张平（1986—），男，四川泸州人，高级工程师，主要研究方向：并行计算、大数据应用
肖卓凌（1985—），男，四川成都人，教授，博士，主要研究方向：智能信号处理、物联网
陈卓航（2005—），男，四川成都人，主要研究方向：嵌入式开发、人工智能。
基金资助:
国家自然科学基金面上项目(61973056)

Abstract

Abstract:

Traditional semantic Simultaneous Localization and Mapping （SLAM） systems rely on training with full data， making it difficult to recognize novel categories in open environments. In addition， the systems only construct sparse maps， resulting in limited semantic representation capabilities and insufficient support for complex human-machine interaction. Therefore， an incremental semantic mapping system based on visual SLAM was proposed. In the system， a dense mapping thread was introduced into the ORB-SLAM3 （Oriented FAST and Rotated BRIEF SLAM 3.0） framework， and a newly designed semantic segmentation model， DAISS （Depth Attention Incremental Semantic Segmentation）， was integrated， so as to achieve simultaneous localization and semantic mapping. Among which， a dual-branch encoder and an attention distillation mechanism were adopted by the DAISS model to improve segmentation accuracy for old and new categories. Experimental results on NYU Depth V2 dataset show that this system achieves 61.0% and 47.5% in Mean Accuracy （MA） and Mean Intersection over Union （MIoU） metrics， representing improvements of 60.9% and 48.9%， respectively， over the SATS （Self-Attention Transfer for continual Semantic segmentation） model. These results validate its strong incremental learning capability and semantic perception performance.

Key words: semantic mapping, 3D reconstruction, incremental learning, multimodal data, data fusion, deep learning

摘要：

传统语义同时定位与建图（SLAM）系统依赖全量数据进行训练，难以适应开放环境中的新类别识别，且仅构建稀疏地图，语义表达能力有限，难以支持复杂的人机交互。因此，提出一种基于视觉SLAM的增量式语义建图系统。该系统在ORB-SLAM3（Oriented FAST and Rotated BRIEF SLAM 3.0）框架中引入稠密建图线程，并融合所设计的DAISS（Depth Attention Incremental Semantic Segmentation）语义分割模型，实现同步定位与语义建图。其中，DAISS模型采用双分支编码器和注意力蒸馏机制，以提升新旧类别分割精度。在NYU Depth V2数据集上的实验结果显示，该系统的平均精度（MA）、平均交并比（MIoU）分别达到了61.0%和47.5%，相较于SATS（Self-Attention Transfer for continual Semantic segmentation）模型，分别提高60.9%和48.9%，具备良好的增量学习能力和语义感知性能。

关键词: 语义建图, 三维重建, 增量式学习, 多模态数据, 数据融合, 深度学习

CLC Number:

TP391.41

Wei CUI, Ping ZHANG, Zhuoling XIAO, Zhuohang CHEN. Incremental semantic mapping system based on visual SLAM[J]. Journal of Computer Applications, 2026, 46(9): 2800-2808.

崔伟, 张平, 肖卓凌, 陈卓航. 基于视觉SLAM的增量式语义建图系统[J]. 《计算机应用》唯一官方网站, 2026, 46(9): 2800-2808.

Figures/Tables 16

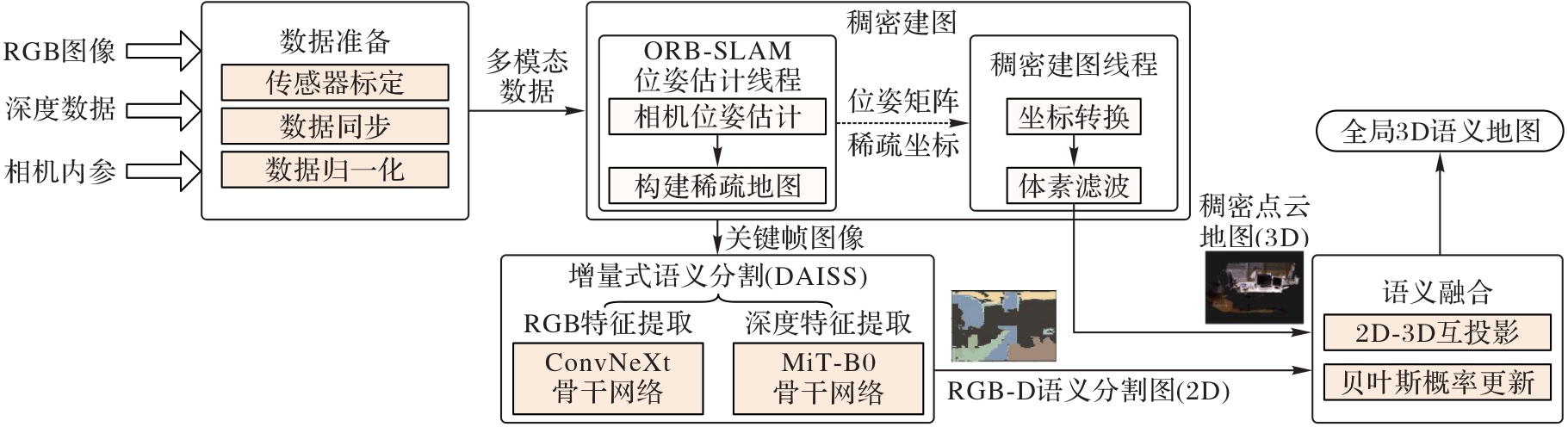

Fig. 1 System overall structure and data transmission of various modules

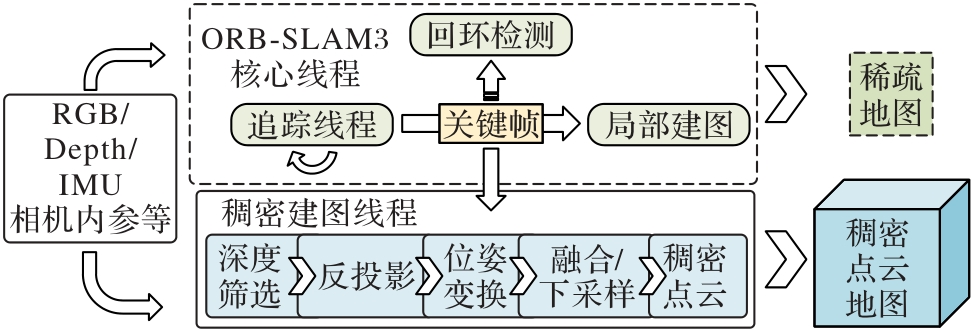

Fig. 2 Parallel embedding structure of dense mapping thread

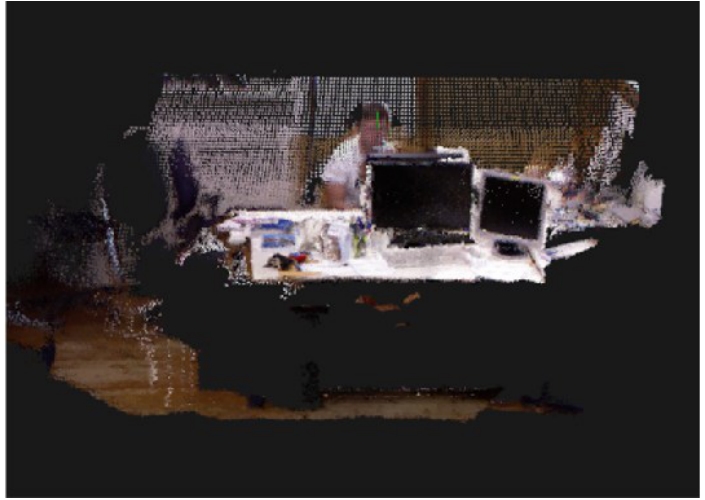

Fig. 3 Dense point cloud map

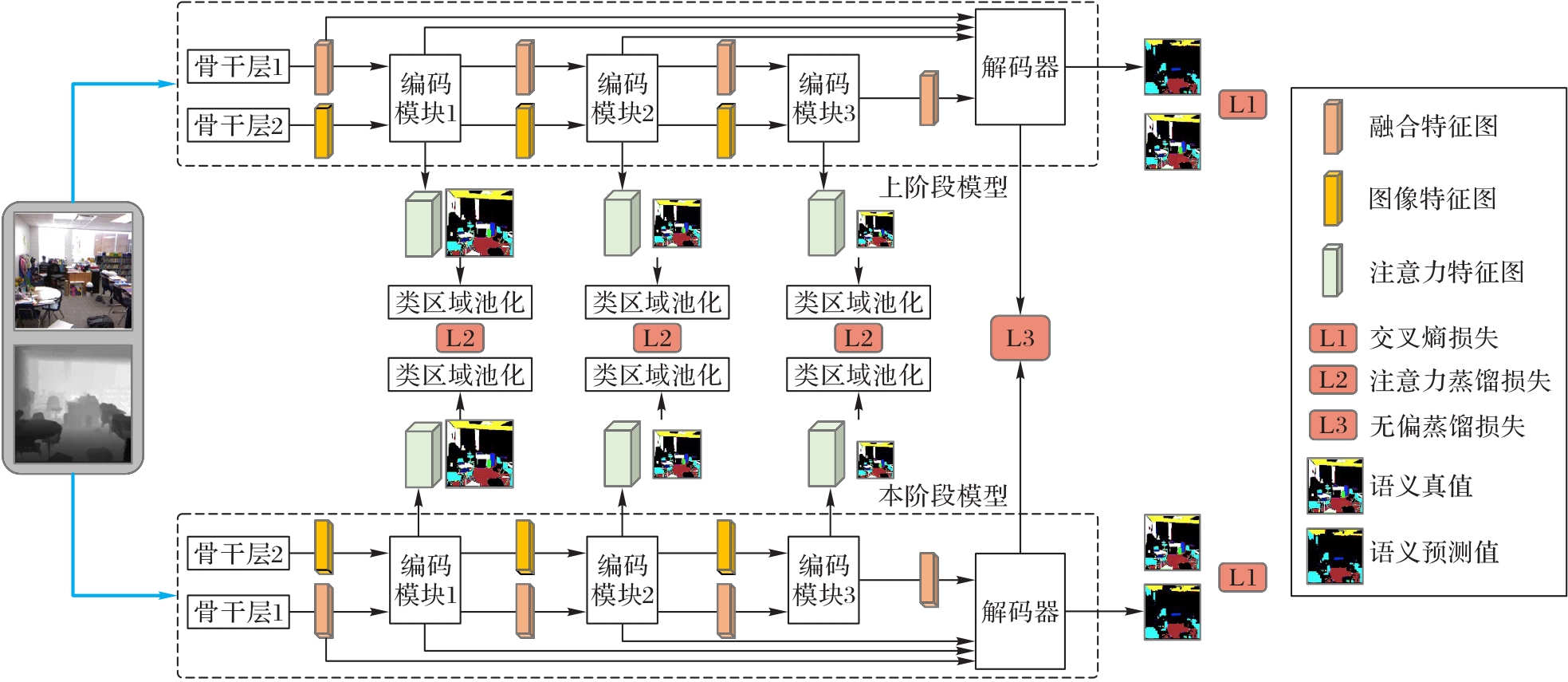

Fig. 4 Flow of DAISS model

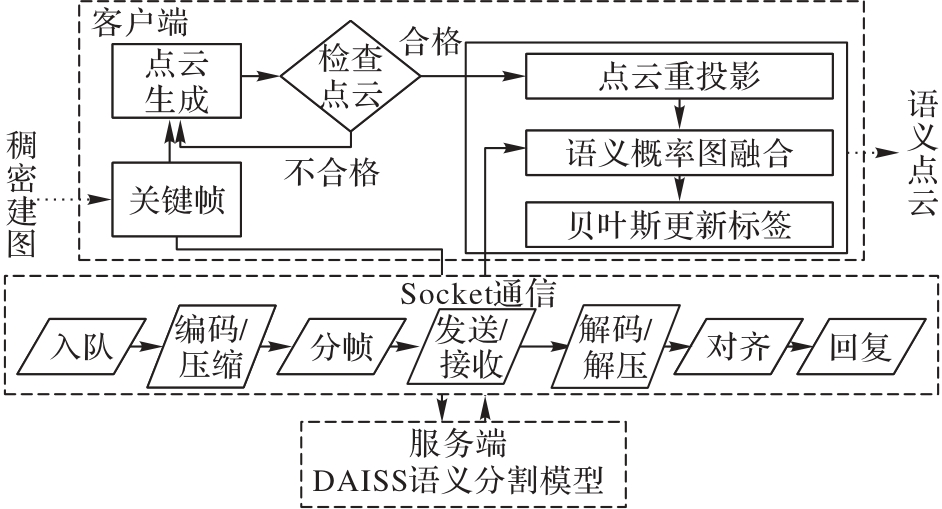

Fig. 5 Fusion structure of dense mapping model and semantic segmentation model

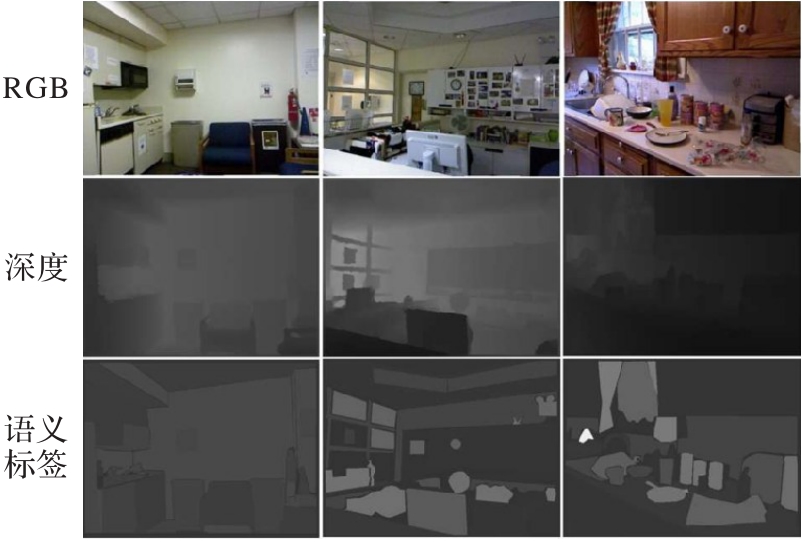

Fig. 6 Sampling examples from NYU Depth V2 dataset

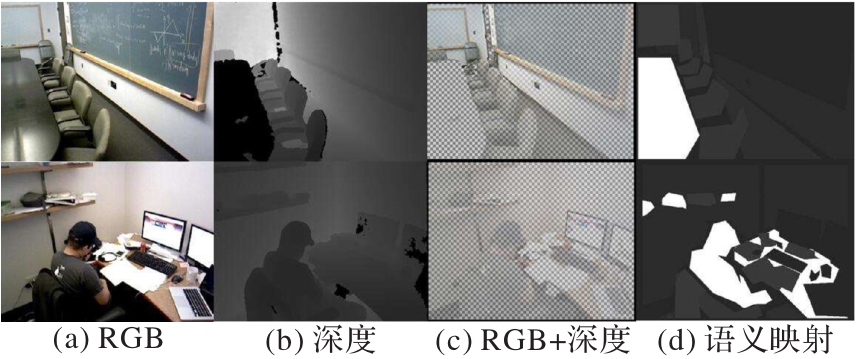

Fig. 7 Preprocessing results of NYU Depth V2 dataset

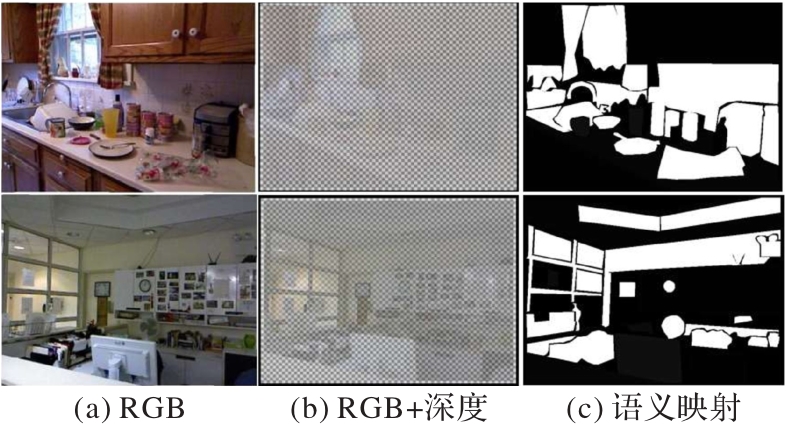

Fig. 8 SUN RGB-D dataset sample preprocessing results

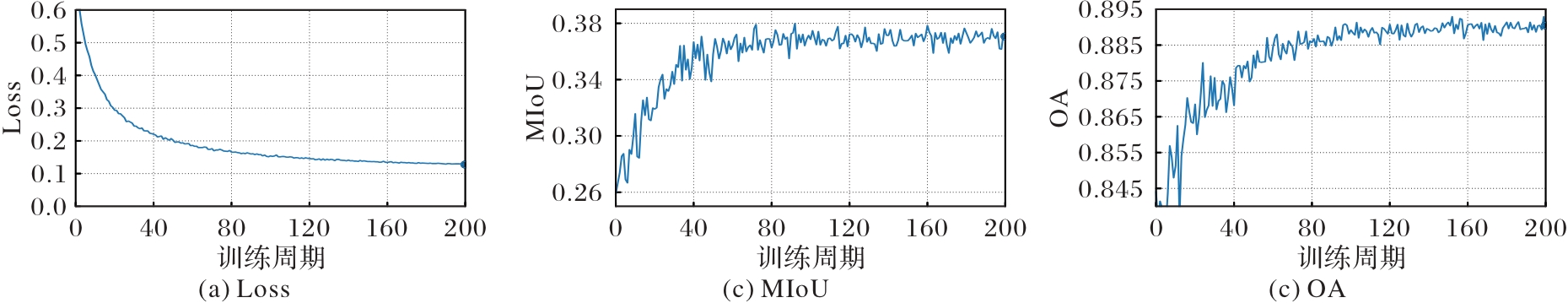

Fig. 9 Training loss， verification MIoU and OA curves on NYU Depth V2 dataset

Tab. 1 Segmentation test results on PASCAL VOC 2012 dataset

阶段	OA	MA	MIoU
Session_0	95.482 0	89.731 5	80.930 6
Session_1	94.906 2	89.278 8	78.512 7
Session_2	94.418 2	84.769 8	75.077 9
Session_3	90.987 8	83.761 5	71.717 8
Session_4	88.937 1	82.185 9	68.582 2
Session_5	87.062 6	82.180 4	66.405 2

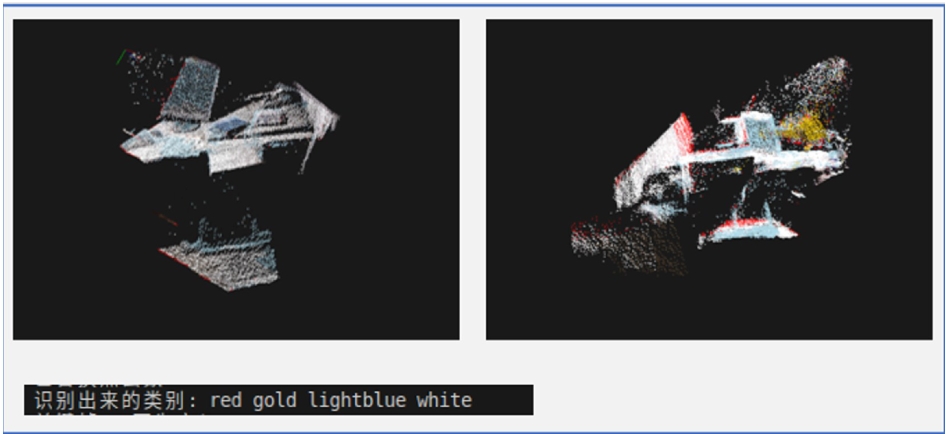

Fig. 10 Example of fusion of 3D semantic point clouds generated by DAISS and mutual projection mechanism

Tab. 2 Quantitative comparison of models on NYU Depth V2 dataset

模型	模态	MIoU	OA	MA
SATS^［13］	RGB	31.9	83.3	37.9
SATS^*	RGB+Depth	24.6	66.0	28.8
Dformer-S^［18］	RGB+Depth	14.1	80.1	16.9
HN-network^［19］	RGB+Depth	33.5	62.9	56.0
CompL^［20］	RGB+Depth	31.6	—	—
DAISS	RGB+Depth	47.5	80.3	61.0

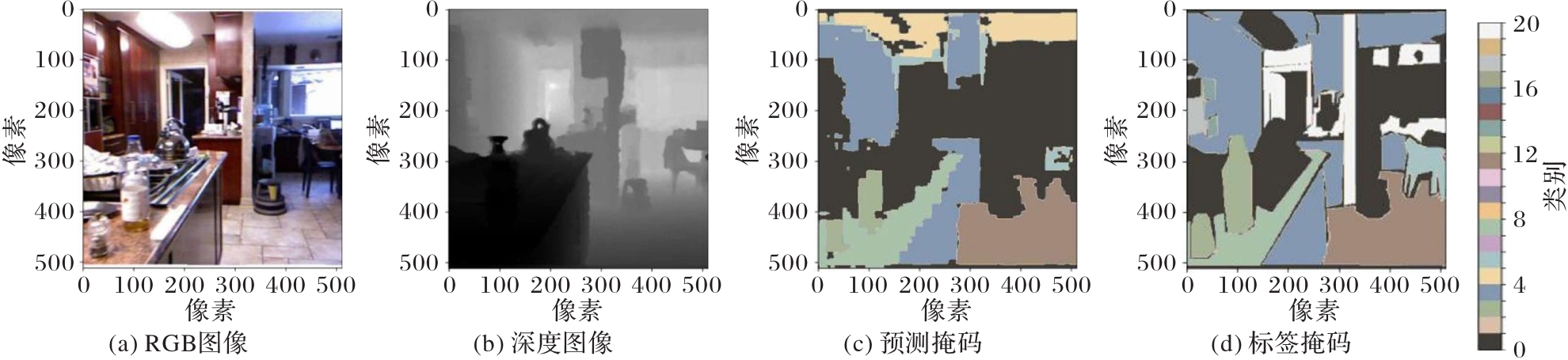

Fig. 11 Semantic segmentation result visualization on NYU Depth V2 dataset

Tab. 3 Quantitative results of Session_0 semantic segmentation of 15 basic categories of SUN RGB-D dataset

类别	IoU/%	Acc/%	类别	IoU/%	Acc/%
wall	56.7	74.3	mirror	43.8	57.0
floor	69.6	81.8	sofa	59.9	74.1
cabinet	77.9	88.0	books	53.4	73.9
chair	51.7	67.0	TV	37.5	51.6
window	40.2	52.5	paper	22.0	31.0
bookshelf	40.6	53.5	towel	25.8	32.9
picture	46.9	69.3	ceiling	22.9	29.9
curtain	8.3	10.5	平均	44.0	56.6

Tab. 4 Quantitative comparison of models on SUN RGB-D dataset

模型	基础模型	模态	MIoU	OA
FuseNet^［21］	CNN	RGB-D	37.3	76.3
D-CNN^［22］	CNN	RGB-D	42.0	—
SATS^［13］	Transformer	RGB	35.5	68.2
SATS^*	Transformer	RGB-D	40.4	74.5
Dformer-L^［18］	Transformer	RGB-D	44.3	80.7
DAISS	Transformer+CNN	RGB-D	44.0	75.7

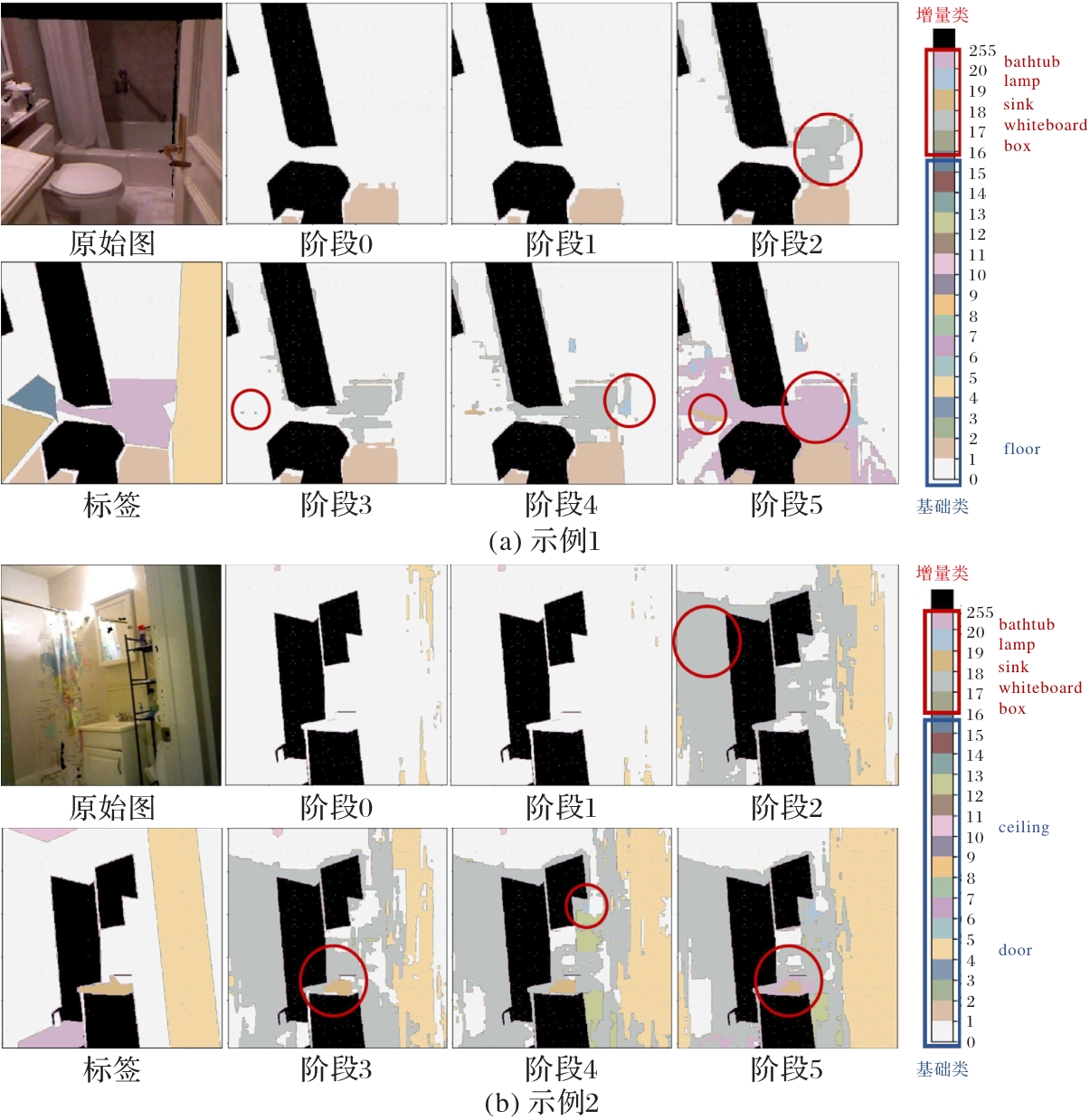

Fig. 12 Multi-session visualization examples on SUN RGB-D dataset

References 22

[1]	黄泽霞，邵春莉. 深度学习下的视觉SLAM综述［J］. 机器人， 2023， 45（6）： 756-768.
	Huang Zexia， Shao Chunli. Survey of visual SLAM based on deep learning ［J］. Robot， 2023， 45（6）： 756-768.
[2]	Wang T， Dhiman V， Atanasov N. Inverse reinforcement learning for autonomous navigation via differentiable semantic mapping and planning ［J］. Autonomous Robots， 2023， 47（6）： 809-830.
[3]	Sünderhauf N， Pham T T， Latif Y， et al. Meaningful maps with object-oriented semantic mapping ［C］// IROS 2017. Piscataway： IEEE， 2017： 5079-5085.
[4]	Campos C， Elvira R， Gómez Rodríguez J J， et al. ORB-SLAM3： An accurate open-source library for visual， visual-inertial and multi-map SLAM ［J］. IEEE Transactions on Robotics， 2021， 37（6）： 1874-1890.
[5]	Ma L， Stückler J， Kerl C， et al. Multi-view deep learning for consistent semantic mapping with RGB-D cameras ［C］// IROS 2017. Piscataway： IEEE， 2017： 598-605.
[6]	Su H， Maji S， Kalogerakis E， et al. Multi-view convolutional neural networks for 3D shape recognition ［C］// ICCV 2015. Piscataway： IEEE， 2015： 945-953.
[7]	McCormac J， Handa A， Davison A， et al. SemanticFusion： dense 3D semantic mapping with convolutional neural networks ［C］// ICRA 2017. Piscataway： IEEE， 2017： 4628-4635.
[8]	徐陈，周怡君，罗晨. 动态场景下基于光流和实例分割的视觉SLAM方法［J］. 光学学报， 2022， 42（14）： No.1415002.
	Xu Chen， Zhou Yijun， Luo Chen. Visual SLAM method based on optical flow and instance segmentation for dynamic scenes ［J］. Acta Optica Sinica， 2022， 42（14）： No.1415002.
[9]	华春生，郭伟豪. 动态环境下的语义视觉SLAM算法研究［J］. 辽宁大学学报（自然科学版）， 2022， 49（4）： 289-297.
	Hua Chunsheng， Guo Weihao. Research on a semantic vision SLAM algorithm in dynamic environments ［J］. Journal of Liaoning University （Natural Science Edition）， 2022， 49（4）： 289-297.
[10]	Wang H， Wang J， Agapito L. Co-SLAM： joint coordinate and sparse parametric encodings for neural real-time SLAM ［C］// CVPR 2023. Piscataway： IEEE， 2023： 13293-13302.
[11]	Natan O， Miura J. DeepIPC： deeply integrated perception and control for an autonomous vehicle in real environments ［J］. IEEE Access， 2024， 12： 49590-49601.
[12]	Yuan B， Zhao D. A survey on continual semantic segmentation： Theory， challenge， method and application ［J］. IEEE Transactions on Pattern Analysis and Machine Intelligence， 2024， 46（12）： 10891-10910.
[13]	Qiu Y， Shen Y， Sun Z， et al. SATS： self-attention transfer for continual semantic segmentation ［J］. Pattern Recognition， 2023， 138： No.109383.
[14]	Silberman N， Hoiem D， Kohli P， et al. Indoor segmentation and support inference from RGBD images ［C］// ECCV 2012， LNCS 7576. Berlin： Springer， 2012： 746-760.
[15]	电子科技大学. 一种基于视觉SLAM的增量式语义分割系统： CN202411755485.5［P］. 2025-04-08.
	University of Electronic Science and Technology of China. Incremental semantic segmentation system based on visual SLAM： CN202411755485.5［P］. 2025-04-08.
[16]	Xie E， Wang W， Yu Z， et al. SegFormer： simple and efficient design for semantic segmentation with Transformers ［C］// NeurIPS 2021. Red Hook： Curran Associates Inc.， 2021： 12077-12090.
[17]	Liu Z， Mao H， Wu C Y， et al. A ConvNet for the 2020s ［C］// CVPR 2022. Piscataway： IEEE， 2022： 11966-11976.
[18]	Khudjaev N， Tsoy R， Sharif S M A， et al. Dformer： learning efficient image restoration with perceptual guidance ［C］// CVPRW 2024. Piscataway： IEEE， 2024： 6363-6372.
[19]	Lahoud J， Ghanem B. RGB-based semantic segmentation using self-supervised depth pre-training［PP/OL］. arXiv （2020-02-06）［2024-10-05］..
[20]	Kanakis M， Huang T E， Brüggemann D， et al. Composite learning for robust and effective dense predictions ［C］// WACV 2023. Piscataway： IEEE， 2023： 2298-2307.
[21]	Hazirbas C， Ma L， Domokos C， et al. FuseNet： incorporating depth into semantic segmentation via fusion-based CNN architecture ［C］// ACCV 2016， LNCS 10111. Cham： Springer， 2017： 213-228.
[22]	Wang W， Neumann U. Depth-aware CNN for RGB-D segmentation［C］// ECCV 2018， LNCS 11215. Cham： Springer， 2018： 144-161.
