Moving portrait debluring network based on multi-level jump residual group

doi:10.11772/j.issn.1001-9081.2022091457

Journal of Computer Applications ›› 2023, Vol. 43 ›› Issue (10): 3244-3250.DOI: 10.11772/j.issn.1001-9081.2022091457

Special Issue: 多媒体计算与计算机仿真

• Multimedia computing and computer simulation • Previous Articles Next Articles

Moving portrait debluring network based on multi-level jump residual group

Jiaqi JI, Zhenkun LU(), Fupeng XIONG, Tian ZHANG, Hao YANG

College of Electronic Information，Guangxi Minzu University，Nanning Guangxi 530006，China

Received:2022-10-08 Revised:2023-01-03 Accepted:2023-02-01 Online:2023-04-04 Published:2023-10-10
Contact: Zhenkun LU
About author:JI Jiaqi， born in 1997， M. S. candidate. His research interests include deep learning， image processing.
LU Zhenkun， born in 1979， Ph. D.， professor. His research interests include image processing， ultrasound testing and imaging，computer vision， deep learning.
XIONG Fupeng， born in 1998， M. S. candidate. His research interests include deep learning.
ZHANG Tian， born in 1999， M. S. candidate. Her researchinterests include deep learning， image processing.
YANG Hao， born in 1995， M. S. candidate. His research interests include deep learning， image processing.
Supported by:
National Natural Science Foundation of China(61561008);Natural Science Foundation of Guangxi(2018GXNSFAA294019)

基于多级跳跃残差组的运动人像去模糊网络

纪佳奇, 卢振坤(), 熊福棚, 张甜, 杨豪

广西民族大学电子信息学院，南宁 530006

通讯作者: 卢振坤
作者简介:纪佳奇（1997—），男，江苏徐州人，硕士研究生，主要研究方向：深度学习、图像处理
卢振坤（1979—），男，广西百色人，教授，博士，CCF会员，主要研究方向：图像处理、超声检测与成像、计算机视觉、深度学习.lzk06@sina.com
熊福棚（1998—），男，河南光山人，硕士研究生，主要研究方向：深度学习
张甜（1999—），女，陕西黄陵人，硕士研究生，主要研究方向：深度学习、图像处理
杨豪（1995—），男，广西钦州人，硕士研究生，主要研究方向：深度学习、图像处理。
基金资助:
国家自然科学基金资助项目(61561008);广西自然科学基金资助项目(2018GXNSFAA294019)

Abstract

Abstract:

To address the issues of blurred contours and lost details of portrait image with motion blur after restoration， a moving portrait deblurring method based on multi-level jump residual group Generation Adversarial Network （GAN） was proposed. Firstly， the residual block was improved to construct the multi-level jump residual group module， and the structure of PatchGAN was also improved to make GAN better combine with the image features of each layer. Secondly， the multi-loss fusion method was adopted to optimize the network to enhance the real texture of the reconstructed image. Finally， the end-to-end mode was used to perform blind deblurring on the motion blurred portrait image and output clear portrait image. Experimental results on CelebA dataset show that the Peak Signal-to-Noise Ratio （PSNR） and Structural SIMilarity （SSIM） of the proposed method are at least 0.46 dB and 0.05 higher than those of the Convolutional Neural Network （CNN）-based methods such as DeblurGAN （Deblur GAN）， Scale-Recurrent Network （SRN） and MSRAN （Multi-Scale Recurrent Attention Network）. At the same time， the proposed method has fewer model parameters， faster restoration， and more texture details in the restored portrait images.

Key words: image debluring, blind deblurring, Generative Adversarial Network (GAN), multi-level jump residual group, multi-loss fusion

摘要：

为解决复原后的运动模糊人像图像的轮廓模糊、细节丢失等问题，提出了基于多级跳跃残差组生成对抗网络（GAN）的运动人像去模糊方法。首先，改进残差块以构造多级跳跃残差组模块，并改进PatchGAN的结构以使GAN能够更好地结合各层的图像特征；其次，使用多损失融合的方法优化网络，从而增强重建后图像的真实纹理；最后，采用端到端的模式将运动模糊的人像图像进行盲去模糊操作，并输出清晰的人像图像。在CelebA数据集上的实验结果表明，相较于DeblurGAN（Deblur GAN）、尺度循环网络（SRN）和MSRAN（Multi-Scale Recurrent Attention Network）等基于卷积神经网络（CNN）的方法，所提方法的峰值信噪比（PSNR）和结构相似度（SSIM）分别至少提高了0.46 dB和0.05；同时，所提方法的模型参数更少，修复速度更快，且复原后的人像图像具有更多的纹理细节。

关键词: 图像去模糊, 盲去模糊, 生成对抗网络, 多级跳跃残差组, 多损失融合

CLC Number:

TP391.41

Jiaqi JI, Zhenkun LU, Fupeng XIONG, Tian ZHANG, Hao YANG. Moving portrait debluring network based on multi-level jump residual group[J]. Journal of Computer Applications, 2023, 43(10): 3244-3250.

纪佳奇, 卢振坤, 熊福棚, 张甜, 杨豪. 基于多级跳跃残差组的运动人像去模糊网络[J]. 《计算机应用》唯一官方网站, 2023, 43(10): 3244-3250.

Figures/Tables 16

Fig. 1 Flow of the proposed method

Fig. 2 Structure of generative network

Tab. 1 Model parameters of discriminative network

层	大小	卷积核大小	Stride	激活函数
Conv1	256×256×64	3×3	1	LeakyReLU
Conv2	128×128×64	3×3	2	LeakyReLU
Conv3	128×128×128	3×3	1	LeakyReLU
Conv4	64×64×128	3×3	2	LeakyReLU
Conv5	64×64×256	3×3	1	LeakyReLU
Conv6	32×32×256	3×3	2	LeakyReLU
Conv7	32×32×512	3×3	1	LeakyReLU
Conv8	16×16×512	3×3	2	LeakyReLU
Dense1	16×16×1 024			LeakyReLU
Dense2	16×16×1			Sigmoid

Fig. 3 Structure of multi-level jump residual group

Fig. 4 Comparison of feature maps of different VGG19 layers before and after activation

Tab. 2 Comparison of deblurring effects of different convolutional layers in VGG19

卷积层	PSNR/dB	SSIM	卷积层	PSNR/dB	SSIM
$Φ 3,1$	28.02	0.92	$Φ 3,3$	29.21	0.94
$Φ 3,2$	28.24	0.91	$Φ 4,3$	27.79	0.90

Tab. 2 Comparison of deblurring effects of different convolutional layers in VGG19

卷积层	PSNR/dB	SSIM	卷积层	PSNR/dB	SSIM
$Φ 3,1$	28.02	0.92	$Φ 3,3$	29.21	0.94
$Φ 3,2$	28.24	0.91	$Φ 4,3$	27.79	0.90

Tab. 3 Ablation experimental results of different loss functions

损失函数	PSNR/dB	SSIM
L_adv	28.16	0.91
L_P	28.03	0.91
L_adv+L_P	29.21	0.94

Fig. 5 Deblurring results of different loss functions

Tab. 4 Performance analysis of different numbers of residual blocks

残差块数	PSNR/dB	SSIM
1	26.85	0.75
2	27.23	0.82
3	29.21	0.94

Fig. 6 Deblurring results with different number of residual blocks

Tab. 5 Quantitative comparison results of the performance of different algorithms in removing Gaussian blur in portraits

方法	PSNR/dB	SSIM	生成网络参数量
Multiple-scale CNN	29.12	0.92	―
DeblurGAN	27.90	0.87	11 399 171
SRN	30.13	0.93	―
MSRAN	31.62	0.94	―
DMPHN	31.61	0.93	―
本文方法	32.19	0.96	2 926 659

Tab. 6 Quantitative comparison results of the performance of different algorithms in removing portrait motion blur

方法	PSNR/dB	SSIM	复原时间/s
Multiple-scale CNN	26.36	0.84	1.562
DeblurGAN	27.26	0.85	0.097
SRN	26.79	0.84	0.831
MSRAN	28.75	0.89	0.614
DMPHN	27.86	0.87	0.034
本文方法	29.21	0.94	0.089

Fig. 7 Comparison of deblurring results of different methods on Gaussian blurred potrait image in CelebA dataset

Fig. 8 Comparison of deblurring results of different methods on motion blurred portrait image in CelebA dataset

Tab. 7 Experimental results comparison of deblurring effects by different methos on GoPro dataset

方法	PSNR/dB	SSIM	方法	PSNR/dB	SSIM
Multi-scale CNN	28.28	0.89	MSRAN	29.45	0.92
DeblurGAN	28.25	0.87	DMPHN	30.51	0.92
SRN	29.33	0.90	本文方法	30.48	0.94

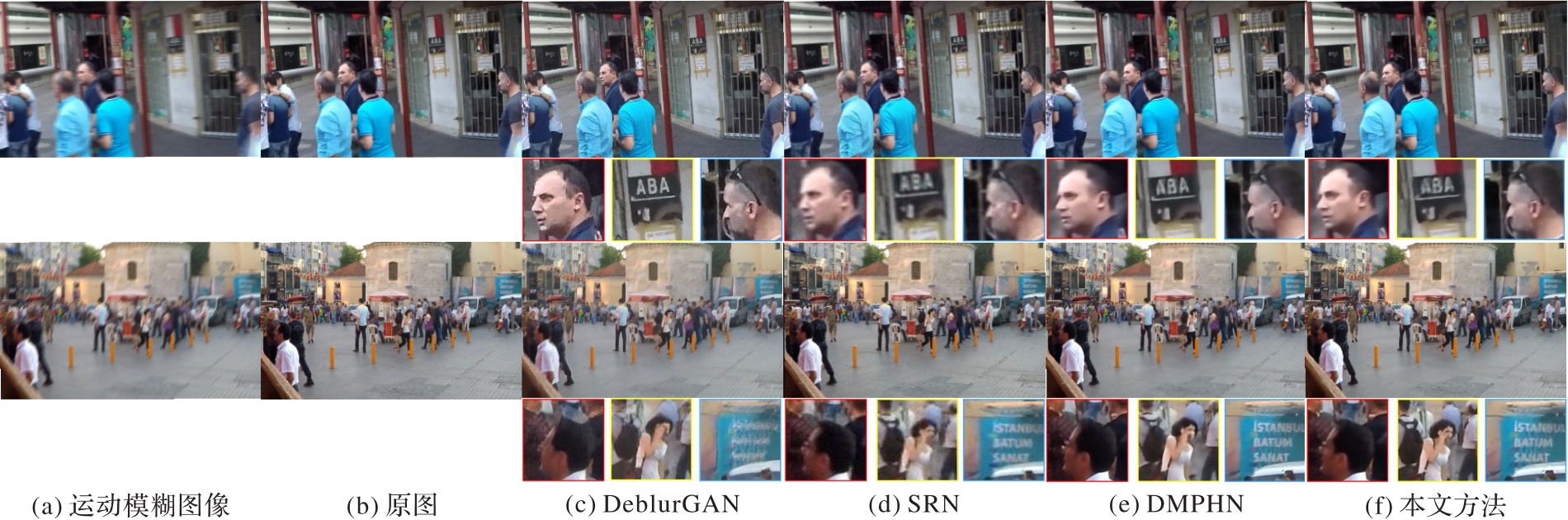

Fig. 9 Comparison of deblurring results of different methods on motion blurred images in GoPro dataset
