Large-scale subspace clustering algorithm with Local structure learning

doi:10.11772/j.issn.1001-9081.2022111750

Abstract

Abstract:

The conventional large-scale subspace clustering methods ignore the local structure that prevails among the data when computing the anchor affinity matrix， and have large error when calculating the approximate eigenvectors of the Laplacian matrix， which is not conducive to data clustering. Aiming at the above problems， a Large-scale Subspace Clustering algorithm with Local structure learning （LLSC） was proposed. In the proposed algorithm， the local structure learning was embedded into the learning of anchor affinity matrix， which was able to comprehensively use global and local information to mine the subspace structure of data. In addition， inspired by Nonnegative Matrix Factorization （NMF）， an iterative optimization method was designed to simplify the solution of anchor affinity matrix. Then， the mathematical relationship between the anchor affinity matrix and the Laplacian matrix was established according to the Nystr?m approximation method， and the calculation method of the eigenvectors of the Laplacian matrix was modified to improve the clustering performance. Compared to LMVSC （Large-scale Multi-View Subspace Clustering）， SLSR （Scalable Least Square Regression）， LSC-k （Landmark-based Spectral Clustering using k-means）， and k-FSC（k-Factorization Subspace Clustering）， LLSC demonstrates significant improvements on four widely used large-scale datasets. Specifically， on the Pokerhand dataset， the accuracy of LLSC is 28.18 points percentage higher than that of k-FSC. These results confirm the effectiveness of LLSC.

Key words: subspace clustering, local structure learning, Nonnegative Matrix Factorization (NMF), large-scale clustering, low-rank approximation

摘要：

常规的大规模子空间聚类算法在计算锚点亲和矩阵时忽略了数据之间普遍存在的局部结构，且在计算拉普拉斯（Laplacian）矩阵的近似特征向量时存在较大误差，不利于数据聚类。针对上述问题，提出一种融合局部结构学习的大规模子空间聚类算法（LLSC）。所提算法将局部结构学习嵌入锚点亲和矩阵的学习，从而能够综合利用全局和局部信息挖掘数据的子空间结构；此外，受非负矩阵分解（NMF）的启发，设计一种迭代优化方法以简化锚点亲和矩阵的求解过程；其次，根据Nystr?m近似方法建立锚点亲和矩阵与Laplacian矩阵的数学联系，并改进Laplacian矩阵特征向量的计算方法以提升聚类性能。相较于LMVSC（Large-scale Multi-View Subspace Clustering）、SLSR（Scalable Least Square Regression）、LSC-k（Landmark-based Spectral Clustering using k-means）和k-FSC（k-Factorization Subspace Clustering），LLSC在4个广泛使用的大规模数据集上显示出明显的提升，其中，在Pokerhand数据集上，LLSC的准确率比k-FSC高28.18个百分点，验证了LLSC的有效性。

关键词: 子空间聚类, 局部结构学习, 非负矩阵分解, 大规模聚类, 低秩近似

CLC Number:

TP181

Qize REN, Hongjie JIA, Dongyu CHEN. Large-scale subspace clustering algorithm with Local structure learning[J]. Journal of Computer Applications, 2023, 43(12): 3747-3754.

任奇泽, 贾洪杰, 陈东宇. 融合局部结构学习的大规模子空间聚类算法[J]. 《计算机应用》唯一官方网站, 2023, 43(12): 3747-3754.

Figures/Tables 7

Tab. 1 Symbols and their descriptions

符号	描述
$X ∈ R d × n$	数据集，包含n个样本，每个样本具有d个特征
$A ∈ R d × m$	采样锚点，包含m个样本，每个样本具有d个特征
$S ∈ R n × n$	相似性矩阵
$Z ∈ R n × m$	锚点亲和矩阵
$D ∈ R n × n$	度矩阵
$Y ∈ R n × m$	锚点距离矩阵
$L ∈ R n × n$	Laplacian矩阵
$M ∈ R m × m$	样本子矩阵
U	特征向量组成的矩阵
$I n$	n×1的向量，其中元素全为1
$· 2$	2-范数
$· F$	Frobenius范数
$T r (·)$	矩阵的迹
$d i a g (·)$	矩阵对角线构成的对角矩阵
$f (·)$	正则化函数

Tab. 1 Symbols and their descriptions

符号	描述
$X ∈ R d × n$	数据集，包含n个样本，每个样本具有d个特征
$A ∈ R d × m$	采样锚点，包含m个样本，每个样本具有d个特征
$S ∈ R n × n$	相似性矩阵
$Z ∈ R n × m$	锚点亲和矩阵
$D ∈ R n × n$	度矩阵
$Y ∈ R n × m$	锚点距离矩阵
$L ∈ R n × n$	Laplacian矩阵
$M ∈ R m × m$	样本子矩阵
U	特征向量组成的矩阵
$I n$	n×1的向量，其中元素全为1
$· 2$	2-范数
$· F$	Frobenius范数
$T r (·)$	矩阵的迹
$d i a g (·)$	矩阵对角线构成的对角矩阵
$f (·)$	正则化函数

Tab. 2 Specific information of small-scale datasets

数据集	样本数	特征数	类别数
Tr45	690	8 610	10
USPS	9 298	256	10
RCV1_4	9 625	29 992	4

Tab. 3 Clustering results on small-scale datasets

数据集	算法	Acc/%	NMI/%	Purity/%	Time/s
Tr45	LMVSC	72.31	69.23	75.65	5.70
	SGL	74.41	69.53	76.74	6.34
	FNC	48.40	31.22	31.22	4.83
	KMM	73.80	67.73	82.34	0.35
	LLSC	77.24	74.14	87.39	0.09
USPS	LMVSC	67.96	63.78	72.18	20.16
	SGL	63.03	71.98	75.58	417.00
	FNC	70.60	50.21	—	48.00
	KMM	71.01	71.35	—	3.01
	LLSC	80.21	78.75	80.22	1.00
RCV1_4	LMVSC	68.35	40.01	75.16	585.00
	SGL	70.52	45.76	79.37	98.86
	FNC	65.37	35.00	35.00	85.90
	KMM	47.63	17.12	47.63	4.10
	LLSC	72.74	43.34	72.74	0.17

Tab. 4 Specific information of large-scale datasets

数据集	样本数	特征数	类别数
MNIST	70 000	784	10
Postures	78 095	36	5
EMNIST（digits）	280 000	784	10
Pokerhand	1 000 000	10	10

Tab. 5 Clustering results on MNIST and Postures datasets

数据集	算法	Acc/%	NMI/%	Purity/%	Time/s
MNIST	LMVSC	58.89	53.74	65.98	73.33
	SLSR	52.26	47.72	57.06	252.28
	LSC-k	63.93	62.51	—	11.39
	LLSC	61.28	50.61	64.27	3.71
Postures	LMVSC	30.69	10.52	74.16	11 269.00
	SLSR	47.78	38.57	—	11.13
	LSC-k	46.40	37.24	—	207.70
	k-FSC	54.65	39.39	—	173.90
	LLSC	58.79	41.63	59.66	3.77

Tab. 6 Clustering results on Pokerhand and EMNIST（digits） datasets

数据集	算法	Acc/%	NMI/%	Purity/%	Time/s
Pokerhand	LMVSC	13.68	0.71	14.97	3 875.30
	SLSR	15.82	0.06	50.20	284.50
	LSC-k	12.32	0.00	—	8 829.00
	k-FSC	21.82	0.33	—	1 017.80
	LLSC	50.00	0.26	50.54	1 009.90
EMNIST （digits）	LMVSC	45.27	43.81	64.93	7 867.00
	SLSR	51.83	38.53	—	182.52
	LLSC	60.53	61.21	66.16	12.54

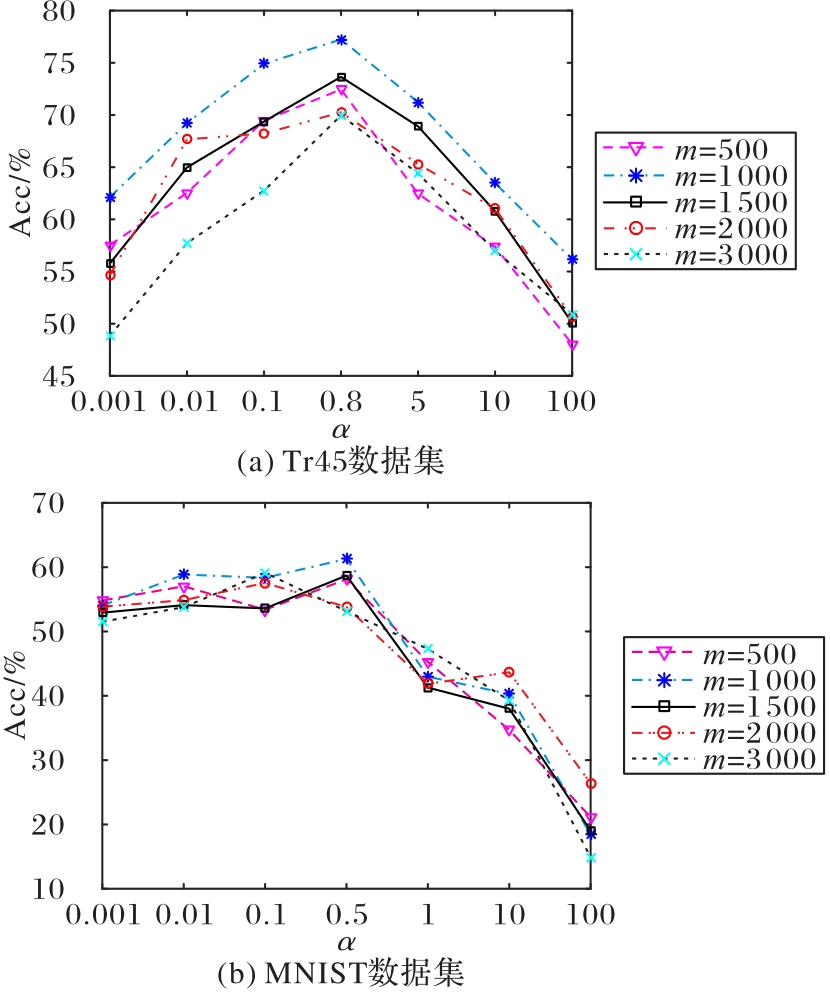

Fig. 1 Experimental results of different anchor points on different datasets with α at ［0.001 100］
