Coordinate enhancement and multi-source sampling for brain tumor image segmentation

doi:10.11772/j.issn.1001-9081.2024030359

Journal of Computer Applications ›› 2025, Vol. 45 ›› Issue (3): 996-1002.DOI: 10.11772/j.issn.1001-9081.2024030359

• Multimedia computing and computer simulation • Previous Articles Next Articles

Coordinate enhancement and multi-source sampling for brain tumor image segmentation

Zhanjun JIANG, Yang LI(), Jing LIAN, Xinfa MIAO

School of Electronic and Information Engineering，Lanzhou Jiaotong University，Lanzhou Gansu 730070，China

Received:2024-04-01 Revised:2024-06-04 Accepted:2024-06-11 Online:2024-10-12 Published:2025-03-10
Contact: Yang LI
About author:JIANG Zhanjun， born in 1975， Ph. D.， professor. His research interests include digital image processing， future mobile communication.
LIAN Jing， born in 1983， Ph. D.， professor. His research interests include artificial intelligence， cognitive visual processing.
MIAO Xinfa， born in 1979， M. S.， associate professor. His research interests include circuit development， image processing.
Supported by:
National Natural Science Foundation of China(62061023);Outstanding Youth Fund of Gansu Province(21JR7RA345)

坐标增强与多源采样的脑肿瘤图像分割

蒋占军, 李洋(), 廉敬, 苗新法

兰州交通大学电子与信息工程学院，兰州 730070

通讯作者: 李洋
作者简介:蒋占军（1975—），男，宁夏中卫人，教授，博士，主要研究方向：数字图像处理、未来移动通信
廉敬（1983—），男，甘肃兰州人，教授，博士，主要研究方向：人工智能、认知视觉处理
苗新法（1979—），男，江苏铜山人，副教授，硕士，主要研究方向：电路开发、图像处理。
基金资助:
国家自然科学基金资助项目(62061023);甘肃省杰出青年基金资助项目(21JR7RA345)

Abstract

Abstract:

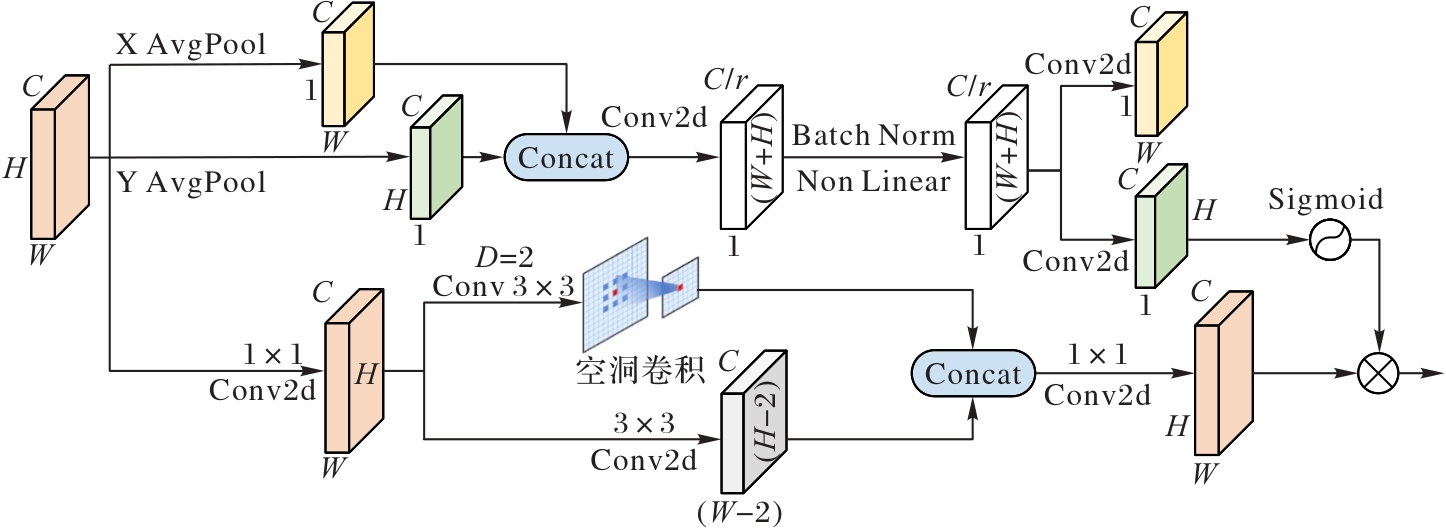

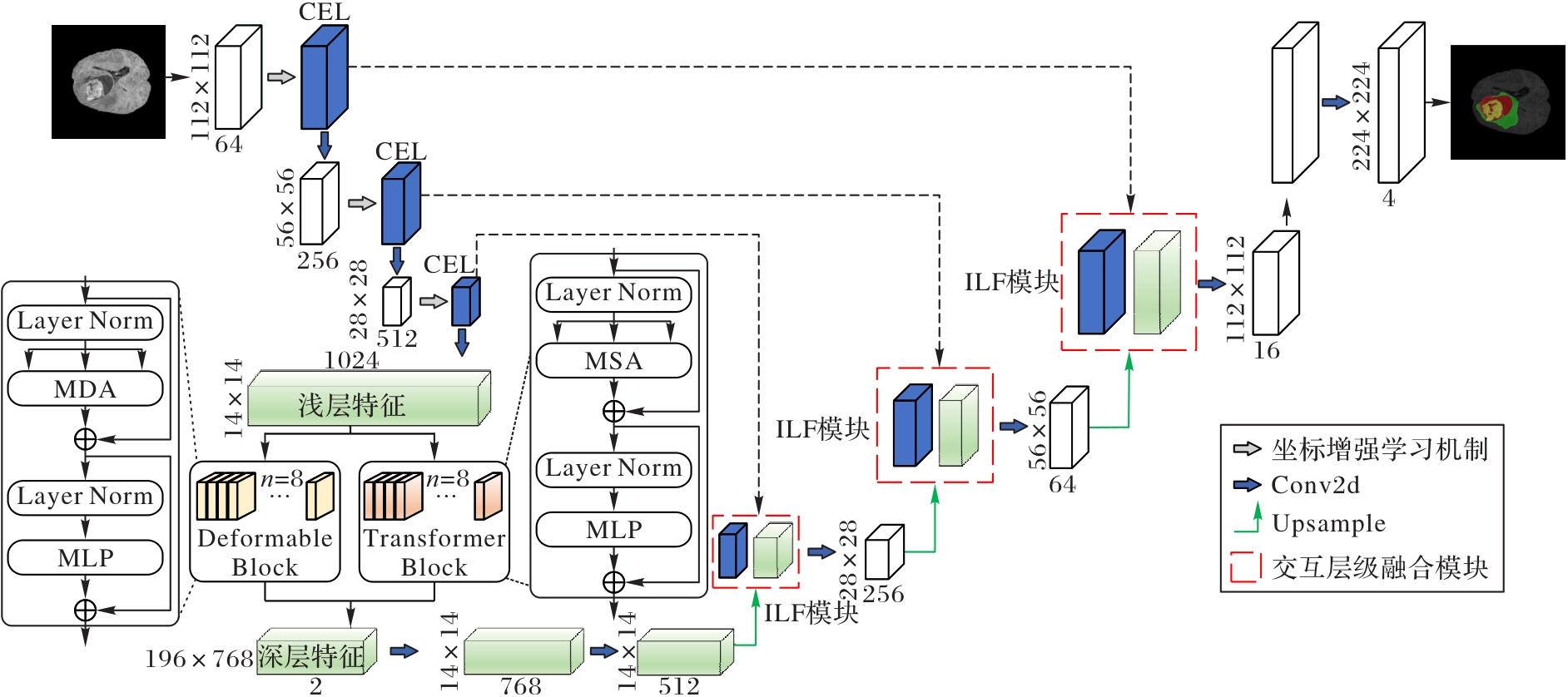

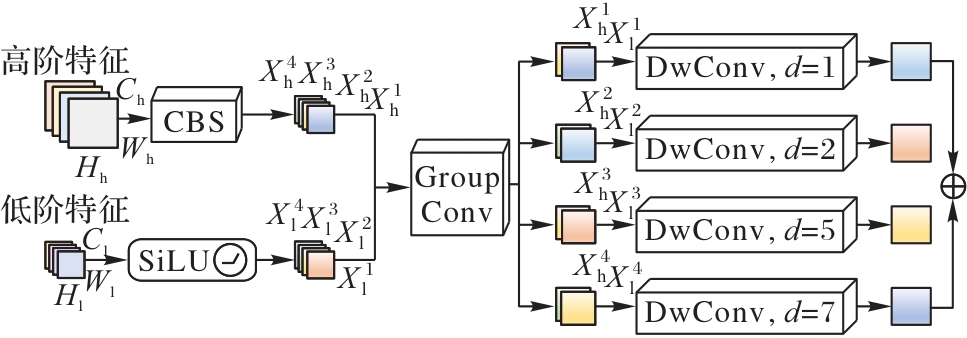

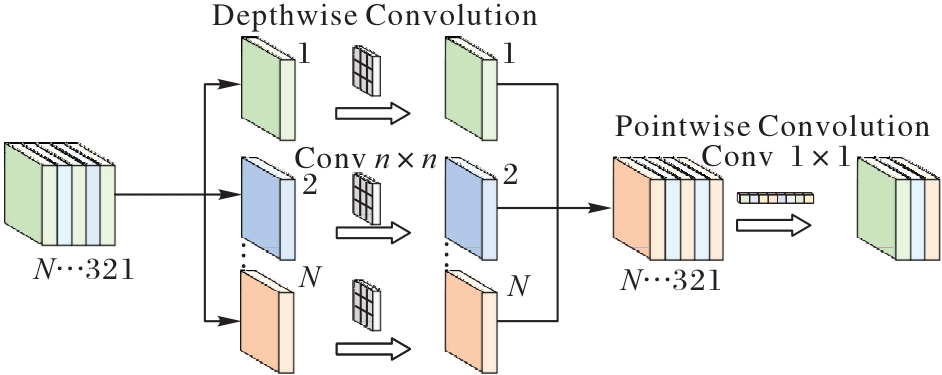

To address the issues of insufficient focus on tumor regions and the loss of spatial contextual information in brain tumor image segmentation models， which affect the accuracy of tumor segmentation， a TransUNet-based brain tumor segmentation network integrating Coordinate Enhanced Learning mechanism （CEL） and multi-source sampling was proposed. Firstly， a CEL was proposed， and ResNetv2 was combined as shallow feature extraction network of the model， so as to enhance attention to brain tumor regions. Secondly， a deep blended sampling feature extractor was designed， and deformable attention and self-attention mechanisms were used to perform multi-source sampling on both global and local information of brain tumors. Finally， an Interactive Level Fusion （ILF） module was designed between the encoder and the decoder， thereby realizing interaction between deep and shallow feature information while minimizing parameter computational cost. Experimental results on BraTS2018 and BraTS2019 datasets indicate that compared to the benchmark TransUNet， the proposed model has the mean Dice coefficient （mDice）， the mean Intersection over Union （mIoU）， the mean Average Precision （mAP） and the mean Recall （mRecall） improved by 4.84， 7.21， 3.83， 3.15 percentage points， respectively， and the model size reduced by 16.9 MB.

Key words: image segmentation, multi-modal information, Coordinate Enhanced Learning mechanism (CEL), blended sampling, Interactive Level Fusion (ILF) module

摘要：

针对脑肿瘤图像分割模型对肿瘤区域关注度不够及易丢失空间上下文信息，导致对肿瘤区域分割效果不佳的问题，提出一种融合坐标增强学习机制（CEL）与多源采样的TransUNet脑肿瘤分割网络。首先，提出一种CEL，结合ResNetv2作为模型的浅层特征提取网络，增加对脑肿瘤区域的关注度；其次，设计深层混合采样特征提取器，并利用可变形注意力与自注意力机制对脑肿瘤的全局与局部信息进行多源采样；最后，在编码器与解码器之间设计交互层级融合（ILF）模块，从而在实现深层与浅层特征信息交互的同时减少参数的计算量。在BraTS2018和BraTS2019数据集上的实验结果表明：相较于基准TransUNet，所提模型的平均相似性系数（mDice）、平均交并比（mIoU）、平均精度均值（mAP）和平均召回率（mRecall）分别提高4.84、7.21、3.83和3.15个百分点，模型大小降低了16.9 MB。

关键词: 图像分割, 多模态信息, 坐标增强学习机制, 混合采样, 交互层级融合模块

CLC Number:

TP391.41

Zhanjun JIANG, Yang LI, Jing LIAN, Xinfa MIAO. Coordinate enhancement and multi-source sampling for brain tumor image segmentation[J]. Journal of Computer Applications, 2025, 45(3): 996-1002.

蒋占军, 李洋, 廉敬, 苗新法. 坐标增强与多源采样的脑肿瘤图像分割[J]. 《计算机应用》唯一官方网站, 2025, 45(3): 996-1002.

Figures/Tables 14

References 22

1	Global Burden of Disease Cancer Collaboration. Global regional and national cancer incidence mortality years of life lost years lived with disability and disability-adjusted life-years for 32 cancer groups， 1990 to 2015： a systematic analysis for the global burden of disease study ［J］. JAMA Oncology， 2017， 3（4）：524-548.
2	WANG Y， JI Y， XIAO H. A data augmentation method for fully automatic brain tumor segmentation ［J］. Computers in Biology and Medicine， 2022， 149： No.106039.
3	LIU Z， TONG L， CHEN L， et al. Deep learning based brain tumor segmentation： a survey ［J］. Complex and Intelligent Systems， 2023， 9： 1001-1026.
4	BERGER L， EOIN H， CARDOSO， M J， et al. An adaptive sampling scheme to efficiently train fully convolutional networks for semantic segmentation ［C］// Proceedings of the 2018 Annual Conference on Medical Image Understanding and Analysis， CCIS 894. Cham： Springer， 2018： 277-286.
5	RONNEBERGER O， FISCHER P， BROX T. U-Net： convolutional networks for biomedical image segmentation ［C］// Proceedings of the 2015 International Conference on Medical Image Computing and Computer-Assisted Intervention， LNCS 9351. Cham： Springer， 2015： 234-241.
6	ZHOU Z， RAHMAN SIDDIQUEE M M， TAJBAKHSH N， et al. UNet++： a nested U-Net architecture for medical image segmentation ［C］// Proceedings of the 4th International Workshop on Deep Learning in Medical Image Analysis and 8th International Workshop on Multimodal Learning for Clinical Decision Support， LNCS 11045. Cham： Springer， 2018： 3-11.
7	HUANG H， LIN L， TONG R， et al. UNet 3+： a full-scale connected UNet for medical image segmentation ［C］// Proceedings of the 2020 IEEE International Conference on Acoustics， Speech and Signal Processing. Piscataway： IEEE， 2020： 1055-1059.
8	KONG X， SUN G， WU Q， et al. Hybrid pyramid U-Net model for brain tumor segmentation ［C］// Proceedings of the 2018 International Conference on Intelligent Information Processing， IFIPAICT 538. Cham： Springer， 2018： 346-355.
9	ZHANG M， LIU G， TINA J， et al. Improved U-Net with multi-scale cross connection and dilated convolution for brain tumor segmentation ［C］// Proceedings of the 2019 International Conference on Medical Imaging Physics and Engineering. Piscataway： IEEE， 2019： 1-5.
10	艾玲梅，李天东，廖福元，等. 基于注意力U-Net的脑肿瘤磁共振图像分割［J］. 激光与光电子学进展， 2020， 57（14）： No.141030.
	AI L M， LI T D， LIAO F Y， et al. Magnetic resonance brain tumor image segmentation based on attention U-Net ［J］. Lasers and Optoelectronics Progress， 2020， 57（14）： No.141030.
11	CAO H， WANG Y， CHEN J， et al. Swin-UNet： UNet-like pure Transformer for medical image segmentation ［C］// Proceedings of the 2023 European Conference on Computer Vision Workshops， LNCS 13803. Cham： Springer， 2023： 205-218.
12	王浩宇，朱文韬，肖刚，等. 基于TransUNet和残差结构的脑肿瘤图像分割方法［J］. 中国体视学与图像分析， 2023， 28（1）： 98-107.
	WANG H Y， ZHU W T， XIAO G， et al. Research on brain tumor segmentation by optimizing a TransUNet based algorithm ［J］. Chinese Journal of Somatology and Image Analysis， 2023， 28（1）： 98-107.
13	WU M， YE H L， WU Y， et al. Brain tumor image segmentation based on grouped convolution ［J］. Journal of Physics： Conference Series， 2022， 2278： No.012042.
14	HOU Q， ZHOU D， FENG J. Coordinate attention for efficient mobile network design ［C］// Proceedings of the 2021 IEEE/CVF Conference on Computer Vision and Pattern Recognition. Piscataway： IEEE， 2021： 13708-13717.
15	ZHU X， SU W， LU L， et al. Deformable DETR： deformable Transformers for end-to-end object detection ［EB/OL］. ［2024-03-10］. .
16	LIU T， ZHAO Y， WEI Y， et al. Concealed object detection for activate millimeter wave image ［J］. IEEE Transactions on Industrial Electronics， 2019， 66（12）： 9909-9917.
17	FAN T， WANG G， LI Y， et al. MA-Net： a multi-scale attention network for liver and tumor segmentation ［J］. IEEE Access， 2020， 8： 179656-179665.
18	ZHANG Q L， YANG Y B. SA-Net： shuffle attention for deep convolutional neural networks ［C］// Proceedings of the 2021 IEEE International Conference on Acoustics， Speech and Signal Processing. Piscataway： IEEE， 2021： 2235-2239.
19	YUAN S， QIU Z， LI P， et al. RMAU-Net： breast tumor segmentation network based on residual depthwise separable convolution and multiscale channel attention gates ［J］. Applied Sciences， 2023， 13（20）： No.11362.
20	PETRELLA J R， PROVENZALE J M. MR perfusion imaging of the brain： techniques and applications ［J］. American Journal of Roentgenology， 2000， 175（1）： 207-219.
21	CHEN L C， ZHU Y， PAPANDREOU G， et al. Encoder-decoder with atrous separable convolution for semantic image segmentation［C］// Proceedings of the 2018 European Conference on Computer Vision， LNCS 11211. Cham： Springer， 2018： 833-851.
22	ZUO Q， CHEN S， WANG Z. R2AU-Net： attention recurrent residual convolutional neural network for multimodal medical image segmentation ［J］. Security and Communication Networks， 2021， 2021： No.6625688.

分类	NET	ED	ET
WT	√	√	√
TC	√		√
ET			√

分类	NET	ED	ET
WT	√	√	√
TC	√		√
ET			√

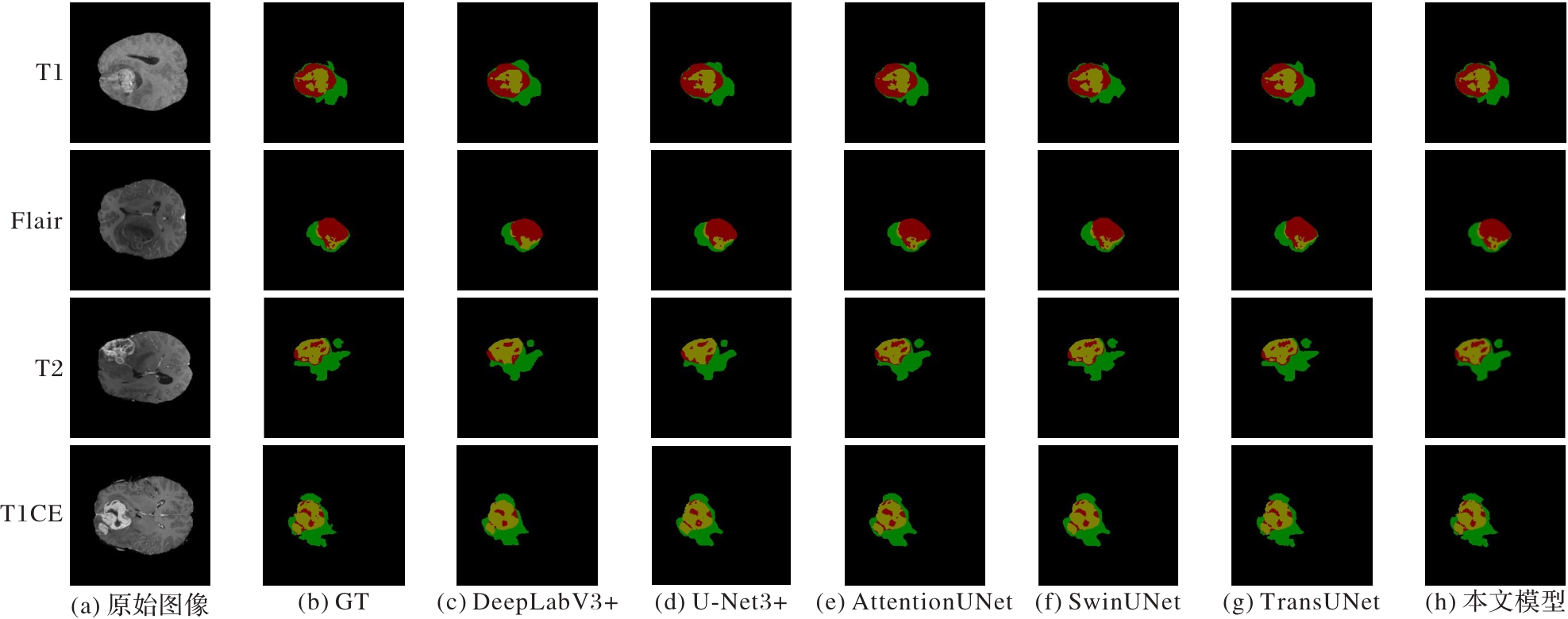

标签	模型	mDice	mIoU	mAP	mPrecision	mRecall
WT	DeepLabV3+	63.96	55.39	65.28	54.37	62.30
	U-Net3+	69.36	62.21	70.46	62.27	67.83
	AttentionUNet	78.01	74.92	73.09	79.11	71.68
	SwinUNet	84.18	79.81	82.59	85.23	82.61
	TransUNet	86.71	83.24	87.29	89.41	87.13
	本文模型	91.51	89.47	90.25	92.63	90.41
TC	DeepLabV3+	59.31	51.14	55.27	50.34	52.78
	U-Net3+	59.91	54.74	62.06	55.72	62.28
	AttentionUNet	78.92	64.38	63.56	66.36	63.47
	SwinUNet	75.84	74.66	73.15	75.34	76.83
	TransUNet	79.42	76.98	78.09	80.43	80.16
	本文模型	83.11	83.17	83.41	82.58	81.37
ET	DeepLabV3+	49.22	42.48	61.55	43.12	54.54
	U-Net3+	52.88	54.76	53.84	50.31	57.73
	AttentionUNet	62.87	61.01	63.17	60.34	64.95
	SwinUNet	69.63	64.03	68.31	73.13	70.64
	TransUNet	71.39	66.83	72.15	75.45	73.52
	本文模型	77.42	76.03	75.37	77.25	78.49

标签	模型	mDice	mIoU	mAP	mPrecision	mRecall
WT	DeepLabV3+	63.96	55.39	65.28	54.37	62.30
	U-Net3+	69.36	62.21	70.46	62.27	67.83
	AttentionUNet	78.01	74.92	73.09	79.11	71.68
	SwinUNet	84.18	79.81	82.59	85.23	82.61
	TransUNet	86.71	83.24	87.29	89.41	87.13
	本文模型	91.51	89.47	90.25	92.63	90.41
TC	DeepLabV3+	59.31	51.14	55.27	50.34	52.78
	U-Net3+	59.91	54.74	62.06	55.72	62.28
	AttentionUNet	78.92	64.38	63.56	66.36	63.47
	SwinUNet	75.84	74.66	73.15	75.34	76.83
	TransUNet	79.42	76.98	78.09	80.43	80.16
	本文模型	83.11	83.17	83.41	82.58	81.37
ET	DeepLabV3+	49.22	42.48	61.55	43.12	54.54
	U-Net3+	52.88	54.76	53.84	50.31	57.73
	AttentionUNet	62.87	61.01	63.17	60.34	64.95
	SwinUNet	69.63	64.03	68.31	73.13	70.64
	TransUNet	71.39	66.83	72.15	75.45	73.52
	本文模型	77.42	76.03	75.37	77.25	78.49

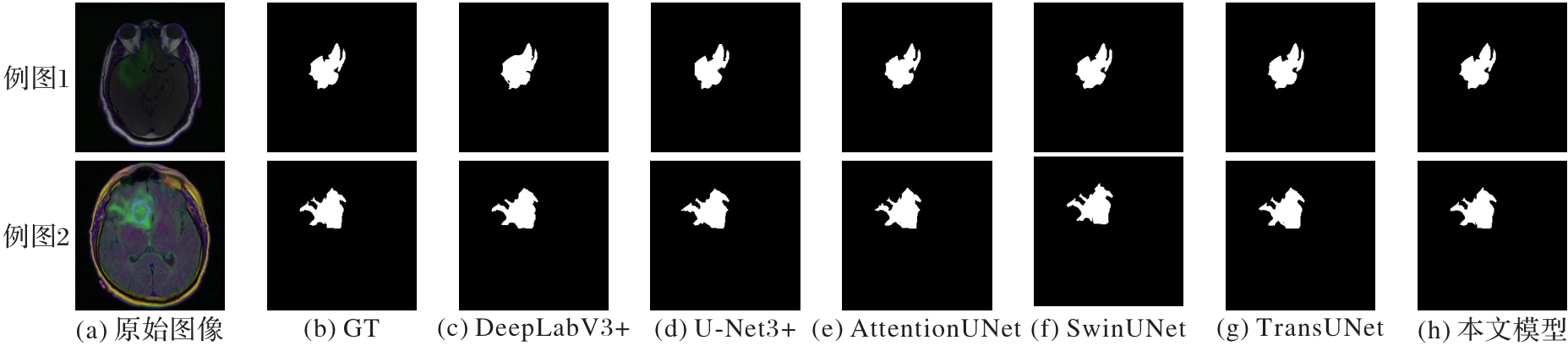

模型	mDice	mIoU	mAP	mPrecision	mRecall
DeepLabV3+	72.14	69.77	73.31	74.56	73.36
U-Net3+	76.12	70.91	74.34	76.26	77.67
AttentionUNet	83.25	81.48	83.39	82.76	87.57
SwinUNet	89.69	84.23	87.16	88.03	89.41
TransUNet	90.08	87.47	89.20	90.45	91.82
本文模型	93.63	90.65	93.36	93.91	92.45

Coordinate enhancement and multi-source sampling for brain tumor image segmentation

坐标增强与多源采样的脑肿瘤图像分割

RichHTML

PDF

Knowledge

Abstract

Cite this article

share this article

Figures/Tables 14

References 22

Related Articles 15

Recommended Articles

Metrics

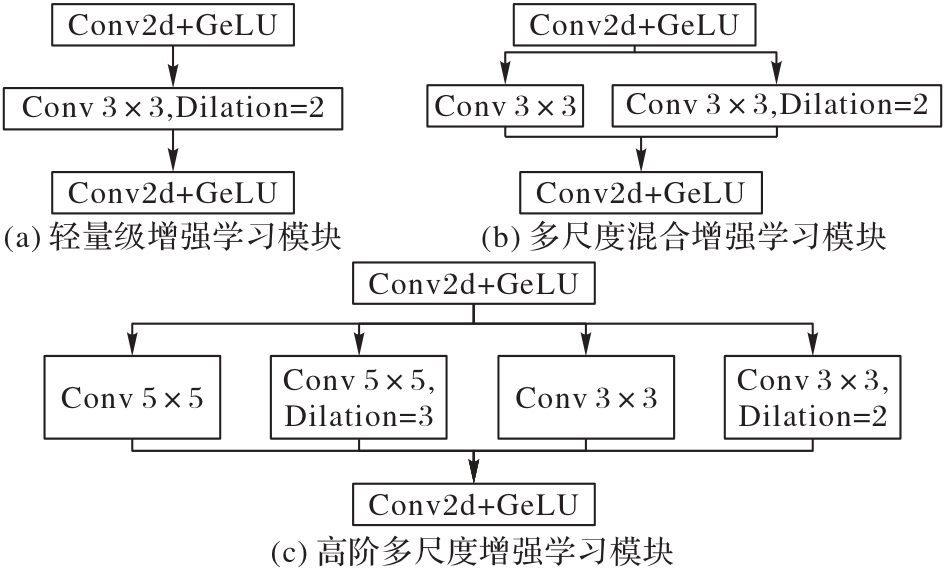

结构	模型大小/MB	mDice/%	mIoU/%	mAP/%	mPrecision/%	mRecall/%
（a）	125.714 512	78.25	73.59	76.80	77.99	72.90
（b）	138.151 416	80.12	76.55	81.51	82.53	80.17
（c）	174.437 261	80.98	75.45	77.90	80.23	80.07

采样方式	采样次数	模型大小/MB	mDice/%	mIoU/%	mAP/%	mPrecision/%	mRecall/%
Self Attention	12	138.151 416	80.12	76.55	81.51	82.53	80.17
Deformable Attention	12	114.073 432	73.16	68.35	71.74	66.20	67.82
本文方法	11	135.285 914	80.70	78.32	81.02	82.44	80.06
	10	132.709 619	81.43	79.06	81.29	83.20	81.24
	9	129.158 172	81.56	81.38	81.71	84.27	82.16
	8	126.265 402	81.85	81.57	81.68	84.47	82.40
	7	124.602 914	80.03	80.84	79.85	80.51	79.21

CEL	DBS	ILF	模型大小/MB	mDice/%	mIoU/%	mAP/%	mPrecision/%	mRecall/%
—	—	—	112.220 080	79.17	75.68	79.18	81.76	80.27
√	—	—	138.151 416	80.12	76.55	81.51	82.53	80.17
√	√	—	126.265 402	81.85	81.57	81.68	84.47	82.40
√	√	√	95.276 356	84.01	82.89	83.01	84.15	83.42
