基于感知成本的流程模型与事件日志有效对齐

李多芹¹, 方贤文¹, 王丽丽¹^,², 邵叱风³

^1.安徽理工大学数学与大数据学院, 安徽淮南 232001
^2.嵌入式系统与服务计算教育部重点实验室(同济大学), 上海 201804
^3.安徽科技学院信息与网络工程学院, 安徽蚌埠 233030

收稿日期:2021-08-02 修回日期:2021-11-15 接受日期:2021-11-25 发布日期:2022-01-07 出版日期:2022-10-10
通讯作者: 方贤文
作者简介:第一联系人：李多芹（1996—），女，安徽淮南人，硕士研究生，主要研究方向：Petri网、过程挖掘
方贤文（1975—），男，河南信阳人，教授，博士，CCF会员，主要研究方向：Petri网、可信软件、业务流程变化域分析； duoqin_li@126.com
王丽丽（1982—），女，安徽安庆人，副教授，博士研究生，主要研究方向：Petri 网、业务流程挖掘
邵叱风（1995—），男，安徽合肥人，硕士研究生，CCF会员，主要研究方向：Petri网、过程挖掘、模型修复、模型优化。
基金资助:
国家自然科学基金资助项目(61402011);安徽省自然科学基金资助项目(1508085MF111);安徽理工大学研究生创新基金资助项目(2019CX2068)

Effective alignment of process model with event logs based on perceived cost

Duoqin LI¹, Xianwen FANG¹, Lili WANG¹^,², Chifeng SHAO³

^1.School of Mathematics and Big Data，Anhui University of Science and Technology，Huainan Anhui 232001，China
^2.Key Laboratory of Embedded System and Service Computing，Ministry of Education （Tongji University），Shanghai 201804，China
^3.College of Information and Network Engineering，Anhui Science and Technology University，Bengbu Anhui 233030，China

Received:2021-08-02 Revised:2021-11-15 Accepted:2021-11-25 Online:2022-01-07 Published:2022-10-10
Contact: Xianwen FANG
About author:LI Duoqin, born in 1996， M. S. candidate. Her research interests include Petri nets， process mining.
FANG Xianwen, born in 1975， Ph. D.， professor. His research interests include Petri nets， trusted software， business process change domain analysis.
WANG Lili, born in 1982， Ph. D. candidate， associate professor.Her research interests include Petri nets， business process mining.
SHAO Chifeng, born in 1995，M. S. candidate. His research interests include Petri nets， process mining， model repair， model optimization.
Supported by:
National Natural Science Foundation of China(61402011);Anhui Provincial Natural Science Foundation(1508085MF111);Graduate Innovation Fund of Anhui University of Science and Technology(2019CX2068)

摘要/Abstract

摘要：

现存的成本函数没有考虑到业务流程中各活动在现实情境中的不同的重要程度，于是在模型与日志的对齐过程中可能会导致对齐成本严重偏离感知成本。针对这一问题，基于业务流程中行为的典型流特征提出了重要同步成本函数的概念，并在该函数下给出一种能够提升效率的对齐方法。首先，基于感知成本的概念定义重要同步成本函数；接着，依据日志迹以及流程模型中行为的典型流特征来确定用以分割流程模型与日志迹的重要匹配子序列；最后，基于重要同步成本函数来对齐分割后的子流程和对应的日志迹子序列，并将分段对齐的结果进行合并得到最终的对齐结果。实验部分从准确率和效率两方面进行验证所提方法：在准确率方面，与现存的标准成本函数和最大同步成本函数相比，所提成本函数下的对齐准确率最高提升了17.44个百分点，且当事件日志包含混合噪声时，所提成本函数下的平均对齐准确率最高，为88.67%；在对齐效率方面则通过比较对齐所耗时间来验证，现存两种函数的平均耗时分别为1.58 s和2.21 s，而所提方法为0.63 s，效率分别提升了150.79%和250.79%。实验结果表明所提方法能在满足准确率需求的同时提升对齐的效率。

关键词: 标准成本函数, 最大同步成本函数, 典型流特征, 感知成本, 重要同步成本函数, 有效对齐

Abstract:

The different importance of the activities in the business process in real world is not taken into account by the existing cost functions， so that in the alignment process of model and log， alignment cost may deviates from perceived cost significantly. To solve this problem， a concept of important synchronization cost function was proposed based on the typical flow characteristic of the behaviors in business processes， and an alignment method that can improve efficiency was proposed under this function. Firstly， the important synchronization cost function was defined based on the concept of perceived cost. Then， the important matching sub-sequence to segment the process model and the log trace was determined according to the log trace and the typical flow characteristic of the behaviors in the process model. Finally， based on the important synchronization cost function， the segmented sub-process and the corresponding log trace subsequence were aligned， and the segmented alignment results were combined to obtain the final alignment result. The experiments were carried out to verify the proposed method from the perspectives of accuracy and efficiency. In terms of accuracy， compared with the existing standard cost function and maximum synchronous cost function， the proposed cost function improved the alignment accuracy by up to 17.44 percentage points， and when the event log contained mixed noise， the proposed cost function had the highest average alignment accuracy of 88.67%. The efficiency of alignment was verified by comparing the time consumed by alignment. The average time of the existing two functions were 1.58 s and 2.21 s respectively， while that of the proposed method was 0.63 s， which was improved by 150.79% and 250.79% respectively. Experimental results show that the proposed method can satisfy the accuracy demand and improve the efficiency of alignment at the same time.

Key words: standard cost function, maximum synchronization cost function, typical flow characteristic, perceived cost, important synchronization cost function, effective alignment

中图分类号:

TP391.9

李多芹, 方贤文, 王丽丽, 邵叱风. 基于感知成本的流程模型与事件日志有效对齐[J]. 计算机应用, 2022, 42(10): 3154-3161.

Duoqin LI, Xianwen FANG, Lili WANG, Chifeng SHAO. Effective alignment of process model with event logs based on perceived cost[J]. Journal of Computer Applications, 2022, 42(10): 3154-3161.

图/表 12

图1 商品购买流程P

Fig. 1 Commodity purchase process P

表1 图1中各个字母指代的活动

Tab. 1 Activities referred to letters in Fig. 1

标识符	活动名称	标识符	活动名称
a	选择商品	f	选择不使用优惠券
b	查看店铺优惠	g	进入付款界面
c	领取优惠券	h	填写收货地址
d	选择使用优惠券	i	选择配送方式
e	选定优惠券	j	付款

图2 迹σ在标准成本函数（γ1）和最大同步成本函数（γ2）下的最优对齐

Fig. 2 Optimal alignments of trace σ under standard cost function （γ1） and maximum synchronous cost function （γ2）

图3 流程中行为的典型流示意图

Fig. 3 Schematic diagram of typical flow of behaviors in a process

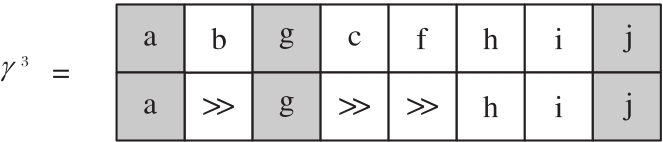

图4 迹σ在重要同步成本函数下的最优对齐γ3
