Chromosome cascaded classification framework integrating image texture enhancement and super-resolution

doi:10.11772/j.issn.1001-9081.2025050568

Abstract

Abstract:

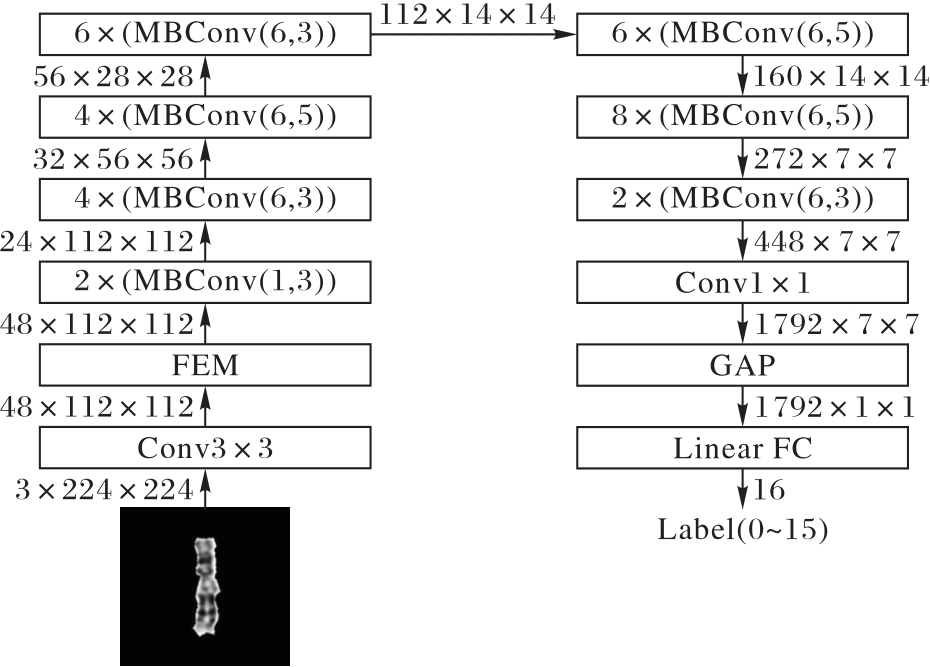

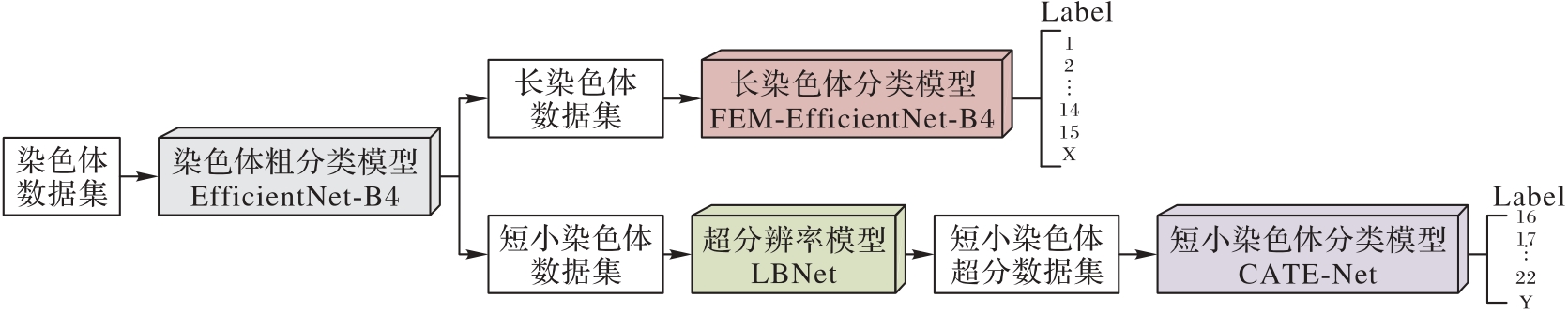

Chromosome karyotype analysis is of great significance in prenatal screening and genetic disease diagnosis. However， existing chromosome classification models are generally limited by insufficient feature extraction capability， high sensitivity to image quality， and inadequate attention to local details， leading to low overall classification accuracy， particularly the frequent misidentification of short chromosomes. Therefore， a coarse-to-fine chromosome cascaded classification framework integrating image texture enhancement and super-resolution techniques was proposed. Firstly， chromosomes were coarsely classified based on the International System for human Cytogenetic Nomenclature （ISCN）， and they were divided into long chromosomes and short chromosomes groups to mitigate class imbalance and feature confusion. Secondly， for the long chromosome classification task， a feature enhancement module was added to optimize the classification model's ability to perceive details of long chromosomes. Thirdly， considering the characteristics of short chromosome images， the super-resolution technique was introduced to improve image quality and the model's perceptual capability. Experimental results on a private dataset showed that the proposed framework achieved an overall chromosome classification accuracy of 98.91% and an overall chromosome F1-score of 98.77%， with 99.01% for long chromosomes and 98.31% for short chromosomes. By adopting differentiated classification strategies and task-specific models， this cascaded chromosome classification framework significantly enhances both classification accuracy and model robustness.

Key words: chromosome cascaded classification, feature enhancement, texture enhancement module, image super-resolution, channel attention mechanism

摘要：

染色体核型分析在产前筛查和遗传疾病诊断中具有重要意义，但现有染色体分类模型普遍存在特征提取能力不足、图像质量敏感性强以及对局部细节感知不充分等问题，导致染色体整体分类准确率不高，尤其是短小染色体常常被错误识别。因此，提出一种融合图像纹理增强与超分辨率技术的染色体粗粒度-细粒度级联分类框架。首先，基于国际人类细胞遗传命名系统（ISCN）对染色体进行粗分类，将染色体划分为长染色体与短小染色体组，缓解类别不均衡与特征混淆问题；其次，针对长染色体分类任务，增加特征增强模块优化分类模型对长染色体的细节感知能力；随后，针对短小染色体图像的特点引入图像超分辨率技术，提升图像质量与模型感知能力。在私有数据集上的实验结果表明，所提框架的染色体整体分类准确率达到98.91%，整体F1分数达到98.77%，其中长染色体的F1分数为99.01%，短小染色体的F1分数为98.31%。该染色体级联分类框架针对不同分类任务采取差异化分类策略与分类模型，显著提升了染色体分类精度和模型鲁棒性。

关键词: 染色体级联分类, 特征增强, 纹理增强模块, 图像超分辨率, 通道注意力机制

CLC Number:

TP391.41

Wen PENG, Bokai ZHANG, Jinwei LIN. Chromosome cascaded classification framework integrating image texture enhancement and super-resolution[J]. Journal of Computer Applications, 2026, 46(5): 1647-1657.

彭文, 张博凯, 林金炜. 融合图像纹理增强与超分辨率的染色体级联分类框架[J]. 《计算机应用》唯一官方网站, 2026, 46(5): 1647-1657.

Figures/Tables 22

References 36

[1]	冯涛，陈斌，张跃飞. 基于改进的Mask R-CNN的染色体图像分割框架［J］. 计算机应用， 2020， 40（11）： 3332-3339.
	FENG T， CHEN B， ZHANG Y F. Chromosome image segmentation framework based on improved Mask R-CNN［J］. Journal of Computer Applications， 2020， 40（11）： 3332-3339.
[2]	LIN C， ZHAO G， YIN A， et al. A multi-stages chromosome segmentation and mixed classification method for chromosome automatic karyotyping［C］// Proceedings of the 2020 International Conference on Web Information Systems and Applications， LNCS 12432. Cham： Springer， 2020： 365-376.
[3]	SOMASUNDARAM D， MADIAN N， GOH K M， et al. Chromosome segmentation and classification： an updated review［J］. Knowledge and Information Systems， 2025， 67（2）： 977-1011.
[4]	ABID F， HAMAMI L. A survey of neural network based automated systems for human chromosome classification［J］. Artificial Intelligence Review， 2018， 49（1）： 41-56.
[5]	LeCUN Y， BOSER B， DENKER J S， et al. Backpropagation applied to handwritten Zip code recognition［J］. Neural Computation， 1989， 1（4）： 541-551.
[6]	KRIZHEVSKY A， SUTSKEVER I， HINTON G E. ImageNet classification with deep convolutional neural networks［C］// Proceedings of the 25th International Conference on Neural Information Processing Systems — Volume 1. Red Hook： Curran Associates Inc.， 2012： 1097-1105.
[7]	SHARMA M， SAHA O， SRIRAMAN A， et al. Crowdsourcing for chromosome segmentation and deep classification［C］// Proceedings of the 2017 IEEE Conference on Computer Vision and Pattern Recognition Workshops. Piscataway： IEEE， 2017： 786-793.
[8]	ZHANG W， SONG S， BAI T， et al. Chromosome classification with convolutional neural network based deep learning［C］// Proceedings of the 11th International Congress on Image and Signal Processing， BioMedical Engineering and Informatics. Piscataway： IEEE， 2018： 1-5.
[9]	HU X， YI W， JIANG L， et al. Classification of metaphase chromosomes using deep convolutional neural network［J］. Journal of Computational Biology， 2019， 26（5）： 473-484.
[10]	LIN C， ZHAO G， YIN A， et al. MixNet： a better promising approach for chromosome classification based on aggregated residual architecture［C］// Proceedings of the 2020 International Conference on Computer Vision， Image and Deep Learning. Piscataway： IEEE， 2020： 313-318.
[11]	XIE S， GIRSHICK R， DOLLÁR P， et al. Aggregated residual transformations for deep neural networks［C］// Proceedings of the 2017 IEEE Conference on Computer Vision and Pattern Recognition. Piscataway： IEEE， 2017： 5987-5995.
[12]	WANG C， HAN M， WU Y， et al. CNN based chromosome classification architecture for combined dataset［C］// Proceedings of the 6th International Conference on Communication， Image and Signal Processing. Piscataway： IEEE， 2021： 69-74.
[13]	HE K， ZHANG X， REN S， et al. Deep residual learning for image recognition［C］// Proceedings of the 2016 IEEE Conference on Computer Vision and Pattern Recognition. Piscataway： IEEE， 2016： 770-778.
[14]	HU J， SHEN L， SUN G. Squeeze-and-excitation networks［C］// Proceedings of the 2018 IEEE/CVF Conference on Computer Vision and Pattern Recognition. Piscataway： IEEE， 2018： 7132-7141.
[15]	SHARMA M， SWATI， VIG L. Automatic chromosome classification using deep attention based sequence learning of chromosome bands［C］// Proceedings of the 2018 International Joint Conference on Neural Networks. Piscataway： IEEE， 2018： 1-8.
[16]	HOCHREITER S， SCHMIDHUBER J. Long short-term memory［J］. Neural Computation， 1997， 9（8）： 1735-1780.
[17]	LIN C， ZHAO G， YANG Z， et al. CIR-Net： automatic classification of human chromosome based on Inception-ResNet architecture［J］. IEEE/ACM Transactions on Computational Biology and Bioinformatics， 2022， 19（3）： 1285-1293.
[18]	SZEGEDY C， IOFFE S， VANHOUCKE V， et al. Inception-v4， Inception-ResNet and the impact of residual connections on learning［C］// Proceedings of the 31st AAAI Conference on Artificial Intelligence. Palo Alto： AAAI Press， 2017： 4278-4284.
[19]	罗纯龙，赵屹. 染色体核型分析深度学习方法综述［J］. 中国图象图形学报， 2023， 28（11）： 3363-3385.
	LUO C L， ZHAO Y. Review of deep learning methods for karyotype analysis［J］. Journal of Image and Graphics， 2023， 28（11）： 3363-3385.
[20]	平金如，孙子文. 特征融合的MV2-Transformer肺炎X 光图像分类模型［J］. 计算机应用， 2025， 45（12）： 4030-4036.
	PING J R， SUN Z W. Pneumonia X-ray image classification model by MV2-Transformer with feature fusion［J］. Journal of Computer Applications， 2025， 45（12）： 4030-4036.
[21]	QIN Y， WEN J， ZHENG H， et al. Varifocal-Net： a chromosome classification approach using deep convolutional networks［J］. IEEE Transactions on Medical Imaging， 2019， 38（11）： 2569-2581.
[22]	彭文，林金伟. 基于空间信息关注和纹理增强的短小染色体分类方法［J］. 图学学报， 2024， 45（5）： 1017-1029.
	PENG W， LIN J W. A short chromosome classification method based on spatial attention and texture enhancement［J］. Journal of Graphics， 2024， 45（5）： 1017-1029.
[23]	ZHU L， JI D， ZHU S， et al. Learning statistical texture for semantic segmentation［C］// Proceedings of the 2021 IEEE/CVF Conference on Computer Vision and Pattern Recognition. Piscataway： IEEE， 2021： 12532-12541.
[24]	McGOWAN-JORDAN J， HASTINGS T J， MOORE S. ISCN 2020： an international system for human cytogenomic nomenclature （2020） reprint of ‘cytogenetic and genome research 2020， vol. 160， no. 7-8’［M］. Basel： Karger， 2020.
[25]	ZHANG Y， YE M， ZHU G， et al. FFCA-YOLO for small object detection in remote sensing images［J］. IEEE Transactions on Geoscience and Remote Sensing， 2024， 62： No.5611215.
[26]	GAO G， WANG Z， LI J， et al. Lightweight bimodal network for single-image super-resolution via symmetric CNN and recursive Transformer［C］// Proceedings of the 31st International Joint Conference on Artificial Intelligence. California： ijcai.org， 2022： 913-919.
[27]	DING W， CHANG L， GU C， et al. Classification of chromosome karyotype based on Faster-RCNN with the segmentation and enhancement preprocessing model［C］// Proceedings of the 12th International Congress on Image and Signal Processing， BioMedical Engineering and Informatics. Piscataway： IEEE， 2019： 1-5.
[28]	SWATI S， SHARMA M， VIG L. Automatic classification of low resolution chromosomal images［C］// Proceedings of the 2018 European Conference on Computer Vision Workshops， LNCS 11134. Cham： Springer， 2019： 315-325.
[29]	LIU X， FU L， LIN C W J， et al. SRAS-net： low-resolution chromosome image classification based on deep learning［J］. IET Systems Biology， 2022， 16（3/4）： 85-97.
[30]	CHOLLET F. Xception： deep learning with depthwise separable convolutions［C］// Proceedings of the 2017 IEEE Conference on Computer Vision and Pattern Recognition. Piscataway： IEEE， 2017： 1800-1807.
[31]	TAN M， LE Q V. EfficientNet： rethinking model scaling for convolutional neural networks［C］// Proceedings of the 36th International Conference on Machine Learning. New York： JMLR.org， 2019： 6105-6114.
[32]	DONG C， LOY C C， HE K， et al. Image super-resolution using deep convolutional networks［J］. IEEE Transactions on Pattern Analysis and Machine Intelligence， 2016， 38（2）： 295-307.
[33]	LEDIG C， THEIS L， HUSZÁR F， et al. Photo-realistic single image super-resolution using a generative adversarial network［C］// Proceedings of the 2017 IEEE Conference on Computer Vision and Pattern Recognition. Piscataway： IEEE， 2017： 105-114.
[34]	LAI W S， HUANG J B， AHUJA N， et al. Deep Laplacian pyramid networks for fast and accurate super-resolution［C］//Proceedings of the 2017 IEEE Conference on Computer Vision and Pattern Recognition. Piscataway： IEEE， 2017： 5835-5843.
[35]	LIM B， SON S， KIM H， et al. Enhanced deep residual networks for single image super-resolution［C］// Proceedings of the 2017 IEEE Conference on Computer Vision and Pattern Recognition Workshops. Piscataway： IEEE， 2017： 1132-1140.
[36]	SELVARAJU R R， COGSWELL M， DAS A， et al. Grad-CAM： visual explanations from deep networks via gradient-based localization［C］// Proceedings of the 2017 IEEE International Conference on Computer Vision. Piscataway： IEEE， 2017： 618-626.

分类任务	长染色体数	短小染色体数	总数
染色体粗分类	31 773	14 590	46 363
长染色体细分类	31 773		31 773
短小染色体细分类		45 931	45 931
染色体分类	31 773	14 590	46 363

分类任务	长染色体数	短小染色体数	总数
染色体粗分类	31 773	14 590	46 363
长染色体细分类	31 773		31 773
短小染色体细分类		45 931	45 931
染色体分类	31 773	14 590	46 363

方法	Acc	P	R	F₁
SwinTransformer-small	98.81	98.58	98.66	98.62
ResNet18	99.13	99.18	98.81	98.99
Inception-ResNetV2	99.24	99.45	98.80	99.12
SIATE-Net	99.33	99.31	99.09	99.20
ResNet50	99.57	99.59	99.41	99.50
EfficientNet-B4	100.00	100.00	100.00	100.00

方法	Acc	P	R	F₁
SwinTransformer-small	98.81	98.58	98.66	98.62
ResNet18	99.13	99.18	98.81	98.99
Inception-ResNetV2	99.24	99.45	98.80	99.12
SIATE-Net	99.33	99.31	99.09	99.20
ResNet50	99.57	99.59	99.41	99.50
EfficientNet-B4	100.00	100.00	100.00	100.00

方法	Acc	P	R	F₁
EfficientNet-B4	98.89	98.95	98.67	98.77
FEM-EfficientNet-B4	99.05	99.03	99.00	99.01
